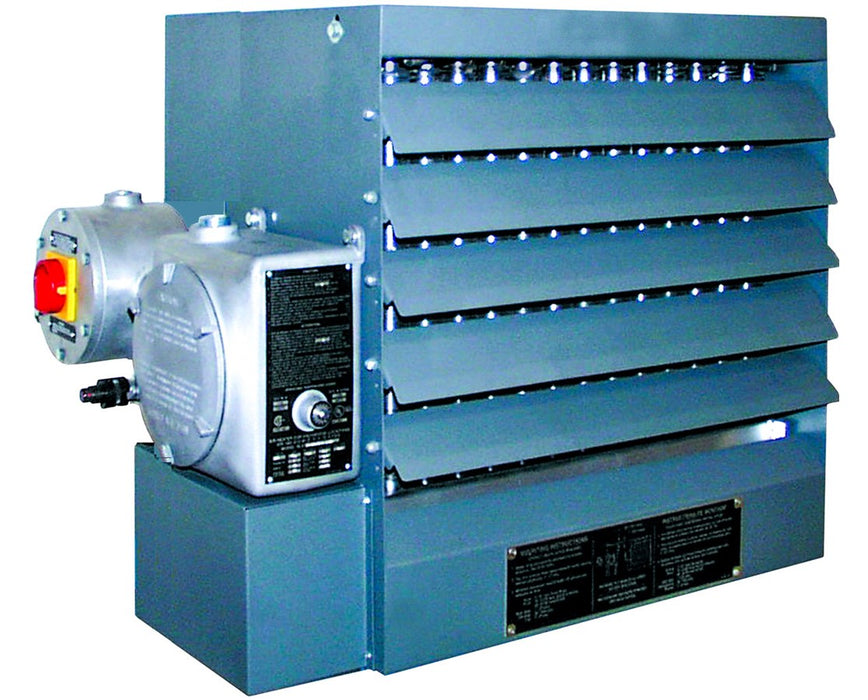

HLA Hazardous Location Fan Forced Unit Heater

by TPI Corporation

MFR#: HLA122081603.024

TIGER#: TS59521

List Price: $14,152.00

You Save: $3,435.00 -24%

$14,152.00 - $14,152.00

List Price: $14,152.00

$10,717.00

$10,717.00 - $10,717.00

$10,717.00

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

HLA Hazardous Location Fan Forced Unit Heater - $10,717.00

$10,717.00

*Must Purchase 1 for HLA Hazardous Location Fan Forced Unit Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 11/1/2023

Documents

Product Manual Item Brochure Product Video

Choice of heater wattage, energy, voltage & phase
Designed for rugged industrial applications in hazardous locations
High-performance electric motor
Motor speed up to 1,725 RPM
Manual reset capillary-type limit
Copper conductor wire
Optional factory-wired integral thermostat
Stainless steel and aluminum pressure relief valve

Designed for rugged industrial applications, the TPI HLA Series Hazardous Location Fan Forced Unit Heater is a heating machine that circulates heat around an area, especially in hazardous locations where there is a possibility of explosion or fire. This fan-forced unit heater uses Ethylene Glycol solution as a heat transfer liquid to provide freeze damage protection. It features a high-performance electric motor that offers a speed of up to 1,725 revolutions per minute (RPM).

This TPI HLA series has a manual reset capillary-type limit that supports high-temperature regulation and presents a rating for 6,000 cycles of service. It features copper conductor wires that are contained in rigid metal conduits that bring electrical power. The TPI fan-forced unit heater comes with an optional factory-wired integral thermostat for a hassle-free temperature adjustment.

The TPI heater is made of painted carbon steel with aluminum fins liquid heat exchanger. For overpressure, it has a stainless steel and aluminum pressure relief valve and a narrow gap safety fan guard shields. As an additional feature, the HLA series heater comes with furnished box lugs for field connections within an approved enclosure.

Configuration Options

The TPI HLA Series Hazardous Location Fan Forced Unit Heater has 27 available models that offer varying features such as heater wattage, energy (expressed in BTU, British Thermal Unit), voltage and phase. Please select your preference from the menus above.

Heater Wattage	BTUs	Volts	PH	Amps	Temperature Rise (°F)	Airthrow	CFM	Recommended Mounting Height	Dimensions (L x W x H)
3 kW	10,250	208 208 240 240 480	1 3 1 3 3	16.3 9.8 14.8 8.6 4.3	16.5	24'	580	8'	1-Phase: 17.75” x 20.63” x 14” 3-Phase: 17.75” x 19.75” x 14”
5 kW	17,100	208 208 240 240 480	1 3 1 3 3	26 15.4 23.1 13.4 6.7	27.6
7.5 kW	25,600	208 208 240 240 480	1 3 1 3 3	38 22.3 33.6 19.4 9.7	41.4
10 kW	34,150	208 240 240 480	3 1 3 3	29.3 44 25.5 12.7	21.7	40'	1,500	10'	1-Phase: 20.75" x 21.63" x 18" 3-Phase: 20.75" x 20.75" x 18"
15 kW	51,200	208 240 480 600	3	43.5 38.1 19 15.2	19.2	43'	2,450	13'	3-Phase: 24.75" x 22.5" x 22"
20 kW	68,300	480 600	3	25.1 20	26.2
25 kW	85,400	480 600	3	31.1 24.9	32.8

Choice of heater wattage, energy, voltage & phase
Designed for rugged industrial applications in hazardous locations
Uses Ethylene Glycol solution as heat transfer liquid
High-performance electric motor
Motor speed up to 1,725 RPM
Manual reset capillary-type limit
Copper conductor wire
Optional factory-wired integral thermostat
Painted carbon steel with aluminum fins liquid heat exchanger
Stainless steel and aluminum pressure relief valve
Narrow gap safety fan guard shields
Furnished box lugs

What’s in the Box

TPI HLA Series Hazardous Location Fan Forced Unit Heater
Backup contactor
1-year limited warranty

Available Package Options

Heater Wattage (kW): 3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW or 25 kW
Energy (BTU): 10,250, 17,100, 25,600, 34,150, 51,200, 68,300 or 85,400
Voltage: 208 V, 240 V, 480 V or 600 V
Phase: 1-Phase or 3-Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater

Adjustable Louves

Yes

Fan Guards

Plated

Control Enclosure

Average Temperature Rise

16.5 °F (3-kW models); 27.6 °F (5-kW models); 41.4 °F (7.5-kw models); 21.7 °F (10-kW models); 19.2 °F (15-kW); 26.2 °F (20-kW models); 32.8 °F (25-kW models)

Control Voltage

24 V

Rating Cycles

6,000 cycles

Transformer

Internal class II

Dimensions

Heater

17.75” L x 19.75” W x 14” H (HLA 12, 3 Phase); 17.75” L x 20.63” W x 14” H (HLA 12, 1 Phase); 20.75” L x 20.75” W x 18” H (HLA 16, 3 Phase); 20.75” L x 21.63” W x 18” H (HLA 16, 1 Phase); 24.75” L x 22.5” W x 22” H (HLA 20, 3 Phase)

Features

Cart

Disconnect Switch

Yes

Forklift Channels

Pilot Light

Optional

Thermostat

Optional

General

Capillary Type Manual Reset Thermal

Up to 6,000 cycles

Finish/Coating

Epoxy textured powder-coat

Hazardous Location Rating

Class I, Group C & D Division 1 & 2 and Class II Groups E, F, & G Divisions 1 & 2

Housing

14 gauge steel

Warranty

1-year limited

Weight

167 lbs (3-kW, 5-kW or 7.5-kW models); 193 lbs (10-kW, 15-kW models); 225 lbs (20-kW, 25-kW models)

Heater

Air Throw

24’ (3-kW, 5-kW, 7.5-kW models); 40’ (10-kW models); 43’ (15-kW, 20-kW or 25-kW models)

Amps

4.3, 6.7, 8.6, 9.7, 9.8, 12.7, 13.4, 14.8, 15.2, 15.4, 16.3, 19, 19.4, 20, 22.3, 23.1, 24.9, 25.1, 25.5, 26, 29.3, 31.1, 33.6, 38, 38.1, 43.5, 44

BTU

10,250 BTU, 17,100 BTU, 25,600 BTU, 34,150 BTU, 51,200 BTU, 68,399 BTU, 85,400 BTU

CFM

580 (3-kW, 5-kW, 7.5-kW models); 1,500 (10-kW models); 2,450 (15-kW, 20-kW or 25-kW models)

Power Distribution

1-Phase

Voltage

208 V, 240 V, 480 V, 600 V

Wattage

3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW, 25 kW

Motor

Bearing Type

Ball bearing

Capacitor Type

Permanent split

Frequency

60 Hz

Speed

1,725 RPM
