Heavy Duty Tall Infiltration Rings

TIGER#: TS70837
Original price $500.00 - Original price $500.00
Original price List Price: $500.00
$585.00 - $585.00
Current price $585.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Heavy Duty Tall Infiltration Rings
Heavy Duty Tall Infiltration Rings - $585.00
*Must Purchase 1 for Heavy Duty Tall Infiltration Rings

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 10/8/2023

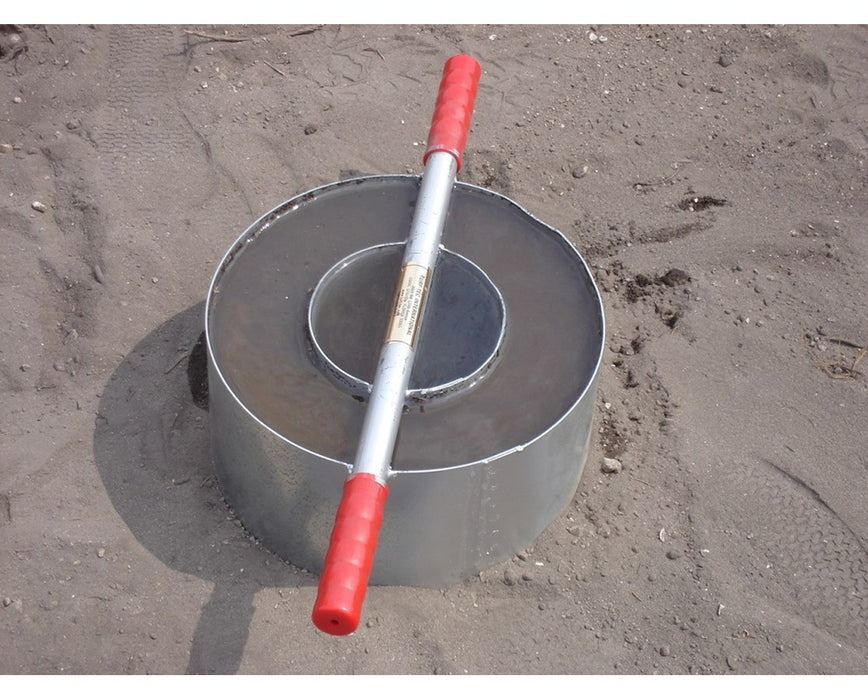

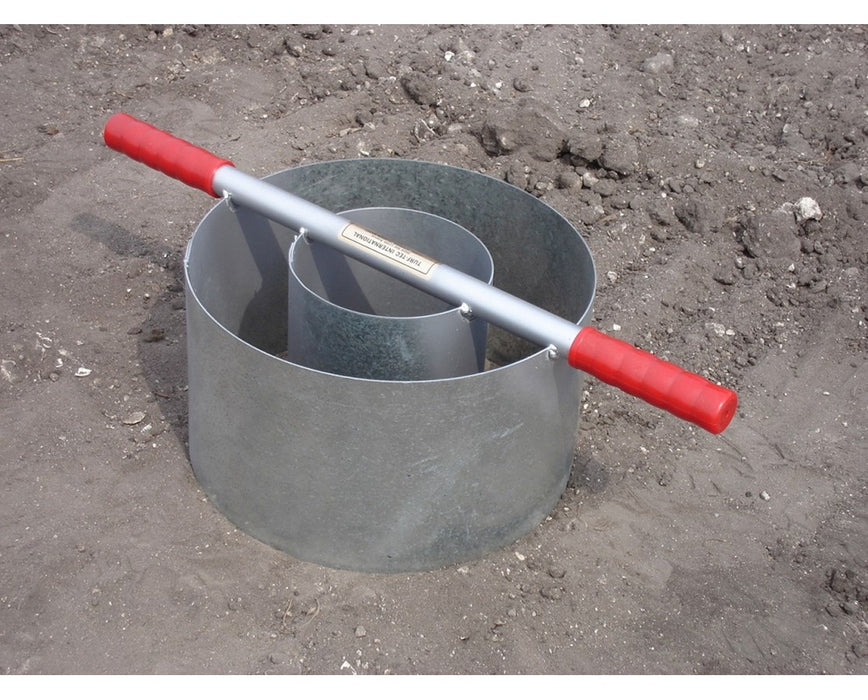

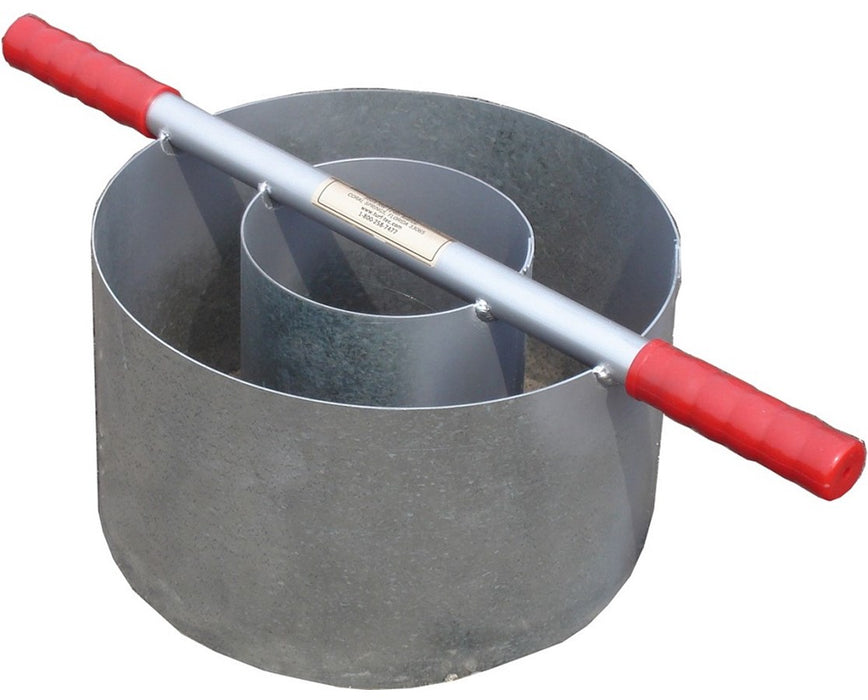

Composed of a 6-inch inner ring and a 12-inch outer ring with a 7-inch height, the Turf-Tec Heavy Duty Tall Infiltration Rings measure field infiltration rates. This instrument checks water penetration on drain fields, forestry, golf courses, sports fields, and construction sites in as fast as 15 minutes.

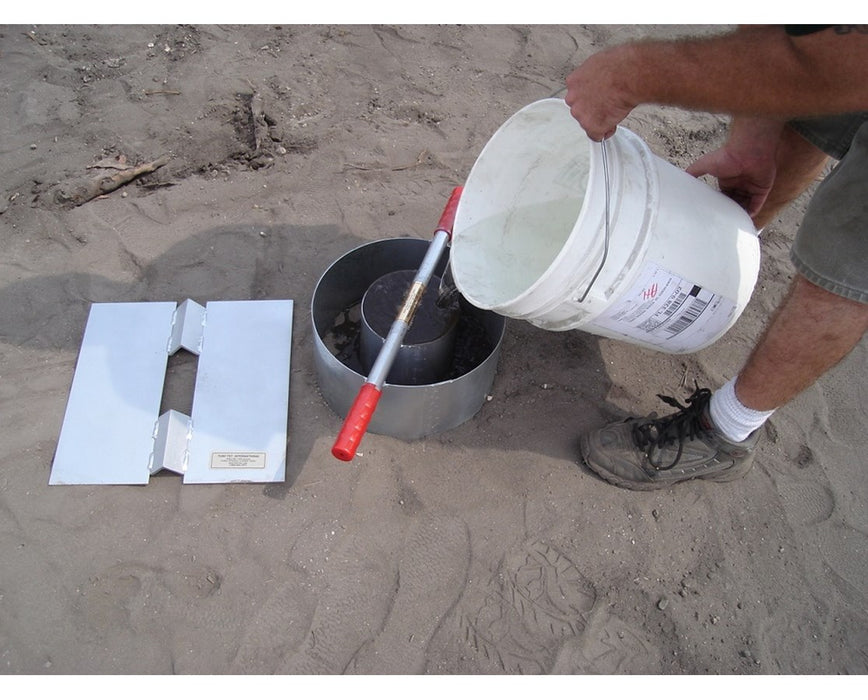

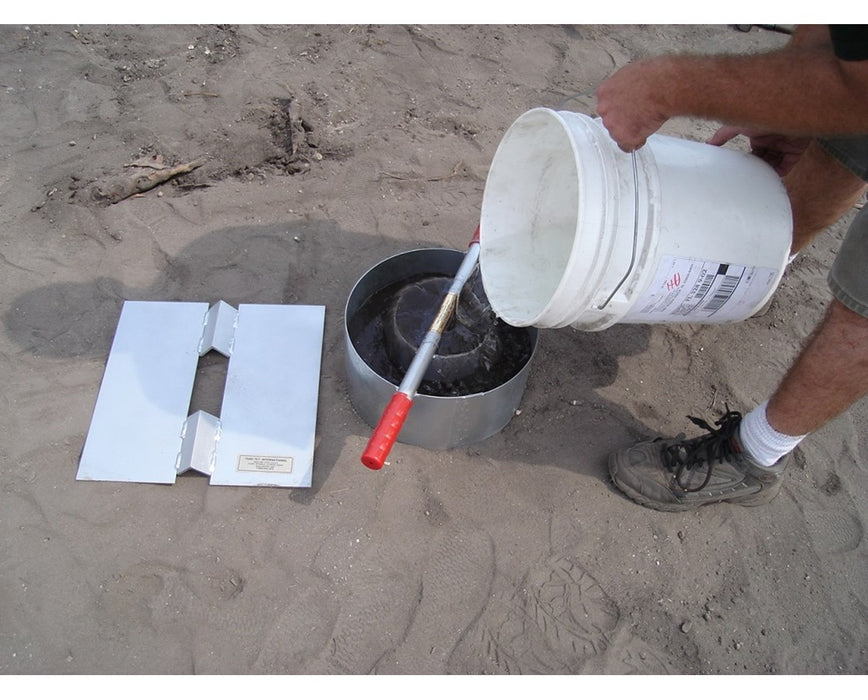

This double-ring infiltrometer is built with heavy-duty 16 gauge galvanized steel to prevent rust and designed with a welded gripped handle for easy soil insertion. Because of its durable construction, this instrument is ideal for rocky and hard soil types. When inserted 2 inches deep into the soil, it allows 5 inches of water on the surface with its double rings ensuring accuracy. An optional port for Mariotte Tubes attachments helps in measuring liquid flow during the infiltration test.

The Turf-Tec tall infiltration rings produce no damage to the soil and are covered with a 1-year limited warranty. These are durably made in the USA and conforms to the 2006 Pennsylvania Stormwater Best Management Practices Manual.

Configuration Options

The Turf-Tec Heavy Duty Tall Infiltration Rings offer two different packages. Please select your preference from the menu above.

  • IN8-W: Turf-Tec Heavy Duty Tall Infiltration Rings
  • IN8P-W: Turf-Tec Heavy Duty Tall Infiltration Rings with 0.5” Port for Mariotte Tubes


  • Double ring accuracy
  • Rust-proof 16 gauge galvanized metal
  • 6-inch and 12-inch rings (15.24 cm X 30.48 cm)
  • Tall 7-inch ring height

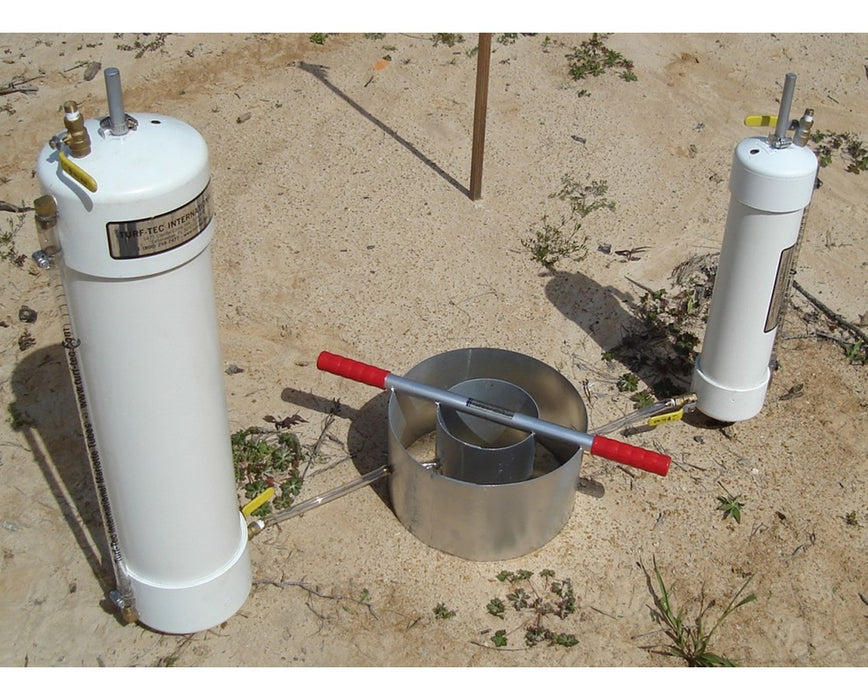

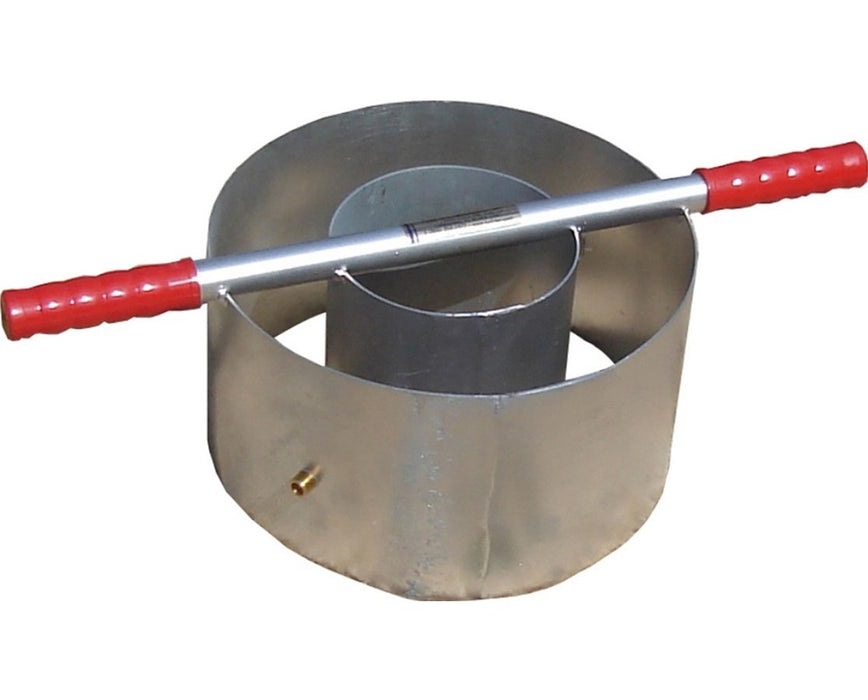

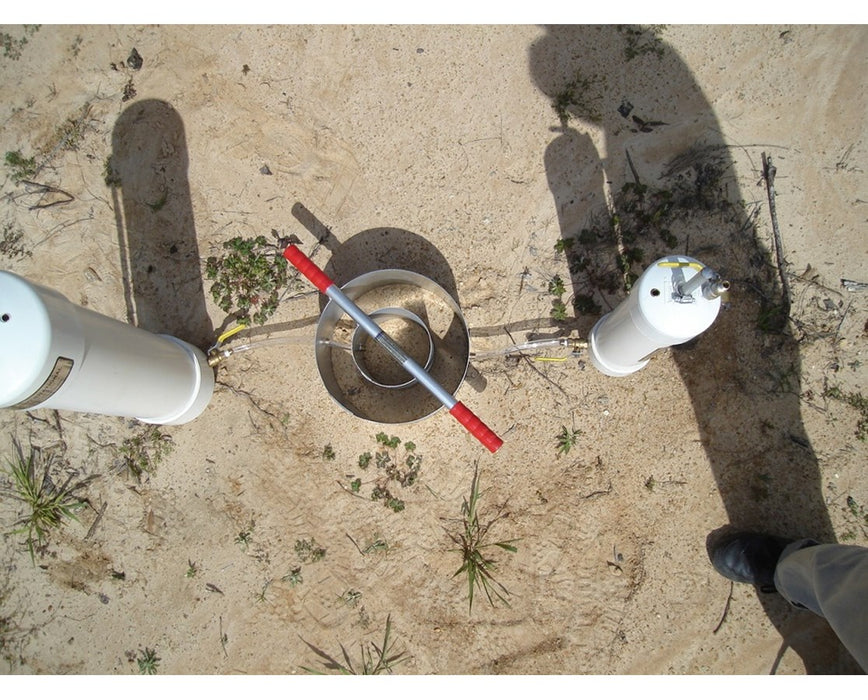

  • Option of 0.5” port for Mariotte Tubes
  • Welded rings for proper placing
  • Ideal for hard soil types
  • Weight: 14 lbs. (6.8 kg)
  • Sturdy construction
  • Easy to use

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 30% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Inner Ring Diameter
Mariotte Tubes Port
0, 2
Outer Ring Diameter
Ring Height
Steel Gauge
Unit Weight
14 lbs.
