GL422N Dual Grade Laser With Vertical Alignment

MFR#: GL422N-BCC
TIGER#: TS29415
Original price List Price: $2,100.00
You Save: $398.99 -19%
Original price $2,100.00 - Original price $2,100.00
Original price List Price: $2,100.00
Current price $1,701.01
$1,701.01 - $1,701.01
Current price $1,701.01
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
GL422N Dual Grade Laser With Vertical Alignment
GL422N Dual Grade Laser With Vertical Alignment - $1,701.01
$1,701.01
*Must Purchase 1 for GL422N Dual Grade Laser With Vertical Alignment

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Free Shipping (USA) Ships Out Within: 24 - 48 Hours Shipping Date By: 10/1/2023
Essential Add-Ons:
Aluminum Rod
Aluminum Rod
Details
$33.95
$44.95
Universal Contractor’s Tripod
Universal Contractor’s Tripod
Details
$52.20
$149.95
  • Range up to 2,600 feet with laser receiver
  • Accuracy ±1/16 inch at 100 feet
  • Self-leveling within ±5 degrees
  • Dual grade from –10 to +15%
  • Height of instrument alert
  • Optional RC402N radio remote control
  • Graphic LCD display and keypad
  • Ideal for machine control applications

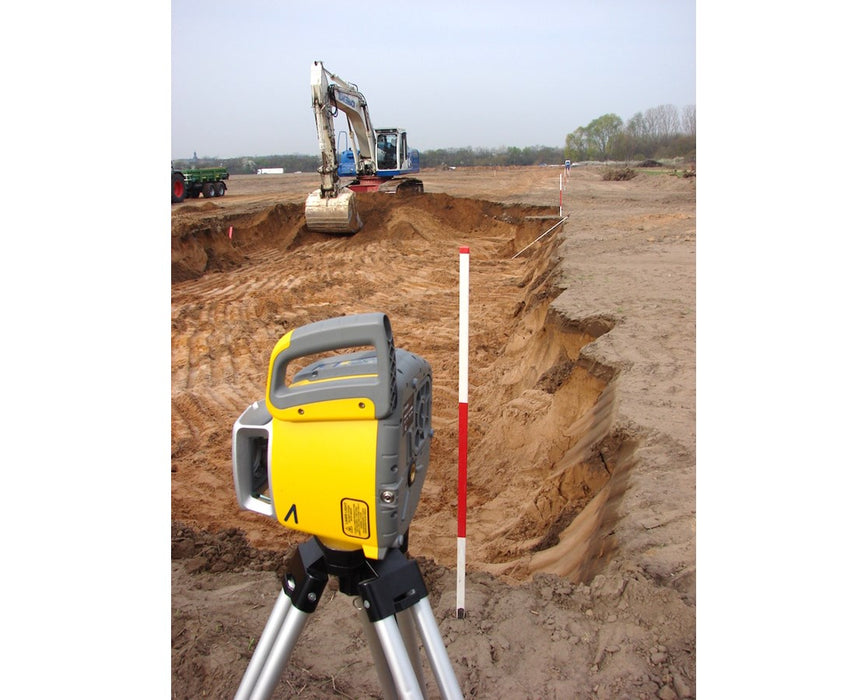

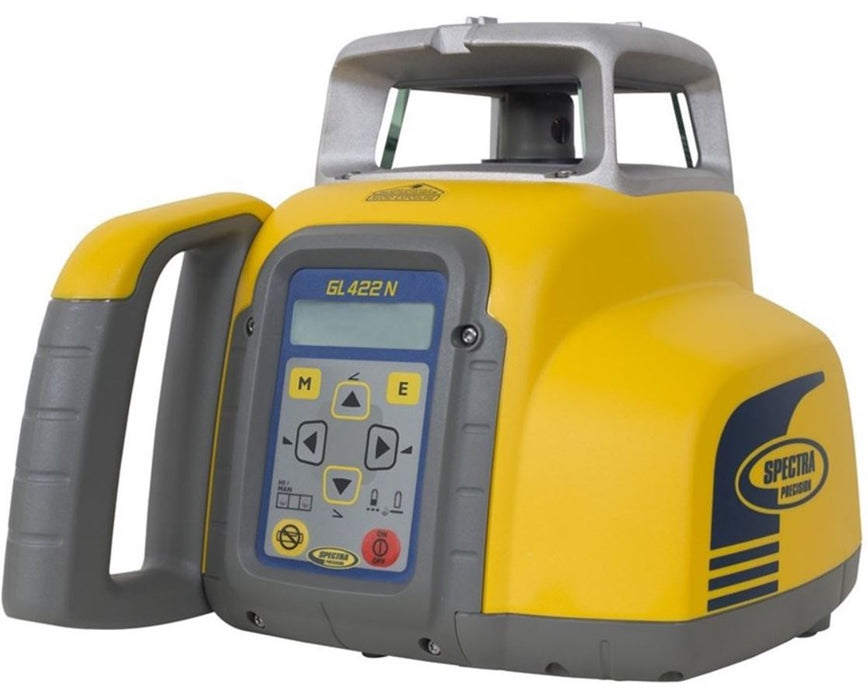

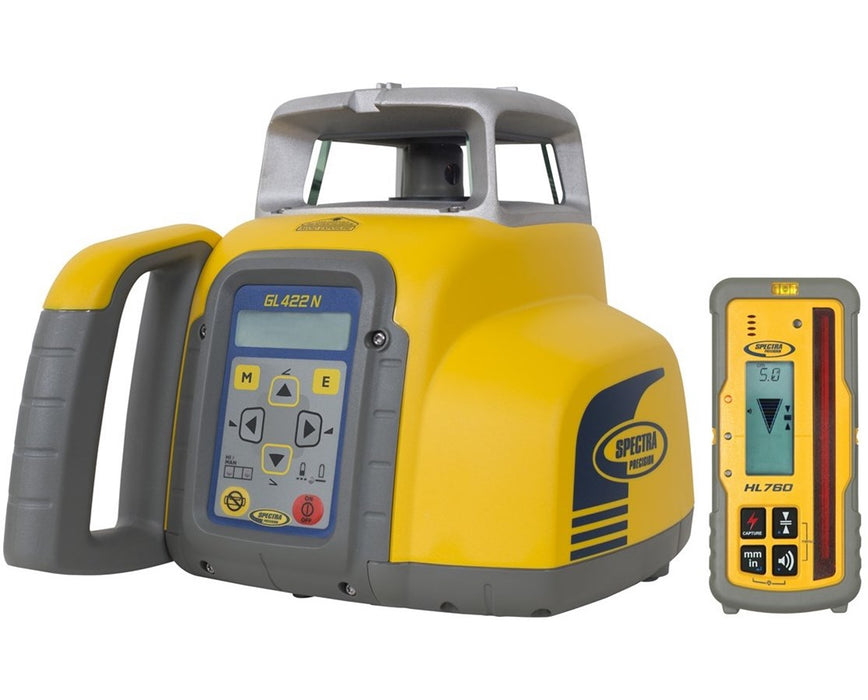

The Spectra Precision GL422N Dual Grade Laser was designed for a wide range of general construction, site preparation, and excavations. This ruggedized, automatic slope laser provides contractors with accurate leveling, grade, and vertical alignment. With a working range of up to 2,600 feet, it has a grade capability of –10 to +15 percent on both axes. The GL422N is also self-leveling horizontally and vertically within ±5 degrees and has an accuracy of ±1/16 inch per 100 feet. For anchor bolt and form alignment, it self-plumbs in the vertical position and can be mounted on a 5/8-11 tripod thread vertically or horizontally.

The Spectra GL422N has an out-of-level alert that shuts off the grade laser if it is knocked out of place to prevent inaccurate readings. It also has a selection of sensitivity for accurate results even in high winds or on high vibration job sites.

With an IP66 rating, this laser level is dustproof and can be used in heavy rain. It can also withstand drops of up to three feet onto concrete and tripod tip-overs up to five feet. This slope laser uses NiMH batteries and works up to 35 hours of continuous use.

Configuration Options

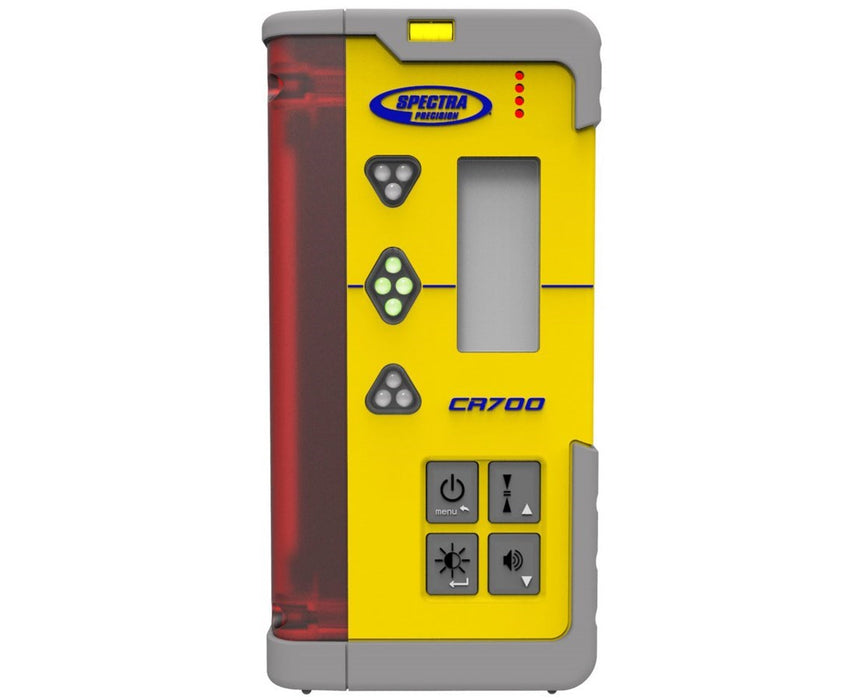

The optional Spectra CR700 is ideal for measuring cut and fill, leveling forms and footers, setting grade, and measuring elevation changes. Using the magnetic mount, this machine control receiver can be easily attached to a backhoe, small excavator, box blade, or skid steer loader.

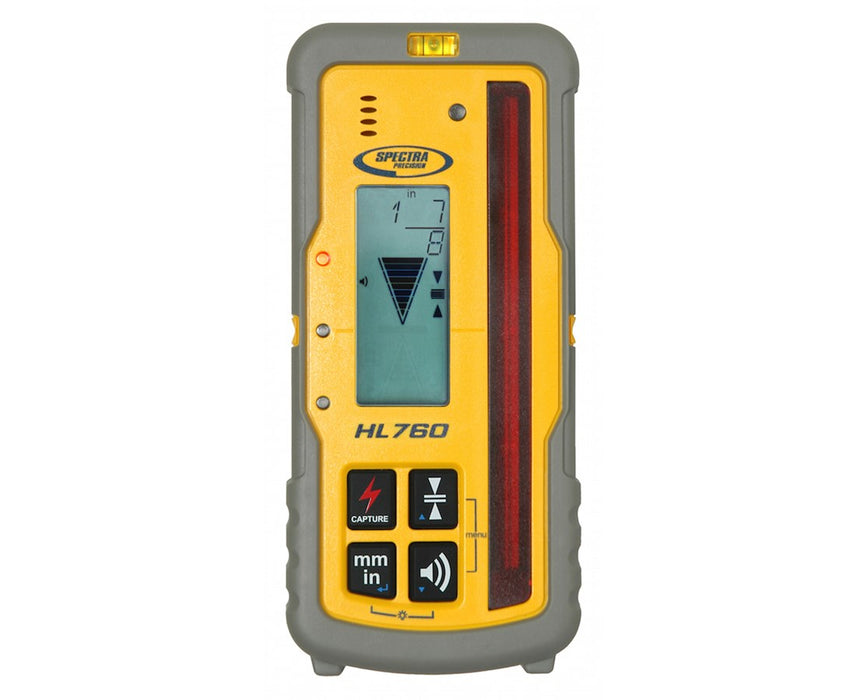

Another optional receiver is the Spectra HL760 which features a digital readout of elevation and unique fingerprint function, This laser receiver also provides automatic grade matching and PlaneLok to eliminate manual slope adjustments and errors due to improper calibration or weather.

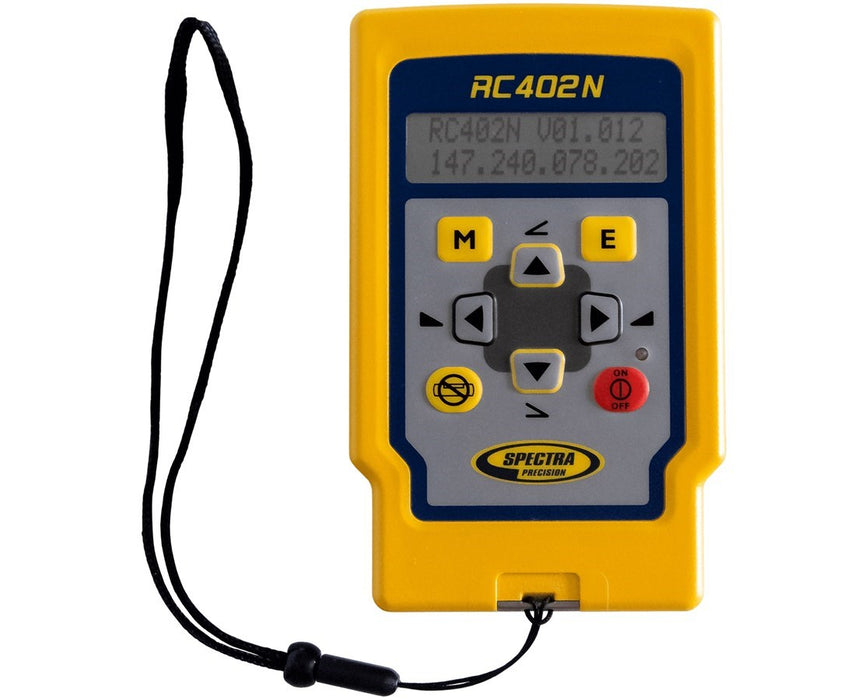

The Spectra GL422N also has an optional RC402N full-function remote control that offers an easy to use menu-driven interface. With a working range of up to 330 feet, this radio remote gives the ability to make long-range grade changes and automatic alignments. Please select your preference from the menu above.

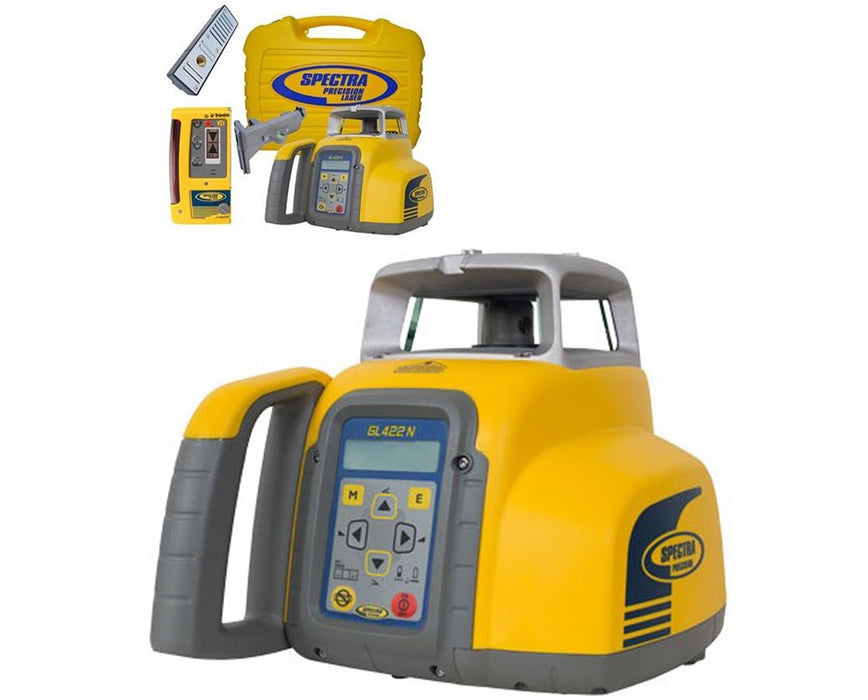

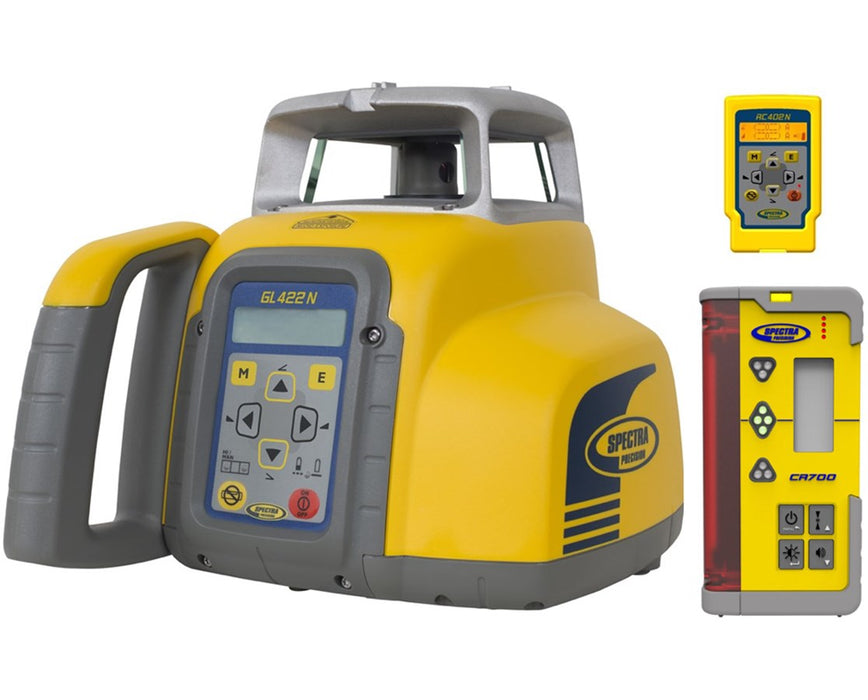

  • GL422N-14: With CR700 Receiver w/ Magnetic Mount & RC402N Remote Control

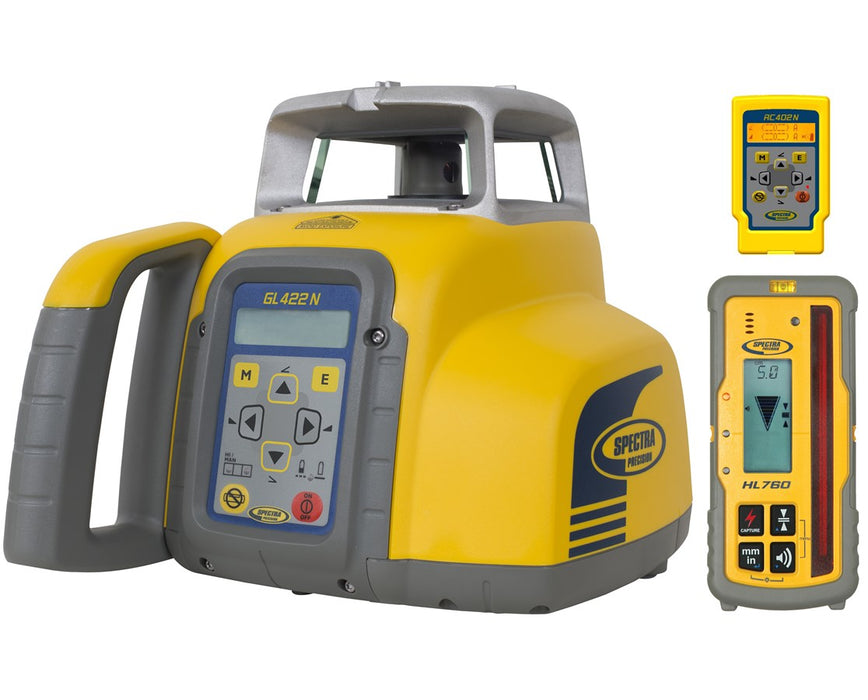

  • GL422N: With HL760 Receiver & RC402N Remote Control
  • GL422N-NR: With HL760 Receiver Only
No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
Shock Proof ensures this construction laser withstands a three feet drop onto concrete.
Included Radio Remote control is easier to use because it does not have to be aimed at the laser for it to work. This increases the flexibility of the laser for long-range setups while maintaining outstanding accuracy.
Fingerprint function filters out other lasers that strike the receiver and only accept the laser that it is paired with.
Grade Match enables contractors to measure an unknown grade value automatically between two elevation points.

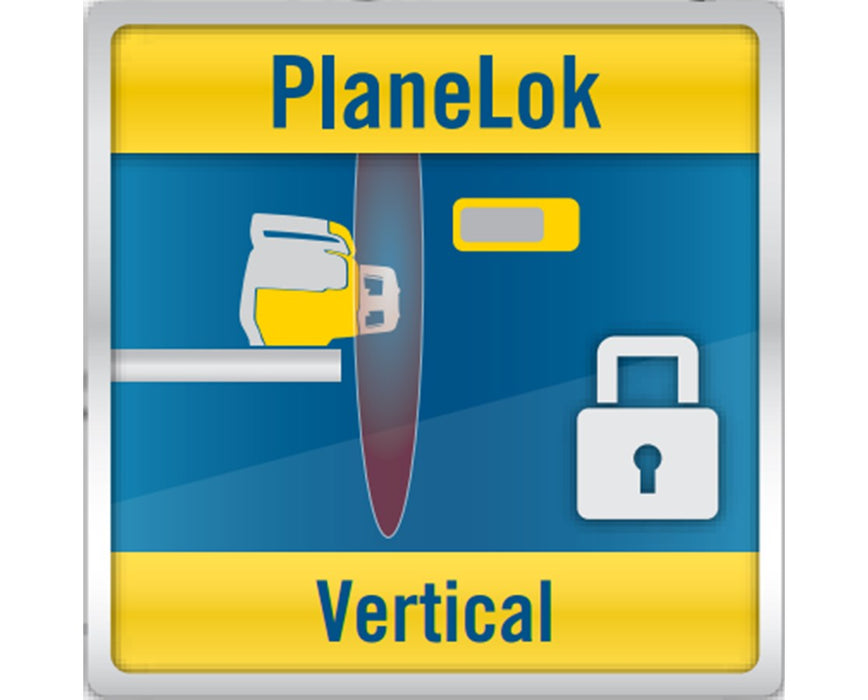

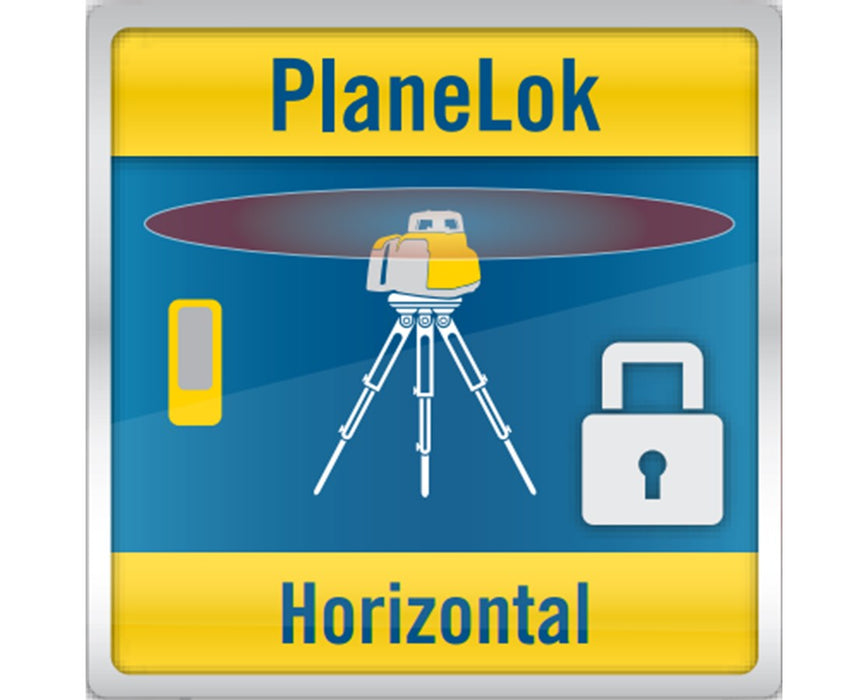

Dual Axis PlaneLok keeps the laser beam fixed to a receiver in a set position, making it accurate and error-free.

Scroll back to Top

  • Choice of 3 package options
  • Automatic horizontal and vertical self-leveling
  • Up to 2,600-foot range with laser receiver
  • ±1/16 inch accuracy at 100 feet
  • Self-leveling within ±5 degrees
  • Vertical plumb alignment
  • Dual grade from –10 to +15%
  • Includes laser detector
  • Long range RC402N radio remote control (optional)
  • Ideal for machine control applications
  • Survives a drop up to 3 feet onto concrete and tripod tip-overs up to 5 feet
  • Graphic LCD display and keypad
  • Up to 35-hour NiMH battery life
  • Water resistant and dustproof to IP66
  • 5/8-11 tripod thread
  • 5-year warranty

What’s in the Box

  • Spectra GL422N Dual Grade Laser
  • Vertical Adapter
  • Q104234 NiMH Rechargeable Batteries
  • 95720-00 Worldwide Charger
  • Small Hard Carrying Case
  • Multi-Language CD
  • User Manual
  • 5-Year Manufacturer's Warranty

Available Package Options:

  • CR700 Receiver w/ Magnetic Mount & Detector Rod Clamp
  • HL760 Receiver w/ Detector Rod Clamp
  • RC402N Remote Control

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Accuracy
Horizontal
±1/16 inch at 100 feet
Vertical
±1/16 inch at 100 feet
Applications
Concrete Forms, Footings and Foundations
Yes
Checking Building Square & Area
Yes
Checking/Setting Elevations
Yes
Estimating Cut & Fill
Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
Yes
Installation/Leveling Ceiling Grids
Yes
Installation/Leveling Interior Walls
Yes
Locating Finished Floor Levels
Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment
Yes
Matching Existing Slope & Grade
Yes
Short-Range Leveling for Decks, Patios & Swimming Pools
Yes
Short-Run Vertical Alignment
Yes
Squaring and Layout of Partitions, Walls & Tile Floors
Yes
Transferring Points from Floor to Ceiling
Yes
Battery/Power
Battery Life Alert
Yes
Battery Life with Alkaline Batteries
Up to 50 hours
Battery Life with Rechargeable Battery Pack
Up to 35 hours
Power Source
NiMH or alkaline batteries
Extra Technology
Detector/Receiver
HL760 or CR700
Remote Control
RC402N
Features
Adjustable Rotating Speed
300, 600 RPM
Bump Sensor (H.I./Out of Position Alert)
Yes
Drop Damage Protection
Up to 3 feet onto concrete
Protection Class
IP66 dustproof and powerful water jet resistant
Tripod Adapter (Center Screw Thread)
5/8 x 11
Functions
Automatic Leveling
Yes
Grade Operation
Automatic
Slope Match
Yes
General
Maximum Power Output
<3.4 mW
Remote Control Operating Distance
Up to 330 feeet (100 m)
Warranty
5-year
Weight
6.8 lbs (3.1 kg)
Grade
Percentage
–10 to +15%
Type
Dual
Laser
Classification
Class 2
Color
Red
Direction
Horizontal and vertical
Visibility
Visible
Wavelength
650 nm
Range
Exterior
Up to 2,600 feet (800m)
Self Leveling
±5 degrees
Temperature
Operating
-4 to 122 °F (-20 to 50 °C)
Storage
-4 to 158 °F (-20 to 70 °C)
