FSS Heavy-Duty Overhead Infrared Heater w/ Panel Emitter

by TPI Corporation

MFR#: FSS14121

TIGER#: TS61867

List Price: $1,218.00

You Save: $295.66 -24%

$1,218.00 - $1,218.00

List Price: $1,218.00

$922.34

$922.34 - $922.34

$922.34

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

FSS Heavy-Duty Overhead Infrared Heater w/ Panel Emitter - $922.34

$922.34

*Must Purchase 1 for FSS Heavy-Duty Overhead Infrared Heater w/ Panel Emitter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/31/2023

Choice of watts & volts
Heat pattern: 60°
Efficiency: 78.5%
Rugged flat panel emitter
High-density medium wave radiant heat
Wiring: Single or 3-phase option
Element life expectancy: 25,000 hours
Housing: Gold anodized Aluminum

The TPI FSS Series Heavy-Duty Overhead Infrared Heater w/ Panel Emitter is a reliable heat source that transfers energy using electromagnetic radiation. With a 60-degree heat pattern, this TPI infrared heater is great for indoor spot heating, zone or total area heating applications. It offers a 78.5% efficiency and 50% metal sheath element efficiency.

This TPI overhead infrared heater includes a high-density medium wave radiant heat and a rugged flat panel emitter with selectable wattages and volts. It comes with a single or three-phase wiring option which is perfect for high vibration areas. Also, the FSS Series heater consists of a heavy-duty wire guard factory and a field wiring box that is mounted on the heater.

The FSS Series infrared heater offers a 25,000-hour element life expectancy which guarantees long life. It boasts a Gold anodized Aluminum housing for effective, long-term reflectivity, and corrosion resistance. The FSS Series is shipped fully assembled and has L-brackets for rigid mounting or chain suspension.

Please Note: The FSS Models (FSS43203, FSS43243, FSS43483, FSS43573, FSS95203, FSS95243, FSS95483, FSS95573) have a single or 3-phase wiring option.

Configuration Options

The TPI FSS Series Heavy-Duty Overhead Infrared Heater w/ Panel Emitter has 21 available models that offer different element wattages and volts for your needs. Please select your preference from the menus above.

Model	Watts	BTU	Volts	Amps	Dimensions (L x W x H)

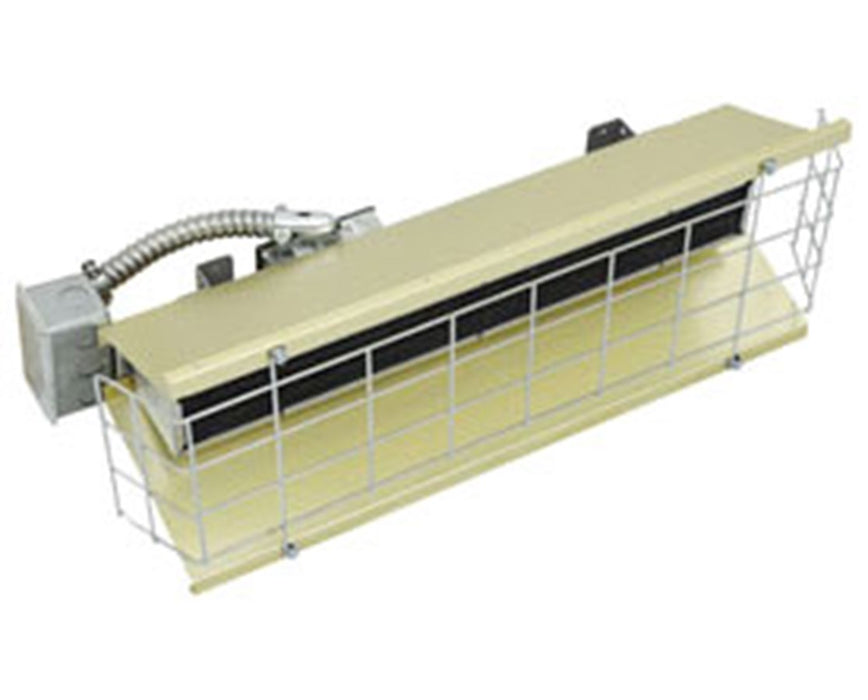

FSS-14	1,450	4,947	120 V, 1-Ph 208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 480 V, 1-Ph 600 V, 1-Ph	12.1 6.97 6.04 5.23 3.02 2.52	26" x 9" x 8.5"

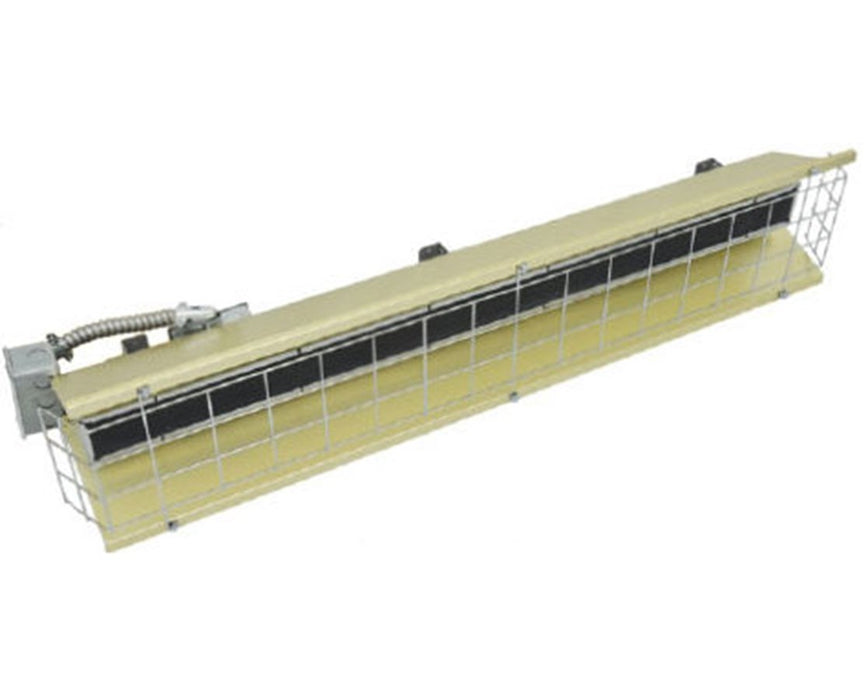

FSS-31	3,150	10,748	208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 480 V, 1-Ph 600 V, 1-Ph	15.14 13.13 11.37 6.56 5.48	46" x 9" x 8.5"

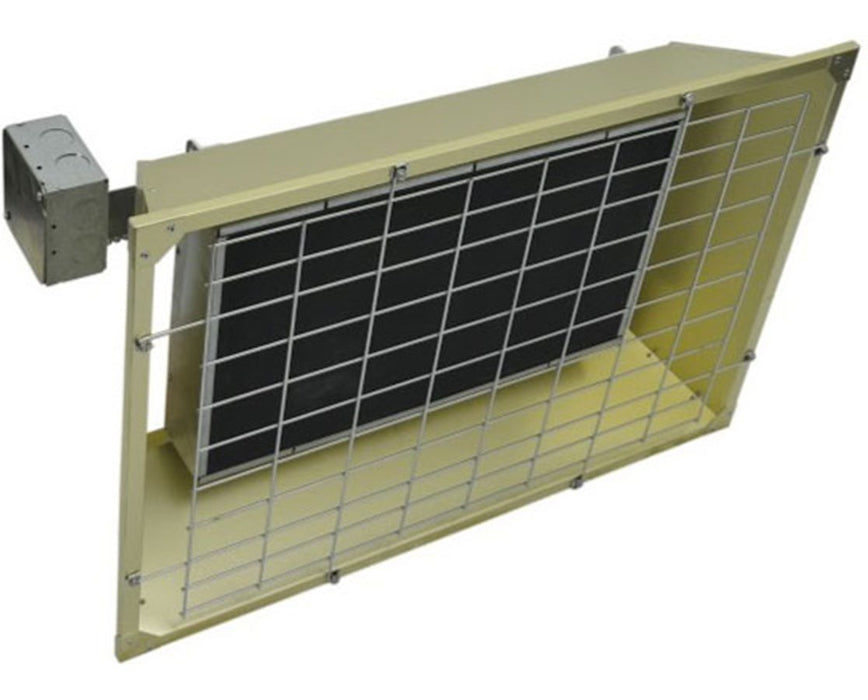

FSS-43	4,300	14,672	208 V 240 V 277 V, 1-Ph 480 V 600 V	20.67 / 11.94 17.91 / 10.36 15.52 8.96 / 5.18 7.48 / 4.32	29" x 20" x 9.75"

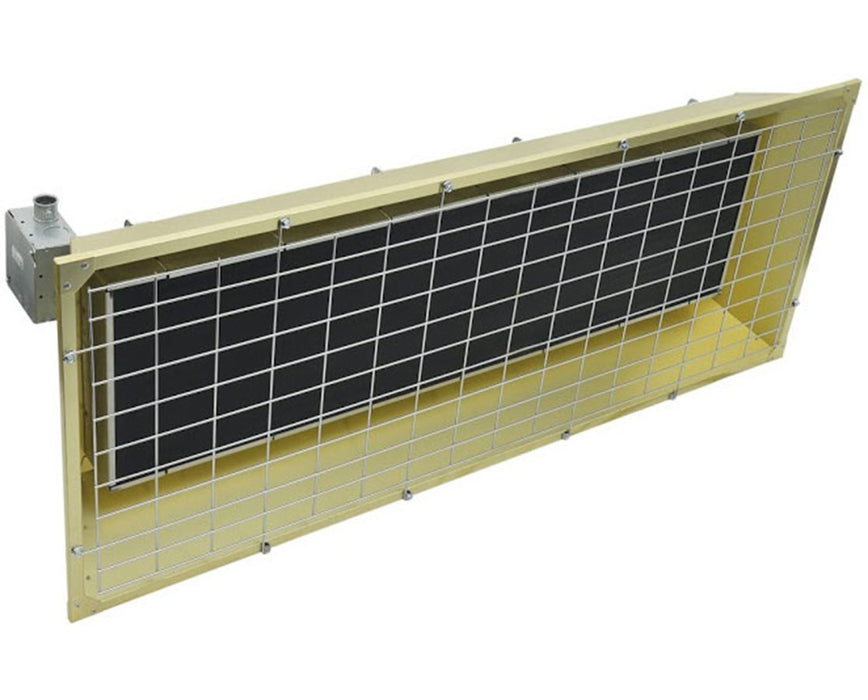

FSS-95	9,500	32,414	208 V 240 V 277 V, 1-Ph 480 V 600 V	45.67 / 26.39 39.6 / 22.89 34.3 19.8 / 11.44 16.5 / 9.54	49" x 20" x 7.75"

Choice of watts & volts
Transfers energy using electromagnetic radiation
60° heat pattern
Great for indoor spot heating, zone, or total area heating application
78.5% efficiency
50% metal sheath element efficiency
High-density medium wave radiant heat
Rugged flat panel emitter
Single or 3-phase wiring option
Heavy-duty wire guard factory
Field wiring boxes
25,000-hour element life expectancy
Gold anodized Aluminum housing
Shipped fully assembled
L-brackets for rigid mounting

What’s in the Box

TPI FSS Series Heavy-Duty Overhead Infrared Heater w/ Panel Emitter
1-year limited warranty

Available Product Options

Watts: 1.45 kW, 3.15 kW, 4.3 kW or 9.5 kW
Volts: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Control Enclosure

NEMA Rating

NEMA 4

Dimensions

Heater

26” L x 9” W x 8.5” D, 46” L x 9” W x 8.5” D, 29” L x 20” W x 9.75” D, 49” L x 20” W x 7.75” D

Features

Cart

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

General

Housing

Gold anodized Aluminum

Recommended Mounting Height

8', 10', 12', 14', 16'

Warranty

1-year limited

Weight

7 lbs, 13 lbs, 18 lbs, 31 lbs

Heater

Amps

2.52, 3.02, 4.32, 5.18, 5.23, 5.48, 6.04, 6.56, 6.97, 7.48, 8.96, 9.54, 10.36, 11.37, 11.44, 11.94, 12.1, 13.13, 15.14, 15.52, 16.5, 17.91, 19.8, 20.67, 22.89, 26.39, 34.3, 39.6, 45.67

BTU

4,847 BTU, 10,748 BTU, 14,672 BTU, 32,414 BTU

Power Distribution

1-Phase or 3-Phase (wiring)

Voltage

120 V, 208 V, 240 V, 277 V, 480 V or 600 V

Wattage

1.45 kW, 3.15 kW, 4.3 kW or 9.5 kW
