FPC Electric Infrared Heating Control Panel

by TPI Corporation

MFR#: FPC4110

TIGER#: TS62711

List Price: $3,077.00

You Save: $746.94 -24%

$3,077.00 - $3,077.00

List Price: $3,077.00

$2,330.06

$2,330.06 - $2,330.06

$2,330.06

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

FPC Electric Infrared Heating Control Panel - $2,330.06

$2,330.06

*Must Purchase 1 for FPC Electric Infrared Heating Control Panel

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/26/2023

Documents

Item Brochure

Choice of control circuit, circuit fusing & voltage
Factory pre-wired contactor panel
3-phase load rating
Step-down transformer
Secondary fusing
Door interlock disconnect switch
Enclosure: NEMA 1
cETLus listed

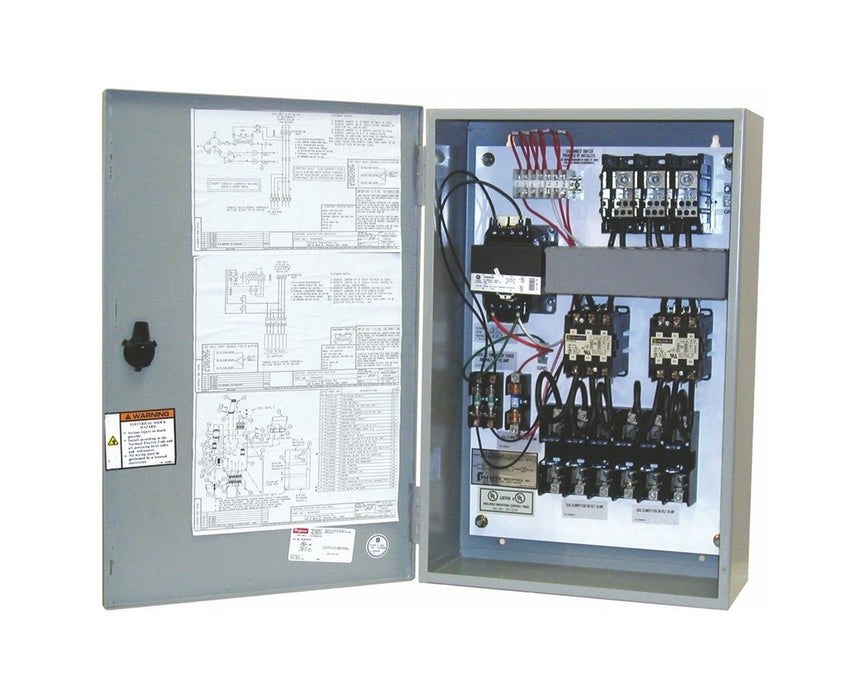

The TPI FPC Series Electric Infrared Heating Control Panel is a robust heating control that is ideal for indoor industrial and commercial applications. This TPI control panel is factory pre-wired contactor panel for a hassle-free installation. It also offers a three-phase load rating.

The FPC Series electric infrared heating control panel features a step-down transformer and a secondary fusing that has an optional control circuit of 24 or 120 volts. It comes with a maximum branch circuit fusing of up to 50 amps. Plus, the FPC Series controller includes a door interlock disconnect switch and line terminal block for an effective power connection to the heater.

This TPI FPC Series control panel has a NEMA 1 enclosure which is constructed for indoor use. As an additional feature, the TPI control panel is cETLus listed.

Configuration Options

The TPI FPC Series Electric Infrared Heating Control Panel has 32 available models with a different control circuit, circuit fusing, and voltage for your needs. Choose from the drop-down menu above.

Control Circuit: 120 V or 24 V
Circuit Fusing: 50 Amps, 100 Amps, 200 Amps or 300 Amps
Voltage: 208 V, 240 V, 277/480 V or 480 V

Choice of control circuit, circuit fusing & voltage
Ideal for indoor industrial and commercial applications
Factory pre-wired contactor panel
3-phase load rating
Step-down transformer
Secondary fusing
Optional control circuit: 24V or 120V
Maximum branch circuit fusing up to 50 amps
Door interlock disconnect switch
Line terminal block
NEMA 1 enclosure
cETLus listed

What’s in the Box

TPI FPC Series Electric Infrared Heating Control Panel
Circuit breaker
Ground Lug
Control transformer
2-year limited warranty

Available Product Options

Control Circuit: 120 V or 24 V
Circuit Fusing: 50 Amps, 100 Amps, 200 Amps or 300 Amps
Voltage: 208 V, 240 V, 277/480 V or 480 V

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)
