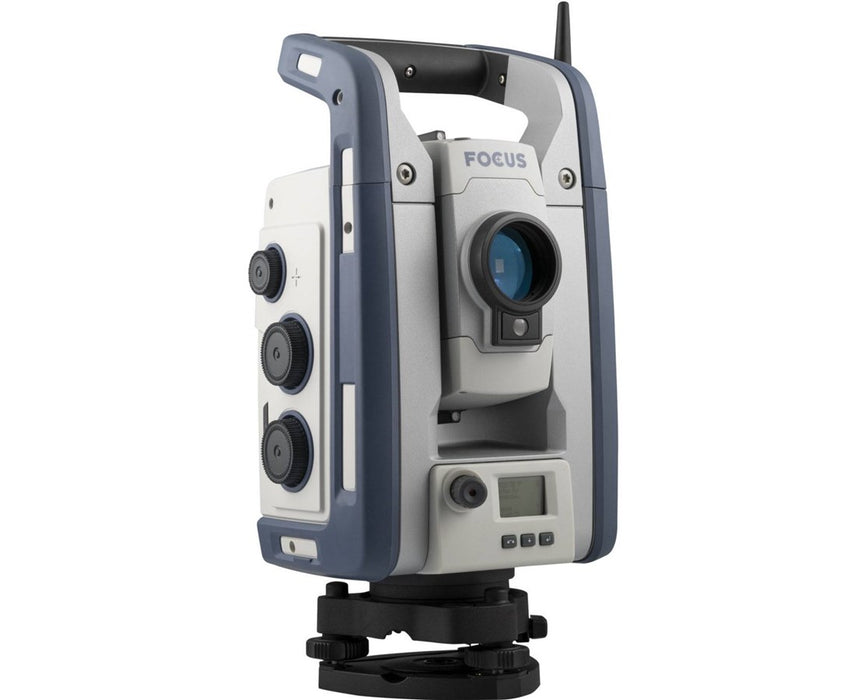

Focus 50 Robotic Total Station

MFR#: FOCUS50-HW-A
TIGER#: TS93995
Original price $9,975.00 - Original price $9,975.00
Original price List Price: $9,975.00
$10,100.00
$10,100.00 - $10,100.00
Current price $10,100.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Focus 50 Robotic Total Station
Focus 50 Robotic Total Station - $10,100.00
$10,100.00
*Must Purchase 1 for Focus 50 Robotic Total Station

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 10-12 Weeks Shipping Date By: 12/19/2023

Angular Accuracy is not included - Sold Separately

Essential Add-Ons:
Angular Accuracy Configuration
Angular Accuracy Configuration
Details
$2,658.00
$3,269.34
Heavy-Duty Composite Tripod
Heavy-Duty Composite Tripod
Details
$460.69
$612.72
  • Single-prism range: Up to 5,500 m (18,045 ft)
  • Reflectorless range: Up to 1,300 m (4,265 ft)
  • Available Options: Cabled or wireless connection
  • Autolock prism-tracking technology
  • Cabled connection to data controllers
  • Real-time tripod movement error corrections
  • IP65 dustproof and low-pressure water jet resistant
  • Battery life up to 30 hours

The Spectra Geospatial Focus 50 is an advanced total station with ultrafast precise measurements, real-time error correction, and automatic prism tracking and locking. Its advanced features can save so much time by getting accurate measurements the first time, every time. Available in two base models and many add-ons for extra features, this versatile instrument seamlessly connects with Spectra and third-party data controllers via a cabled or optional wireless connection.

Ultrafast Measurements with MagDrive: MagDrive is Trimble’s revolutionary technology that integrates servos and angle sensors for increased speed and accuracy. It silently turns to and repeats angle measurements at speeds as high as 100+ degrees per second, giving surveyors effortless ultra-smooth control for precision pointing and fine adjustments.

Real-Time Error Corrections with SurePoint: Little tripod movements are inevitable in any setup and can cause disastrous measurement errors. The SurePoint technology eliminates these errors in real-time, ensuring the accuracy of your horizontal and vertical angles at all times.

Fast and Accurate Tracking with AutoLock: All Focus 50 models are capable of automatically tracking and locking onto prisms with the AutoLock technology. This eliminates errors caused by manual aiming and saves time by not having to re-point for every observation.

Compatible with Powerful Spectra Field Software: The Focus 50 easily pairs with Spectra’s suite of field software options including Origin, their modern field surveying software with advanced features like one-tap feature coding, powerful COGO computing, and more. It also works well with the older Survey Pro and the Layout Pro which lets you layout the site at the fraction of the time it would take with tape measures and string lines.

With the latest and best angle measurement technologies by Spectra Geospatial, the Focus 50 Robotic Total Station empowers surveyors to efficiently produce high-quality results.

Configuration Options

DATA CONTROLLER CONNECTION

The Spectra Geospatial Focus 50 is available in two basic hardware models:

  • AutoLock Base Hardware w/ Cabled Connection (FOCUS50-HW-A)
  • Long-Range Robotic Base Hardware w/ Interference-Free Long-Range Wireless Connection via 2.4 GHz Radio (FOCUS50-HW-LRR)

If you want to be able to wirelessly connect to a data controller via long-range Bluetooth, you can upgrade the AutoLock Base Hardware by purchasing the following add-on (sold as an accessory):

  • AutoLock to Short-Range Robotic Upgrade: Equips the AutoLock Base Hardware w/ Long-Range Bluetooth (FOCUS50-OPT-SRR)
    *IMPORTANT: This upgrade add-on must only be purchased with the AutoLock Base Hardware.

Depending on a number of factors like the line of sight or radio traffic, the Short-Range Robotic Bluetooth Model can connect to the Ranger 5 Data Controller from 150-500m, the Ranger 7 from 100-350m, and the ST10 from 50-100m.

ACCURACY

Please note that the base Focus 50 hardware does not come with angular accuracy configurations by default. To equip your Focus 50 with your preferred angular accuracy, you must purchase the following add-ons as you place your order:

  • FOCUS50-CFG-01: 1” Angular Accuracy
  • FOCUS50-CFG-02: 2” Angular Accuracy
  • FOCUS50-CFG-03: 3” Angular Accuracy
  • FOCUS50-CFG-05: 5” Angular Accuracy

NOTE: Batteries and chargers are sold separately.

What’s in the Box

  • 1x Spectra Geospatial Focus 50 Robotic Total Station
  • 1x tribrach
  • 1x plastic carrying case
  • 2x keys for the carrying case
  • 1x set of backpack straps
  • 1x antenna (only needed if FOCUS50-OPT-SRR is added)
  • 1x antenna dust cap
  • 1x lens sunshade
  • 1x rain cover
  • Adjustment tools
  • User Manual
  • 18 Months Manufacturer's Warranty

Available Options

  • AutoLock Base Hardware w/ Cabled Connection
  • Long-Range Robotic Base Hardware w/ Wireless Radio Connection

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Angle Measurement
Accuracy
1" (0.3 mgon), 2" (0.6 mgon), 3" (0.9 mgon), or 5" (1.5 mgon)
Measuring Method/Reading System
Absolute encoder
Battery/Power
Battery Life
One internal battery: up to 7.5 hours Three batteries in multi-battery adapter and one internal: up to 30 hours
Battery Life Alert
No
Power Source
Rechargeable 6.5 Ah Li-Ion battery
Voltage
10.8 V
Distance Measurement
EDM Accuracy (Precision)
Prism mode (ISO) – Standard mode: 1 mm + 2 ppm (0.003 ft + 2 ppm) Prism mode (RSME) – Standard mode: 2 mm + 2 ppm (0.0065 ft + 2 ppm) – Tracking mode: 4 mm + 2 ppm (0.013 ft + 2 ppm) DR mode (RSME) – Standard mode: 2 mm + 2 ppm (0.0065 ft + 2 ppm) – Tracking mode: 4 mm + 2 ppm (0.013 ft + 2 ppm) – Extended Range: 10 mm + 2 ppm (0.033 ft + 2 ppm)
Minimum Reading
Prism: 0.2 m (0.65 ft) DR mode: 1 m (3.28 ft)
Unit of Measure (distance display)
m/ft
General
Auto Shut Off
Yes
Auto-Tracking Speed
2–10 sec
Dimensions
18 months
Guide Light
Yes
Protection Class
IP65 dustproof and low-pressure water jet resistant
Software
Origin, Survey Pro, Layout Pro
Tribrach
Yes
Tripod Thread
5/8 x 11
Weight
11.35
Level
Circular Bubble Vial
8'/2 mm (8'/0.007 ft)
Electronic Level
Resolution: 0.3" (0.1 mgon)
Optical Plummet
Focus Range
0.5 m–infinity (1.6 ft–infinity)
Erect
Magnification
2.3×
Telescope
Diameter of Objective Lens (Aperture)
40 mm (1.57 in)
Field of View
2.6 m at 100 m (8.5 ft at 328 ft)
Erect
Magnification
30x
Minimum Focus Distance
1.5 m (4.92 ft)–infinity
Reflectorless
Yes
Tilt Sensor/Compensator
Range
± 5.4' (±100 mgon)
Setting Accuracy
0.5" (0.15 mgon)
Type
Dual-axis
