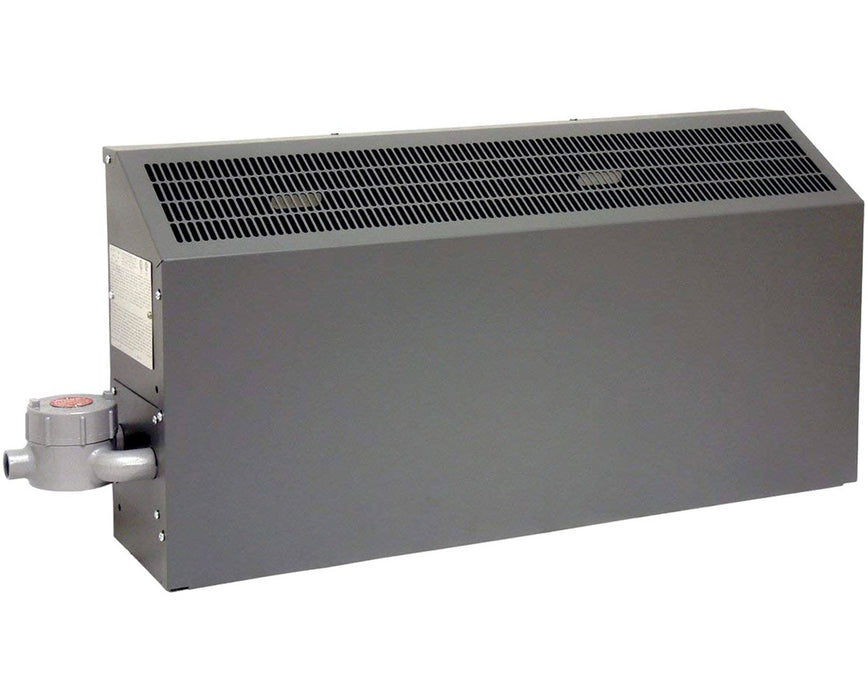

FEP T-3A Hazardous Location Wall Convector Heater

MFR#: FEP08121RA
TIGER#: TS59668
Original price List Price: $2,348.00
You Save: $569.98 -24%
Original price $2,348.00 - Original price $2,348.00
Original price List Price: $2,348.00
Current price $1,778.02
$1,778.02 - $1,778.02
Current price $1,778.02
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
FEP T-3A Hazardous Location Wall Convector Heater
FEP T-3A Hazardous Location Wall Convector Heater - $1,778.02
$1,778.02
*Must Purchase 1 for FEP T-3A Hazardous Location Wall Convector Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/31/2023
  • Choice of heater wattage, voltage & phase
  • Maximum operating temperature: 356 °F
  • Cabinet size: 18” H x 9” W
  • Bottom in - top out air flow
  • Construction: heavy-duty 16 gauge steel
  • Gray epoxy textured-power-coated finish
  • NEMA 4 rated
  • Rated for Class I, Group B, C, & D Division 1 & 2

The TPI FEP T-3A Series Hazardous Location Wall Convector Heater delivers the best performance that is used to efficiently heat spaces in industrial, commercial and even residential locations. Great for explosive areas, this TPI heater is rated for Class I, Group B, C, & D Division 1 and 2 areas with a maximum operating temperature of 356 °F (180 °C).

The TPI FEP T-3A Series features a cabinet size of 18” H x 9” W and a cabinet length up to 58 inches. Also, it comes with a bottom in and top-out airflow with a required minimum clearance of nine inches from the heater bottom to the floor. The TPI hazardous location T-3A series is NEMA 4 rated.

This TPI wall convector comes in a heavy-duty 16 gauge steel construction with a gray epoxy textured-power-coated finish that surely lasts for a long time. It has a stainless steel cartridge element embedded into the Aluminum finned Copper sheath. As an extra feature, this TPI convector heater is made in the USA.

Please Note: This heater cannot be operated in rooms with ambient temperatures exceeding 104 °F (40 °C).

Configuration Options

The TPI FEP T-3A Series Hazardous Location Wall Convector Heater has 33 models that have varying heater wattages, voltages, and phase. Please select your preference from the menus above.

  • Heater Wattage: 800 watts, 1,600 watts, 1,700 watts or 3,400 watts
  • Voltage: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V
  • Phase: 1-Phase or 3-Phase
Models BTU Single-Phase Three-Phase Dimensions
Volts Amps Volts Amps
800-Watt  2,730 120,
208,
240,
277,
480
6.7,
3.8,
3.3,
2.9,
1.7
208,
240,
480
2.2,
1.9,
0.9
34" L x 9" W x 18" H
1,600-Watt 5,460 120,
208,
240,
277,
480,
600
13.3,
7.7,
6.7,
5.8,
3.3,
2.7
208,
240,
480
4.4,
3.8,
1.9
 34" L x 9" W x 18" H
1,700-Watt 5,802 120,
208,
240,
277,
480
14.2,
8.2,
7.1,
6.1,
3.5
208,
240,
480
4.7,
4.1,
2.0
58" L x 9" W x 18" H
3,400-Watt  11,604 208,
240,
277,
480,
600
16.3,
14.2,
12.3,
7.1,
5.7
208,
240,
480
9.4,
8.2,
4.1
 58" L x 9" W x 18" H
  • Choice of heater wattage, voltage & phase
  • Great for explosive areas
  • Rated for Class I, Group B, C, & D Division 1 and 2
  • Maximum operating temperature: 356 °F (180 °C)
  • Cabinet size: 18” H x 9” W
  • Cabinet length up to 58”
  • Bottom in - top out air flow
  • Required minimum clearance from bottom to floor: 9”
  • Single-phase power distribution
  • NEMA 4 rated
  • Heavy-duty 16 gauge steel construction
  • gray epoxy textured-power-coated finish
  • Stainless steel cartridge element embedded into the Aluminum finned Copper sheath
  • Made in the USA

What’s in the Box

  • TPI FEP T-3A Series Hazardous Location Wall Convector Heater
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 800 watts, 1,600 watts, 1,700 watts or 3,400 watts
  • Voltage: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V
  • Phase: 1-Phase or 3-Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater
Length
34” (800-watt & 1,600-watt models); 58” (1,700-watt & 3,400-watt)
Control Enclosure
NEMA Rating
NEMA 4
Dimensions
Heater
34" L x 9" W x 18" H (800 & 1,600 Watts); 58" L x 9" W x 18" H (1,700 & 3,400 Watts)
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
Yes
General
Finish/Coating
Gray epoxy textured powder-coat
Hazardous Location Rating
Class 1, Group B, C & D Division 1 & 2
Housing
Heavy-duty 16 gauge steel
Recommended Mounting Height
9"
Warranty
1-year limited
Weight
50 lbs (800-watt models); 54 lbs (1,600-watt models); 80 lbs (1,700-watt models); 85 lbs (3,400-watt models)
Heater
Amps
0.9, 1.7, 1.9, 2.0, 2.2, 2.7, 2.9, 3.3, 3.5, 3.8, 4.1, 4.4, 4.7, 5.7, 5.8, 6.1, 6.7, 7.1, 7.7, 8.2, 9.4, 12.3, 13.3, 14.2, 16.3
BTU
2,730 (800-watt models); 5,460 (1,600-watt models); 5,802 (1,700-watt models); 11,604 (3,400-watt models)
Max. Operating Temperature
356 °F (180 °C)
Power Distribution
1-Phase or 3-Phase
Voltage
120 V, 208 V, 240 V, 277 V, 480 V, 600 V
Wattage
800 watts, 1,600 watts, 1,700 watts, 3,400 watts
