FEP T-2A Hazardous Location Wall Convector Heater

by TPI Corporation

MFR#: FEP18121RA

TIGER#: TS59634

List Price: $2,348.00

You Save: $569.98 -24%

$2,348.00 - $2,348.00

List Price: $2,348.00

$1,778.02

$1,778.02 - $1,778.02

$1,778.02

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

FEP T-2A Hazardous Location Wall Convector Heater - $1,778.02

$1,778.02

*Must Purchase 1 for FEP T-2A Hazardous Location Wall Convector Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/20/2023

Documents

Product Manual Item Brochure Product Video

Choice of heater wattage, voltage & phase
Maximum operating temperature: 536 °F
Electric wall-mounted unit
Cabinet size: 18” H x 9” W
Bottom in - top out air flow
Durable 16-gauge steel construction
Rated for Class 1, Group B, C, & D Division 1 & 2
NEMA 4 rated

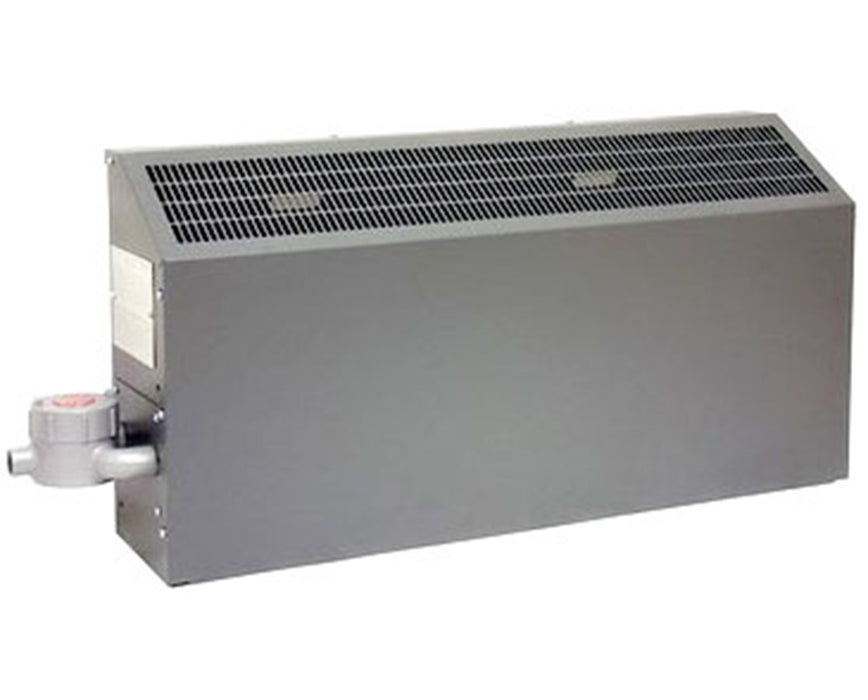

The TPI FEP T-2A Series Hazardous Location Wall Convector Heater is a tough electric wall-mounted unit that heats an area or interiors. Featuring a cabinet size of 18” H x 9” W, this wall convector is perfect for hazardous commercial and residential indoor applications. It is also rated for explosive areas of Class 1, Group B, C, and D Division 1 and 2 with a maximum operating temperature of 536 °F (280 °C).

This TPI T-2A Series offers a bottom in and top out air flow. It has a cabinet length of up to 58 inches. Plus, the TPI wall convector heater requires a nine-inch minimum clearance from the bottom of the heater to the floor.

The TPI FEP T-2A heater is constructed of a durable 16-gauge steel with gray epoxy textured powder-coated finish that can surely last for a long time. The TPI heater cannot be operated in a room with an ambient temperature of 104 °F (40 °C). In addition, it is NEMA 4 rated and made in the USA.

Please Note: This heater cannot be operated in rooms with ambient temperatures exceeding 104 °F (40 °C).

Configuration Options

The TPI FEP T-2A Series Hazardous Location Wall Convector Heater offers 31 models that have varying heater wattages, voltages, and phases. Choose from the menus above.

Heater Wattage: 1,800 watts, 3,600 watts, 3,800 watts or 7,600 watts
Voltage: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V
Phase: 1-Phase or 3-Phase

Model	BTU	Single-Phase		Three-Phase		Dimensions
Model	BTU	Volts	Amps	Volts	Amps	Dimensions
1,800-Watt	6,143	120, 208, 240, 277, 480	15, 8.7, 7.5, 6.5, 3.8	208, 240, 480	5, 4.3, 2.2	34" L x 9" W x 18" H
3,600-Watt	12,286	208, 240, 277, 480, 600	17.3, 15, 13, 7.5, 6	208, 240, 480	10, 8.7, 4.3	34" L x 9" W x 18" H
3,800-Watt	12,969	208, 240, 277, 480	18.3, 15.8, 13.7, 7.9	208, 240, 480	10.5, 9.1, 4.6	58" L x 9" W x 18" H
7,600-Watt	25,938	208, 240, 277, 480, 600	36.5, 31.7, 27.4, 15.8, 12.7	208, 240, 480	21.1, 18.3, 9.2	58" L x 9" W x 18" H

Choice of heater wattage, voltage & phase
Electric wall-mounted unit
Cabinet size: 18” H x 9” W
Perfect for hazardous commercial and residential indoor applications
Rated for Class 1, Group B, C, and D Division 1 and 2
Maximum operating temperature: 536 °F (280 °C)
Bottom in - top out air flow
Cabinet length up to 58”
Requires 9” minimum clearance from bottom to the floor
Durable 16-gauge steel construction
Gray epoxy textured powder-coated finish
Cannot be operated in a room with the ambient temperature of 104 °F (40 °C)
NEMA 4 rated
Made in the USA

What’s in the Box

TPI FEP T-2A Series Hazardous Location Wall Convector Heater
1-year limited warranty

Available Product Options

Heater Wattage: 1,800 watts, 3,600 watts, 3,800 watts or 7,600 watts
Voltage: 120 V, 208 V, 240 V, 277 V, 480 V or 600 V
Phase: 1-Phase or 3-Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater

Length

34” (18-watt, 3,600-watt); 58” (3,800-watt, 7,600-watt)

Control Enclosure

NEMA Rating

NEMA 4

Dimensions

Heater

34" L x 9" W x 18" H (1,800 & 3,500 Watts); 58" L x 9" W x 18" H (3,800 & 7,600 Watts)

Features

Cart

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

Yes

General

Finish/Coating

Gray epoxy textured powder-coat

Hazardous Location Rating

Class 1, Group B, C & D Division 1 & 2

Housing

Heavy-duty 16 gauge steel

Recommended Mounting Height

Warranty

1-year limited

Weight

50 lbs (1800-watt models); 54 lbs (3,600-watt models); 80 lbs (3,800-watt models); 85 lbs (7,600-watt models)

Heater

Amps

2.2, 3.8, 4.3, 4.6, 5, 6, 6.5, 7.5, 7.9, 8.7, 9.1, 9.2, 10, 10.5, 12.7, 13, 13.7, 15, 15.8, 17.3, 18.3, 21.1, 27.4, 31.7, 36.5

BTU

6,143 (1,800-watt models); 12,286 (3,600-watt models); 12,969 (3,800-watt models); 25,938 (7,600-watt models)

Max. Operating Temperature

536 °F (280 °C)

Power Distribution

1-Phase or 3-Phase

Voltage

120 V, 240 V, 277 V, 480 V, 600 V

Wattage

1,800 watts, 3,600 watts, 3,800 watts, 7,600 watts
