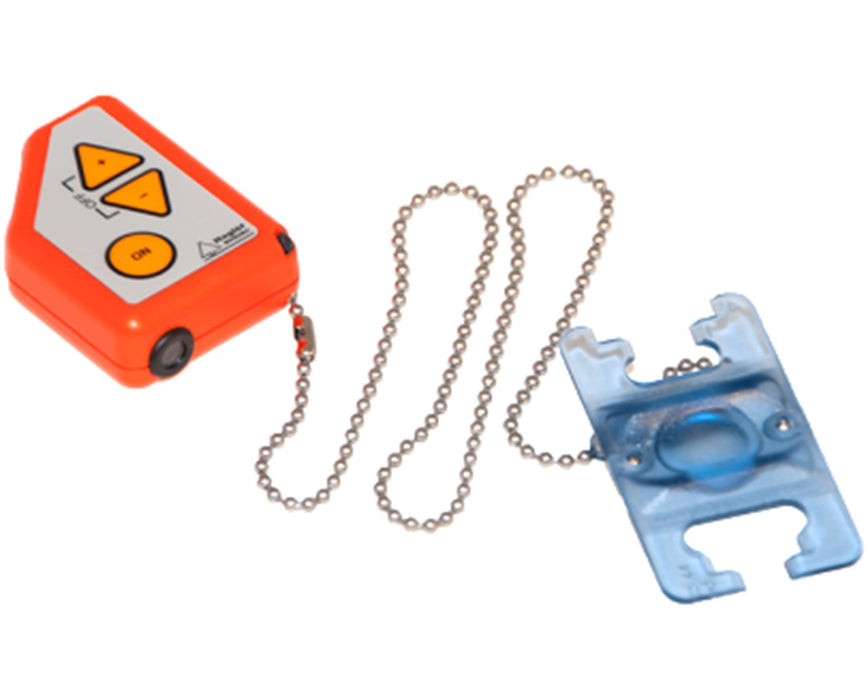

EC II D-R Electronic Clinometer

A great tool for engineers and surveyors, the Haglof EC II D-R Electronic Clinometer comes with a factor gauge and digital distance calculator. This means that not only can it measure inclination and heights, but it can also calculate basal area and volume, among others. Although small in size, this multi-function device delivers quick results of stand volume estimates and great accuracy for height measurements.

The latest version of the Haglof EC II D-R features the addition of a trigonometrical distance calculator with a reference height set at 2 m or 6 ft on the object to measure. In addition, the device comes with built-in basal area functions. Once used, it automatically displays the basal area and give a volume estimate based on the dominant tree height or average height – eliminating possible calculation errors.

This revolutionary digital clinometer measures heights up to 999 feet (accuracy of ±0.1-foot) and has an angle range of -55 to +85 degrees (accuracy of 0,2 degrees). It has a volume representation of upper height x form factor x basal area. The EC II D-R is powered by 1 AA alkaline battery and is covered by a 1-year manufacturer’s defect warranty.

Configuration Options

The Haglof EC II D-R Electronic Clinometer comes in either metric or inch unit of measurement. Kindly select your preference from the menu above.

• 15-102-1017: Inch
• 15-102-1016: Metric
