Drill Press Depth Gauge

by Wixey

MFR#: WR503

TIGER#: TS40637

List Price: $55.99

You Save: $20.89 -37%

$55.99 - $55.99

List Price: $55.99

$35.10

$35.10 - $35.10

$35.10

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Drill Press Depth Gauge - $35.10

$35.10

*Must Purchase 1 for Drill Press Depth Gauge

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 9/23/2023

Documents

Product Manual

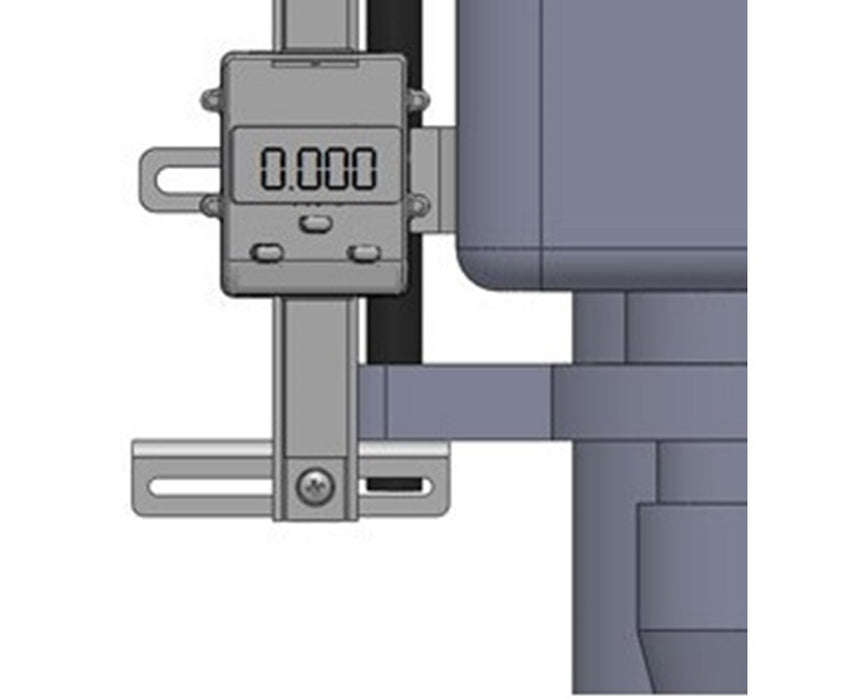

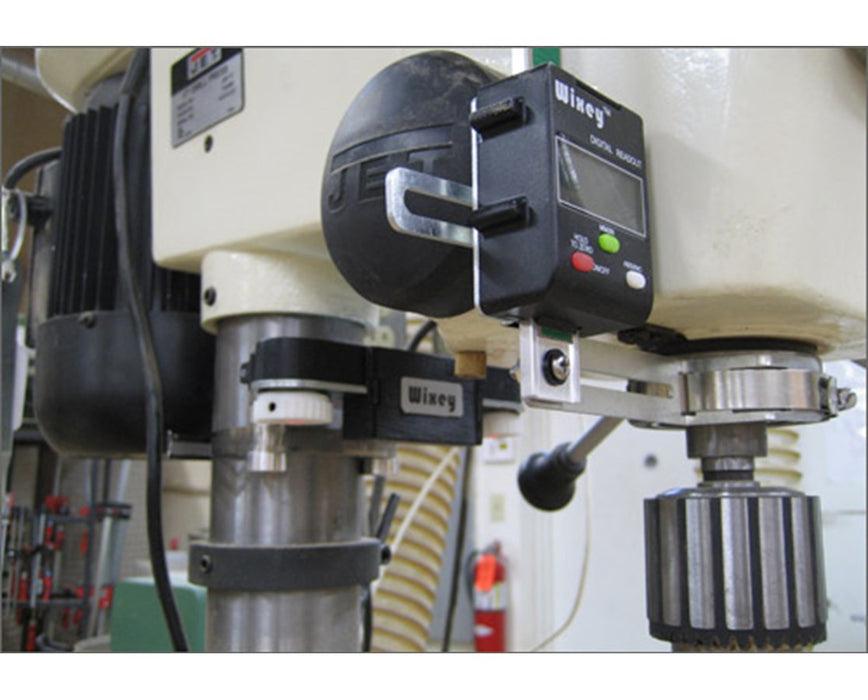

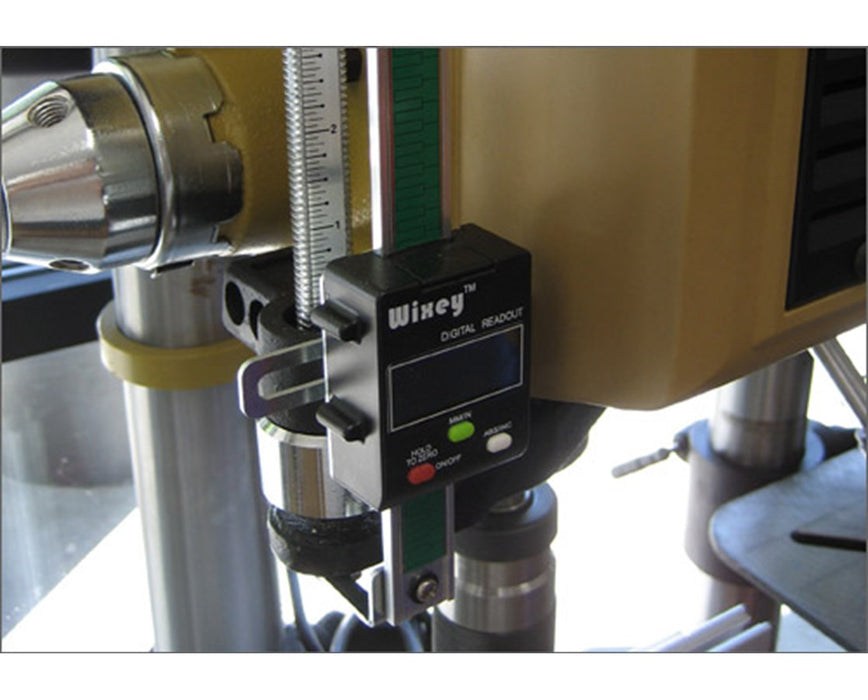

Attaches to existing stop rod or directly to the collar on the quill
Measuring depth up to 6.5"
Resolution of 0.002" or 1/32"
Accuracy of ± 0.004" or ± 1/250"
Allows the user to set readout to 0.00
Thin and precise cross-hairs
Displays results in inches with fractions or mm
Fits drill presses with a quill that travel up to 6.5"

Quick and easy to use, the Wixey WR503 Drill Press Depth Gauge makes drilling blind holes for hardware installation easier. It can be attached to the existing depth stop rod or directly to the collar on the quill. With a measuring depth of up to 6.5 inches, the WR503 has a resolution of 0.002 inches or 1/32 inches and an accuracy of ± 0.004 inches or ± 1/250 inches.

This depth gauge allows the user to instantly set the readout to read 0.00 where the drill bit first contacts the workpiece and measures the hole depth as the drill is lowered. Featuring thin and precise, easy to adjust cross-hairs, the WR503 can accurately measure drilling depth that displays results in inches with fractions or millimeters. This depth gauge fits drill presses with a quill that travel up to 6.5 inches.

The Wixey WR503 can mount to any drill press. It uses the CR2032 battery. Plus, it comes with in/mm, on/off/zero and abs/inc functions. In addition, it has an auto shut off feature to extend battery life.

Attaches to existing stop rod or directly to the collar on the quill
Measuring depth up to 6.5 inches
Resolution of 0.002 (decimal) inches or 1/32 inches (fraction)
Accuracy of ± 0.004 inches (decimal) or ± 1/250 inches (fraction)
Allows the user to set readout to read 0.00
Thin and precise, easy to adjust cross-hairs
Displays results in inches with fractions or millimeters
Fits drill presses with quill that travel up to 6.5 inches
Can mount on any drill press
Functions: in/mm, on/off/zero and abs/inc
Auto shut off
Uses CR2032 battery
Quick and easy to use

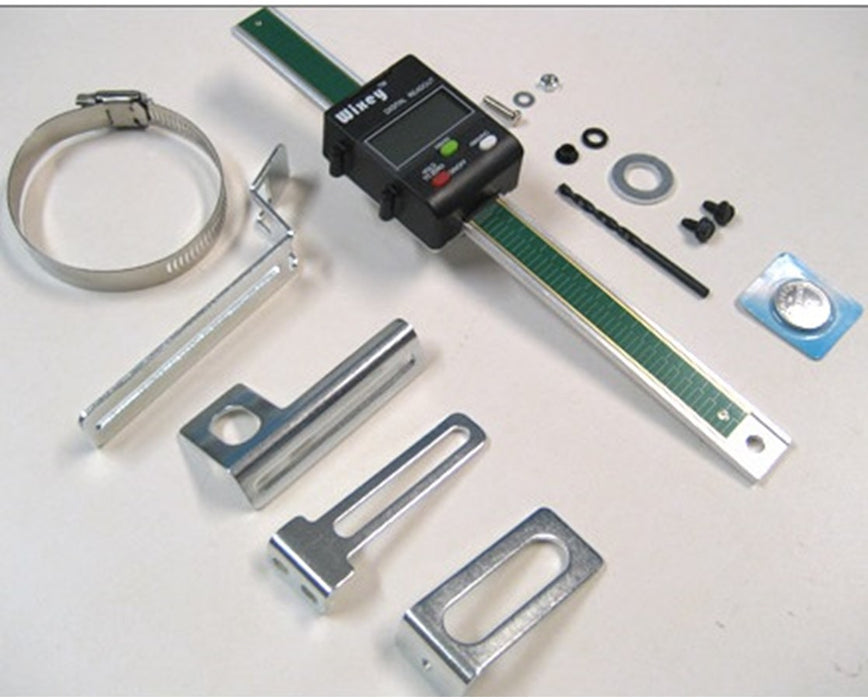

What’s in the Box

Wixey WR503 Drill Press Depth Gauge
1-year manufacturer's warranty

We cannot accept returns for this item, as is our policy for all parts replacements. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Height Gauges

Accuracy

± 0.004 inches (decimal) or ± 1/250 inches (fraction)

Functions

in/mm, on/off/zero and abs/inc, auto shut off

Measuring Depth

up to 6.5 inches

Power Source

CR2032 battery

Resolution

0.002 (decimal) inches or 1/32 inches (fraction)

Warranty

1-year

Useful

I am a woodworker and use this to drill different depths on my projects. The gauge is very accurate. The only issue I have is that it doesn't stop the bit. While your drilling you have to watch the measurement. I had to go very slowly and the wood started burning. But, after I made the first hole, I set the depth stop on my drill press. And then I could drill accurate depth holes quickly.

Great deliver and very good price!

Great and fast service will buy again.. Very good price..

Nifty DRO option

Great way to add accuracy to your drill press. The variety of brackets and mounting options worked fine on my old Craftsman 2/3hp drill press, it was easier than expected to install. They even include a drill bit for the mounting screws for the head unit.

Needs direct lighting to read.

This would be a much better product if the display was led instead of liquid crystal, the $15 digital tachometer I added to the drill press uses a red led display and is easily read whereas the WR503 isn't.
