Digital Soil Compaction Meter / Electronic Dial Penetrometer

by Turf-Tec

MFR#: PN-COMP-DIG-S

TIGER#: TS70787

$540.00 - $540.00

List Price: $540.00

$631.80

$631.80 - $631.80

$631.80

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Digital Soil Compaction Meter / Electronic Dial Penetrometer - $631.80

$631.80

*Must Purchase 1 for Digital Soil Compaction Meter / Electronic Dial Penetrometer

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 10/9/2023

Documents

Product Manual Item Brochure

Tests hardpans in the soil
Electronic force sensor eliminates changing tip size
Max penetration depth: 30”

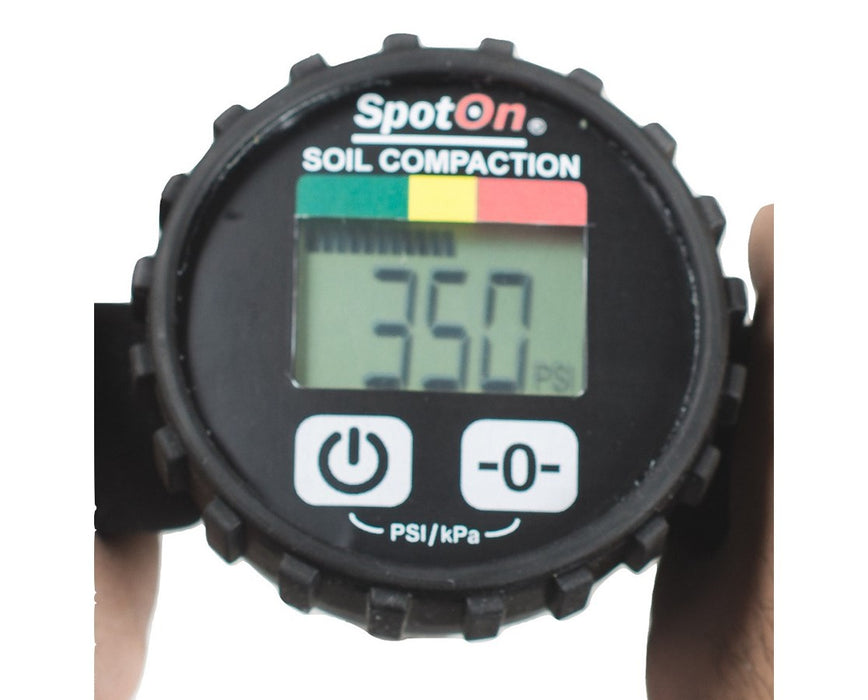

Color-coded display
Reads in PSI or kPa
Meets ASABE S313.3 Soil Compaction Standard
Shaft marked every 4”

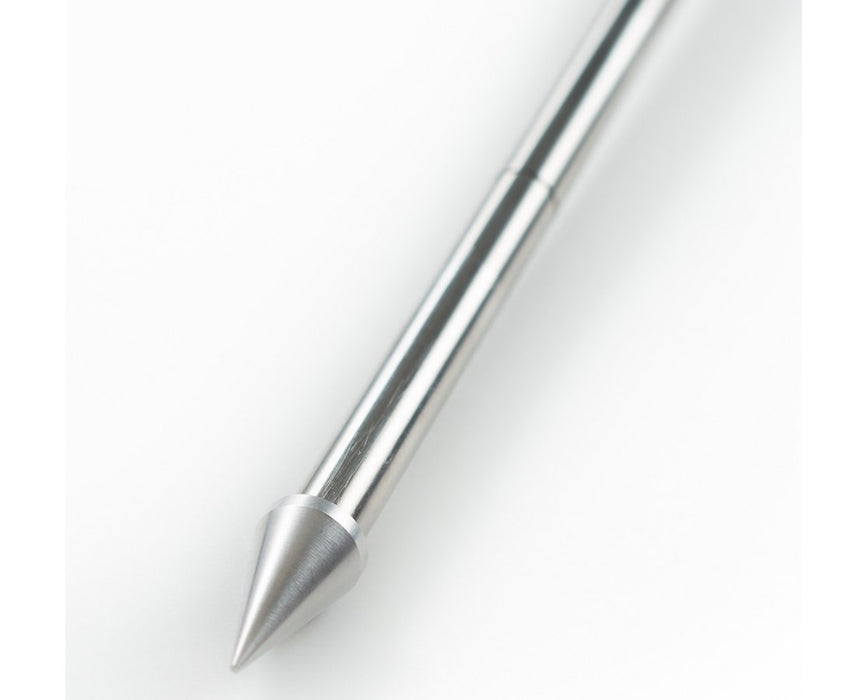

Replaceable tip

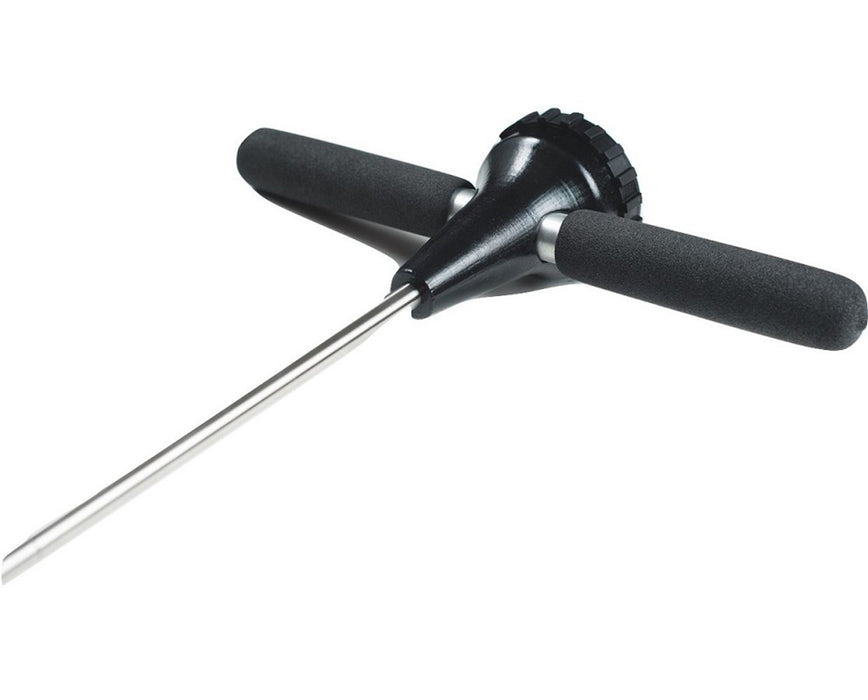

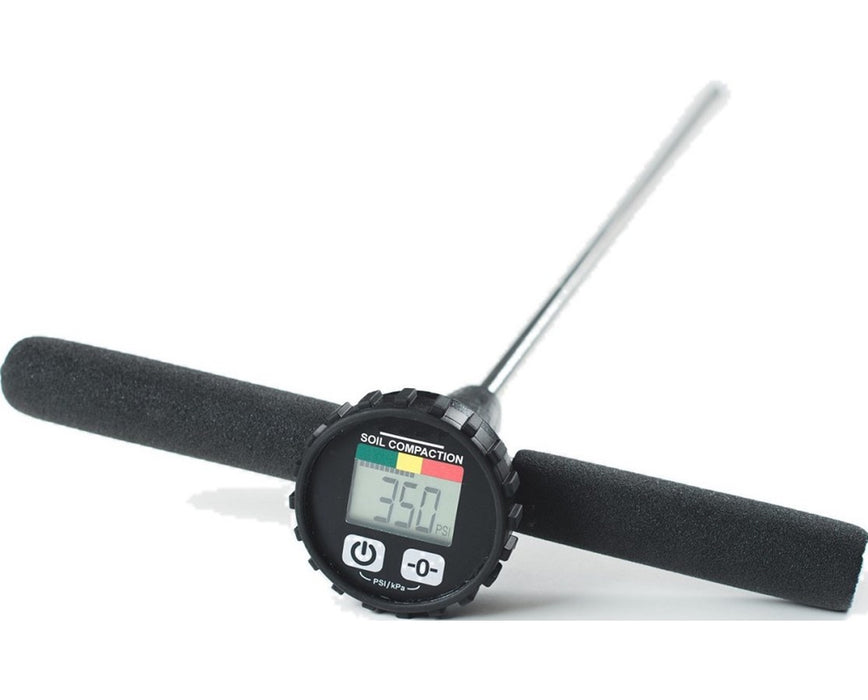

The Turf-Tec Digital Soil Compaction Meter / Electronic Dial Penetrometer is the digital version of the dial penetrometer and is used for testing hardpans in the soil. This version differs by using an electronic force sensor, eliminating the need to change the tip size for different soil types. Meets the ASABE S313.3 Soil Compaction Standard, it has a rugged design and a rubber protector for repeated field use and soil monitoring.

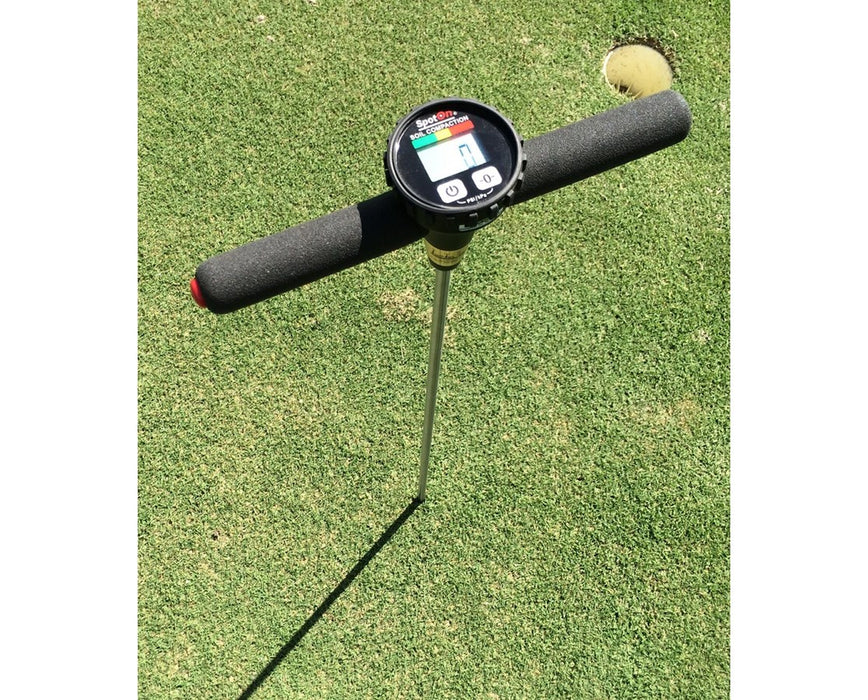

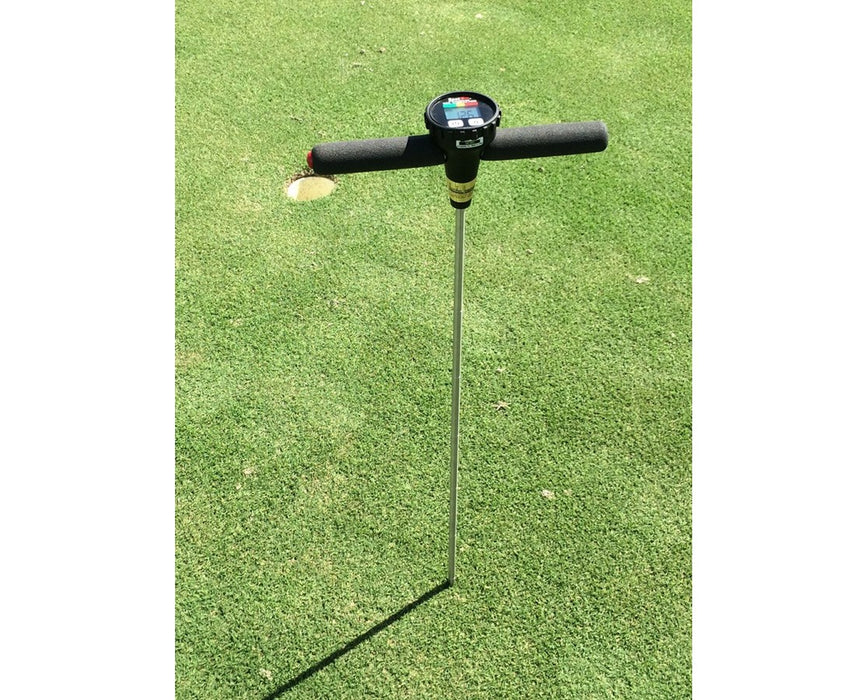

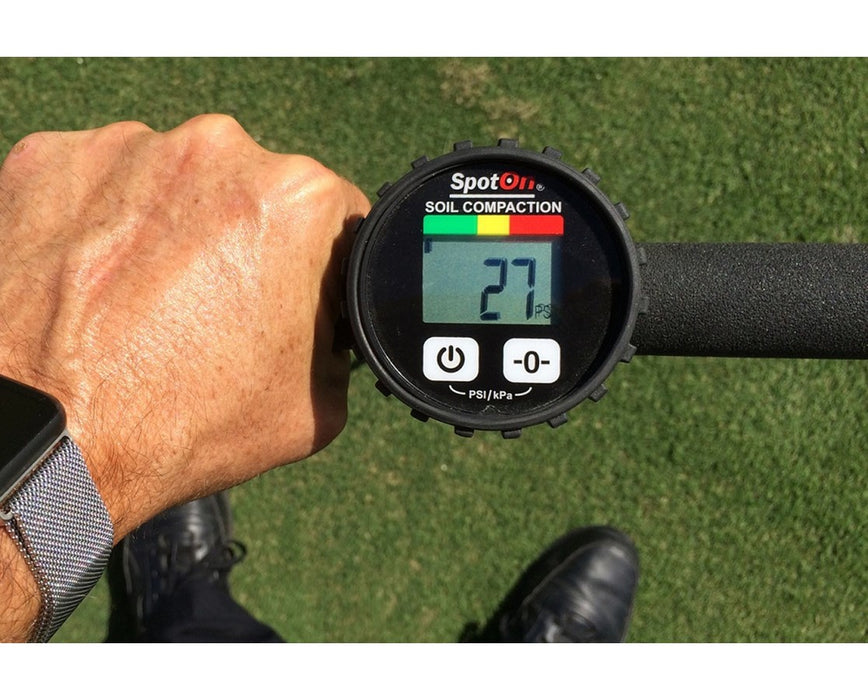

To operate, push the Turf-Tec electronic dial penetrometer to the soil with steady downward pressure. The LCD reads in PSI or kPA, showing color-coded compaction severity and indicates the maximum or “peak” PSI. Operators can visually determine any hardpans in the soil profile down to 30 inches deep. Its stainless steel shaft is marked every 4” for easy depth reference.

The Turf-Tec Digital Soil Compaction Meter features a replaceable tip and includes two AA batteries and a 0.505” ultra-hard tool steel cone. This instrument is covered with a 1-year limited warranty for peace of mind.

Electronic force sensor eliminates changing tip size for different soil types
Max penetration depth: 30"
Color-coded display
Reads in PSI or kPa shows compaction severity in color code
Meets ASABE S313.3 Soil Compaction Standard
Rugged design and rubber protector for repeated use
Stainless steel shaft marked every 4” for easy depth reference
Replaceable tip
Includes 0.505” ultra-hard tool steel cone
Range: 0-825 PSI (0-5690 kPa)
Resolution: +/-1 PSI (5 kPa)
Accuracy: +/-15 PSI (100 kPa)
Range: 0 to 825 PSI (0 to 5690 kPa)
Overall size: 35.25” x 11” x 2.75”
Weight: 2 lbs.
Includes 2 x AA batteries

What’s in the Box

Turf-Tec Digital Soil Compaction Meter / Electronic Dial Penetrometer
0.505" Ultra-Hard Tool Steel Cone
2 x AA Batteries
User Manual
1-year limited warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 30% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Features

Pressure Accuracy

+/-15 PSI (100 kPa)

Pressure Range

0-825 PSI (0-5690 kPa)

Pressure Resolution

+/-1 PSI (5 kPa)

Sample Depth

30"

Standard

ASABE S313.3

General

Batteries

Height

35.25”

Material

Stainless Steel

Weight

2 lbs.
