Digital Angle Gauge with Level

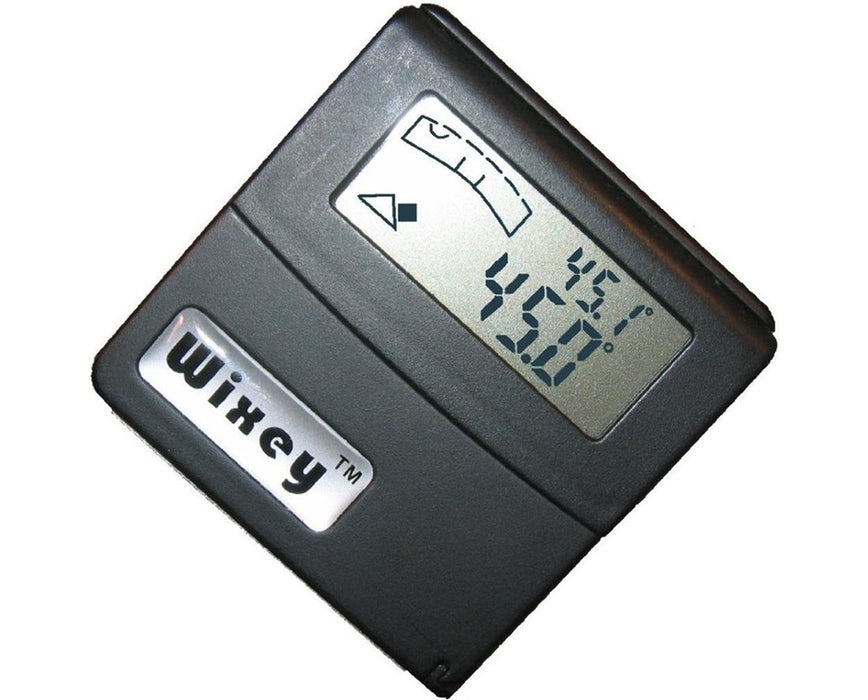

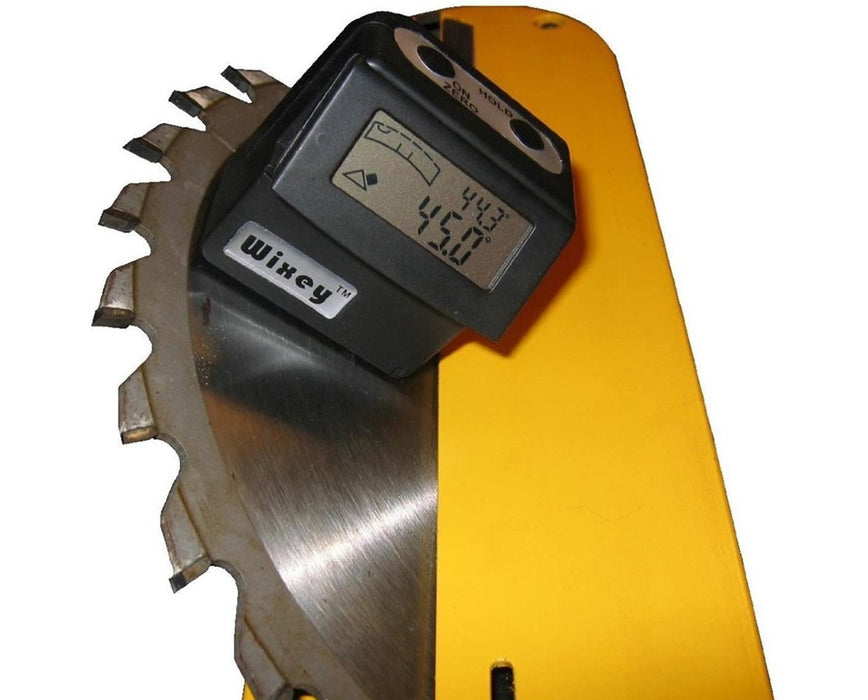

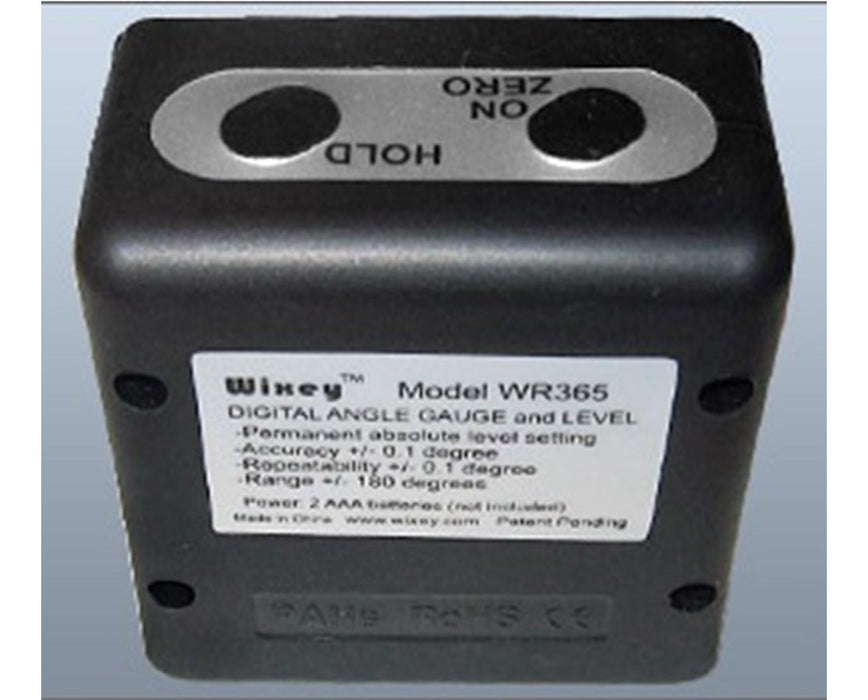

The Wixey WR365 Digital Angle Gauge with Level is a compact digital angle gauge that provides accurate setups on saw blades, band saw tables and jointer fences by measuring the angle between two surfaces down to 0.1 degrees. This is perfect for woodworking, metal working, automotive jobs, metal fabrication, layout and other mechanical and construction works. This digital gauge has an accuracy of ± 0.2 degrees and repeatability of ± 0.1 degrees. Also, it features a resolution of 0.1 degrees and a range up to ± 180 degrees.

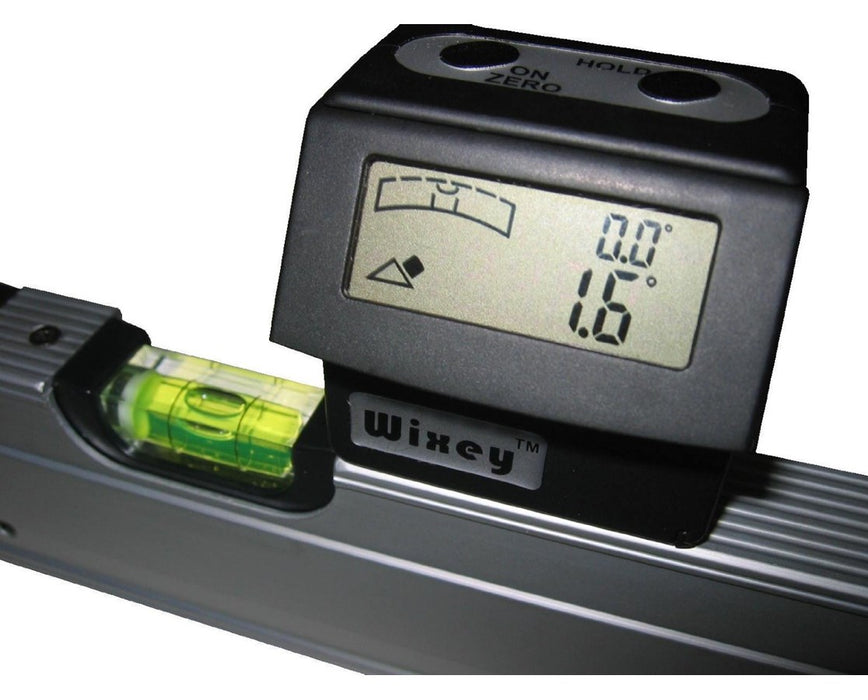

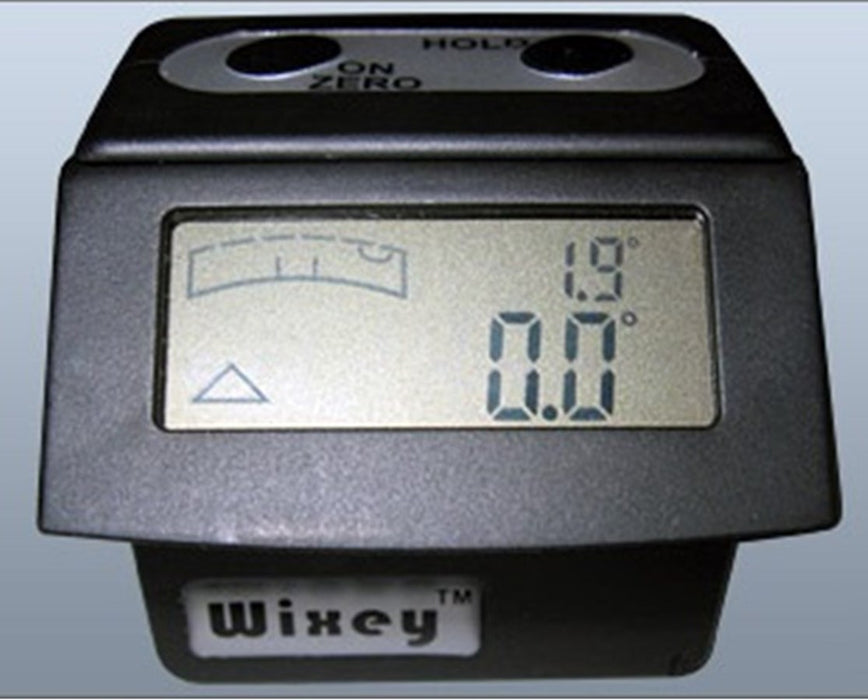

The WR365 measures 2.2-inch long, 2.3-inch wide and 1.3-inch high. It has a true level display that can calibrate using a bubble level indicator and 0.1-degree resolution numeric readout. Plus, it features a relative angle measurement in which the gauge can be zeroed to a nonlevel reference surface and angles the measured relative to that surface.

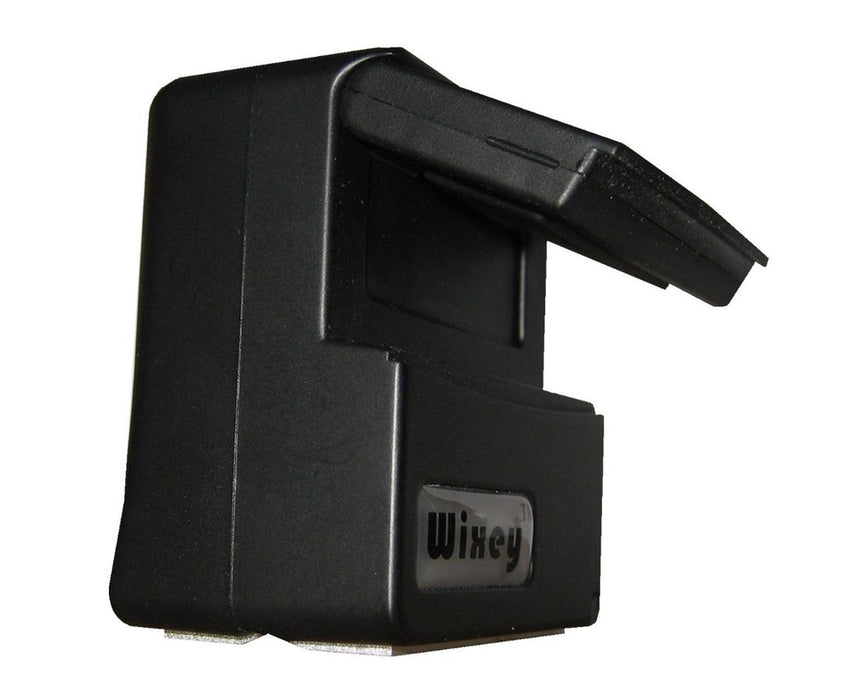

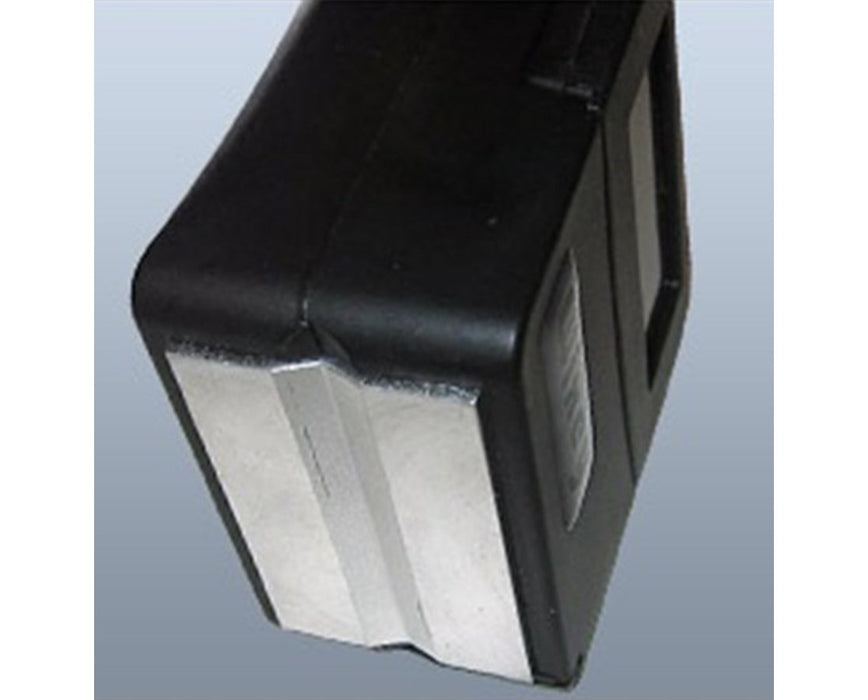

Having a Five-Point Flip Up Display, this Wixey angle gauge is easily visible and easy to position when setting and measuring. Also, it has a magnetic base and a display hold function which holds the current reading on display. In addition, it measures in inches and millimeters.
