Deluxe Drawing Drafting Table

The Diversified Woodcrafts Deluxe Drawing Table System provides a comfortable and practical working environment. It comes with an under desk keyboard, mouse tray, mounted CPU holder and flat panel monitor arm. Its 3/4 inches almond colored plastic laminate top is divided into a 30"W x 30"D adjustable drawing surface and 12"W x 30"D fixed surface.

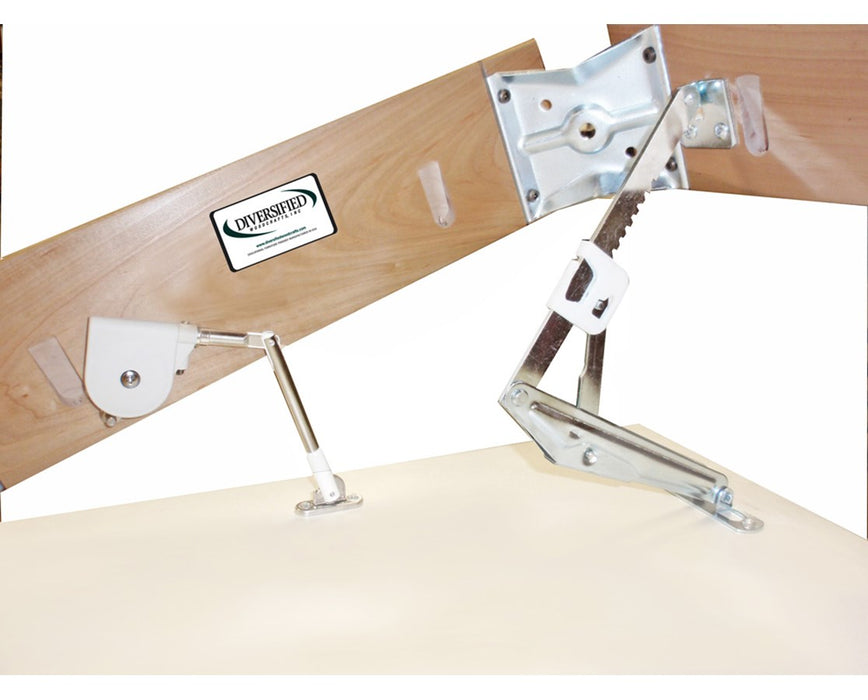

This sturdy table is constructed of solid maple and maple veneers with 13-gauge steel corner braces for reinforcement. A chemical resistant UV finish is coated on its surface for protection against scratches. The Diversified Woodcrafts Deluxe Drawing Table System adjustable top features soft close hinges, making it easier to adjust from 0 to 30 degrees. It also includes a pencil stop to keep the pens and paper from sliding down.

Besides the plain model, the Diversified Woodcrafts Deluxe Drawing Table System options include six drawers, board storage for six, and combination six drawers with board storage. Models with drawers are built with six locking drawers measuring 10-1/2"W x 19-3/4" D x 3-1/4"H each, these drawers are completely finished and dovetailed on all four sides. The board storage models have six 25-1/4"H x 24-3/8" D x 1-1/4"W spaces for drawing boards. It has an overall measurement of 42"W x 30" D x 39-3/4"H. Made in the U.S.A., it is SEFA compliant and MAS Certified Green. It is also backed by a limited lifetime warranty.

Please Note: Pictured CPU, monitor, keyboard, and mouse are not included

Configuration Options

The Diversified Woodcrafts Deluxe Drawing Table System is available in three different models. Please choose from the menu above.

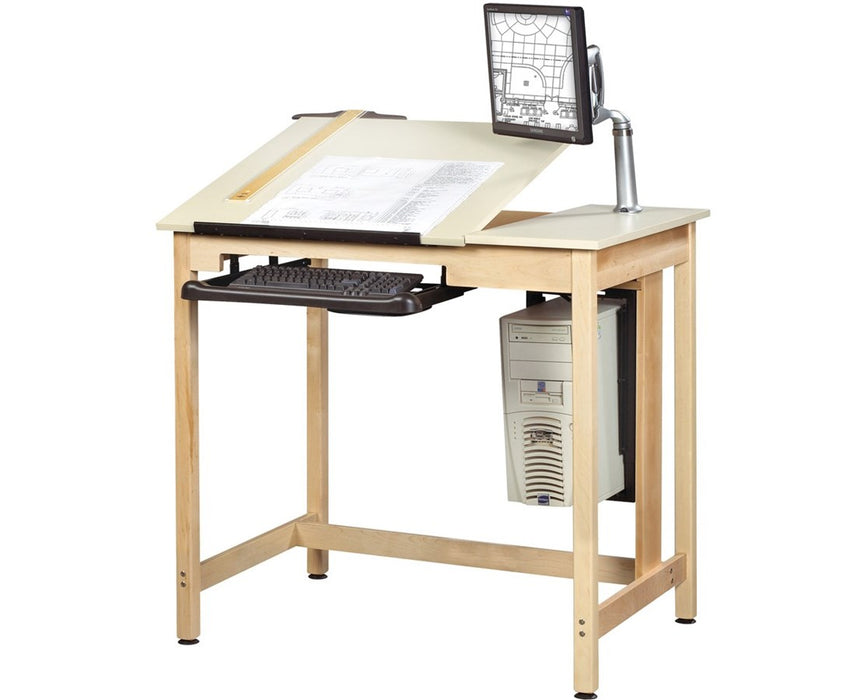

• CDTC-70: Basic

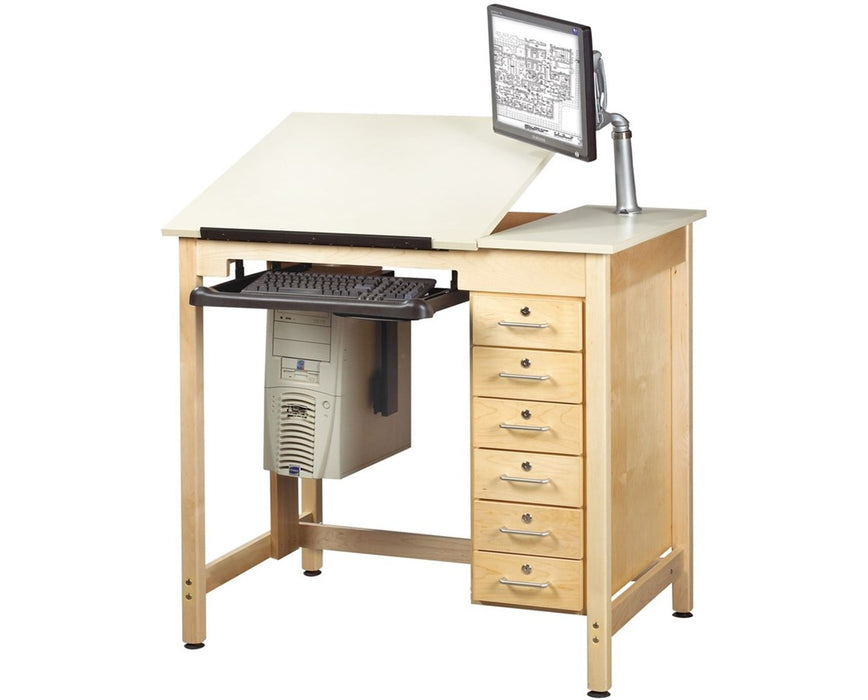

• CDTC-71: With 6 drawers

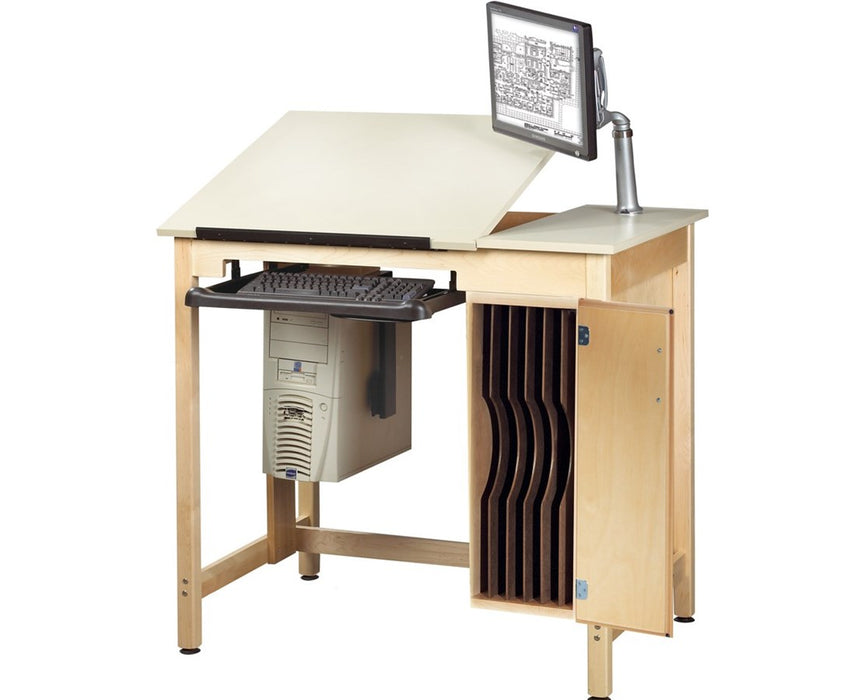

• CDTC-72: With board storage
