Corrosion-Resistant Industrial Workstation Fan

by TPI Corporation

MFR#: F18CR

TIGER#: TS58973

List Price: $586.00

You Save: $142.24 -24%

$586.00 - $586.00

List Price: $586.00

$443.76

$443.76 - $443.76

$443.76

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

Corrosion-Resistant Industrial Workstation Fan - $443.76

$443.76

*Must Purchase 1 for Corrosion-Resistant Industrial Workstation Fan

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/26/2023

Documents

Product Manual Item Brochure Product Video

Choice of blade size & fan model
Pull-chain switch
3-speed switch option
Head tilt of 360°
Sleeve bearing
Frame size: 42”
Sealed electrical enclosure
FDA white coated steel guards

Perfect for most industrial workplaces, the TPI Corrosion-Resistant Industrial Workstation Fan is a wear-resistant fan that provides clean air and ventilation. With a pull chain switch, this TPI workstation fan offers a three-speed switch option and a fan head that is capable of tilting up to 360-degrees for a full area coverage.

The TPI industrial workstation fan features a sleeve bearing system is permanently lubricated and give greater durability. It includes an SJTW type-3 ten-foot conductor cord that offers a single-phase, 120-volt motor power with a 1/2-inch shaft. Also, the TPI fan has a 42 frame size.

The TPI corrosion-resistant fan is totally enclosed and comes with a sealed electrical enclosure that is guaranteed to last for a long time. It features FDA white coated steel guards and steel hub with spider aluminum paddle blades. As an additional feature, this TPI industrial workstation fan is OSHA standard compliant and is made in the USA.

Configuration Options

The TPI Corrosion-Resistant Industrial Workstation Fan offers six models that have varying blade size and fan styles that suit your needs. Please select from the menus above.

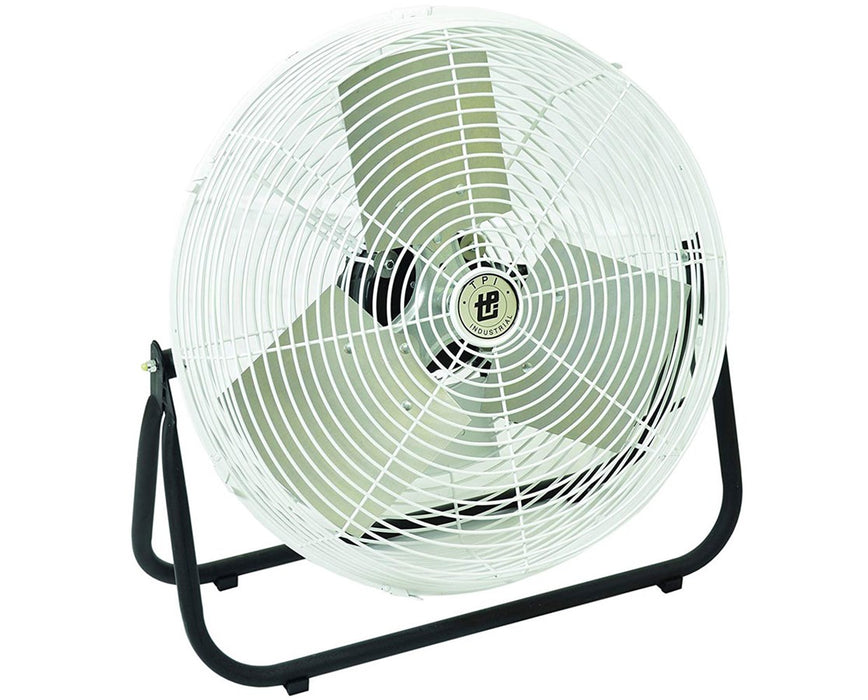

F18CR: 18" Blade Size, Floor Model

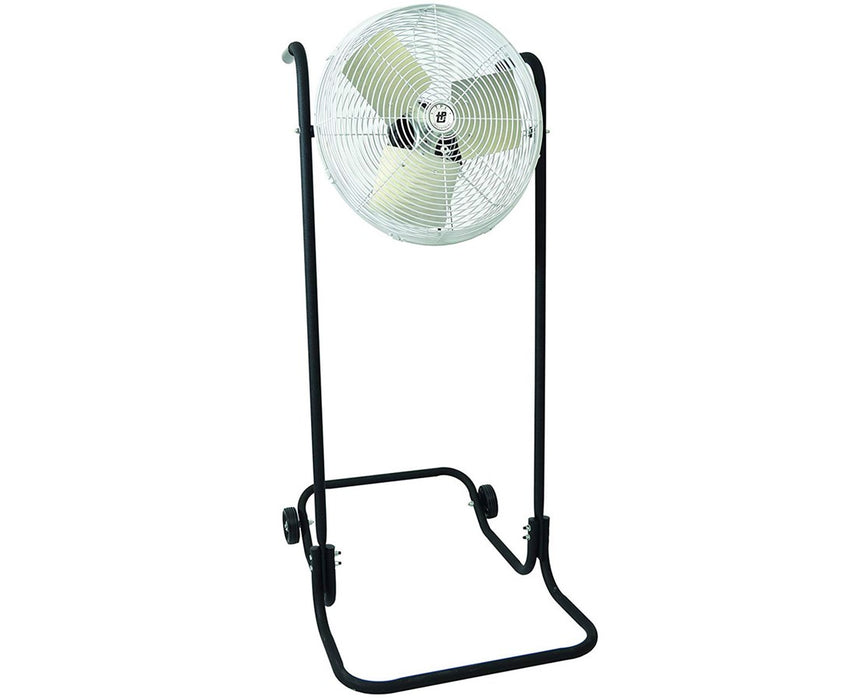

F18HCR: 18" Blade Size, High Stand Model

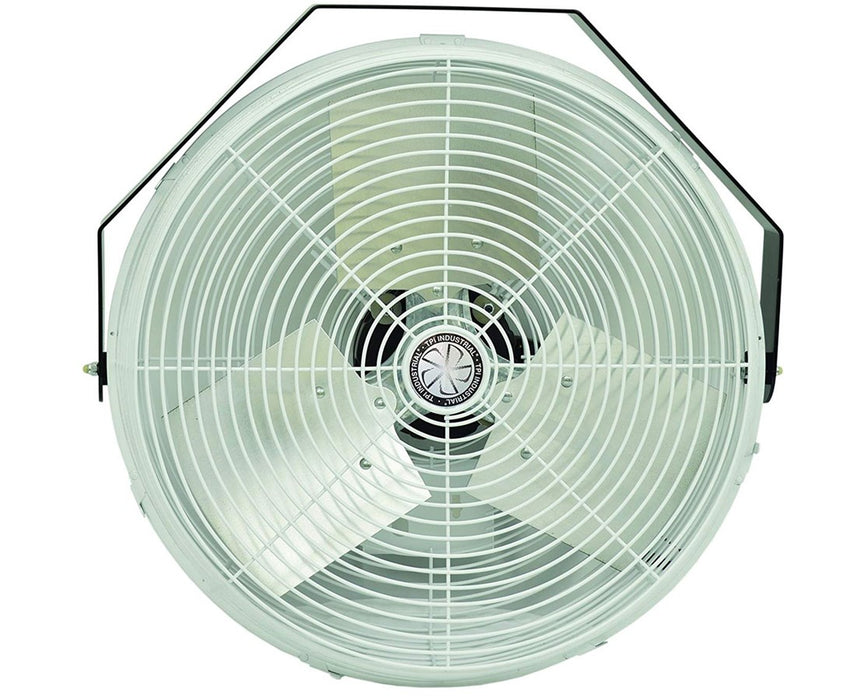

U18CR: 18" Blade Size, Wall/Ceiling Model
F24CR: 24" Blade Size, Floor Model
F24HCR: 24" Blade Size, High Stand Model
U24CR: 24" Blade Size, Wall/Ceiling Model

Choice of blade size & fan model
Perfect for industrial workplaces
Provides clean air and ventilation
Pull chain switch
3-speed switch option
Head tilt of 360°
Sleeve bearing
Permanently lubricated
SJTW type-3 10’ conductor cord
Single-phase, 120V motor
1/2” shaft
42 frame size
Totally enclosed
Sealed electrical enclosure
FDA white coated steel guards
Steel hub with spider aluminum paddle blades
OSHA standard compliant
Made in the USA

What’s in the Box

TPI Corrosion-Resistant Industrial Workstation Fan
User manual
1-year limited warranty

Available Package Options

Blade Size: 18” or 24”
Fan Style: Floor, High Stand or Wall/Ceiling

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan

Amps

1.5 (F18CR); 2.2 (F18HCR, U18CR); 2.4 (F24CR, F24HCR, U24CR)

Blade Size

18” (F18CR, F18HCR, U18CR); 24” (F24CR, F24HCR, U24CR)

Certification

OSHA, Intertek

Cord Length

10 feet

Cord Type

SJTW type-3 conductor

Fan Type

Workstation fans

Head Type

Head tilting up to 360°

Shaft Size

1/2"

Speed (Revolutions per Minute)

Up to 1,800 (F18CR, F18HCR, U18CR); Up to 2,100 (F24CR, F24HCR, U24CR)

Velocity Profile (CFM/Area Sq. Ft.)

2,900/125 (F18CR, F18HCR, U18CR); 3,500/150 (F24CR, F24HCR, U24CR)

General

Dimensions

20.5” H x 20.5” W x 10.5” D (F18CR); 26” H x 26” W x 10.5” D (F24CR); 53” H x 25” W x 27” D (F18HCR); 53” H x 30” W x 27” D (F24HCR); 21.5” H x 20.5” W x 10.5” D (U18CR); 27” H x 26” W x 10.5” D (U24CR)

Material

Steel hub / Aluminum paddle blades

Warranty

1-year limited

Weight

20 lbs (F18CR, U18CR); 23 lbs (F24CR, U24CR); 27 lbs (F18HCR); 30 lbs (F24HCR)

Motor

Frame Size

Horsepower (HP)

1/8

Lubrication

Permanent

Power

1-Phase, 120V

Speed Switch

3-speed
