Concrete Hardness Test Hammer

by PCE
TIGER#: TS96345
Original price List Price: $1,291.68
You Save: $348.85 -27%
Original price $1,291.68 - Original price $1,291.68
Original price List Price: $1,291.68
Current price $942.83
$942.83 - $942.83
Current price $942.83
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Concrete Hardness Test Hammer
Concrete Hardness Test Hammer - $942.83
*Must Purchase 1 for Concrete Hardness Test Hammer

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 2 - 4 Business Days Shipping Date By: 10/2/2023
  • Used for Accurate Concrete Strength Measurements
  • Applies the Schmidt Principle to Get Rebound Value
  • Comes w/ OLED Display Screen
  • Can be Setup in Different Test Angles
  • Internal Storage of up to 1000 Data Units
  • Impact Energy/Load: 2.207 Nm (J)
  • Measuring Range: 10 ... 60 N/mm²

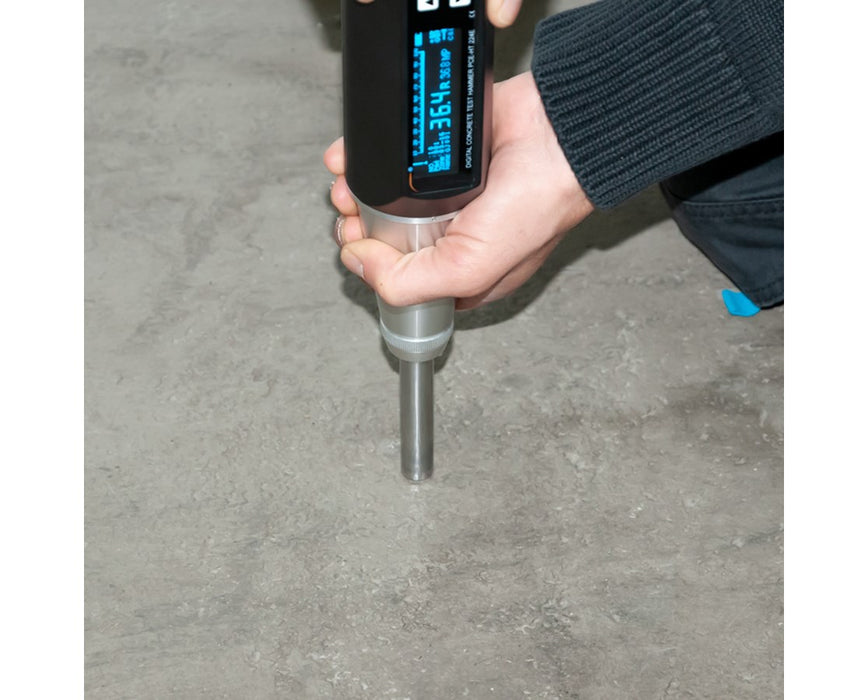

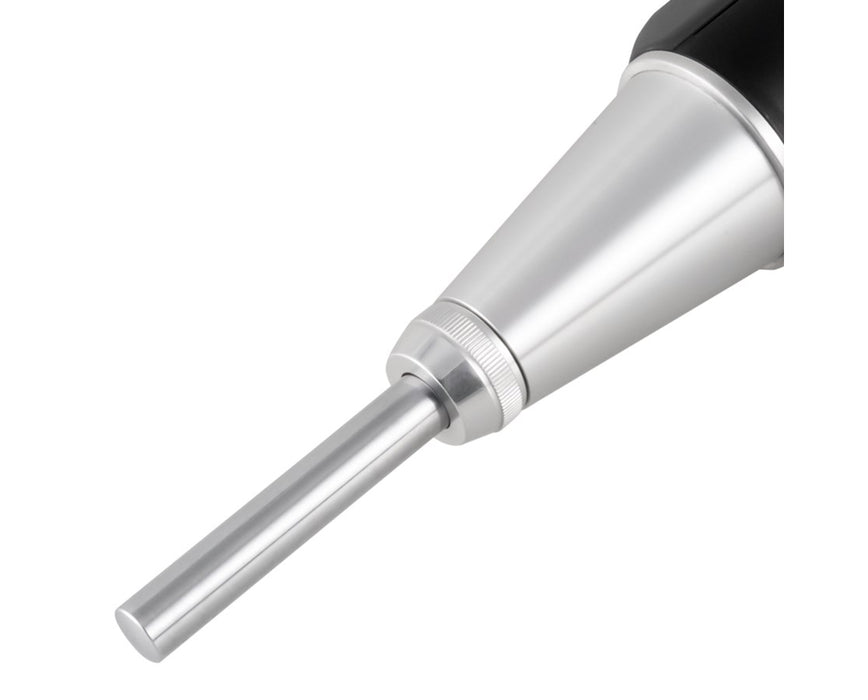

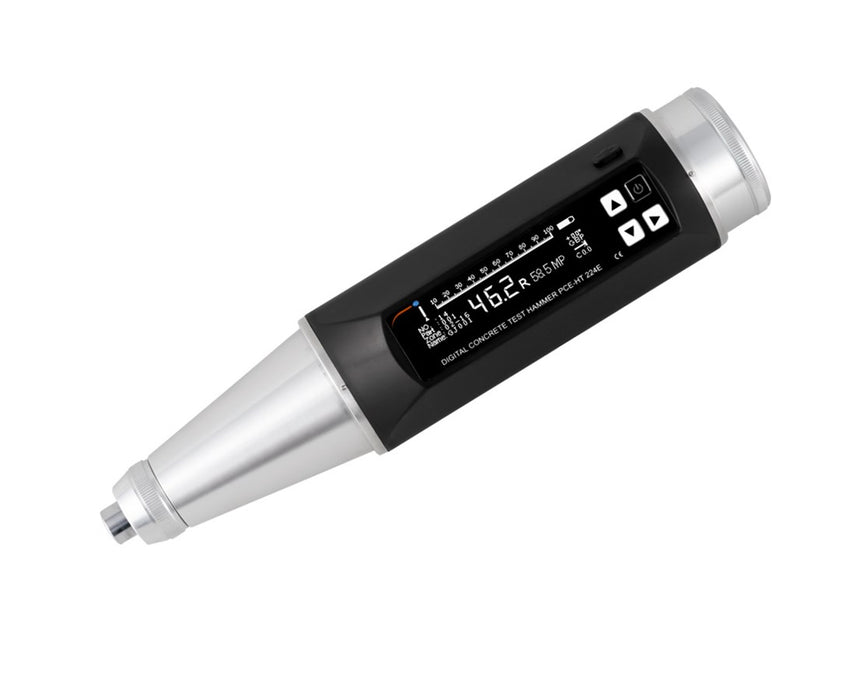

The PCE Concrete Hardness Test Hammer is a reliable measuring tool used by construction professionals to get the accurate measurement of a concrete strength. It uses the Schmidt principle, wherein the rebound value of a hard area is acquired using the device, which then reflects the compressive strength and hardness of a rock or concrete surface. It comes with an easy-to-read digital screen to display the results, and a durable impact plunger, making it a reliable and handy utility in the construction field.

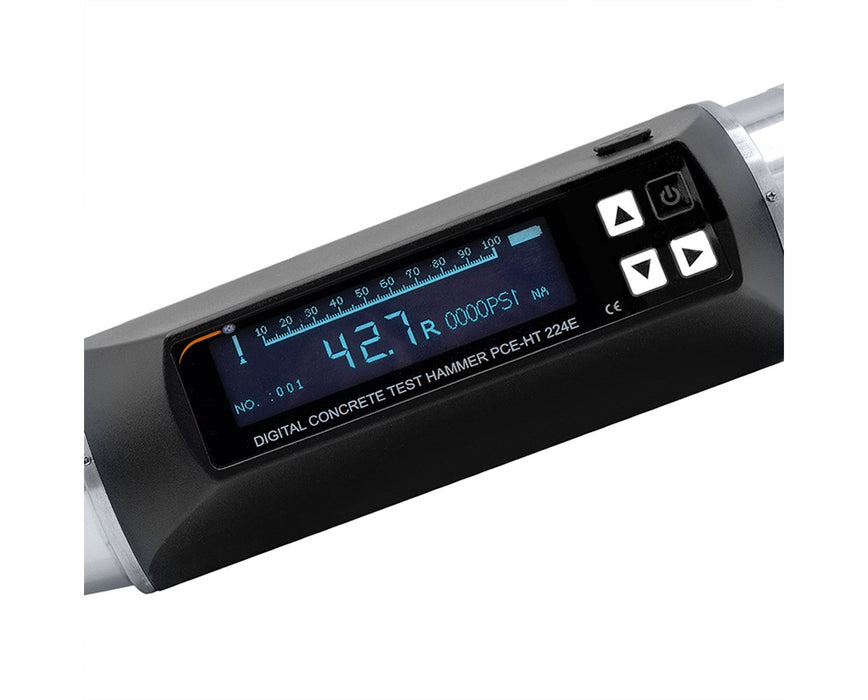

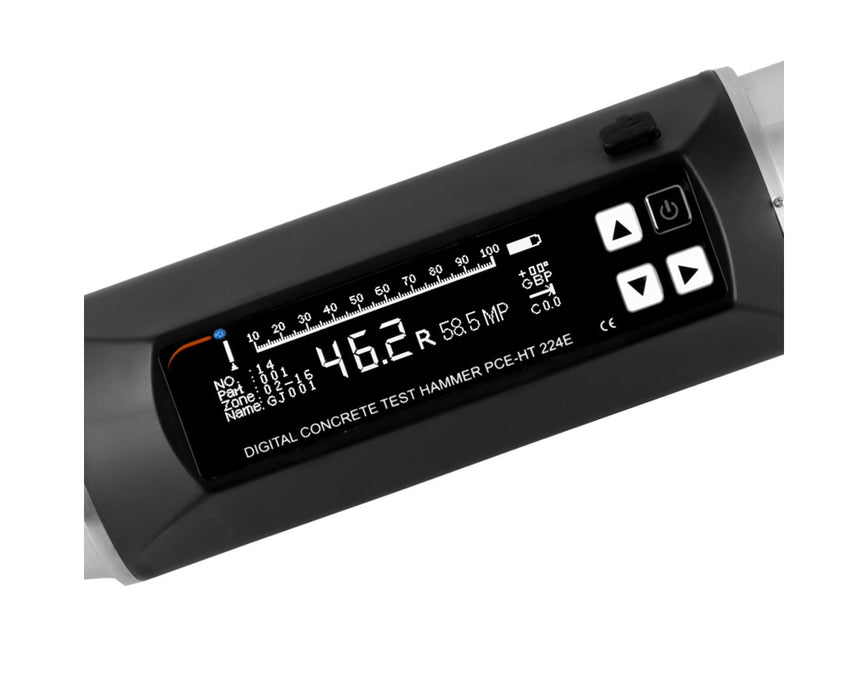

Dependable & Accurate: This PCE concrete strength tester features an OLED display that shows rebound value in PSI, MPa, kgF/cm², or N/mm², depending on the contractors preference. It is designed to have a consistent impact energy/load of 2.207 Nm (J), and can easily be setup to measure different test angles, may it be downwards (-90deg or -45deg), horizontal (0deg), or upward (45deg or 90deg) hard surfaces.

This PCE Hardness Test Hammer has a measuring range of 10 ... 60 N/mm², 1500 ... 8500 PSI or lbs/in², ensuring a wide scale of concrete strength value. It is equipped with an internal storage of up to 1000 data units (256 measurements each), to review previous results, and a USB port for easy connection to a PC for import in its exclusive software, export, sharing, and analysis of data. This device also comes with a built-in rechargeable battery for portability in the field, and for mobile use.

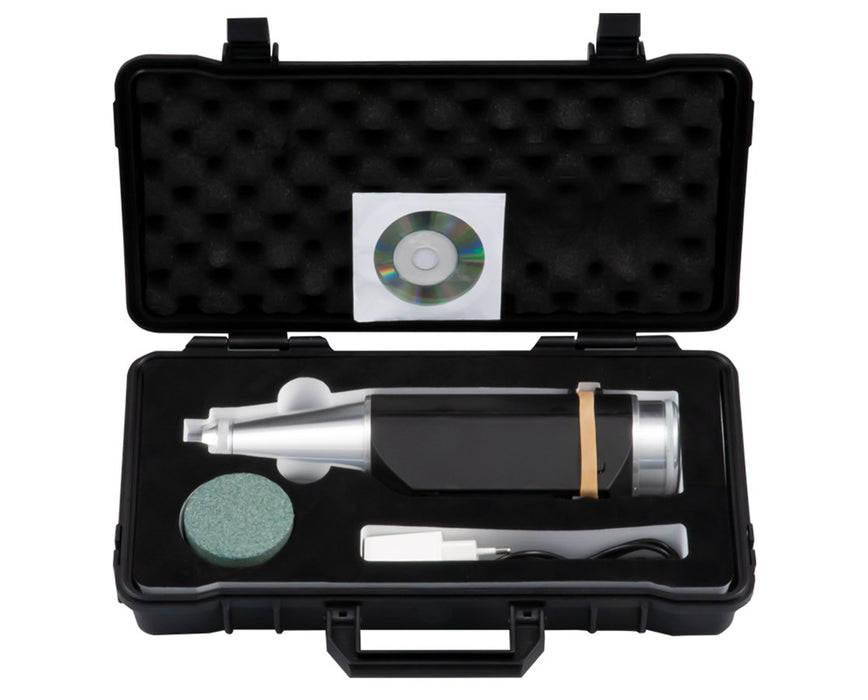

What’s in the Box

  • (1) Hardness tester Unit
  • (1) Mini USB cable
  • (1) Emery stone
  • (1) Charger
  • (1) Transport case
  • (1) User manual


Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 25% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging.

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Ground Resistance Range
10 ... 60 N/mm², 1500 ... 8500 PSI (lbs/in²)
Measuring Method
Schmidt Principle/Rebound Value
11 x 3 x 2.4 in
1,000 data units with 256 measurements each
Operating Temperature
-40 ... 60°C / -40 ... 140°F
User Interface
Instant Measurement
1.2 kg / 2.6 lbs
Power Supply
100 ... 240V AC, 50/60 Hz
Power/Battery Life
3.7V Li-ion battery
