CH Portable Quartz Infrared Heater

by TPI Corporation

MFR#: CH22121C

TIGER#: TS62270

List Price: $678^.00

You Save: $217^.46 -32%

$678^.00 - $678^.00

List Price: $678^.00

$460^.54

$460^.54 - $460^.54

$460^.54

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

CH Portable Quartz Infrared Heater - $460^.54

$460^.54

*Must Purchase 1 for CH Portable Quartz Infrared Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 12/29/2023

Documents

Item Brochure

Choice of 2 heater types
Heat pattern: 60° symmetrical
Quartz tube included
Temperature up to 1,800 °F
Construction: Gold anodized aluminum reflector and end caps
Built-in wire guard
Wiring: 15’ cord with NEMA plug
cETLus listed

TheTPI CH Series Portable Quartz Infrared Heater is a powerful heating device that is great for indoor and protected outdoor use including garages or workshops. This portable infrared heater comes with a 60° symmetrical heat pattern for a wide coverage.

This TPI infrared heater uses a quartz tube that gives off a temperature up to 1,800 °F (982 °C) with a bright orange glow. Also, it is rated up to 5.7 kilowatts and up to 240 volts power.

The CH Series infrared heater is constructed of a Gold anodized aluminum reflector and end caps that helps quick heating up. It includes built-in wire guards and a 15-foot cord with NEMA plug. As an extra feature, the CH Series is made in the USA and is cETLus listed.

Configuration Options

TheTPI CH Series Portable Quartz Infrared Heater has two available models that have different features. Please refer to the table and choose your desired option from the menu above.

Model	Heater Type	Heater Wattage (kW)	BTUs	Volts	Amps	NEMA Plug	Dimensions (L x W x H)

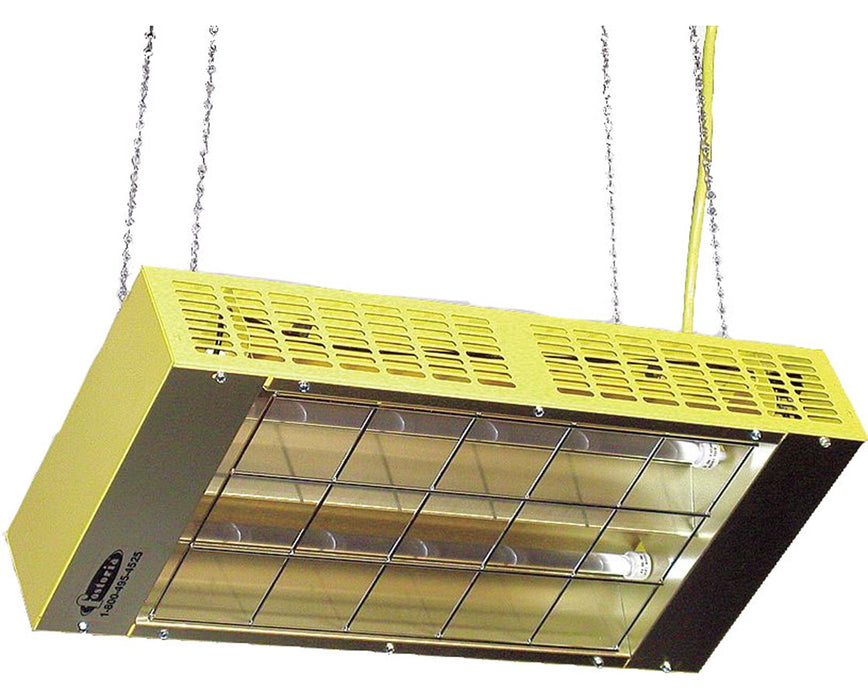

CH-2212-1C	Chain Mounted	1 / 2	3,413 / 6,826	120	8.35 / 16.7	5-20 Molded Plug	23" x 11" x 3.75"

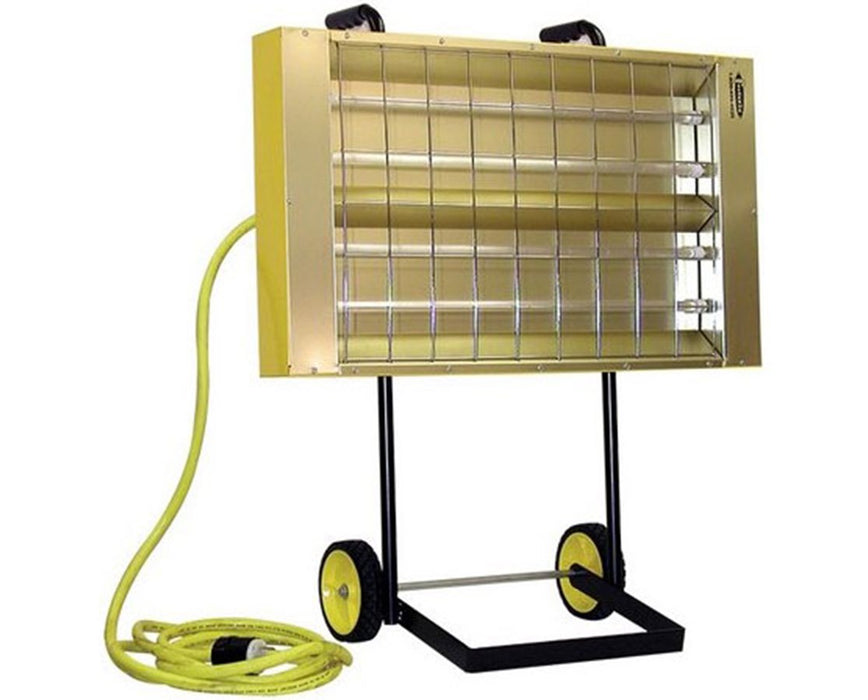

CH-6424-1C	Heater with Cart	2.85 / 5.7	9,727 / 19,454	240	11.9 / 23.8	L6-30 Twist Lock Plug	32" x 19" x 3.75"

Choice of 2 heater types
60° symmetrical heat pattern
Uses a quartz tube
Give off a temperature up to 1,800 °F (982 °C)
Bright orange glow
Rating up to 5.7 kW
Power up to 240 V
Construction: Gold anodized aluminum reflector and end caps
Built-in wire guard
15’ cord with NEMA plug
Made in the USA
cETLus listed

What’s in the Box

TPI CH Series Portable Quartz Infrared Heater
Quartz tube
Wire guard
1-year limited warranty

Available Product Options

Type: Chain-Mounted Heater or Heater w/ Cart

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Control Enclosure

NEMA Rating

NEMA 5-20, NEMA L6-30

Features

Cart

Yes (CH-6424-1C)

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

General

Housing

Gold anodized Aluminum

Warranty

1-year limited

Weight

16 lbs, 31 lbs

Heater

Amps

8.35, 11.9, 16.7, 23.8

BTU

3,413 / 6,826; 9,727 / 19,454

Power Distribution

1-Phase

Voltage

120 V, 240 V

Wattage

1 / 2 kW, 2.85 / 5.7 kW

Motor

Plug

20 or 30 Amp plug
