CF & CFH Variable Speed Air Curtain

TPI Corporation
by TPI Corporation
MFR#: CF36
TIGER#: TS62355
List Price: $2,457.00
You Save: $596.44 -24%
$2,457.00 - $2,457.00
List Price: $2,457.00
$1,860.56
$1,860.56 - $1,860.56
$1,860.56
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
CF & CFH Variable Speed Air Curtain
CF & CFH Variable Speed Air Curtain - $1,860.56
$1,860.56
*Must Purchase 1 for CF & CFH Variable Speed Air Curtain

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/31/2023
Documents
Item Brochure
  • Choice of heater length, HP & Type
  • Heavy-duty PSC direct-drive motor
  • Steel sheath heating element
  • Helical-wound steel fins
  • Silicon Controlled Rectifier (SCR) controller
  • Speed up to 1,652 RPM
  • Curved centrifugal-type blower
  • DWDI fan with corrosion-resistance scroll and wheel

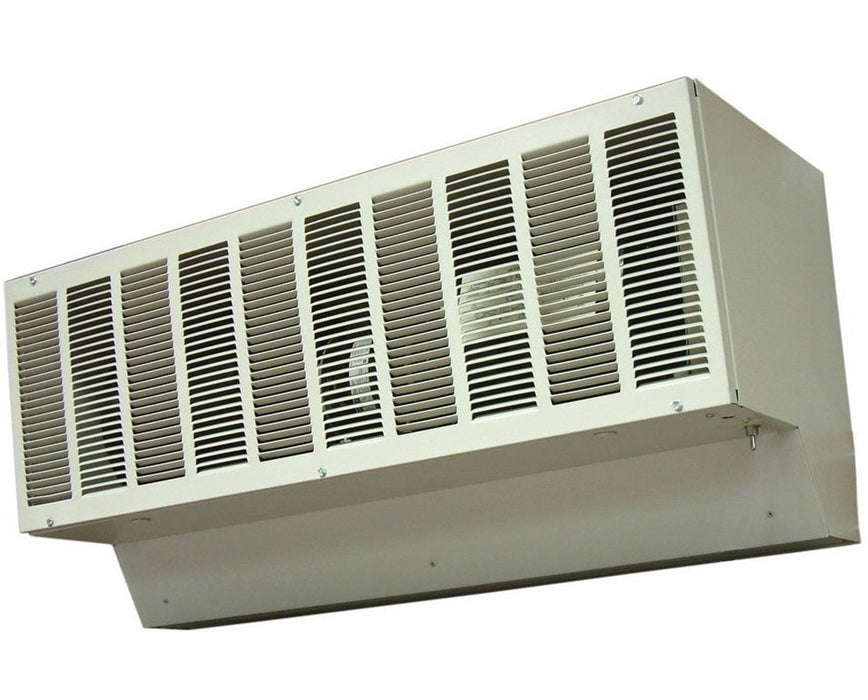

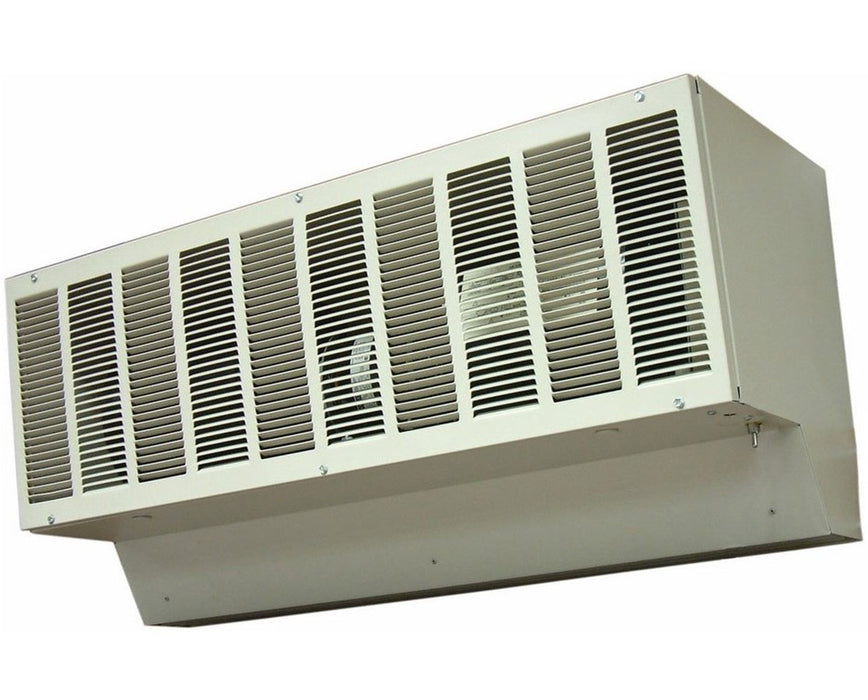

The TPI CF & CFH Series Variable Speed Air Curtain is a robust air heater that is placed above entry doors of commercial, residential or industrial doors. With a 120-volt rating, this TPI air curtain uses a heavy-duty permanent split capacitor (PSC) direct-drive motor type that perfectly works with Silicon Controlled Rectifier (SCR) controllers. The TPI CF & CFH Series air curtain motor is also permanently lubricated and comes with a double insulation protection that allows a quieter operation.

The CF & CFH Series variable speed air curtain features a steel sheath heating element with a helical-wound steel fins for optimum safety and heat transfer. Offering variable speed, it is equipped with an SCR speed controller that effectively controls air volume and efficiently saves energy. Also, it offers a speed up to 1,652 revolutions per minute (RPM).

The TPI CF & CFH Series air curtain is constructed of a 20-gauge rigid steel material with epoxy powder-coated paint that provides durability and longevity. It features discharge vanes and a curved centrifugal-type blower. It has a double-width double-inlet (DWDI) fan that has a corrosion-resistance scroll and wheel for effective heating. In addition, the CF & CFH Series is cETLus approved for added safety.

Configuration Options

The TPI CF & CFH Series Variable Speed Air Curtain has six models with different heater lengths, horsepower (HP), and heater type. Please select your preference from the menus above.

Model CF36
 CFHD36
  CF48 CFHD48 CF60 CFHD60
Feet Per Minute (FPM) 455 / 3,288 1,120 / 3,288 786 / 4,168 929 / 4,256 764 / 4,168 924 / 4,256
Nozzle CFM 333 / 2,672 819 / 2,672 766 / 4,515 906 / 4,611 931 / 6,544 906 / 4,611
Revolutions Per Minute (RPM)
 620 / 1,659 603 / 1,689 583 / 1,606 500 / 1,662 562 / 1,636 500 / 1,662
HP 1/2 3/4 1/2 3/4 1/2 3/4
Amps 3.4 / 3.9 4.3 / 4.4 3.6 / 4.4 4.8 / 5.9 3.8 / 4.4 4.4 / 5.2
Watts 154 / 472 192 / 603 189 / 519 172 / 708 199 / 509 172 / 708
BTU 525 / 1,610 655 / 2,058 621 / 1,771 587 / 2,416 679 / 1,737 587 / 2,416
Dimensions
(L x W x H) 		36" x 17.5" x 16.75" 36" x 12.5" x 16.75" 48" x 17.5" x 16.75" 48" x 12.5" x 16.75" 60" x 17.5" x 16.75" 60" x 12.5" x 16.75
  • Choice of heater length, HP & Type
  • Rating: 120 V
  • Heavy-duty PSC direct-drive motor
  • Permanently lubricated with double insulation protection motor
  • Steel sheath heating element
  • Helical-wound steel fins
  • Silicon Controlled Rectifier (SCR) controller
  • Speed up to 1,652 RPM
  • 20-gauge rigid steel with epoxy powder-coated paint
  • Discharge vanes
  • Curved centrifugal-type blower
  • DWDI fan with corrosion-resistance scroll and wheel
  • cETLus approved

What’s in the Box

  • TPI CF & CFH Series Variable Speed Air Curtain
  • 1-year limited warranty

Available Product Options

  • Heater Length: 36”, 48” or 60”
  • HP: 1/2 or 3/4
  • Type: Standard or Heavy Duty

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater
Length
36", 48", 60"
Dimensions
Heater
15" W x 18" H
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
Yes
General
Finish/Coating
Epoxy powder-coat
Housing
20 gauge steel
Warranty
1-year limited
Weight
74 lbs, 77 lbs, 82 lbs, 85 lbs, 90 lbs, 93 lbs
Heater
Amps
3.4, 3.6, 3.8, 3.9, 4.3, 4.4, 4.8, 5.2, 5.9
BTU
525 BTU, 587 BTU, 621 BTU, 655 BTU, 679 BTU, 1,610 BTU, 1,771 BTU, 1,737 BTU, 2,058 BTU, 2,416 BTU
CFM
333, 766, 819, 906, 931, 1,126, 2,672, 4,515, 4,611, 5,763, 6,544
Voltage
120 V
Wattage
154 W, 168 W, 172 W, 189 W, 192 W, 199 W, 472 W, 509 W, 519 W, 586 W, 602 W, 708 W
Motor
Capacitor Type
Permanent split capacitor (PSC)
Speed
500 RPM, 509 RPM, 562 RPM, 583 RPM, 603 RPM, 620 RPM, 1,606 RPM, 1,636 RPM, 1,659 RPM, 1,662 RPM, 1,689 RPM
