CF-C Commercial Air Curtain

TPI Corporation
by TPI Corporation
MFR#: CF35C
TIGER#: TS62351
List Price: $587.00
You Save: $142.49 -24%
$587.00 - $587.00
List Price: $587.00
$444.51
$444.51 - $444.51
$444.51
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
CF-C Commercial Air Curtain
CF-C Commercial Air Curtain - $444.51
$444.51
*Must Purchase 1 for CF-C Commercial Air Curtain

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/20/2023
Documents
Product Manual Item Brochure
  • Choice of 3 wattages
  • Mechanical control
  • Power: 120 V
  • Rating up to 400 W
  • 2-speed cross-flow fans
  • Adjustable air deflector
  • Airflow up to 2,119 CFM
  • Sound level as low as 65 dB

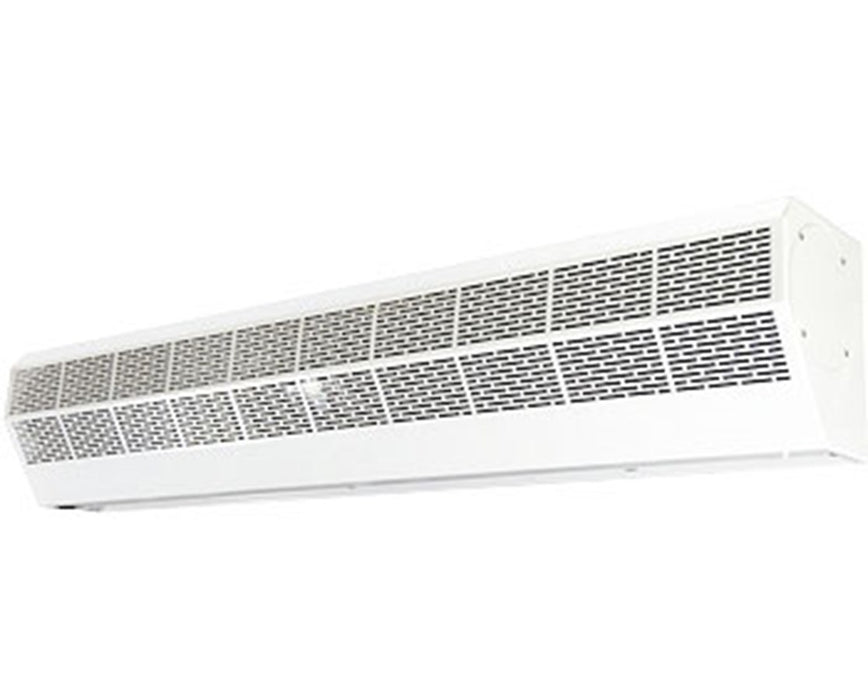

The TPI CF-C Series Commercial Air Curtain is a powerful heating unit that creates an invisible air barrier above entry doors and industrial warehouse doors to separate contrasting environments without restricting passage. Equipped with a mechanical control, it offers a 120-volt power at a 60-Hertz frequency. The CF-C Air Curtain comes with two-speed cross-flow fans that keep cooling and effectively cleans the atmosphere.

The CF-C Series commercial air curtain features an adjustable air deflector that prevents rushing air from entering the spaces. It offers a strong airflow up to 2,119 cubic feet per minute (CFM) and sound level as low as 65 decibels (dB). Also, the CF-C Series air curtain has a rating of up to 400 watts.

This TPI commercial air curtain is constructed of a rigid steel housing with an epoxy white finish that is professional-looking and robust. It comes with a super thin body with a full metal housing that endures harsh spaces. As an additional feature, the TPI air curtain measures 8.75” W x 10.25” H and is approved by cULus standards.

Configuration Options

The TPI CF-C Series Commercial Air Curtain offers three different wattages that suit your warming needs. Please choose from the menu above.

Model CF35-C CF47-C CF59-C
BTUs 1,024 1,194 1,365
Watts 300 350 400
Amps 2.5 2.92 3.33
CFM
(Cubic Feet per Minute) 		Low: 942
High: 1,177  		Low: 1,295
High: 1,648		 Low: 1,648
High: 2,119
Noise Level (dB) Low: 65
High: 67		 Low: 67
High: 69		 Low: 69
High: 71
Dimensions 35" L x 8.75" W x 10.25" H 47" L x 8.75" W x 10.25" H 59" L x 8.75" W x 10.25" H
Weight 33.1 lbs 43 lbs 48.5 lbs
FPM
(Feet per Minute) 		Low: 1,968
High: 2,560 		Low: 1,968
High: 2,560 		Low: 1,968
High: 2,560
  • Choice of 3 wattages
  • Creates an invisible air barrier above entry doors
  • Mechanical control
  • Power: 120 V
  • Frequency: 60 Hz
  • 2-speed cross-flow fans
  • Adjustable air deflector
  • Airflow up to 2,119 CFM
  • Sound level as low as 65 dB
  • Rating up to 400 W
  • Rigid steel housing with epoxy white finish
  • Full metal housing
  • Size: 8.75” W x 10.25” H
  • cULus approved

What’s in the Box

  • TPI CF-C Series Commercial Air Curtain
  • 1-year limited warranty

Available Product Options

  • Wattage: 300 W, 350 W or 400 W

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater
Length
35", 47", 59"
Dimensions
Heater
8.75" W x 10.25" H
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Finish/Coating
Epoxy white finish
Housing
Full metal housing
Warranty
1-year limited
Weight
33.1 lbs, 43 lbs, 48.5 lbs
Heater
Amps
2.5, 2.92, 3.33
BTU
1,024 BTU, 1,194 BTU, 1,365 BTU
CFM
Low: 942, 1,295, 1,648; High: 1,177, 1,684, 2,119
Power Distribution
1-Phase
Voltage
120 V
Wattage
300 W, 350 W, 400 W
Motor
Frequency
60 Hz
