CEM100 Mag Electromagnetic Insertion Flow Meter

MFR#: C6FMB CEM100E
TIGER#: TS59044
Original price List Price: $2,890.00
You Save: $635.80 -22%
Original price $2,890.00 - Original price $2,890.00
Original price List Price: $2,890.00
Current price $2,254.20
$2,254.20 - $2,254.20
Current price $2,254.20
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
CEM100 Mag Electromagnetic Insertion Flow Meter
CEM100 Mag Electromagnetic Insertion Flow Meter - $2,254.20
$2,254.20
*Must Purchase 1 for CEM100 Mag Electromagnetic Insertion Flow Meter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 3 - 5 Business Days Shipping Date By: 10/10/2023
  • Choice of output, sensor, and enclosure
  • Advanced micro processing technology
  • Great accuracy even in turbulent flows
  • Output: rate, total, 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control
  • Wide pipe diameter range of 2” to 72”
  • Low-profile, single-point insertion sensor

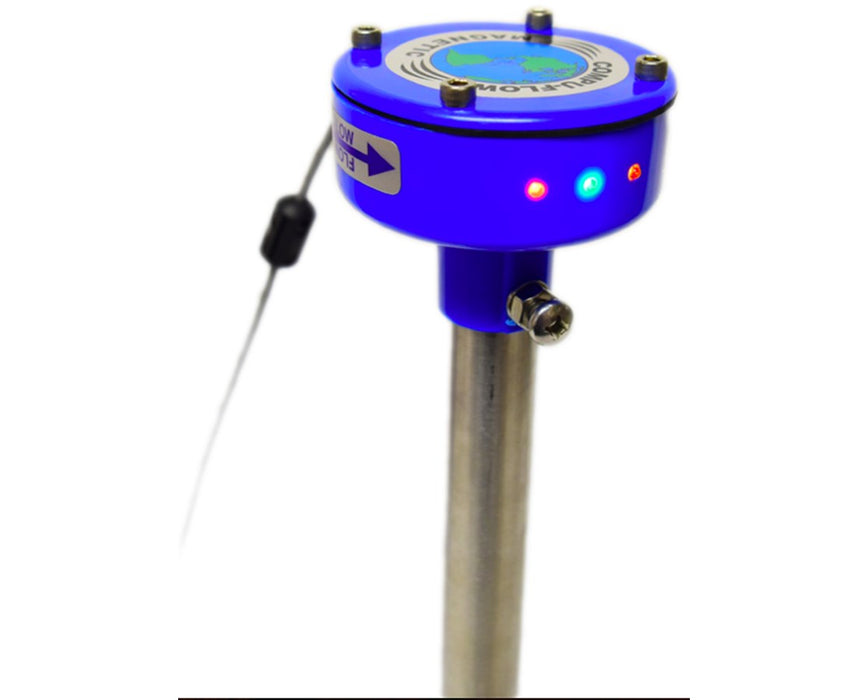

  • Optional Smart-LED visual flow indicators
  • Minimum depth required: 12% of pipe ID

The Compu-Flow CEM100 Mag Electromagnetic Insertion Flow Meter is a flow meter that can be used for almost any full pipe applications. It applies the Faraday’s Law of electromagnetic induction to accurately measure fluid flow rate of electrically conductive liquids mixed with other liquids and solids. Introducing the Smart-Flow with advanced proprietary micro processing technology, it provides digital signal and ensures great precision even in turbulent flows. It offers optional Smart-LED visual flow indicators that allow immediate inspection of the flow.

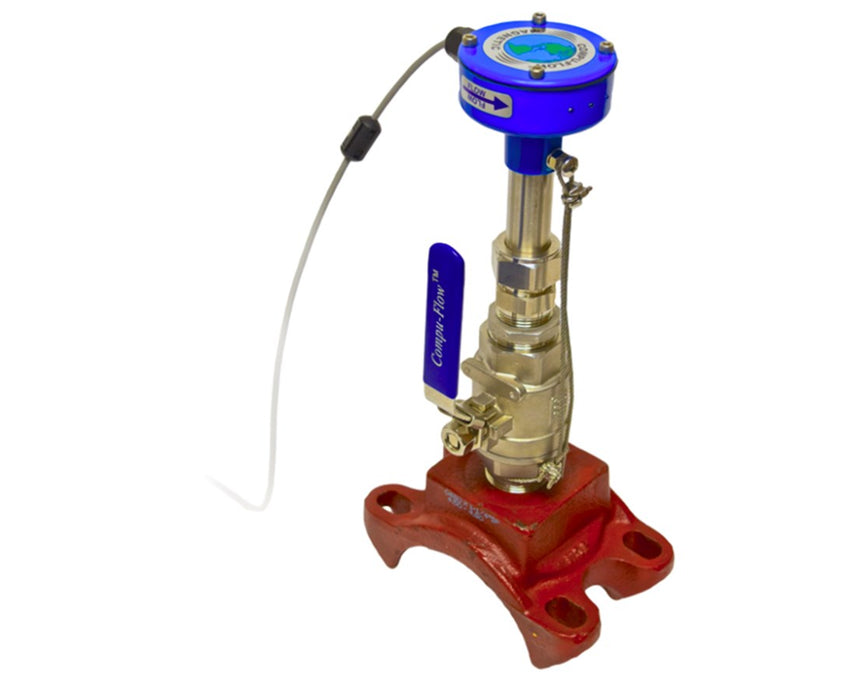

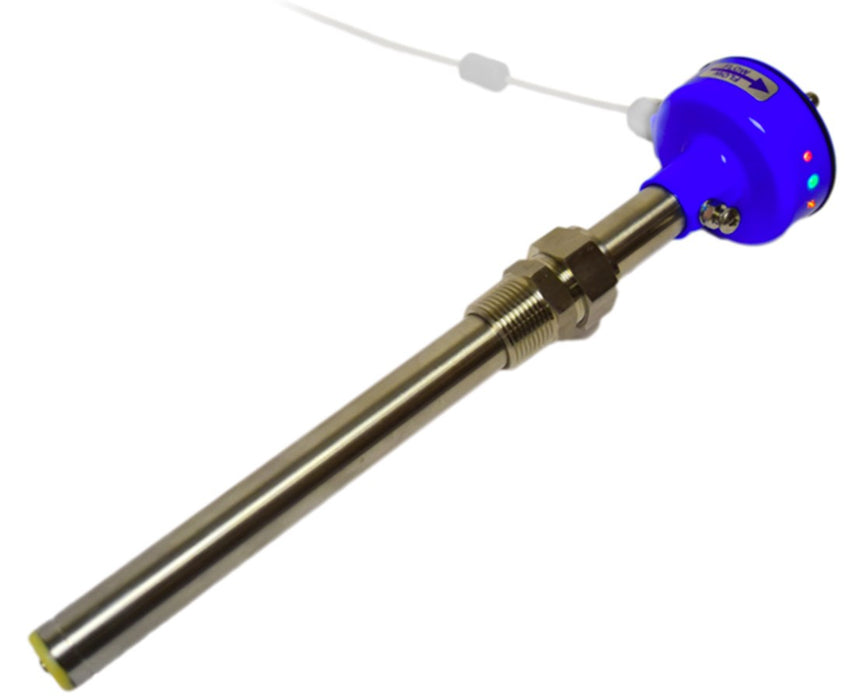

This Compu-Flow electromagnetic insertion flow meter is equipped with a low-profile single-point insertion sensor that measures flow rate through pipes with inside diameter ranging from two inches up to 72 inches. To guarantee reliable performance, it requires minimum depth of 12 percent of the pipe’s inside diameter with at least ten diameters of straight pipe upstream and five straight run downstream. It comes with stainless steel probe and electrodes that are mounted on Teflon for superior durability and long-lasting service. With a 25-foot long cable and compression fitting (ball valve, bushing, and short nipple), it is a complete package.

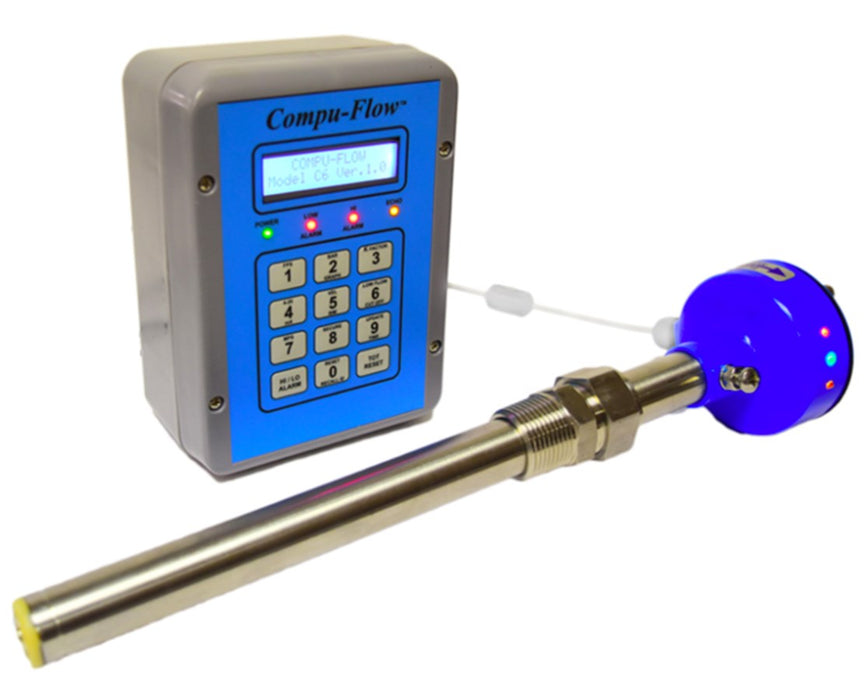

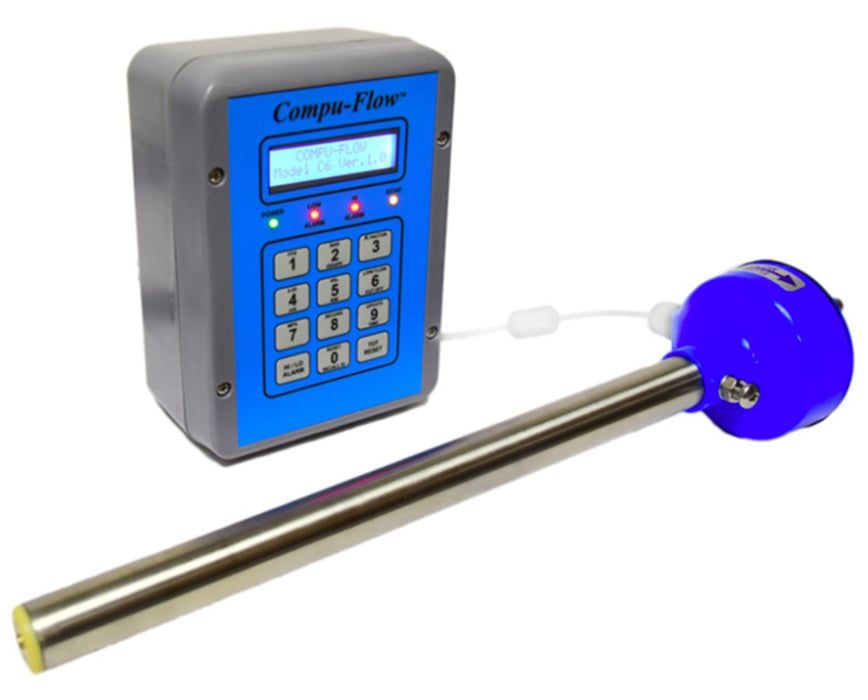

Featuring a splash-proof NEMA 4X electronics enclosure with display panel LCD and keyboard, the Compu-Flow CEM100 Mag Electromagnetic Insertion Flow Meter converts, transmits, and displays the received data from the sensor. Outputs include flow rate and total, plus optional 4/20mA, Hi/Lo Alarms, RS 232, and Batch Control. Its three LED indicators enable quick checking of echo (yellow), alarm (red), and power (green) status while a secondary menu allows advanced configuration options. It is supplied with a standard or deluxe enclosure for additional versatility.

Configuration Options

The Compu-Flow CEM100 Mag Electromagnetic Insertion Flow Meter comes in two output, sensor, and enclosure options to provide versatility. Please select your preference from the menu above.

  • C6FMB CEM100E: Rate & Total Only, Econo Mag, Standard Enclosure
  • C6FA CEM100E: 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control, Econo Mag, Deluxe Enclosure
  • C6FM CEM100E: 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control, Econo Mag, Standard Enclosure
  • C6FA CEM100S: 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control, Smart Mag w/ LEDs, Deluxe Enclosure
  • C6FM CEM100S: 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control, Smart Mag w/ LEDs, Standard Enclosure
  • Choice of output, sensor, and enclosure
  • Ideal for all full pipe applications
  • Advanced proprietary micro processing technology
  • Digital signal output from the pipe
  • Great accuracy even in turbulent flows
  • Output: rate, total, 4/20mA, Hi/Lo Alarms, RS 232, and Batch Control
  • Wide pipe diameter range of 2” to 72”
  • Low-profile, single-point insertion sensor
  • Optional Smart-LED visual flow indicators
  • NEMA 4X electronics enclosure (IP65)
  • Minimum depth required: 12% of pipe ID
  • Power: 120mA @ 12VDC
  • Straight run requirement: 10 diameters upstream/5 diameters downstream
  • Display panel LCD and keyboard for interfacing
  • Three LED indicators on the display panel
  • Secondary menu for advanced configuration options
  • Includes 25’ cable and compression fitting
  • 1-Year Manufacturer’s Warranty
  • NIST certified to < 0.5%

What’s in the Box

  • Compu-Flow CEM100 Mag Electromagnetic Insertion Flow Meter
  • NEMA 4X Display
  • Transducer & 25’ Cable
  • Power Supply
  • Sensor Coupling Hardware
  • Stainless Steel Compression Fiiting (Ball Valve, Bushing, and Short Nipple)
  • Quick Start Guide
  • USB Flash Drive / User Manual
  • 1-Year Manufacturer’s Warranty

Available Package Options

Output:

  • Rate & Total Only
  • 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control

Sensor:

  • Econo Mag
  • Smart Mag w/ LEDs

Enclosure:

  • Deluxe Enclosure
  • Standard Enclosure

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Panel
Communication
RS232 out, DB9 Port port
Data Logging
1 – 32 GB memory USB Flash Drive data transfer
Display
High-resolution, two-line (32-character) alphanumeric smart LCD screen
Enclosure
Molded housing (C6FMB CEM100E, C6FM CEM100E, C6FM CEM100S) / Aluminum (C6FA CEM100E, C6FA CEM100S)
Engineering Units
English & Metric
Input
4 channel for transducer input
Keyboard
4 x 4 tactile-feedback numeric keypad
Language
English
Memory
Non-volatile Flash Memory for installed parameters 99 yrs
Output
Rate & Total Only (C6FMB CEM100E) / 4/20mA, Hi/Lo Alarms, RS 232 & Batch Control (C6FA CEM100E, C6FM CEM100E, C6FA CEM100S, C6FM CEM100S)
Power Supply
120mA @ 12VDC
General
Accuracy
1% (function of flow profile)
Dimensions
7”L x 5”W x 3”H (C6FMB CEM100E, C6FM CEM100E, C6FM CEM100S) / 8”L x 6”W x 4”H (C6FA CEM100E, C6FA CEM100S)
Installation
Fixed
Pipe Diameter Range
2” to 72”
Repeatability
±0.1%
Weight
4 lbs. (C6FMB CEM100E, C6FM CEM100E, C6FM CEM100S) / 6 lbs. (C6FA CEM100E, C6FA CEM100S)
Sensor/Transducer
Installation Requirement
Minimum depth of 12% of the pipe’s inside diameter w/ at least 10 diameters of straight pipe upstream and 5 straight run downstream
Material
Stainless steel probe and electrodes that are mounted on Teflon
Rating
IP68
Signal Cable Length
25 ft.
Type
Single-point insertion
