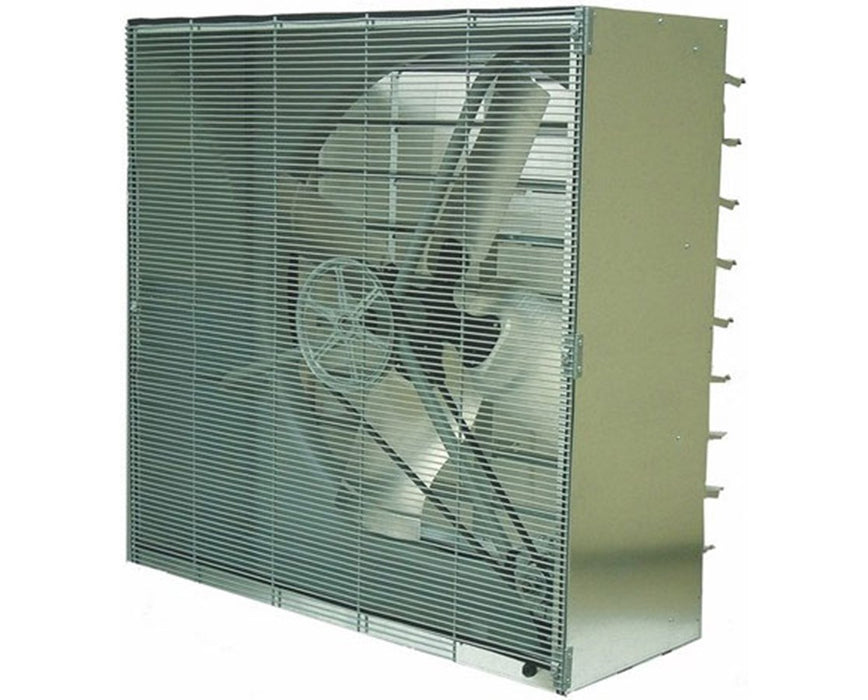

Cabinet Exhaust Fan with Shutters

TPI Corporation
by TPI Corporation
MFR#: CBT24B
TIGER#: TS59381
List Price: $2,359.00
You Save: $572.64 -24%
$2,359.00 - $2,359.00
List Price: $2,359.00
$1,786.36
$1,786.36 - $1,786.36
$1,786.36
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Cabinet Exhaust Fan with Shutters
Cabinet Exhaust Fan with Shutters - $1,786.36
$1,786.36
*Must Purchase 1 for Cabinet Exhaust Fan with Shutters

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/30/2023
Documents
Item Brochure
  • Choice of fan size & motor
  • Ball-bearing, drip-proof motor
  • Permanently lubricated bearings
  • Speed of 1,725 RPM
  • Motor frame size: 56
  • Shaft: 5/8”
  • Aluminum blade and shutter
  • UL-listed

The TPI Cabinet Exhaust Fan with Shutters is a rugged fan that is ideal for agriculture, storage, industrial and other applications. This TPI fan features a UL-listed ball bearing, a drip-proof motor that can handle high loads and does not overheat. It also has permanently lubricated bearings on the blade drive shaft.

This TPI exhaust fan offers a high speed of 1,725 revolutions per minute. It comes with a motor frame size of 56 and a 5/8-inch shaft. Also, the TPI fan has four optional horsepowers of 1/3, 1/2, 3/4 or 1.

The TPI cabinet fan is made of aluminum blade and shutter that assures long life. It is constructed of durable 20-gauge powder-coated venturi and an 18-gauge galvanized steel housing. in addition, this TPI exhaust fan with shutters meet OSHA standards and ship fully assembled.

Configuration Options

The TPI Cabinet Exhaust Fan with Shutters offers ten models that have different fan size and motor. Please select your preference from the menu above.

  • CBT24B: 24” Fan with 115V, 1-Phase Motor
  • CBT24B3: 24” Fan with 230/460V, 3-Phase Motor
  • CBT30B: 30” Fan with 115V, 1-Phase Motor
  • CBT30B3: 30” Fan with 230/460V, 3-Phase Motor
  • CBT36B: 36” Fan with 115V, 1-Phase Motor
  • CBT36B3: 36” Fan with 230/460V, 3-Phase Motor
  • CBT42B: 42” Fan with 115V, 1-Phase Motor
  • CBT42B3: 42” Fan with 230/460V, 3-Phase Motor
  • CBT48B: 48” Fan with 115V, 1-Phase Motor
  • CBT48B3: 48” Fan with 230/460V, 3-Phase Motor
  • Choice of fan size & motor
  • Rugged fan
  • UL-listed
  • Ball-bearing, drip-proof motor
  • Permanently lubricated bearings
  • Speed of 1,725 RPM
  • Motor frame size: 56
  • Shaft: 5/8”
  • Optional horsepowers: 1/3, 1/2, 3/4 or 1
  • Aluminum blade and shutter
  • 20-gauge powder-coated venturi
  • 18-gauge galvanized steel housing
  • Meets OSHA standards
  • Ships fully assembled

What’s in the Box

  • TPI Cabinet Exhaust Fan with Shutters
  • 1-year warranty

Available Product Option

  • Fan Size: 24”, 30”, 36”, 42” or 48”
  • Motor: 115V 1-Phase or 230/460V 3-Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan
Amps
For 115V: 5 (CBT24B, CBT24B3); 6 (CBT30B, CBT30B3); 8 (CBT36B, CBT36B3); 11 (CBT42B, CBT42B3); 15 (CBT48B, CBT48B3); For 230/460V: 1.9/0.9 (CBT24B, CBT24B3, CBT30B, CBT30B3); 2.3/1.1 (CBT36B, CBT36B3); 3.3/1.5 (CBT42B, CBT42B3); 3.8/1.9 (CBT48B, CBT48B3)
Blade Size
24” (CBT24B, CBT24B3); 30” (CBT30B, CBT30B3); 36” (CBT36B, CBT36B3); 42” (CBT42B, CBT42B3); 48” (CBT48B, CBT48B3)
Certification
OSHA
Cubic Feet per Minute (CFM)
3,000 (CBT24B, CBT24B3); 4,500 (CBT30B, CBT30B3); 6,900 (CBT36B, CBT36B3); 10,600 (CBT42B, CBT42B3); 14,400 (CBT48B, CBT48B3)
Fan Type
Exhaust fans
Shaft Size
5/8"
Speed (Revolutions per Minute)
1,725
General
Color
Silver
Dimensions
28.25” H x 28.25” W x 22.5” D (CBT24B, CBT24B3); 34.25” H x 34.25” W x 22.5” D (CBT30B, CBT30B3); 40.25” H x 40.25” W x 18.5” D (CBT36B, CBT36B3); 48.5” H x 48.5” W x 18.5” D (CBT42B, CBT42B3); 54.5” H x 54.5” W x 21.5” D (CBT48B, CBT48B3)
Material
Aluminum blade and shutter, 20-gauge powder-coated venturi, 18-gauge galvanized-steel housing
Warranty
1-year limited
Weight
100 lbs (CBT24B, CBT24B3); 120 lbs (CBT30B, CBT30B3), 135 lbs (CBT36B, CBT36B3); 155 lbs (CBT42B, CBT42B3); 200 lbs (CBT48B, CBT48B3)
Motor
Frame Size
56
Horsepower (HP)
1/3 (CBT24B, CBT24B3, CBT30B, CBT30B3); 1/2 (CBT36B, CBT36B3); 3/4 (CBT42B, CBT42B3); 1 (CBT48B, CBT48B3)
Lubrication
Permanent
Power
1-Phase 115V (CBT24B, CBT30B, CBT36B, CBT42B, CBT48B); 3-Phase 230/460V (CBT24B3,CBT30B3, CBT36B3, CBT42B3, CBT48B3)
