C6 Transit-Time Ultrasonic Flow Meter

MFR#: C6-TDS-100F1
TIGER#: TS59059
Original price List Price: $3,250.00
You Save: $715.00 -22%
Original price $3,250.00 - Original price $3,250.00
Original price List Price: $3,250.00
Current price $2,535.00
$2,535.00 - $2,535.00
Current price $2,535.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
C6 Transit-Time Ultrasonic Flow Meter
C6 Transit-Time Ultrasonic Flow Meter - $2,535.00
$2,535.00
*Must Purchase 1 for C6 Transit-Time Ultrasonic Flow Meter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 3 - 5 Business Days Shipping Date By: 12/7/2023
Documents
  • Choice of model and data logger
  • Works w/ clamp-on, insertion, or flow-cell transducers
  • Pipe diameter range of 0.6” to 236”
  • RS485 port for communication protocol
  • Data logging w/ up to 99-year memory
  • Three-channel analog 4/20 mA input
  • Output: 4/20mA, OCT pulse, relay
  • Two-line LCD display with backlight

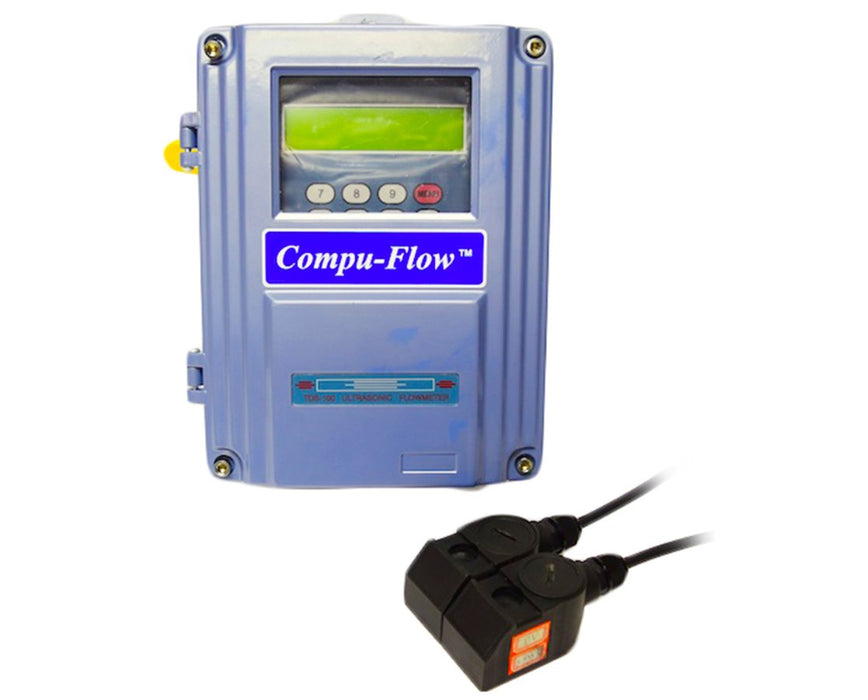

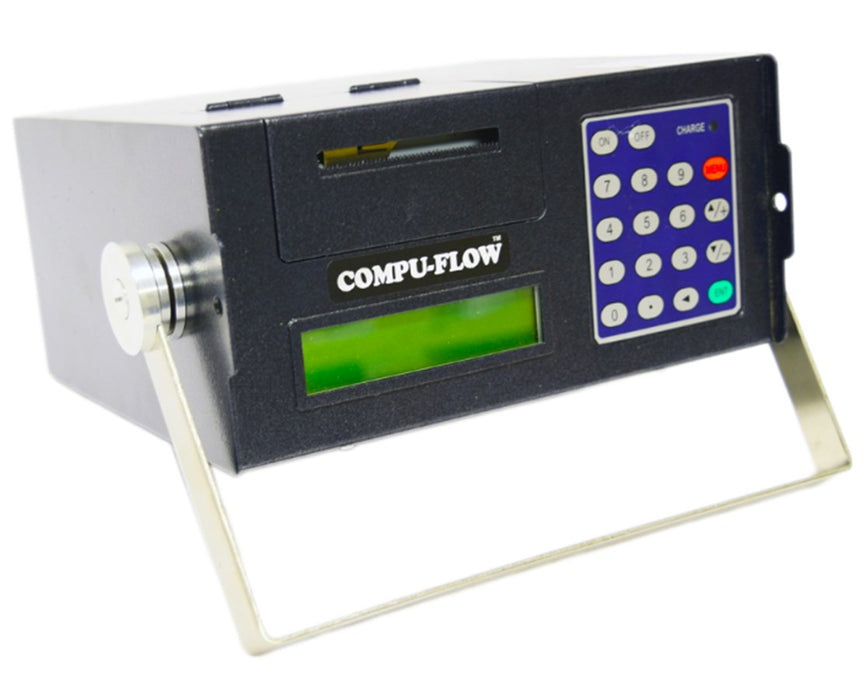

The Compu-Flow C6 Transit-Time Ultrasonic Flow Meter is a wall-mounted or portable flow meter that utilizes a pair of transducers to measure the flow rate of liquid inside a pipe. By determining the difference in time from when the first transducer transmitted an ultrasonic signal until it was received by the second transducer, it compares the upstream and downstream flow readings to calculate the flow rate. Other measured values it provides are volumetric flow, flow velocity, flow direction, speed of sound, and quality of measured signal.

This Compu-Flow transit-time ultrasonic flow meter will work with different sensors including clamp-on, insertion, or flow-cell transducers. It can be used on pipes with inside diameter ranging from 0.6 inch up to 236 inches (15 millimeters to 6,000 millimeters). For high accuracy and precision, the liquid should not have significant amount of solids or air bubbles as they would interfere with the high frequency sound. It features a RS485 port for MODBUS, M-BUS and FUJI extending communication protocol.

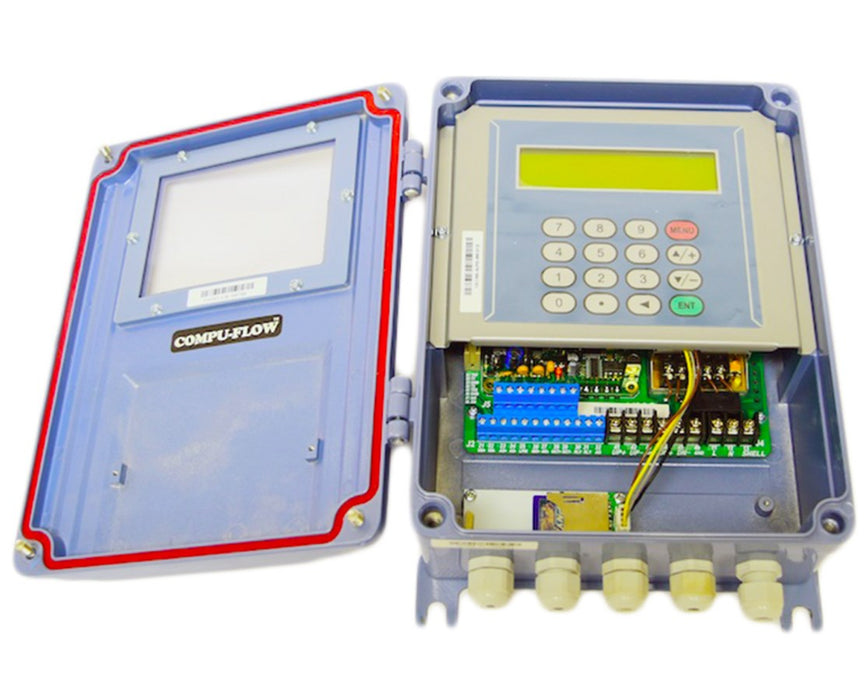

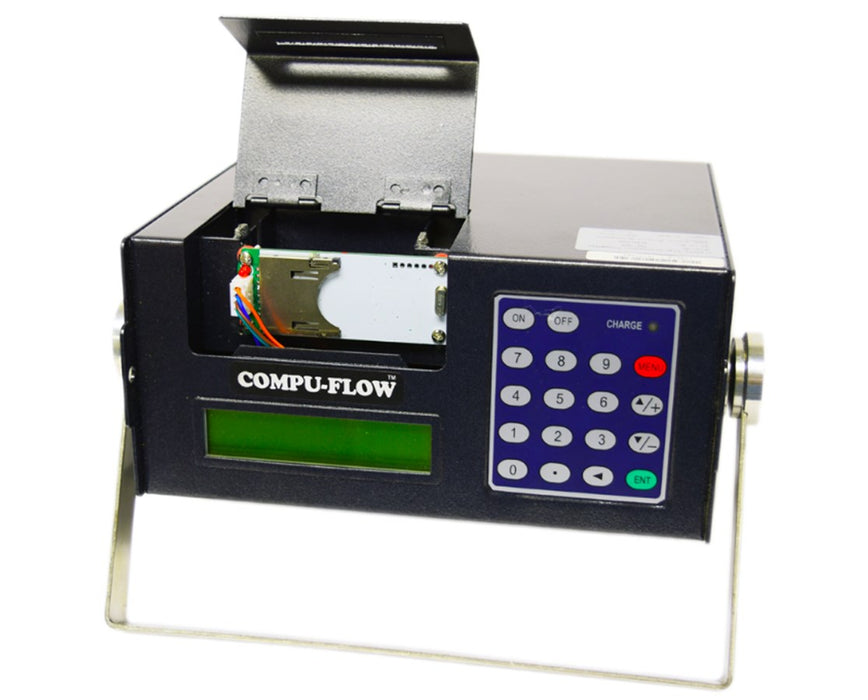

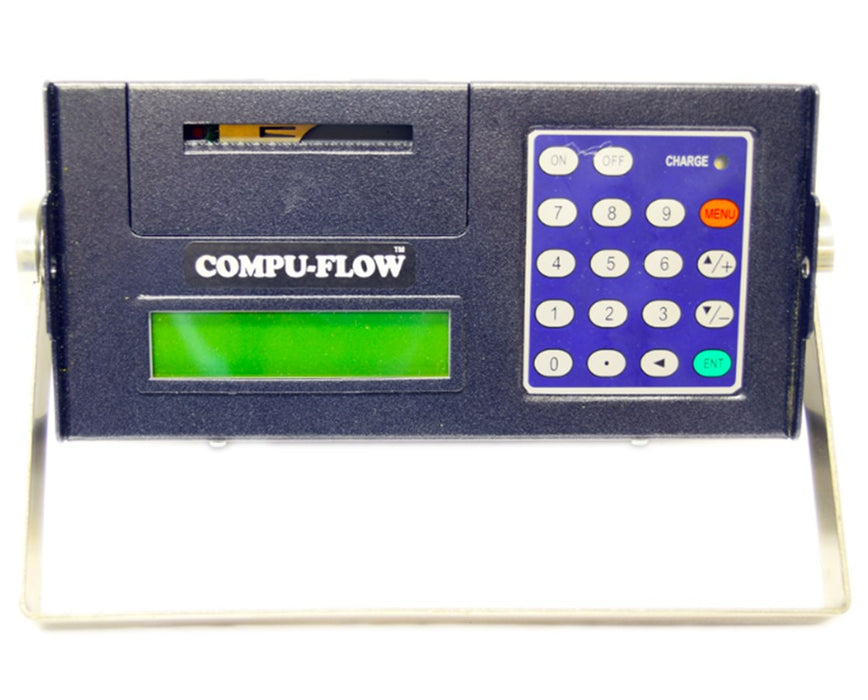

The Compu-Flow C6 Transit-Time Ultrasonic Flow Meter offers up to three analog input channels. Its outputs include 4/20mA, OCT pulse, frequency, and relay with positive, negative, net accumulation pulses, and different alarm signals. It is equipped with a two-line LCD display with backlight and a tactile-feedback numeric keypad membrane to allow simple interfacing. With built-in or integrated SIM card data logger, it can hold all parameter inputs up to 99 years. It ensures durability and water resistance with its powder-coated cast aluminum (for fixed model) enclosure with IP65 enclosure rating.

Configuration Options

The Compu-Flow C6 Transit-Time Ultrasonic Flow Meter comes in two models and data logging options to provide versatility. Please select your preference from the menu above.

  • COMC6-TDS-100F1: Fixed, PC-Based (Up to 32GB)

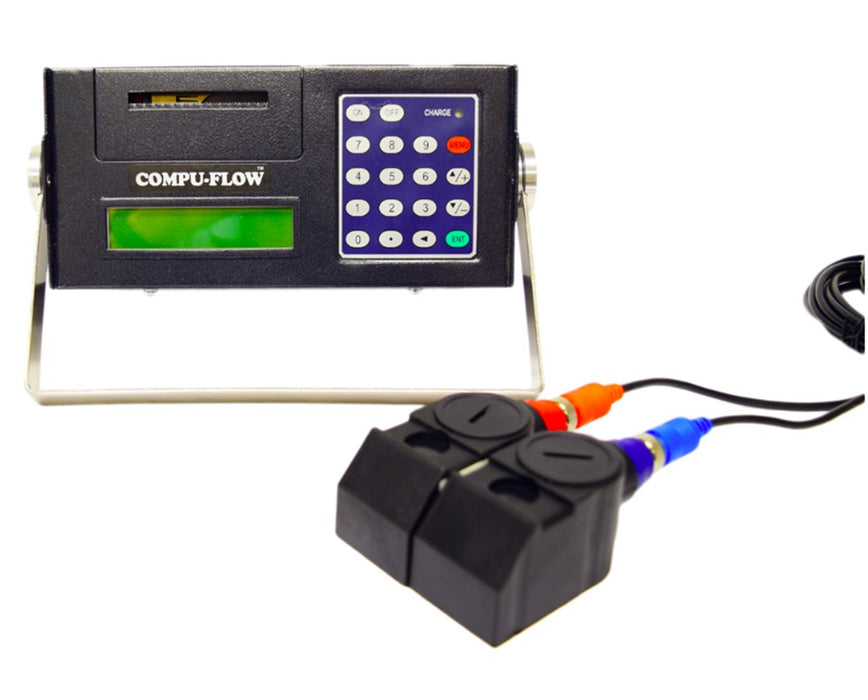

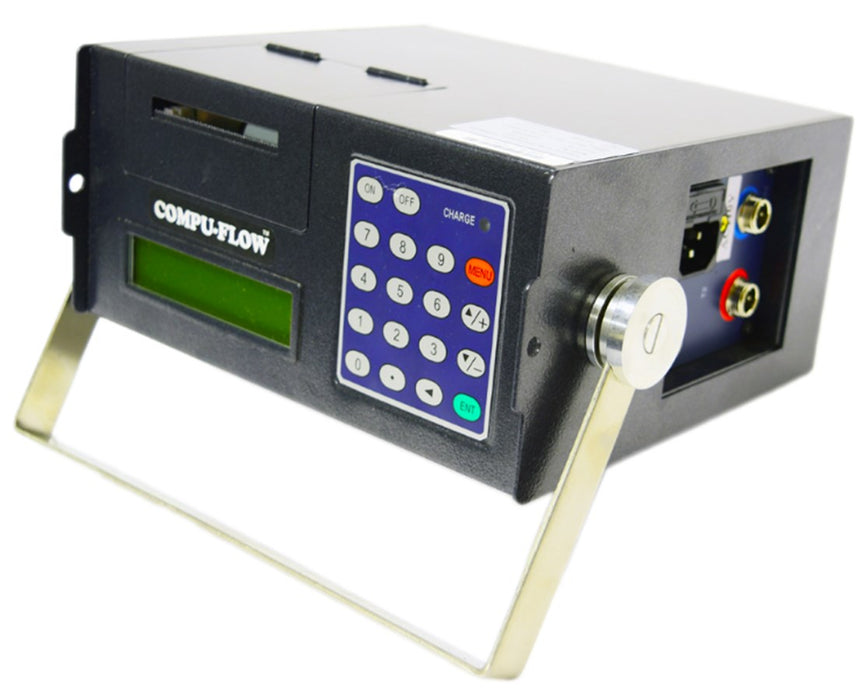

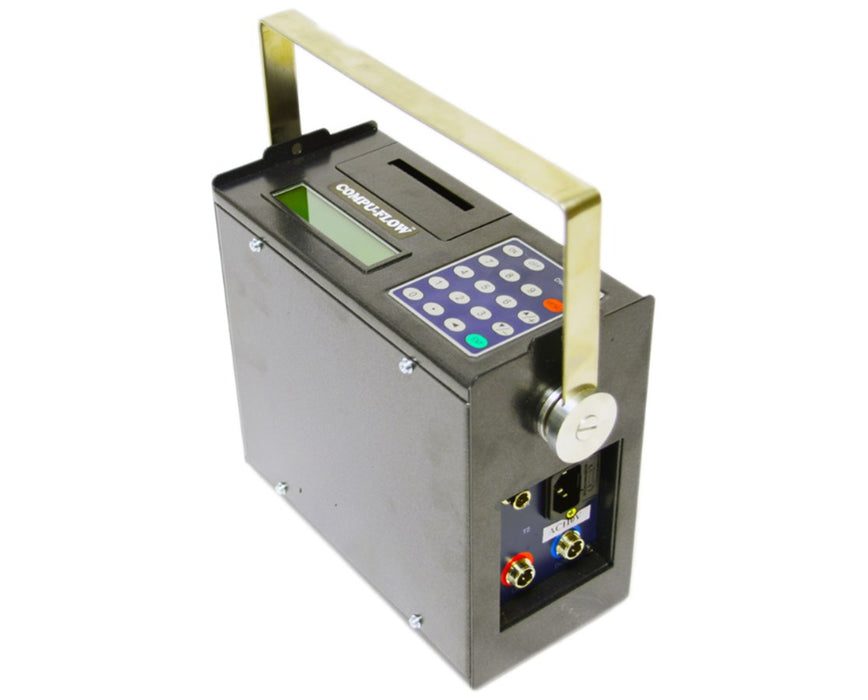

  • COMC6-TDS-100H: Portable, Built-In (Up to 1GB)
  • COMC6-TDS-100P: Portable, PC-Based (Up to 32GB)
  • Choice of model and data logger
  • Works with clamp-on, insertion, or flow-cell transducers
  • Wide pipe diameter range of 0.6” to 236” (15mm to 6,000mm)
  • RS485 port for extending communication protocol
  • Simulation run status
  • Built-in or PC-based data logging with up to 99-year memory
  • Three-channel analog 4 -20 mA input
  • Output: 4/20mA, OCT pulse, frequency & Relay
  • IP65-rated enclosure for durability and water resistance
  • Two-line LCD display with backlight
  • Tactile-feedback numeric keyboard membrane
  • Power supply: 85~264VAC or 24VDC
  • Manufacturer’s one-year warranty
  • NIST certified

What’s in the Box

  • Compu-Flow C6 Transit-Time Ultrasonic Flow Meter
  • Mainframe

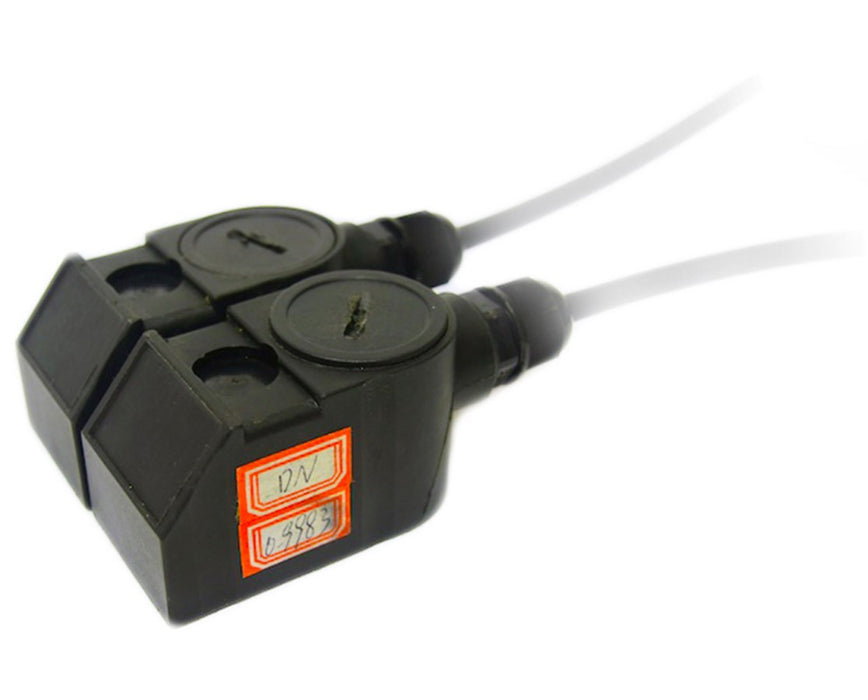

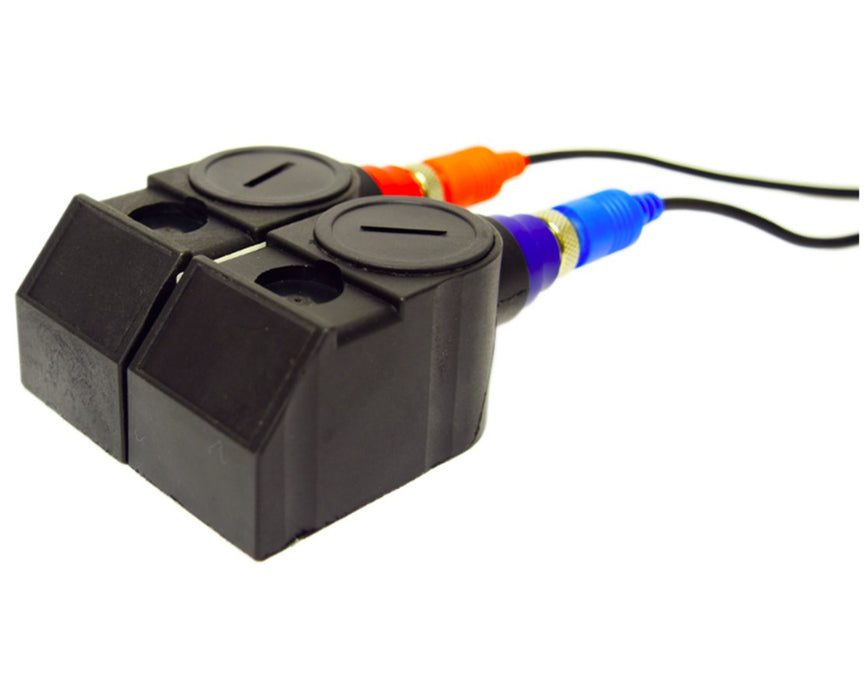

  • M1 and L1 Transducers
  • 2x Transducer Cables (5m)
  • Metal Clamp Fixture
  • 1-Year Manufacturer’s Warranty

Available Package Options

  • Model: Fixed or Portable
  • Data Logger: Built-In (Up to 1GB) or PC-Based (Up to 32GB)

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Panel
Communication

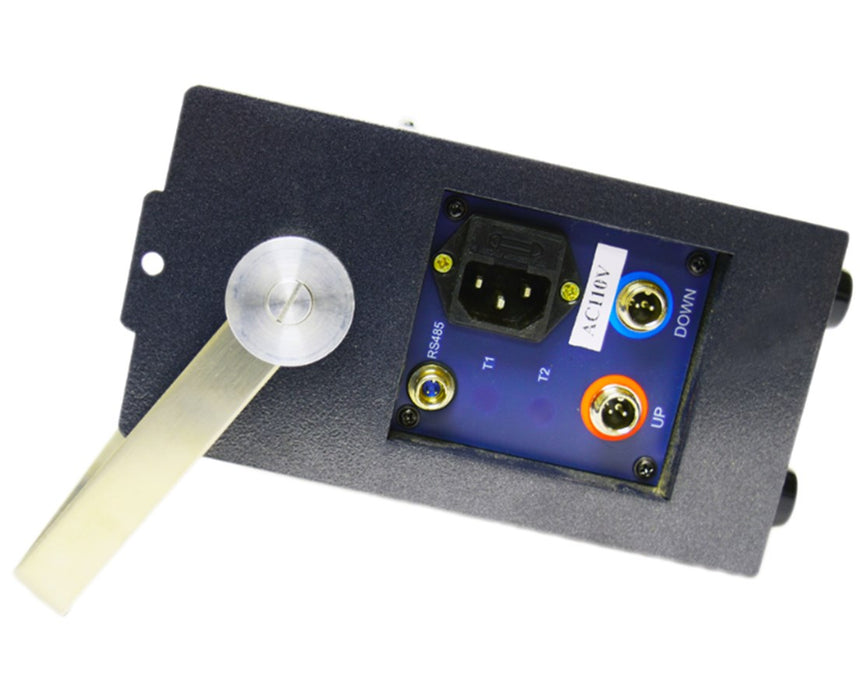

Isolated RS-485 with power surge protection. Support the MODBUS protocol. M-BUS and FUJI’s extending flowmeter protocol.
Data Logging
Up to 1GB built-In (COMC6-TDS-100H) / Up to 32GB PC-based (COMC6-TDS-100F1, COMC6-TDS-100P)
Display
Two-line LCD display with backlight
Enclosure

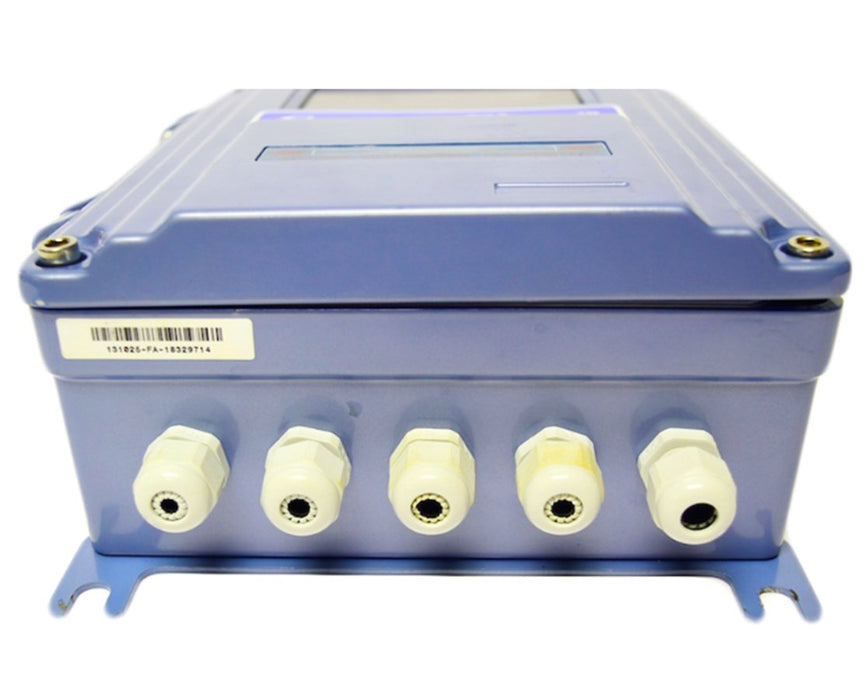

Die-cast aluminum (IP65 and NEMA 4X)
Engineering Units
English & Metric
Input
Three-channel analog 4/20 mA input
Keyboard
4 x 4 tactile-feedback numeric keypad
Language
English
Memory
Nonvolatile 99 yrs + all parameter inputs
Output
4/20mA, OCT pulse, relay
Power Supply
85~264VAC (COMC6-TDS-100F1) / 24VDC (COMC6-TDS-100H, COMC6-TDS-100P)
General
Accuracy
±1% of reading, plus ±0.006m/s(±0.02ft/s) in velocity
Dimensions
9.88"L x 7.56"W x 3.15"H (251 x 192 x 80mm)
Installation
Fixed (COMC6-TDS-100F1) / Portable (COMC6-TDS-100H, COMC6-TDS-100P)
Pipe Diameter Range
0.6” to 236" (15mm to 6,000mm)
Repeatability
0.3% (for flow velocity from 0.2 – 30m/s)
Weight
5.5 lbs. (2.5 kgs)
Sensor/Transducer
Installation Requirement
Solid suspended in the liquid maximum 20,000 ppm and maximum bubbles 2%
Material
Non-metallic
Rating
IP68
Signal Cable Length
5 meters (2)
Type
Clamp-on or wetted
