C6 Receiver w/ Enclosure for Doppler & Magnetic Flow Meter

by Compu-Flow

MFR#: UFM C6FM

TIGER#: TS59105

List Price: $1,990.00

You Save: $437.80 -22%

$1,990.00 - $1,990.00

List Price: $1,990.00

$1,552.20

$1,552.20 - $1,552.20

$1,552.20

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

C6 Receiver w/ Enclosure for Doppler & Magnetic Flow Meter - $1,552.20

$1,552.20

*Must Purchase 1 for C6 Receiver w/ Enclosure for Doppler & Magnetic Flow Meter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 3 - 5 Business Days Shipping Date By: 10/7/2023

Choice of model and enclosure
32-character alphanumeric screen
Tactile-feedback numeric keypad
For simple interface & easy programming
Includes options 1 through 4
Water-resistant NEMA 4X enclosure
Four LED indicators on the display panel
Fits C6 Doppler and magnetic flow meters

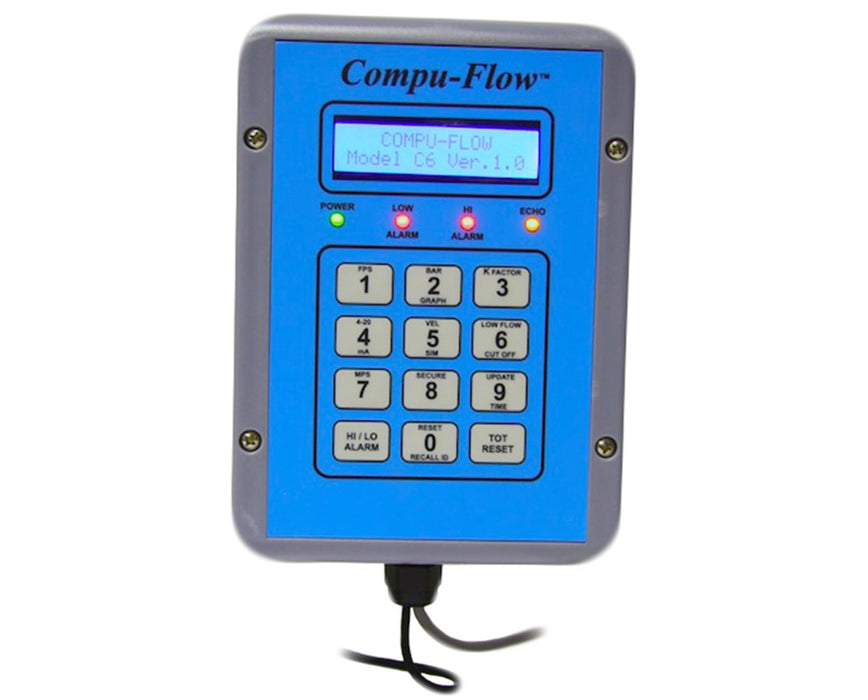

The C6 Receiver w/ Enclosure for Compu-Flow Doppler & Magnetic Flow Meter is designed to allow easy programming and simple interfacing with a flow meter. It is composed of the basic assembly, such as the display panel LCD and keyboard, for electronics enclosure/control panel built for any Compu-Flow C6 Doppler and magnetic flow meter.

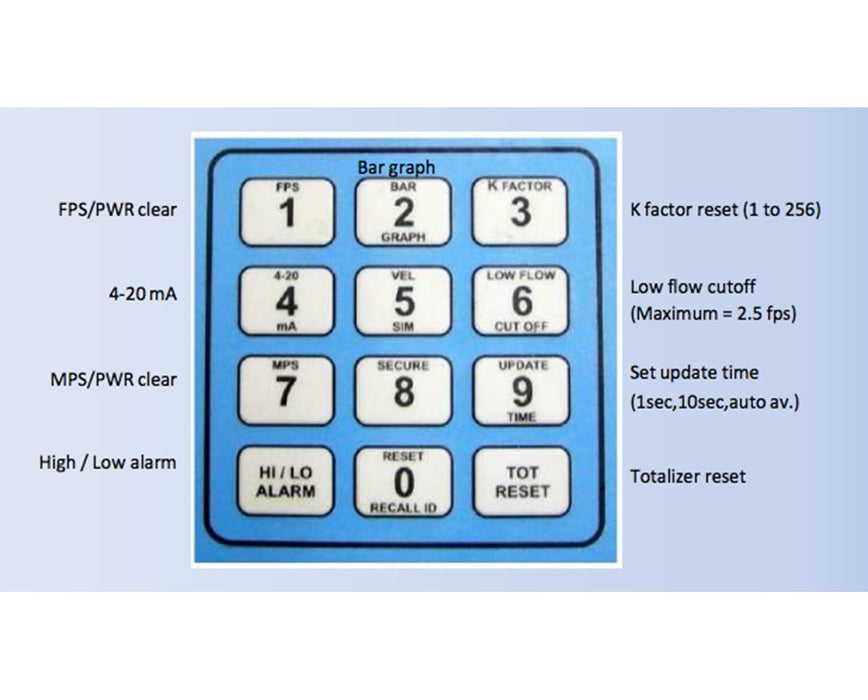

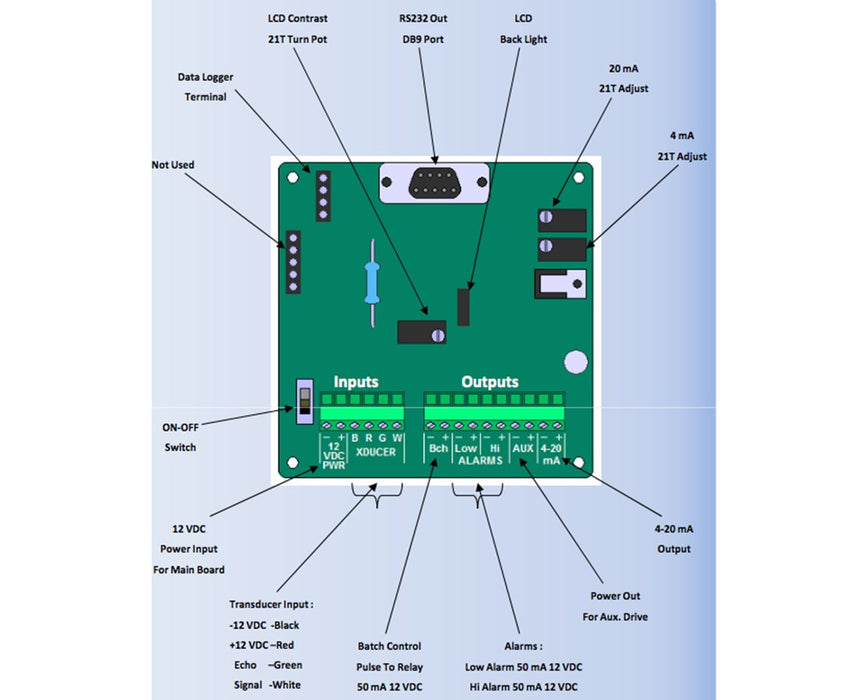

This Compu-Flow receiver features a high-resolution, two-line (32-character) alphanumeric smart LCD screen and a tactile-feedback numeric keypad. It offers options one through four which include 4/20mA, Hi/Lo alarms, RS 232, and batch control. It is equipped with four LED indicators for displaying echo (yellow), high or low alarm (red), and power (green) status.

The C6 Receiver w/ Enclosure for Compu-Flow Doppler & Magnetic Flow Meter is protected by a durable, water-resistant NEMA 4X enclosure that measures 7”L x 5”W x 3”H (standard) or 8”L x 6”W x 4”H (deluxe). It is available in two models—fixed and portable (with handle)—to accommodate all C6 Doppler and magnetic flow meters.

Configuration Options

The C6 Receiver w/ Enclosure for Compu-Flow Doppler & Magnetic Flow Meter comes in two models and enclosure options to accommodate all C6 Doppler and magnetic flow meters. Please select your preference from the menu above.

UFM C6FA: Fixed, Deluxe Enclosure
UFM C6FM: Fixed, Standard Enclosure

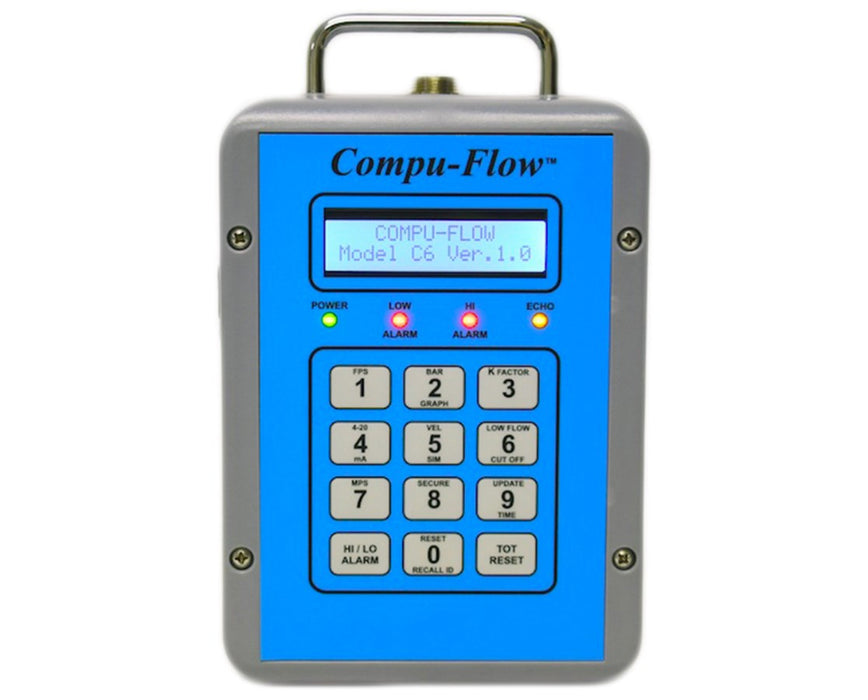

UFM C6PM: Portable, Standard Enclosure

Choice of model and enclosure
Display panel LCD and keyboard
32-character alphanumeric screen
Tactile-feedback numeric keypad
Allows simple interface and easy programming
Includes options 1 through 4
Durable, water-resistant NEMA 4X enclosure (IP64)

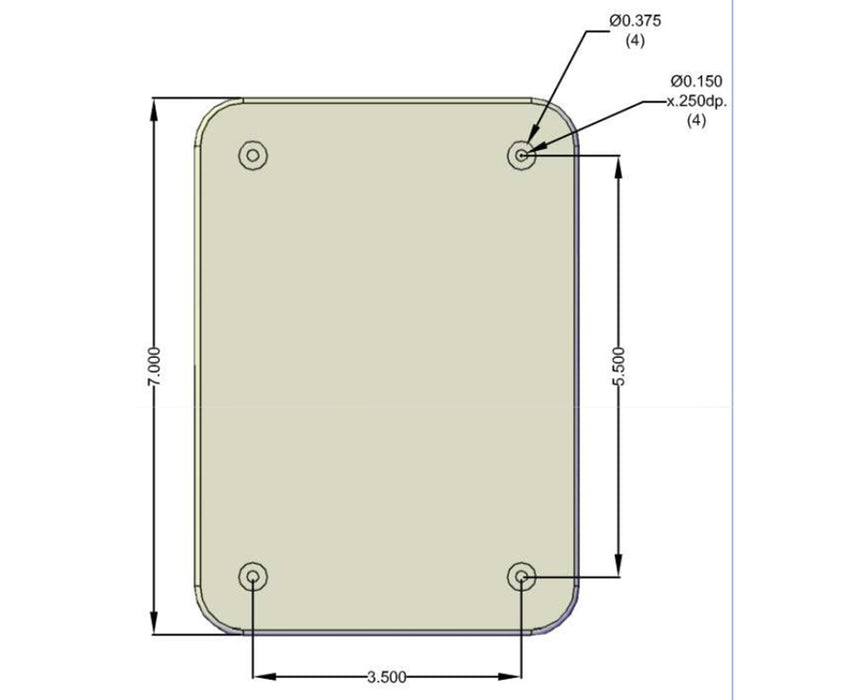

Dimensions: 7”L x 5”W x 3”H or 8”L x 6”W x 4”H
Four LED indicators on the display panel
Fits C6 Doppler and magnetic flow meters
NIST certified

What’s in the Box

C6 Receiver w/ Enclosure for Compu-Flow Doppler & Magnetic Flow Meter
1-Year Manufacturer’s Warranty

Available Package Options

Model: Fixed or Portable
Enclosure: Deluxe or Standard

We cannot accept returns for this item, as is our policy for all parts replacements. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

General

Color

Blue

Dimensions

7”L x 5”W x 3”H (UFM C6FM, UFM C6PM) / 8”L x 6”W x 4”H (UFM C6FA)

Materials

Molded housing (UFM C6FM, UFM C6PM) / Aluminum (UFM C6FA)

Protection Class/Certification

IP68, NIST certified

Weight

3 lbs. (UFM C6FM, UFM C6PM) / 3.5 lbs (UFM C6FA)
