C6 Doppler Ultrasonic Flow Meter

MFR#: C6FM/CLTV6.4HP
TIGER#: TS58930
Original price List Price: $3,090.00
You Save: $679.80 -22%
Original price $3,090.00 - Original price $3,090.00
Original price List Price: $3,090.00
Current price $2,410.20
$2,410.20 - $2,410.20
Current price $2,410.20
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
C6 Doppler Ultrasonic Flow Meter
C6 Doppler Ultrasonic Flow Meter - $2,410.20
$2,410.20
*Must Purchase 1 for C6 Doppler Ultrasonic Flow Meter

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 3 - 5 Business Days Shipping Date By: 9/30/2023
  • Choice of model and output
  • For high-solid fluid flow measurement
  • Linear output signal for high accuracy
  • Wide pipe diameter range of 1” to 999”
  • Two submersible clamp-on transducers
  • NEMA 4X electronics enclosure (IP65)
  • Straight run requirement: 20 diameters upstream/10 diameters downstream
  • Unaffected by changes in viscosity, pressure, temperature & others

The Compu-Flow C6 Doppler Ultrasonic Flow Meter is a flow meter that requires sonic reflectors, such as particles or air bubbles, to operate. Ideal for high-solid fluid flow measurement applications, it measures flow velocity by sensing signals from reflective materials within the liquid and calculating frequency shift due to their motion. With its linear output signal, it provides high accuracy and is not affected by changes of viscosity, temperature, pressure, specific gravity, sound velocity or electrical conductivity.

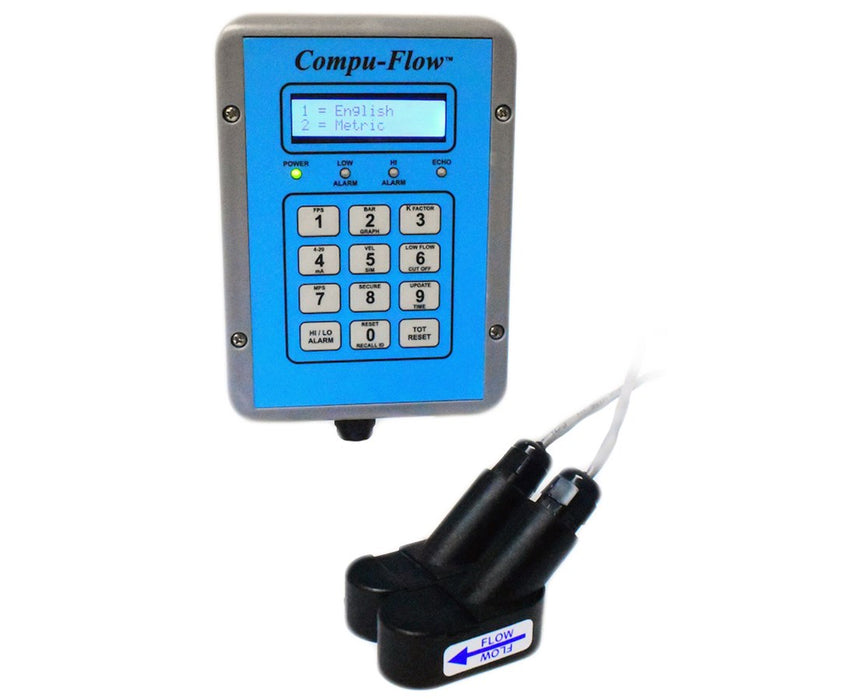

This Doppler ultrasonic flow meter by Compu-Flow is composed of a water-resistant NEMA 4X electronics enclosure and two fully water-submersible, NEMA 6-rated, clamp-on transducers (receiver and transmitter). These transducers are mounted side by side (for pipes with two-inch diameter and up only) to the outer pipe wall allowing installation without shutting down the flow. They collect fluid flow data through pipes with internal diameter of up to 999 inches (9999 millimeters) and send the information to the electronic system that convert, transmit, and display the received data. For maximum precision, use this flow meter on non-porous smooth pipes with adequate straight run of 20 diameters upstream and ten diameters downstream.

The Compu-Flow C6 Doppler Ultrasonic Flow Meter features an electronics enclosure with an easy-to-read display panel LCD and a keypad for simple interface. It is equipped with three LED indicators for displaying echo (yellow), alarm (red), and power (green) status. With a secondary menu (keypad toggle menu), it offers advanced configuration options including analog output, bar graph, HI/LO alarm set points, and batch control. It operates with AC power or DC battery power and comes with a 117-Volt battery charger.

Configuration Options

The Compu-Flow C6 Doppler Ultrasonic Flow Meter comes in two models and output options to provide versatility. Please select your preference from the menu above.

  • C6FM/CLTV6.4HP: Fixed, Rate and Total Only
  • C6FM/CLTV6.4HP-Loaded: Fixed, 4/20mA, Hi/Lo Alarms, RS 232, and Batch Control
  • C6PM/CLTV6.4HP: Portable, Rate and Total Only
  • C6PM/CLTV6.4HP-Loaded: Portable, 4/20mA, Hi/Lo Alarms, RS 232, and Batch Control
  • Choice of model and output
  • Ideal for high-solid fluid flow measurement applications
  • Linear output signal for high accuracy
  • Wide pipe diameter range of 1” to 999” (13mm to 9999mm)
  • Excellent for pipes with non-porous smooth pipe walls
  • Two fully submersible clamp-on transducers (NEMA 6-rated)
  • NEMA 4X electronics enclosure (IP65)
  • Minimum particle concentration required: 35 ppm (parts per million) @ 40 micron
  • Straight run requirement: 20 diameters upstream/10 diameters downstream
  • Unaffected by changes in viscosity, temperature, pressure, and other factors
  • Three LED indicators
  • Display panel LCD and keyboard for interfacing
  • Secondary menu for advanced configuration options
  • Includes 25’ cable, tiedown kit and sonic coupling gel
  • 1-year manufacturer’s warranty

What’s in the Box

  • Compu-Flow C6 Doppler Ultrasonic Flow Meter
  • 1-Year Manufacturer’s Warranty

Available Package Options

Model:

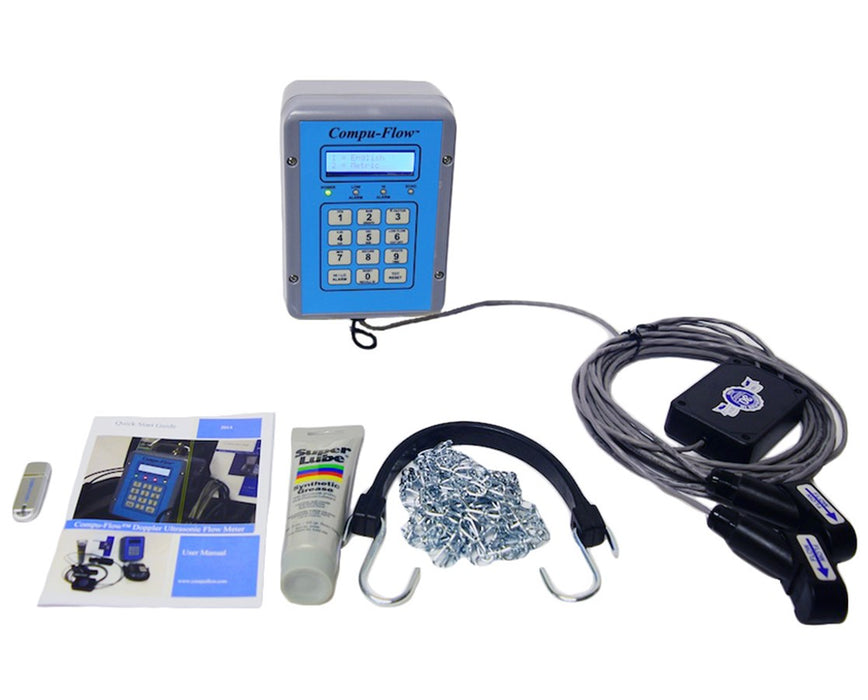

Fixed

  • NEMA 4X display
  • Transducer & 25' Cable
  • Tiedown Kit
  • Sonic Coupling Gel
  • Operators Manual
  • C6 Power Supply

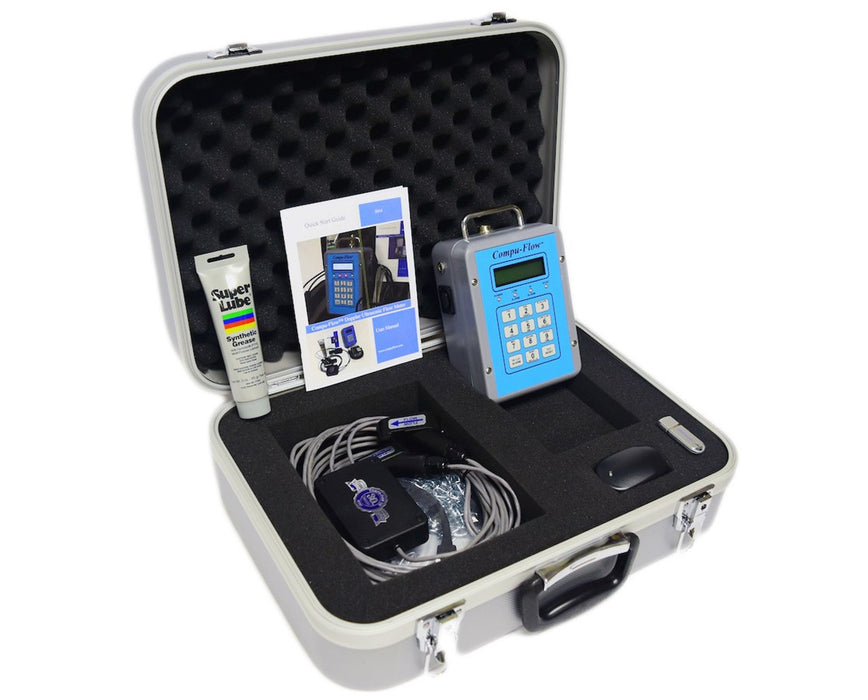

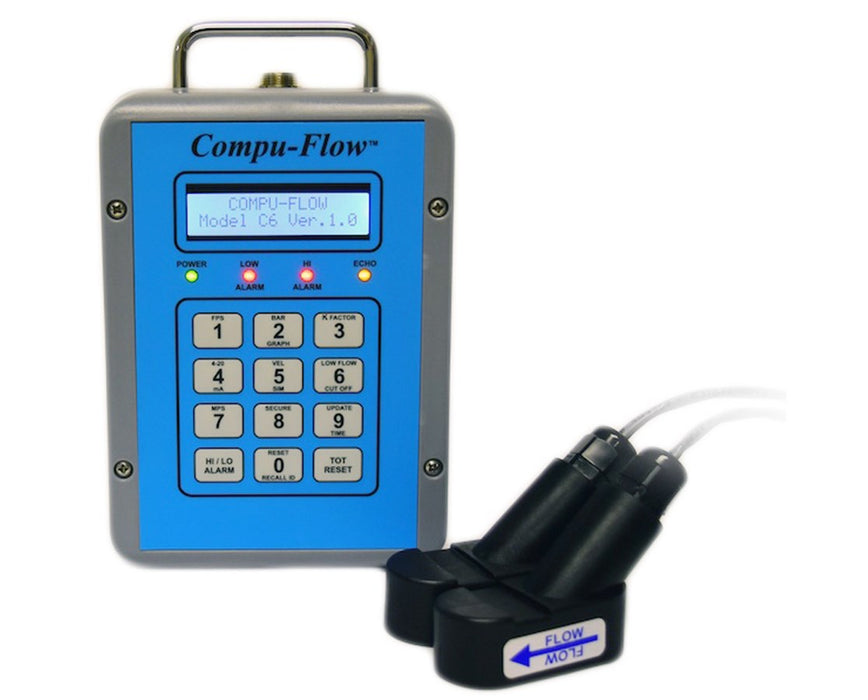

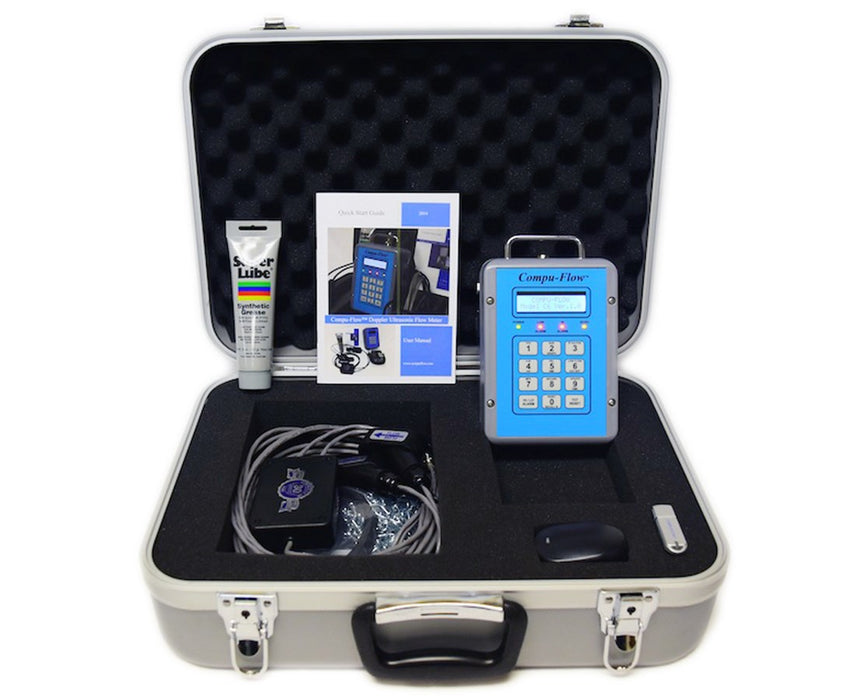

Portable

  • NEMA 4X display
  • Transducer & 25' Cable
  • Tiedown Kit
  • Sonic Coupling Gel
  • Operators Manual
  • C6 Power Supply
  • 12V 1.0 AH Battery
  • 117 VAC Battery Charger
  • Tote Handle & Side Latch
  • Field Transport Case

Output:

  • Rate and Total Only
  • 4/20mA, Hi/Lo Alarms, RS 232, and Batch Control

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

This product is not returnable. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Panel
Communication
RS232 out, DB9 Port port
Data Logging
1 – 32 GB memory USB Flash Drive data transfer
Display
High-resolution, two-line (32-character) alphanumeric smart LCD screen
Enclosure
NEMA 4X, IP65-rated molded housing
Engineering Units
English & Metric
Input
4 channel for transducer input
Keyboard
4 x 4 tactile-feedback numeric keypad
Language
English
Memory
Non-volatile Flash Memory for installed parameters 99 yrs
Output
Rate and Total Only (C6FM/CLTV6.4HP, C6PM/CLTV6.4HP) / 4/20mA, Hi/Lo Alarms, RS 232, and Batch Control (C6FM/CLTV6.4HP-Loaded. C6PM/CLTV6.4HP-Loaded)
Power Supply
100-240 VAC @300mA-12VDC (C6FM/CLTV6.4HP, C6FM/CLTV6.4HP-Loaded) / 12 VDC-1.0A (C6PM/CLTV6.4HP, C6PM/CLTV6.4HP-Loaded)
General
Accuracy
1% (function of flow profile)
Dimensions
7”L x 5”W x 3”H
Installation
Fixed (C6FM/CLTV6.4HP, C6FM/CLTV6.4HP-Loaded) / Portable (C6PM/CLTV6.4HP, C6PM/CLTV6.4HP-Loaded)
Pipe Diameter Range
1” to 999”
Repeatability
±0.1%
Weight
6 lbs. (C6FM/CLTV6.4HP, C6FM/CLTV6.4HP-Loaded) / 10 lbs. (C6PM/CLTV6.4HP, C6PM/CLTV6.4HP-Loaded)
Sensor/Transducer
Installation Requirement
Straight run requirement: 20 diameters upstream/10 diameters downstream; Minimum particle concentration required: 35 ppm (parts per million) @ 40 micron
Material
Non-metallic
Rating
IP68, NEMA 6
Signal Cable Length
25 ft.
Type
Clamp-on
