Belt Drive Wholehouse Attic Fan

TPI Corporation
by TPI Corporation
MFR#: BD242WHS
TIGER#: TS59432
List Price: $1,178.00
You Save: $285.95 -24%
$1,178.00 - $1,178.00
List Price: $1,178.00
$892.05
$892.05 - $892.05
$892.05
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Belt Drive Wholehouse Attic Fan
Belt Drive Wholehouse Attic Fan - $892.05
$892.05
*Must Purchase 1 for Belt Drive Wholehouse Attic Fan

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/23/2023
Documents
Item Brochure
  • Maintains cooler air circulation
  • No-joist cut shutter style
  • Fan speed up to 385 RPM
  • 2-speed
  • Single-phase, 120V motor
  • 1/3-HP motor
  • Intertek certification
  • Made in the USA

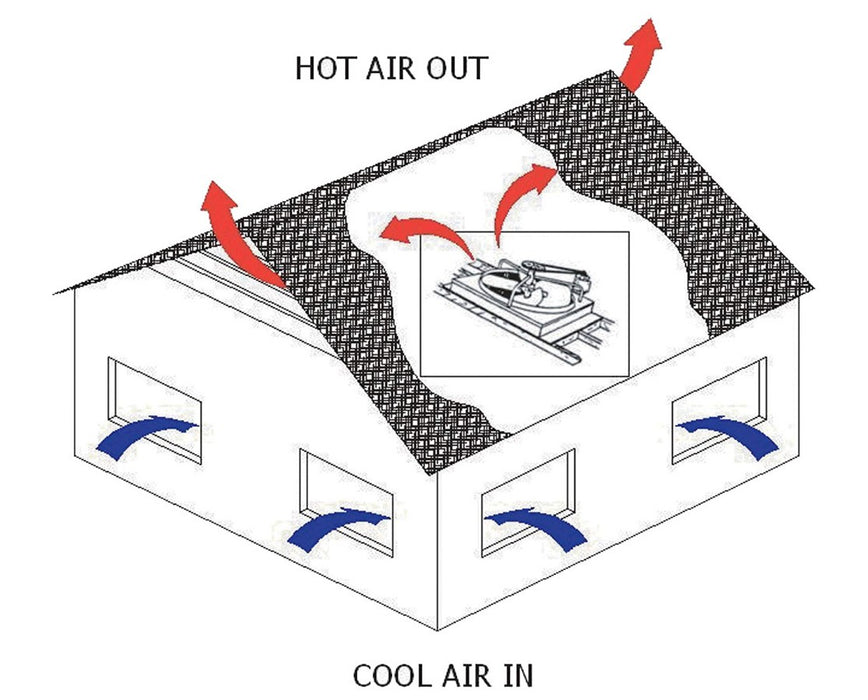

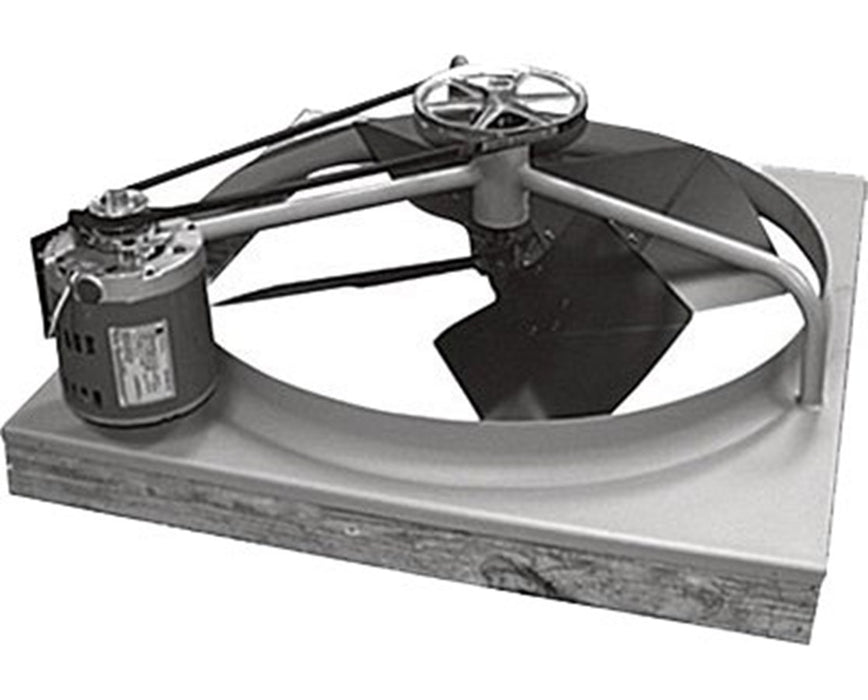

The TPI Belt Drive Wholehouse Attic Fan is a simple and inexpensive fan that is ideal for maintaining cooler air circulation in the residence. This TPI belt drive attic fan features a no-joist cut shutter style that offers a fan speed of up to 395 revolutions per minute (RPM).

With a two-speed motor, this TPI wholehouse fan is powered by a single-phase, 120-volt motor that suctions hot air from the house. It features a shutter that opens automatically when the fan is turned on and closes tightly when the fan is turned off.

The TPI attic fan features a 1/3-horsepower motor that requires an exhaust space of up to 12 square feet. As an additional feature, this TPI fan is made in the USA and is Intertek certified.

Configuration Options

The TPI Belt Drive Wholehouse Attic Fan has three available sizes that suit your needs. Please select your preference from the menu above.

  • BD242WHS: 24”
  • BD302WHS: 30”
  • BD362WHS: 36”
  • Choice of 3 sizes
  • Simple and inexpensive fan
  • Maintains cooler air circulation
  • No-joist cut shutter style
  • Fan speed up to 385 RPM
  • 2-speed
  • Single-phase, 120V motor
  • Automatically opens when fan is turned on
  • HP: 1/3
  • Requires exhaust space up to 12 square feet
  • Made in the USA
  • Certification: Intertek

What’s in the Box

  • TPI Belt Drive Wholehouse Attic Fan
  • Shutters
  • 1-year limited warranty

Available Product Options

  • Size: 24”, 30” or 36”

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Fan
Amps
5.7/4.8 (BD242WHS); 6.9/5.5 (BD302WHS); 6.3/3.1 (BD362WHS)
Blade Size
24” (BD242WHS); 30” (BD302WHS); 36” (BD362WHS)
Certification
Intertek
Cubic Feet per Minute (CFM)
4,500/2,700 (BD242WHS); 7,600/5,800 (BD302WHS); 9,675/6,400 (BD362WHS)
Fan Type
Attic fans
Speed (Revolutions per Minute)
612/410 (BD242WHS); 520/350 (BD302WHS); 385/265 (BD362WHS)
General
Warranty
1-year limited
Weight
40 lbs (BD242WHS); 50 lbs (BD302WHS); 64 lbs (BD362WHS)
Motor
Horsepower (HP)
1/3
Power
1-Phase, 120V
Speed Switch
2-speed
