ASTM 3385 Infiltration Rings

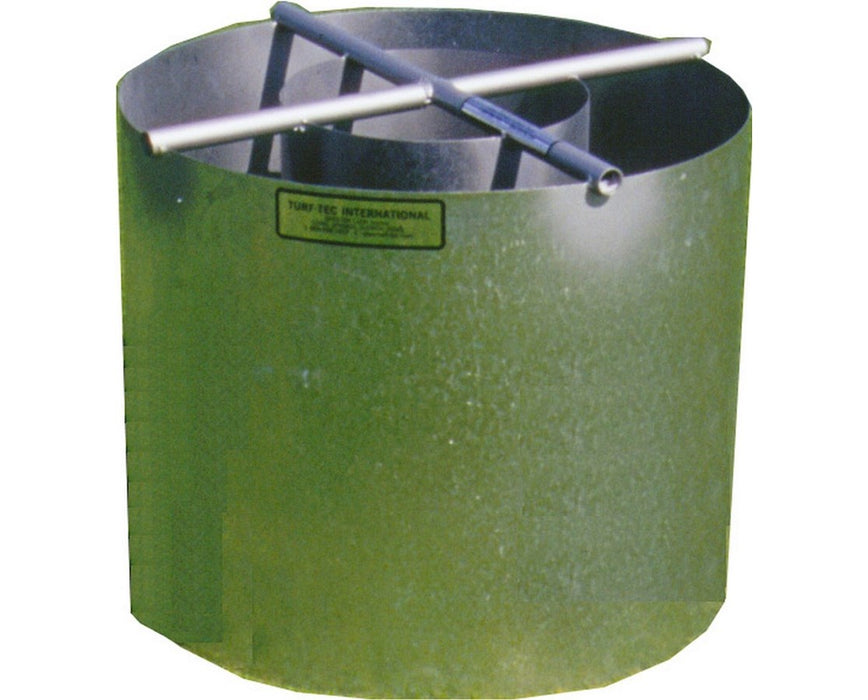

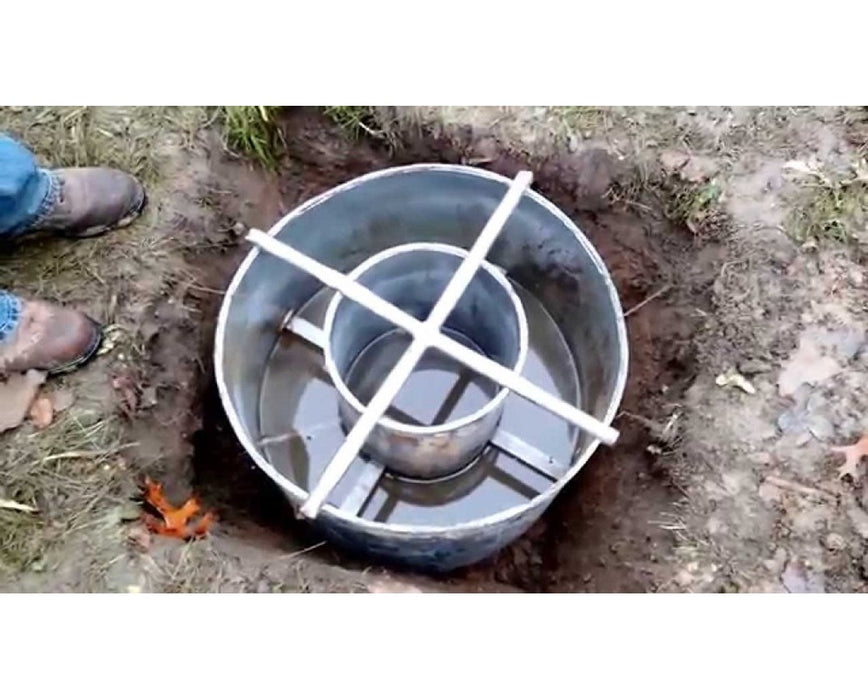

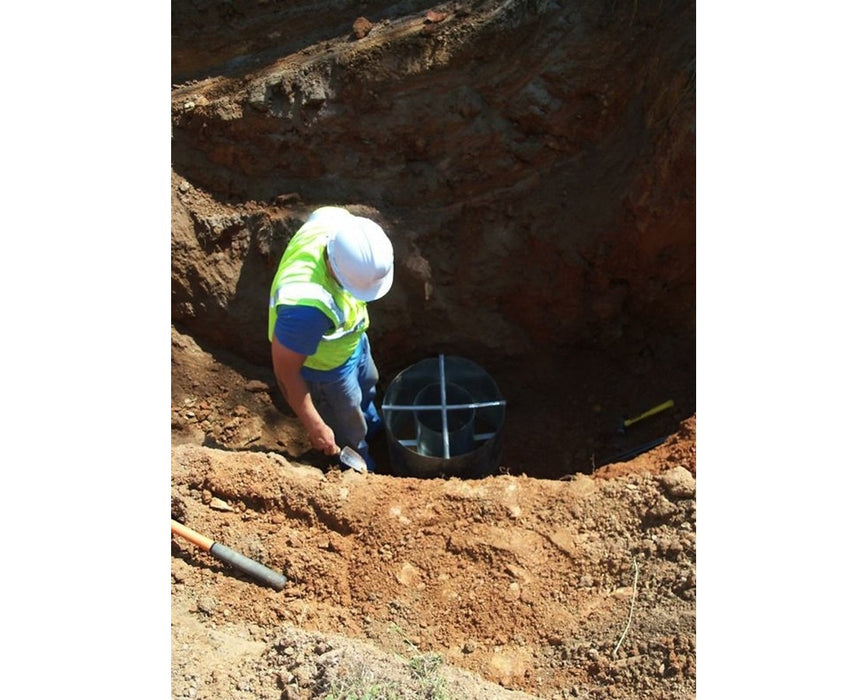

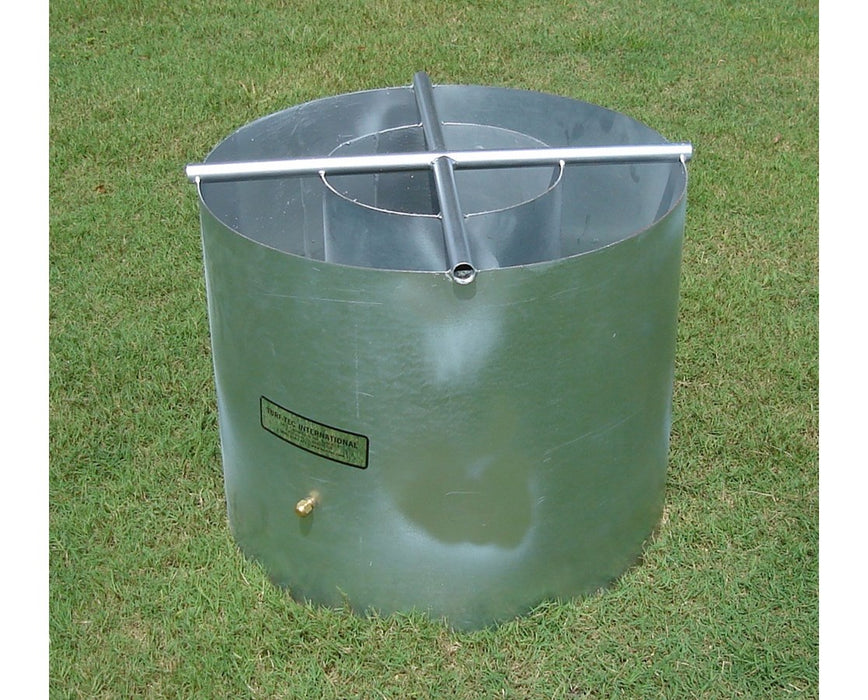

In compliance with the ASTM 3385 specifications, the Turf-Tec Infiltration Rings is a double ring infiltrometer which measures 20 inches high with a 12-inch and 24-inch diameter rings. This instrument is used in industries like geology, hydrology, forestry, environmental testing, wetland mitigation, sanitation, and project planning that needs to meet the EPA requirements.

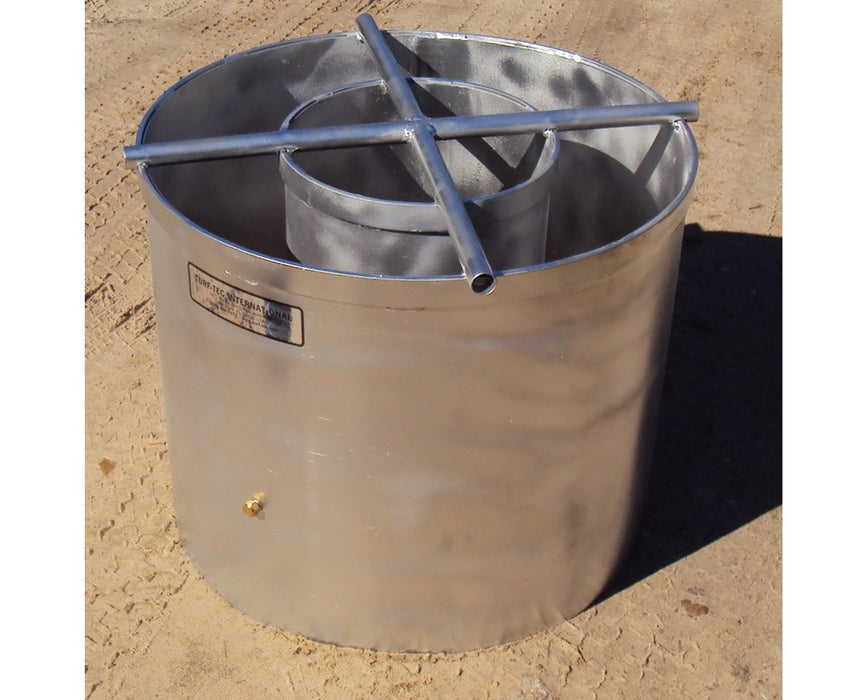

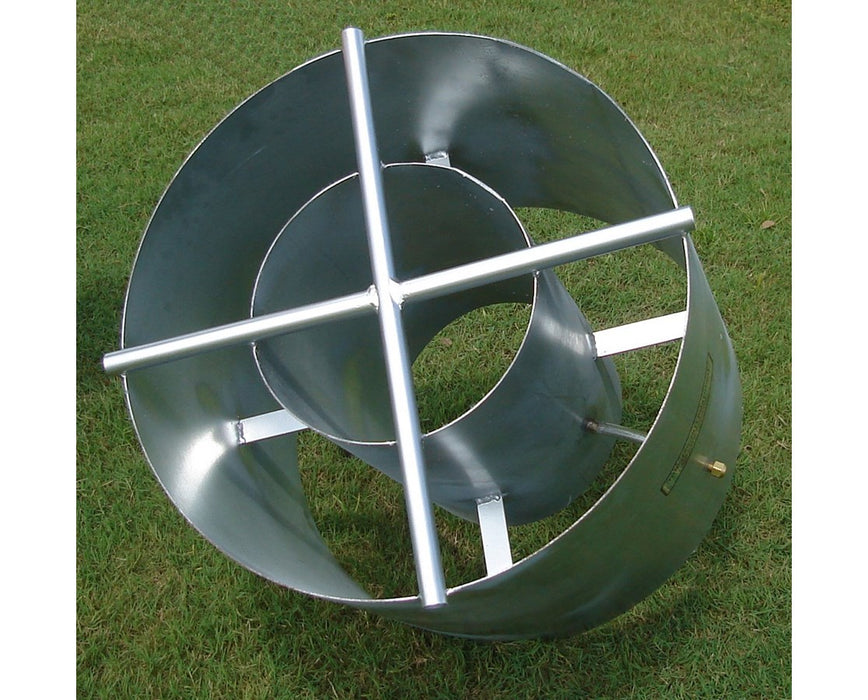

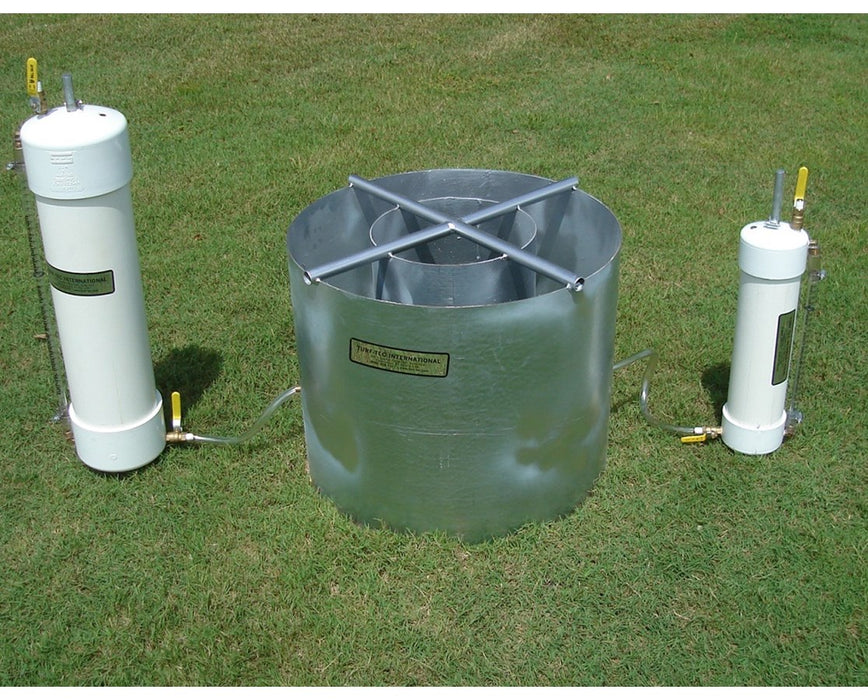

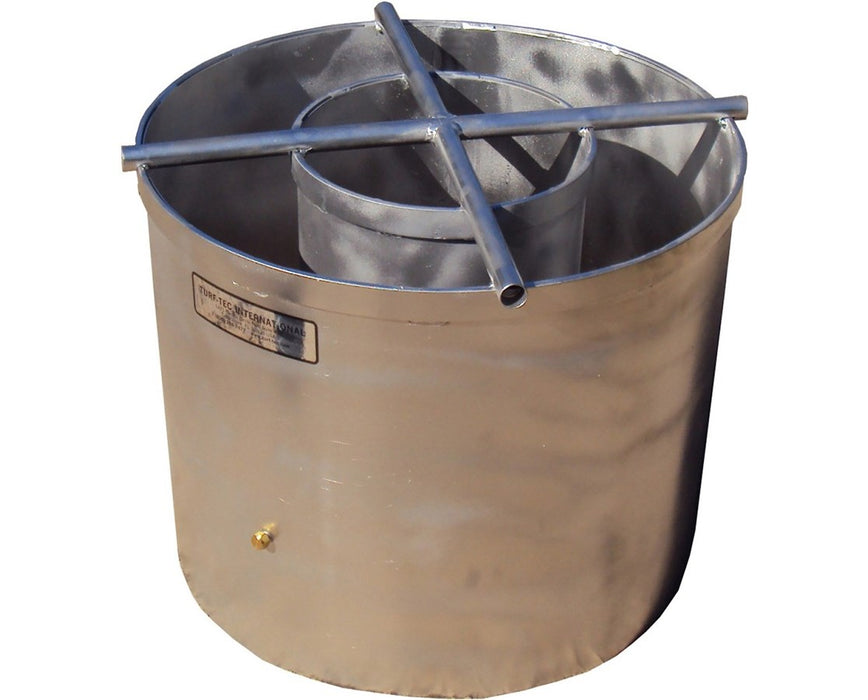

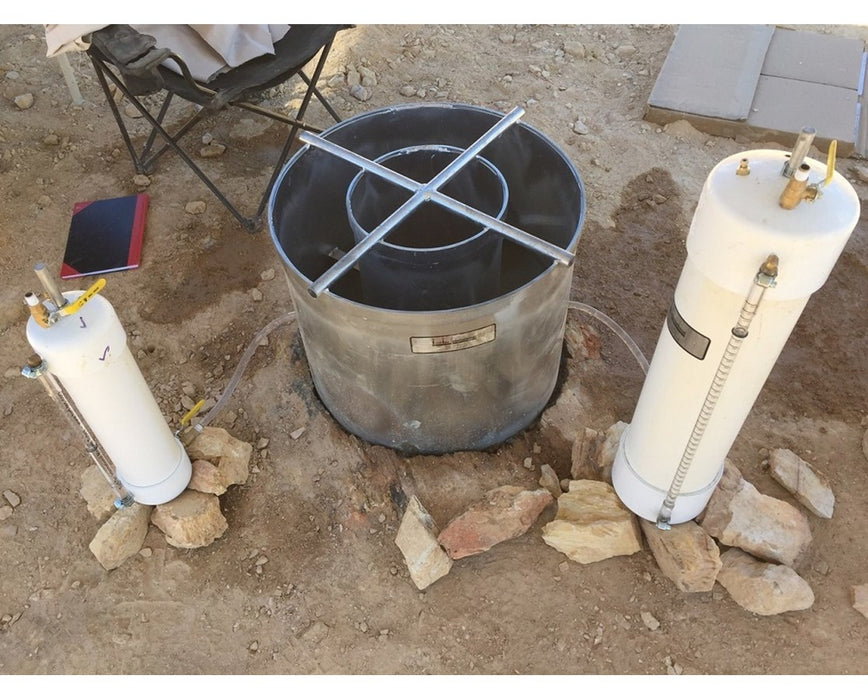

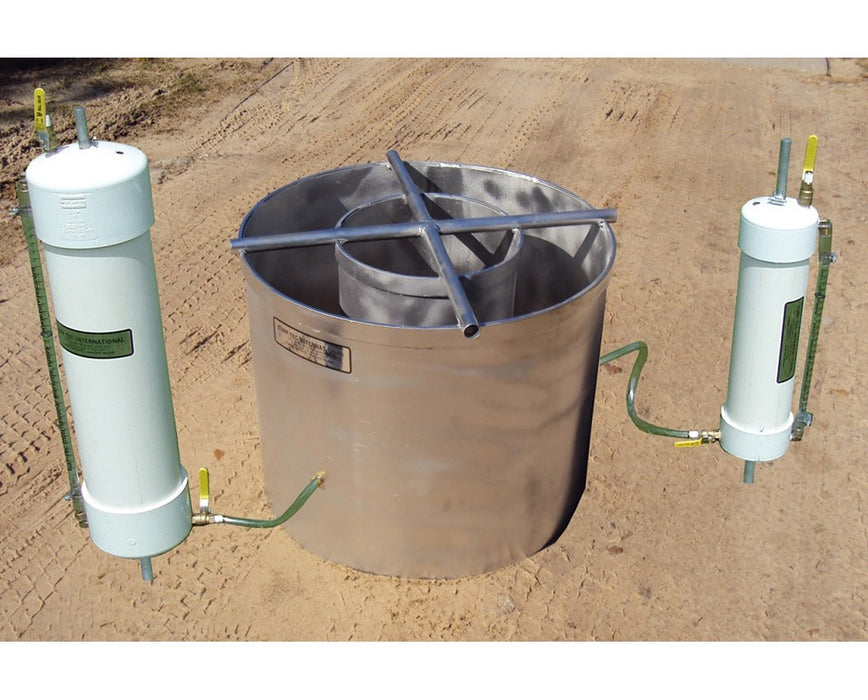

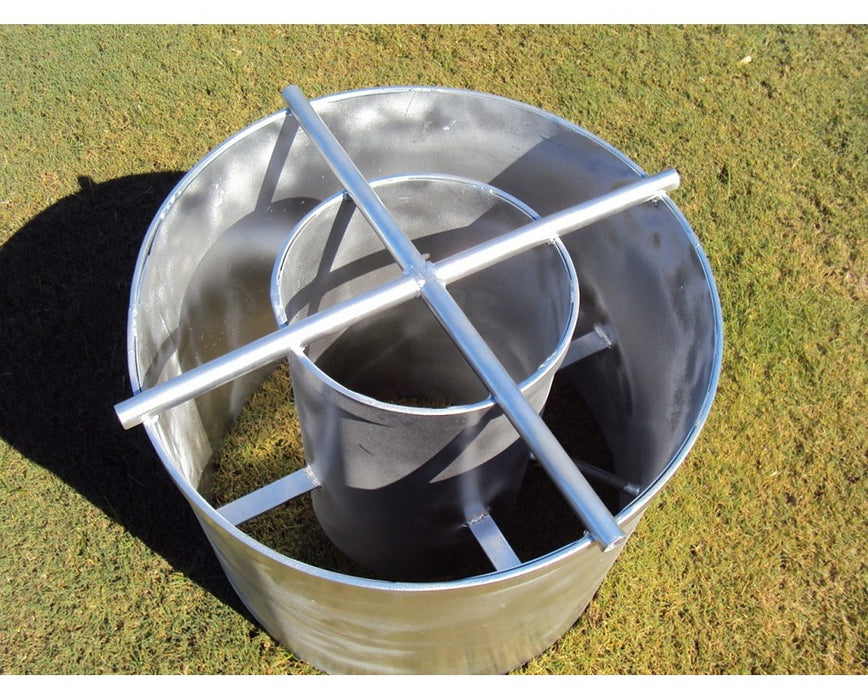

The infiltrometer is constructed with heavy-duty galvanized steel to prevent rust and to withstand hard soil types. Braced with welded steel handle and 0.25-inch steel reinforcing braces, the rings stay centered when penetrating the soil. Its brass ports are functionally designed to allow secure connection to Turf-Tec Mariotte Tubes. Moreover, the center ring is suspended one inch above the outer ring to follow the ASTM Standard D3385-09.

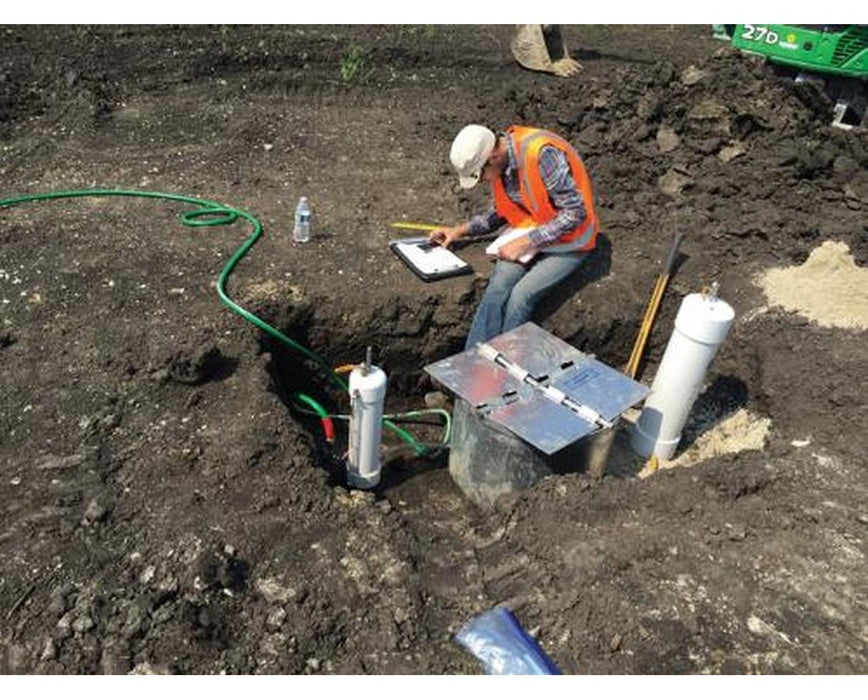

The Turf-Tec ASTM 3385 Infiltration Rings help determine irrigation requirements, water spreading or recharge, canal leakage, and reservoir leakage testing. In case damages occur, the instrument is covered with a 1-year limited warranty

Configuration Options

The Turf-Tec Infiltration Rings for ASTM 3385 has two different steel gauges. Please select your preference from the menu above.

• IN10-W: Turf-Tec ASTM 3385 Infiltration Rings, 16 Gauge (.065 inch thick)
• IN14-W: Turf-Tec Heavy Duty ASTM 3385 Infiltration Rings, 14 Gauge (.10 inch thick)
