Architects and Builders Template

Alvin
by Alvin
MFR#: TD1151
TIGER#: TS737
List Price: $10.75
You Save: $3.49 -32%
$10.75 - $10.75
List Price: $10.75
$7.26
$7.26 - $7.26
$7.26
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Architects and Builders Template
Architects and Builders Template - $7.26
$7.26
*Must Purchase 1 for Architects and Builders Template

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 10/1/2023
Documents
Product Video
  • Contains cut-outs of door swings, electrical symbols,lavatory and kitchen fixtures
  • Includes roof pitch index, tile layout gauge, and floor elevation indicator
  • Scale: ¼-inch = 1 foot
  • Dimension: 5 1/8"W x 9¼"L x 0.03"H
  • Made of flexible and durable plastic
  • Milled for accuracy, not punched-out or pressed
  • Color: translucent green

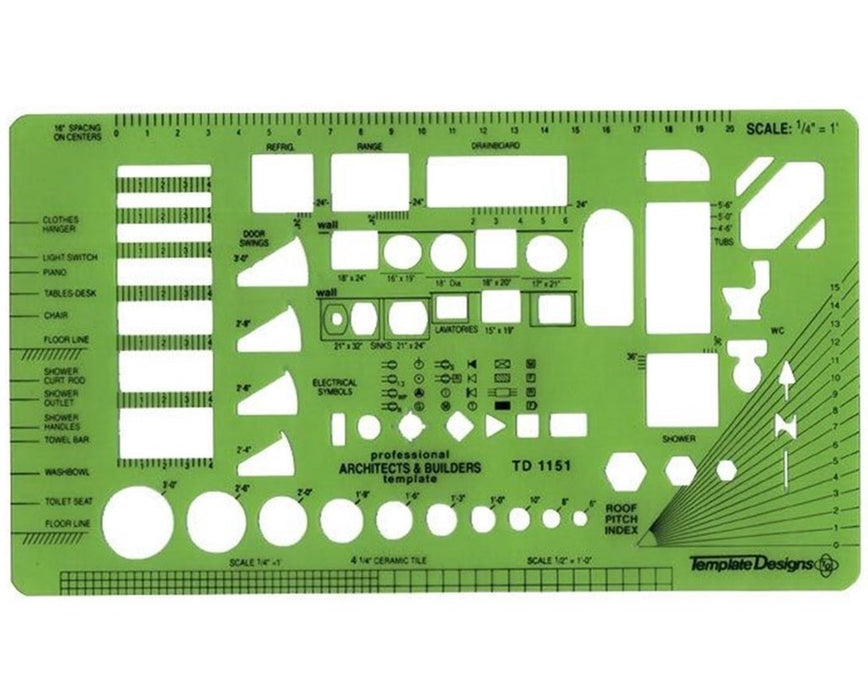

The Alvin Architects and Builders Template is a perfect architectural template for preparing and designing home and building plans. With a wide array of cut-outs, it offers solution to many drawing and drafting needs. It contains lavatory and kitchen fixtures, door swings, and electrical symbols. It also includes roof pitch index, tile layout gauge, and floor elevation indicator. Circles in various diameters are also available.

The Alvin Architects and Builders Template uses the ¼-inch = 1 foot scale. It measures 5 1/8"W x 9¼"L x 0.03"H. Made of durable and flexible translucent green plastic material, it is tough and does not easily break. It provides accurate, consistent and clean drawings with its smooth cut-outs that are milled to precision.

  • Contains cut-outs of door swings, electrical symbols, lavatory and kitchen fixtures
  • Includes roof pitch index, tile layout gauge, and floor elevation indicator
  • Scale: ¼-inch = 1 foot
  • Dimension: 5 1/8"W x 9¼"L x 0.03"H
  • Made of flexible and durable plastic
  • Milled for accuracy, not punched-out or pressed
  • Color: translucent green

What’s in the Box

  • Alvin Architects and Builders Template

. We take the responsibility to make sure this product arrives in brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

General
Color
Translucent Green
Dimensions
5 1/8"W x 9¼"L x 0.03"H
Materials
Plastic
Weight
0.06 lb
