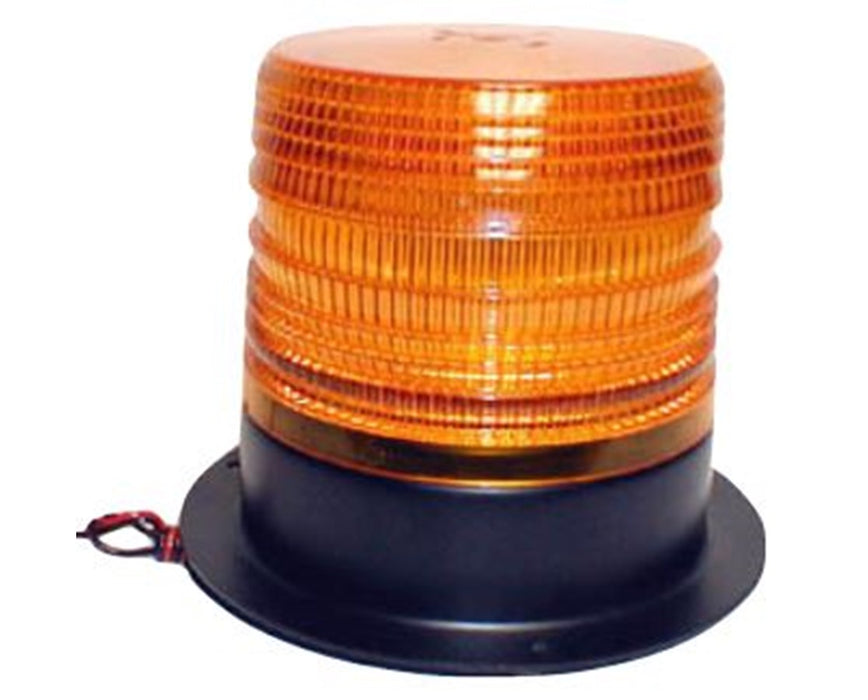

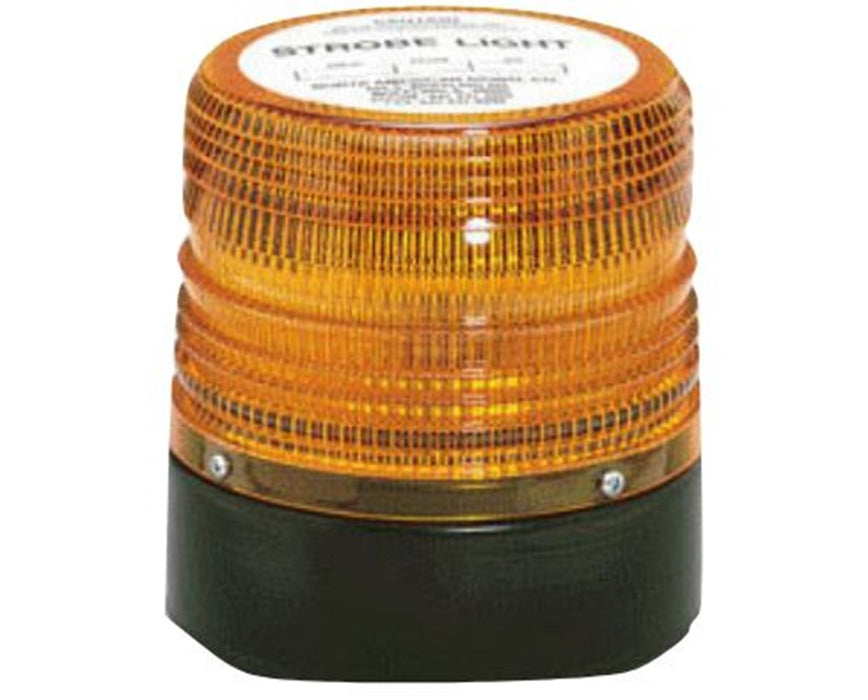

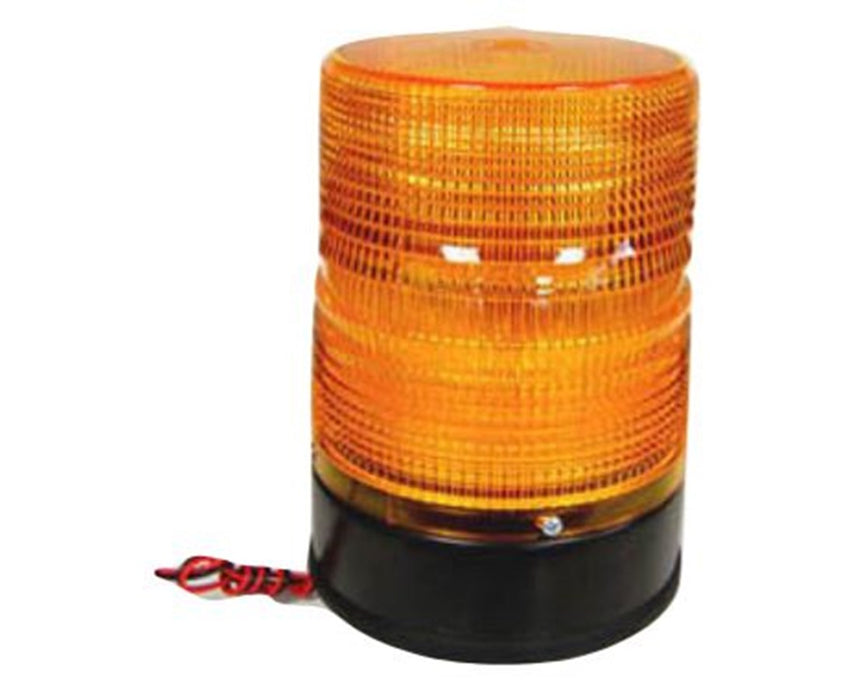

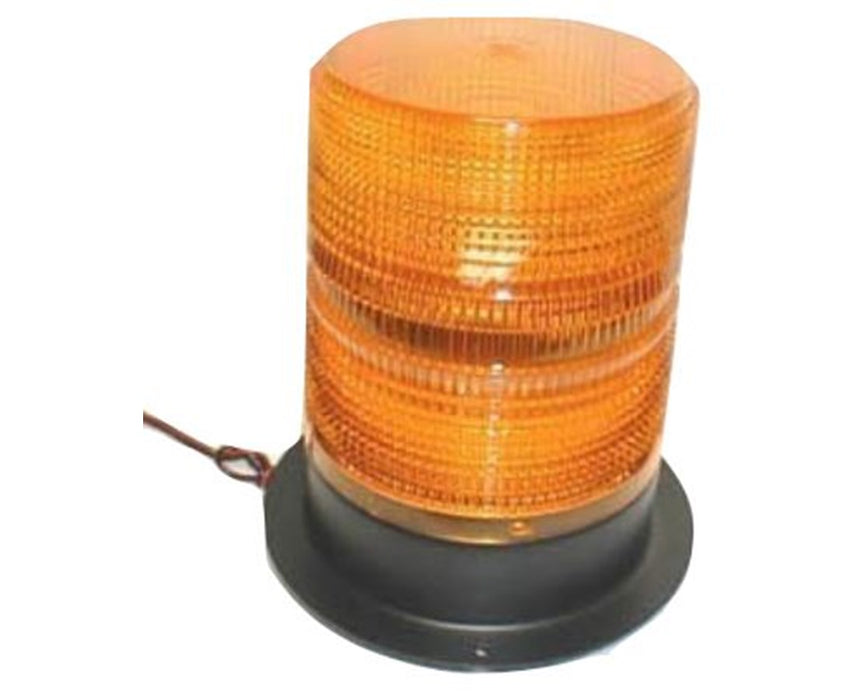

Aluminum Base 700/750 Series Strobe Warning Light

North American Signal
by North American Signal
MFR#: DFS750-A
TIGER#: TS45129
List Price: $182.50
You Save: $40.15 -22%
$182.50 - $182.50
List Price: $182.50
$142.35
$142.35 - $142.35
$142.35
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
Aluminum Base 700/750 Series Strobe Warning Light
Aluminum Base 700/750 Series Strobe Warning Light - $142.35
$142.35
*Must Purchase 1 for Aluminum Base 700/750 Series Strobe Warning Light

The cart will thereforce automatically set Qty to 1 when you order this product

COLOR
Ships Out Within: 5 - 7 Business Days Shipping Date By: 10/9/2023
Documents
Product Manual
  • Choice of 17 models in 5 lens colors
  • Operates at 12/24V and 120V AC
  • Running a rated current of 0.25 to 3.8 amperes
  • Black powder-painted aluminum base
  • Rugged helix strobe bulb (700 models)
  • Vibration resistance (700 models)
  • Linear bulb (double flash 750 models)
  • 6 or 7.75 inches lens for greater output

The North American Standard Black Aluminum Base 700/750 Series Strobe Warning Light features a single, double or quad flash display which operates at 12/24V or 120V AC. The 700 models are designed with rugged helix strobe bulb which is equipped with resistance to vibration. And the 750 double flash models are designed with a linear bulb which produces more light from front to back.

This 700/750 strobe series comes with a 6 or 7.75-inch lens for greater output and profile. Units are designed with a black powder-painted aluminum base. It is available in three mounts: permanent, pipe which includes a 7-inch round plate with a 3/4-inch threaded hole, and the magnetic which includes 90 lb pull magnet, 15-inch coiled cord, and a cigarette plug with a built-in on/off switch. An optional flange base is also available for the permanent mount. All units are available in Amber, Blue, Clear, Green, and Red.

Configuration Options

The North American Standard Black Aluminum Base 700/750 Series Strobe Warning Light is available in 17 models with different operating voltage, rated current, flashes per minute, light output, joule rating, height, mounting, and lens color. Please select your preference from the drop-down menu above.

  • ST700-ACA: 120V AC, Single Flash, w/ Permanent Mount (500 Candelas/Second)
  • DFS750-A: 12/24V, Double Flash, w/ Permanent Mount (1,200 Candelas/Second)
  • DFS750F-A: 12/24V, Double Flash, Permanent Mount w/ Flange Base (1,200 Candelas/Second)
  • DFS750P-A: 12/24V, Double Flash, w/ Pipe Mount (1,200 Candelas/Second)

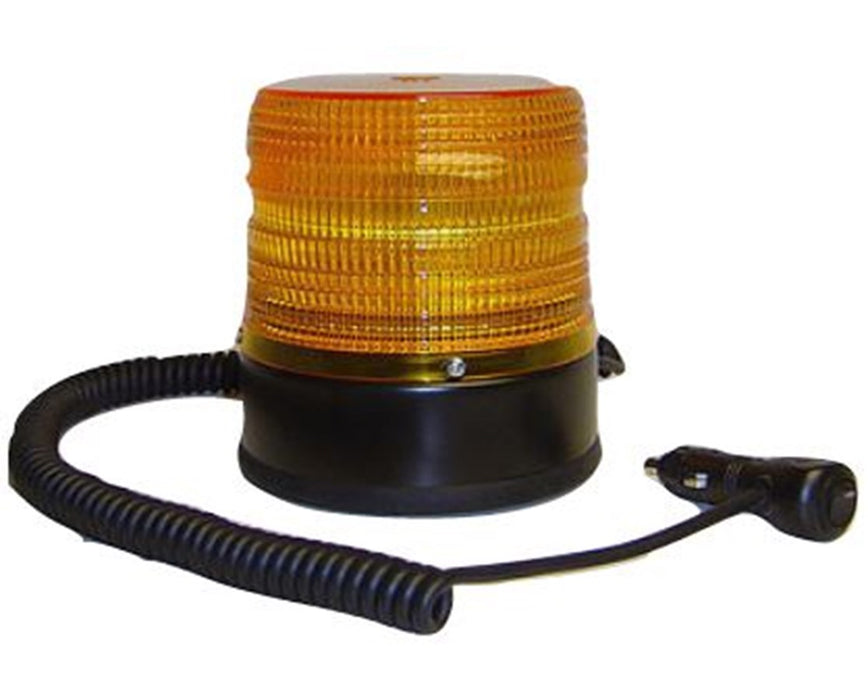

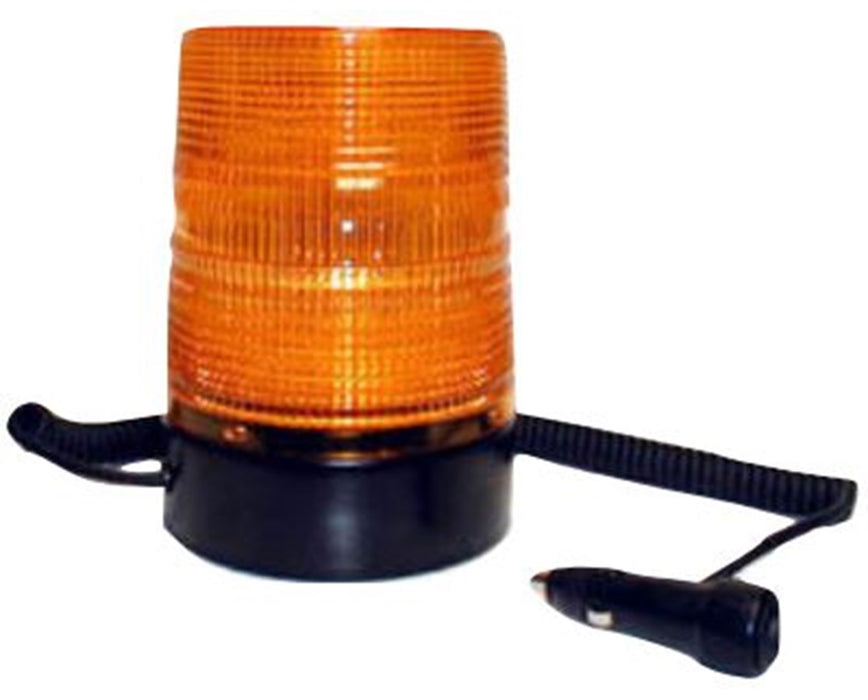

  • DFS750M-A: 12/24V, Double Flash, w/ Magnetic Mount (1,200 Candelas/Second)
  • DFS750H-A: 12/24V, Double Flash, w/ Permanent Mount (2,000 Candelas/Second)
  • DFS750HF-A: 12/24V, Double Flash, Permanent Mount w/ Flange Base (2,000 Candelas/Second)
  • DFS750HM-A: 12/24V, Double Flash, w/ Magnetic Mount (2,000 Candelas/Second)


Item Number


ST700-ACA


DFS700-A


DFS750-A


DFS750H-A


Q750-A


Q750H-A


Operating Voltage


120V AC


12/24V


12/24V


12/24V


12/24V


12/24V


Rated Current
(Amperes)


0.25


1.8


1.8


1.8


3.8


3.8


Light Output (Candelas/Second)


500


600


1,200


2,000


650


950


Joule Rating


5.5


15.75


15.75


15.75


17


17


Flashes per Minute (FPM)


80 Single


75 Double


75 Double


75 Double


75 Quad


75 Quad


Mounting


Permanent


Permanent


Permanent, Permanent w/ Flange Base, Pipe, or Magnetic


Permanent, Permanent w/ Flange Base, Pipe, or Magnetic


Permanent, Permanent w/ Flange Base, Pipe, or Magnetic


Permanent, Pipe, or Magnetic


Height


6"


6"


6"


7.75"


6"


7.75"
  • Operates at 12/24V and 120V AC
  • Running a rated current of 0.25 to 3.8 amperes
  • Rugged helix strobe bulb (700 models only)
  • Vibration resistance (700 models only)
  • Linear Bulb (Double Flash 750 models only)
  • 6 or 7.75 inches lens for greater output
  • Black Powder-Painted Standard Aluminum Base
  • Includes permanent, pipe or magnetic mount
  • Optional flange base is available
  • Available in 5 standard colors

What’s in the Box

  • North American Standard Black Aluminum Base 700/750 Series Strobe Warning Light
  • 90 lbs. Pull Magnet (for models with magnetic mount only)
  • 15-inch Coiled Cord (for models with magnetic mount only)
  • Cigarette Plug with a Built-in on/off Switch (for models with magnetic mount only)
  • 7-inch Round Plate with a 3/4 Threaded Hole (for models with pipe mount only)

Available Product Options

  • Operating Voltage: 12/24V or 120V AC
  • Rated Current: 0.25, 1.8 or 3.8 amperes
  • Flashes per Minute: 80 Single, 75 Double, or 75 Quad Display
  • Light Output (Candelas/Second): 500, 600, 650, 950, 1,200, or 2,000
  • Joule Rating: 5.5, 15.75 or 17
  • Height: 6 or 7.75 inches
  • Mounting: Permanent, Pipe, Magnetic, or Permanent w/ Flange Base
  • Lens Color: Amber, Blue, Clear, Green, or Red

Tiger Supplies offers a 90-day return policy from date of shipment for this product, subject to a 15% to 25% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

General
Dimensions
8.500"L x 8.000"W x 8.000"H (ST700-ACX, DFS700-X, DFS750-X, DFS750P-X, DFS750M-X, DFS750F-X, Q750-X, Q750F-X, Q750P-X & Q750M-X); 10.000"L x 8.000"W x 9.750"H (DFS750H-X, DFS750HF-X, DFS750HP-X, DFS750HM-X, Q750H-X, Q750HP-X & Q750HM-X)
Materials
Black powder-painted standar aluminum base
Mounting
Permanent (ST700-ACX, DFS700-X, DFS750-X, DFS750H-X, Q750-X & Q750H-X); Permanent w/ Flange Base (DFS750F-X, DFS750HF-X & Q750F-X); Pipe (DFS750P-X, DFS750HP-X, Q750P-X & Q750HP-X); Magnetic (DFS750M-X, DFS750HM-X, Q750M-X & Q750HM-X)
UL Listed
No
Weight
4.50 lbs (ST700-ACX, DFS700-X, DFS750-X, DFS750P-X, DFS750M-X, DFS750F-X, Q750-X, Q750F-X, Q750P-X & Q750M-X); 5.00 lbs (DFS750H-X, DFS750HF-X, DFS750HP-X, DFS750HM-X, Q750H-X, Q750HP-X & Q750HM-X)
Lighting
Color
Amber, Blue, Clear, Green & Red
Flashes per Minute
80 single flash (ST700-ACX); 75 double flash (DFS700-X, DFS750-X, DFS750P-X, DFS750M-X, DFS750F-X, DFS750H-X, DFS750HF-X, DFS750HP-X & DFS750HM-X); 75 quad flash (Q750-X, Q750F-X, Q750P-X, Q750M-X, Q750H-X, Q750HP-X & Q750HM-X)
Joule Rating - Output Energy
5.5 (ST700-ACX); 15.75 (DFS700-X, DFS750-X, DFS750P-X, DFS750M-X, DFS750F-X, DFS750HSP-X, DFS750HF-X, DFS750HP-X & DFS750HM-X); 17 (Q750-X, Q750F-X, Q750P-X, Q750M-X, Q750H-X, Q750HP-X & Q750HM-X)
Light Output
500 candelas/second (ST700-ACX); 600 candelas/second (DFS700-X); 1,200 candelas/second (DFS750-X, DFS750P-X, DFS750M-X & DFS750F-X); 2,000 candelas/second (DFS750H-X, DFS750HF-X, DFS750HP-X & DFS750HM-X); 650 candelas/second (Q750-X, Q750F-X, Q750P-X & Q750M-X); 950 candelas/second (Q750H-X, Q750HP-X & Q750HM-X)
Rated Current (Ampere)
0.25 (ST700-ACX); 1.8 (DFS700-X, DFS750-X, DFS750P-X, DFS750M-X, DFS750F-X, DFS750H-X, DFS750HF-X, DFS750HP-X & DFS750HM-X); 3.8 (Q750-X, Q750F-X, Q750P-X, Q750M-X, Q750H-X, Q750HP-X & Q750HM-X)
Voltage
120V AC (ST700-ACX); 12/24V (DFS700-X, DFS750-X, DFS750P-X, DFS750M-X, DFS750F-A, DFS750H-X, DFS750HF-X, DFS750HP-X, DFS750HM-X, Q750-X, Q750F-X, Q750P-X, Q750M-X, Q750H-X, Q750HP-X & Q750HM-X)
