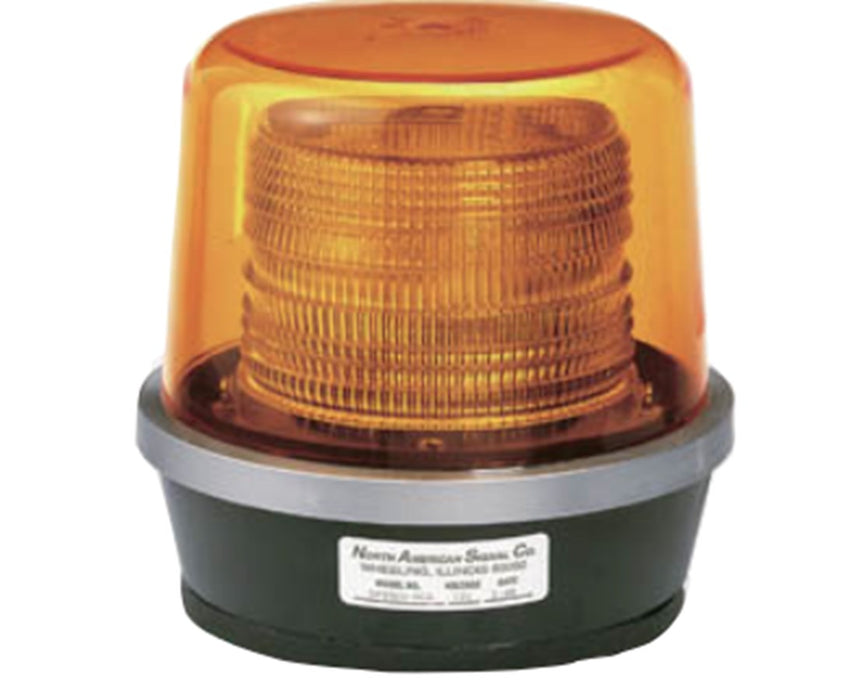

900/950 Series Strobe Warning Light

by North American Signal

MFR#: DFS900-A

TIGER#: TS46005

List Price: $270.00

You Save: $59.40 -22%

$270.00 - $270.00

List Price: $270.00

$210.60

$210.60 - $210.60

$210.60

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

900/950 Series Strobe Warning Light - $210.60

$210.60

*Must Purchase 1 for 900/950 Series Strobe Warning Light

The cart will thereforce automatically set Qty to 1 when you order this product

COLOR

Ships Out Within: 5 - 7 Business Days Shipping Date By: 10/9/2023

Documents

Product Manual

Choice of 13 models
Perfect for highway use
Designed with outer dome or dust cover
Inner Fresnel lens
Made of ABS plastic base
Operates from 12/24V to 220V AC
UL Listed (for models ST900-ACA, ST900P-ACA, ST900P-AC2A and ST900P-AC2A only)

The North American 900/950 Series Strobe Warning Light are designed to be large and economical for highway use. It comes with an outer dome or dust cover to protect units from dust, water, ultraviolet damage or any other elements. It also includes a stainless steel clamp ring, inner Fresnel lens and a plastic base made of Acrylonitrile Butadiene Styrene or ABS. The 950 series has a liner bulb to produce more light to the front and back of a vehicle.

This 900/950 series strobe warning light is available in single, double or quad flash displays operating at 12/24V to 220V AC running at a rated current of 1 to 3.8 amperes.

The models ST900-ACA, ST900P-ACA, ST900P-ACA, ST900P-AC2A, ST900P-AC2A, ST900P-AC2A are UL-listed. This means that representative samples of this product have been evaluated by UL and meet applicable safety standards.

Configuration Options

The North American 900/950 Series Strobe Warning Light is available in 13 models with different operating voltage, rated current, light output, joule rating, mounting, lens color and UL Certification. Please select your preference from the drop-down menu above.

ST900-A: 12/24V Single Flash w/ Permanent Mount
ST900P-A: 12/24V Single Flash w/ Pipe Mount
DFS900M-A: 12/24V Double Flash w/ Magnetic Mount
DFS900-A: 12/24V Double Flash w/ Permanent Mount
DFS900P-A: 12/24V Double Flash w/ Pipe Mount
Q950M-A: 12/24V Quad Flash w/ Magnetic Mount
Q950-A: 12/24V Quad Flash w/ Permanent Mount
Q950P-A: 12/24V Quad Flash w/ Pipe Mount
ST900-ACA: 120V AC Single Flash w/ Permanent Mount
DFS900-ACA: 120V AC Double Flash w/ Permanent
ST900P-ACA: UL Listed 120V AC Single Flash w/ Pipe Mount
ST900-AC2A: UL Listed 220V AC Single Flash w/ Permanent Mount
ST900P-AC2A: UL Listed 220V AC Single Flash w/ Pipe Mount

Item Number	ST900-A	ST900-ACA	ST900-AC2A	DFS900-A	DFS900-ACA	Q950-A
Operating Voltage	12/24V	120V AC	220V AC	12/24V	120V AC	12/24V
Rated Current (Amperes)	1.5	0.2	1.5	1.5	1	3.8
Light Output (Candelas/Second)	275	150	150	750	900	1,200
Joule Rating	9	5.5	5.5	15.25	18	17
Flashes per Minute (FPM)	80 Single	80 Single	80 Single	75 Double	60 Double	75 Quad
Mounting	Permanent or Pipe	Permanent or Pipe	Pemanent or Pipe	Permanent, Pipe, or Magnetic	Permanent	Permanent, Pipe, or Magnetic
UL Listed	No	Yes	Yes	No	No	No

Large and Economical Design
Perfect for highway use
With Outer Dome or Dust Cover
Stainless Steel Clamp Ring
Inner Fresnel Lens
Plastic base made of ABS
Operates from 12/24V to 220V AC
Rated current of 1 to 3.8 Amperes
UL Listed (for models ST900-ACX, ST900P-ACX, ST900P-AC2X and ST900P-AC2X only)

What’s in the Box

North American 900/950 Series Strobe Warning Light
Stainless steel clamp ring
Installation and Operating Instructions

Available Product Options

Operating Voltage: 12/24V, 120V AC, or 220V AC
Rated Current: 0.2, 1, 1.5 or 3.8 amperes
Light Output: 150, 275, 750, 900 or 1,200 candelas/second
Flashes per Minute: 80 Single, 60 & 75 Double, or 75 Quad
Mounting: Permanent, Pipe, or Magnetic
UL Listed/Certification: With or Without
Lens Color: Amber, Blue, Clear, Green or Red

Tiger Supplies offers a 90-day return policy from date of shipment for this product, subject to a 15% to 25% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

General

Dimensions

8.500"L x 8.000"W x 8.250"H

Materials

Stainless steel base & band; ABS plastic base; Fresnel lens

Mounting

Permanent (ST900-X, ST900-ACX, ST900-AC2X, DFS900-X, DFS900-ACX & Q950-X); Pipe (ST900P-X, ST900P-ACX, ST900P-AC2X, DFS900P-X & Q950P-X); Magnetic (DFS900M-X & Q950M-X)

UL Listed

Yes (ST900-ACX, ST900P-ACA, ST900P-ACX, ST900P-AC2X, ST900P-AC2A & ST900P-AC2X);

Weight

5.00

Lighting

Flashes per Minute

80 single flashes (ST900-X, ST900P-X, ST900-ACX, ST900P-ACX, ST900-AC2X & ST900P-AC2X); 60 double flashes (DFS900-ACX); 75 double flashes (DFS900-X, DFS900P-X & DFS900M-X); 75 quad flashes (Q950-X, Q950P-X & Q950M-X)

Joule Rating - Output Energy

5.5 (ST900-ACX, ST900P-ACX, ST900-AC2X & ST900P-AC2X); 9 (ST900-X & ST900P-X); 15.25 (DFS900-X, DFS900P-X & DFS900M-X); 17 (Q950-X, Q950P-X & Q950M-X); 18 (DFS900-ACX)

Light Output

150 (ST900-ACX, ST900P-ACX, ST900-AC2X & ST900P-AC2X); 275 (ST900-X & ST900P-X); 750 (DFS900-X, DFS900P-X & DFS900M-X); 900 (DFS900-ACX); 1,200 (Q950-X, Q950P-X & Q950M-X)

Rated Current (Ampere)

1 (DFS900-ACX); 1.5 (ST900-X, ST900P-X, ST900-AC2X, ST900P-AC2X, DFS900-X, DFS900P-X & DFS900M-X); 3.8 (Q950-X, Q950P-X & Q950M-X)

Voltage

12/24V (ST900-X, ST900P-X, DFS900-X, DFS900P-X, DFS900M-X, Q950-X, Q950P-X & Q950M-X); 120V AC (ST900-ACX, ST900P-ACX & DFS900-ACX); 220V AC (ST900-AC2X & ST900P-AC2X)
