6300 Multiple-Angle Cabinet Heater

MFR#: 6333D052033B3DOF
TIGER#: TS60087
Original price List Price: $4,884.00
You Save: $1,185.59 -24%
Original price $4,884.00 - Original price $4,884.00
Original price List Price: $4,884.00
Current price $3,698.41
$3,698.41 - $3,698.41
Current price $3,698.41
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
6300 Multiple-Angle Cabinet Heater
6300 Multiple-Angle Cabinet Heater - $3,698.41
$3,698.41
*Must Purchase 1 for 6300 Multiple-Angle Cabinet Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/23/2023
  • Choice of heater wattage & voltage
  • Shaded-pole, resilient-mounted, direct-drive motor
  • High and low heat range setting
  • 1/3-phase field convertible
  • 24-volt control circuit
  • Thermostat range: 50 to 90 °F
  • Sensor angular range: 94°
  • Multi-stage operation with 65-second delay

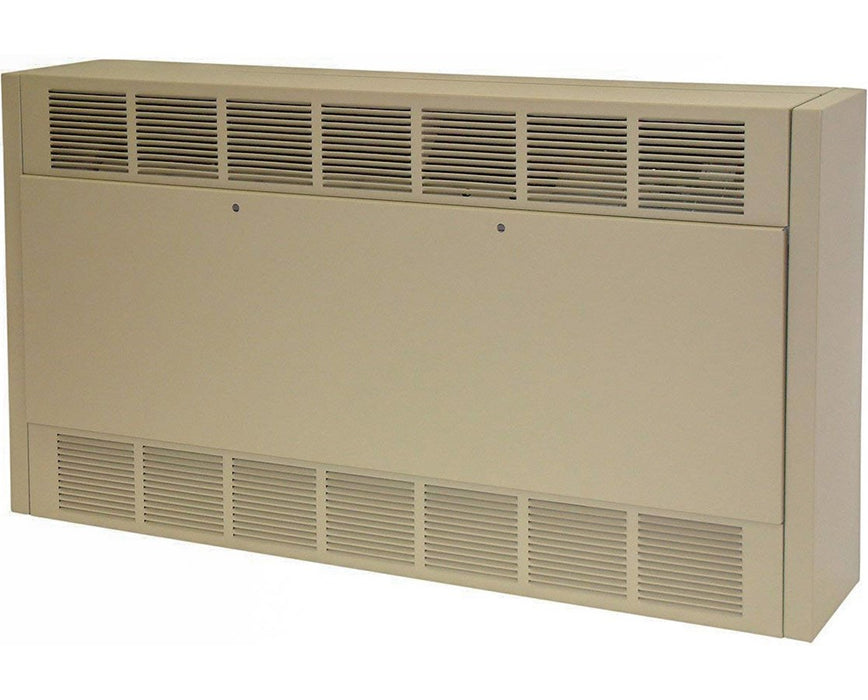

The TPI 6300 Series Multiple-Angle Cabinet Heater provides the optimum heating for many commercial and institutional applications including stores, schools, offices, transportation terminals, churches and entrance ways. This cabinet heater features a two-speed, shaded pole, resilient-mounted, direct drive motor that offers a high and low heat range setting. It comes with a 1/3-phase field convertible that has a 24-volt control circuit for a safe operation.

This 6300 Series heater includes a built-in thermostat that offers a range of 50 to 90 °F. Also, it has a sensor that covers a 94-degree angular range and a 16-foot linear range. The TPI heater comprises a 90-second purge cycle and comes with a multi-stage operation that gives a 65-second delay between stages.

Designed to last for a long time, the TPI multiple-angle cabinet heater is made of a heavy-duty 16 gauge Zinc coated steel that has a beige powder-coated finish. It consists of industrial-type finned tubular elements and circuit breakers that guarantee over-current protection. In addition, the 6300 Series is cETLus listed and can be mounted on a wall or a ceiling.

Configuration Option

The TPI 6300 Series Multiple-Angle Cabinet Heater offers five models with varying heater wattage and voltage. Please select your desired choice from the menus above.

  • 6333D052033B3DOF: 3/5 kW Heater with 208 V Motor
  • 6333D052433B30D0F: 3/5 kW Heater with 240 V Motor
  • 6333D054833B30D0F: 3/5 kW Heater with 480 V Motor
  • 6346D102433B30D0F: 6/10 kW Heater with 240 V Motor
  • 6346D104833B30D0F: 6/10 kW Heater with 480 V Motor
Heater kW BTU Volts Amps Dimensions
3 kW 10,239 208 V
240 V
480, 3-Ph
15.4 / 9.2
13.5 / 8.2
4.6
33" L x 9" W x 25" H
5 kW 17,065 208 V
240 V
480 V, 3-Ph
25 / 17.6
21.8 / 15.4
7.8
33" L x 9" W x 25" H
6 kW 20,478 240 V
480 V, 3-Ph
26.9 / 16.2
8.1
46" L x 9" W x 25" H
10 kW 34,130 240 V
480 V, 3-Ph
43.6 / 30.7
15.4
46" L x 9" W x 25" H
  • Choice of heater wattage & voltage
  • Great for commercial and institutional applications
  • 2-speed
  • Shaded-pole, resilient-mounted, direct-drive motor
  • High and low heat range setting
  • 1/3-phase field convertible
  • 24-volt control circuit
  • Built-in thermostat
  • Thermostat range: 50 to 90 °F
  • Sensor angular range: 94°
  • Linear range: 16’
  • Purge cycle: 90 seconds
  • Multi-stage operation with 65-second delay
  • Heavy-duty 16 gauge Zinc coated steel
  • Beige powder-coated finish
  • Industrial-type finned tubular elements
  • Circuit breakers
  • cETLus listed

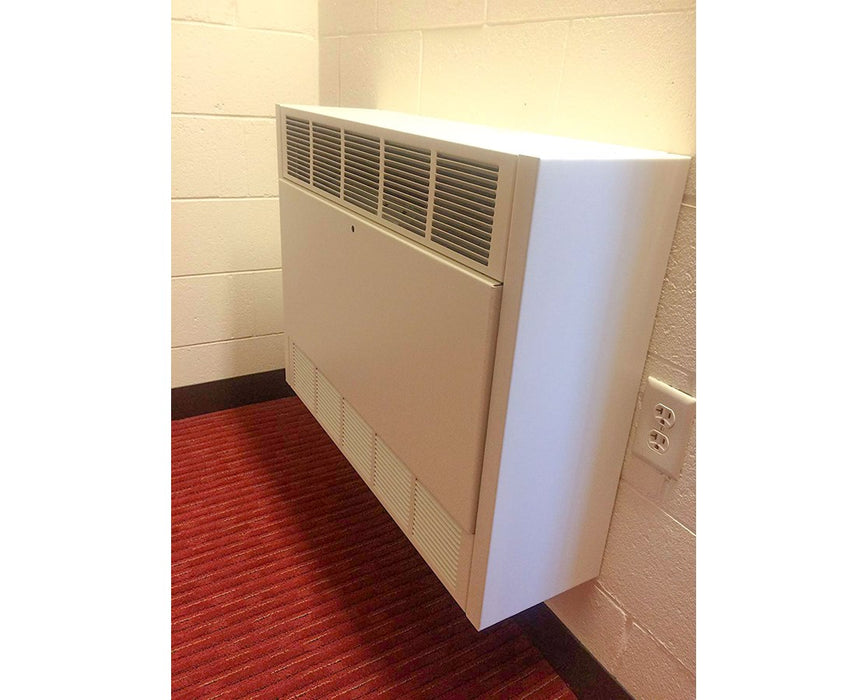

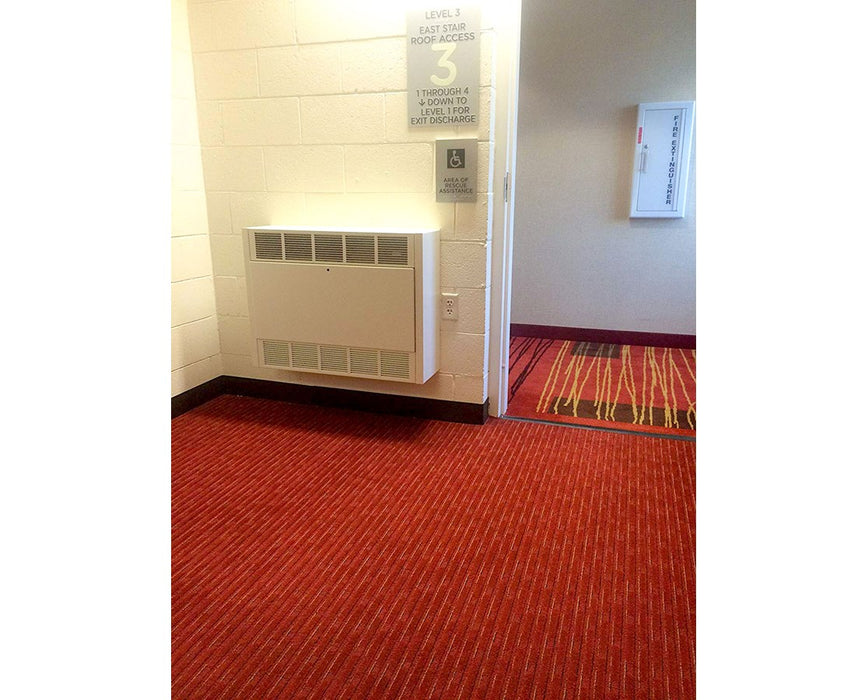

  • Wall/ceiling mount

What’s in the Box

  • TPI 6300 Series Multiple-Angle Cabinet Heater
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 3/5 kW or 6/10 kW
  • Voltage: 208 V, 240 V or 480 V

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Control Enclosure
Transformer
Yes, built-in
Dimensions
Heater
33" L x 9" W x 25" H (3 - 5 kW Models); 46" L x 9" W x 25" H (6 - 10 kW Models)
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
Yes
General
Finish/Coating
Beige powder-coated
Housing
Heavy-duty 16 gauge Zinc coated steel
Warranty
1-year limited
Weight
99 lbs (3/5 kW models); 130 lbs (6/10 kW models)
Heater
Amps
4.6, 7.8, 8.1, 8.2, 9.2, 13.5, 15.4, 16.2, 17.6, 21.8, 25, 26.9, 30.7, 43.6
BTU
17,065 BTU (3/5 kW models); 34,130 BTU (6/10 kW models)
CFM
230 (3/5 kW models); 460 (6/10 kW models)
Power Distribution
1-Phase or 3-Phase
Voltage
208 V, 240 V, 480 V
Wattage
3 kW, 5 kW, 6 kW, 10 kW
