565/585H Series Strobe Warning Light

by North American Signal

MFR#: DFS565-A

TIGER#: TS43901

List Price: $137^.50

You Save: $30^.25 -22%

$137^.50 - $137^.50

List Price: $137^.50

$107^.25

$107^.25 - $107^.25

$107^.25

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

565/585H Series Strobe Warning Light - $107^.25

$107^.25

*Must Purchase 1 for 565/585H Series Strobe Warning Light

The cart will thereforce automatically set Qty to 1 when you order this product

COLOR

Ships Out Within: 5 - 7 Business Days Shipping Date By: 12/9/2023

Documents

Product Manual

Choice of 6 models in 5 lens colors
12/24 output voltage
6-inch polycarbonate lens
Heavy-duty strobe bulb
Double flash display
Circuit with long-life RTV
2-year warranty for the light
1-year warranty for the bulb

The North American 565/585H Series Strobe Warning Light features a heavy-duty strobe bulb with a double flash display which easily disconnects. It has a high-efficiency, encapsulated and deep-potted circuit. It also has a long-life RTV (Room Temperature Vulcanizing), a 4.5-inch polycarbonate colored lens, and a flexible rubber base.

This 565/585H Series is operating at 12/24 voltage. The models DFS585H-X, DFS585HP-X, and DFS585HMX-X is designed with a 6-inch lens and equipped with a helix bulb for better performance in any tough conditions.

All units are available in Amber, Blue, Clear, Green and Red lens color and come with a warranty of 2 years on the light and 1 year on the bulb.

Configuration Options

The North American 565/585H Series Strobe Warning Light is available in 6 models with 5 different flashes per minute, light output, mounting, and lens color. Please select your preference from the drop-down menu above.

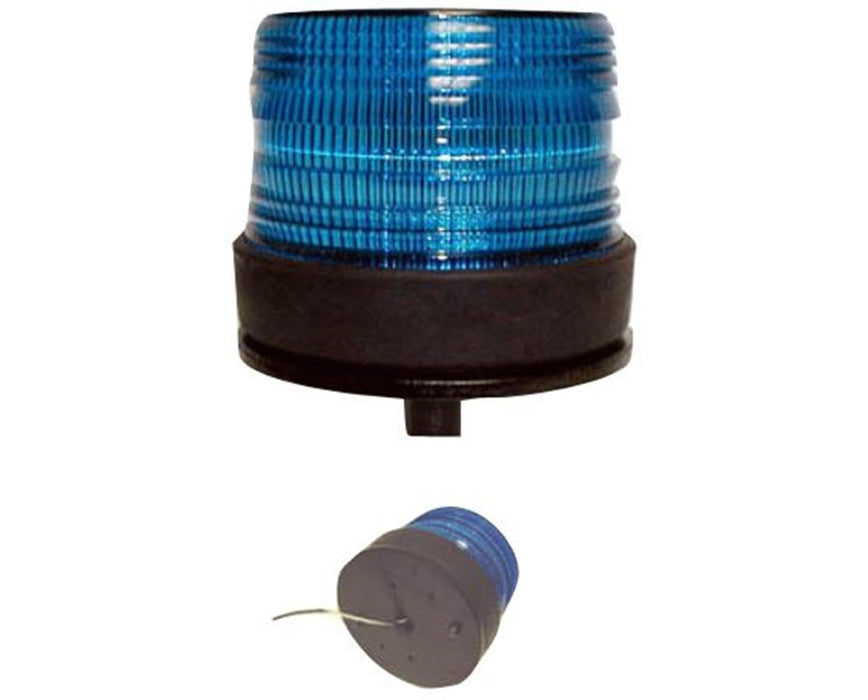

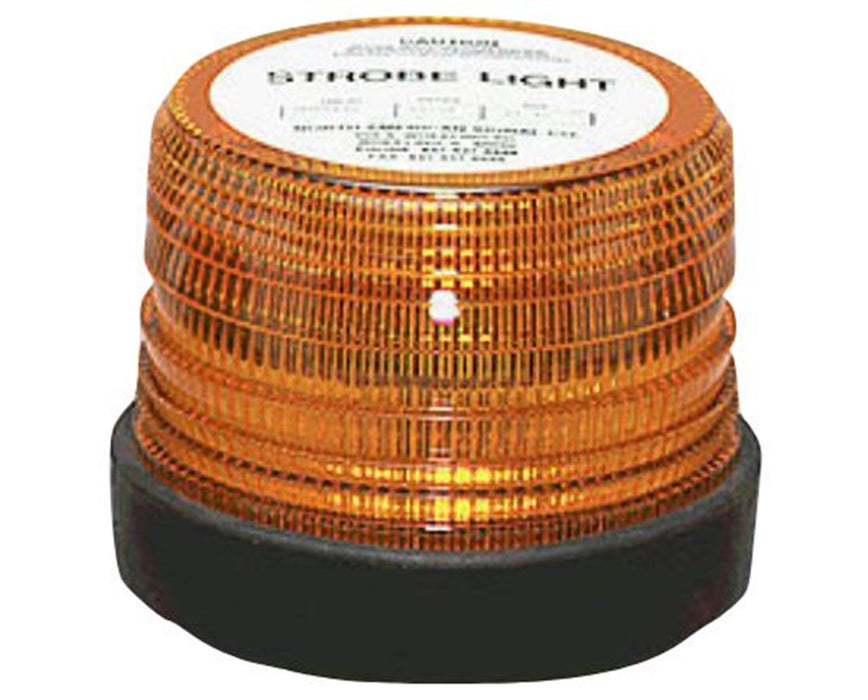

DFS565-A: 4.5" Heavy Duty Lens w/ Permanent Mount

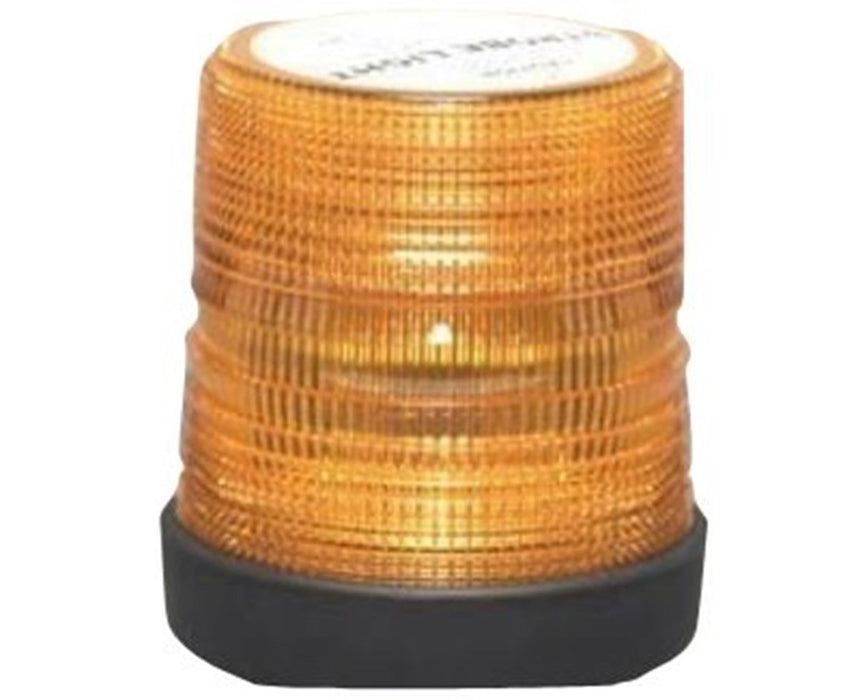

DFS565P-A: 4.5" Heavy Duty Lens w/ Pipe Mount

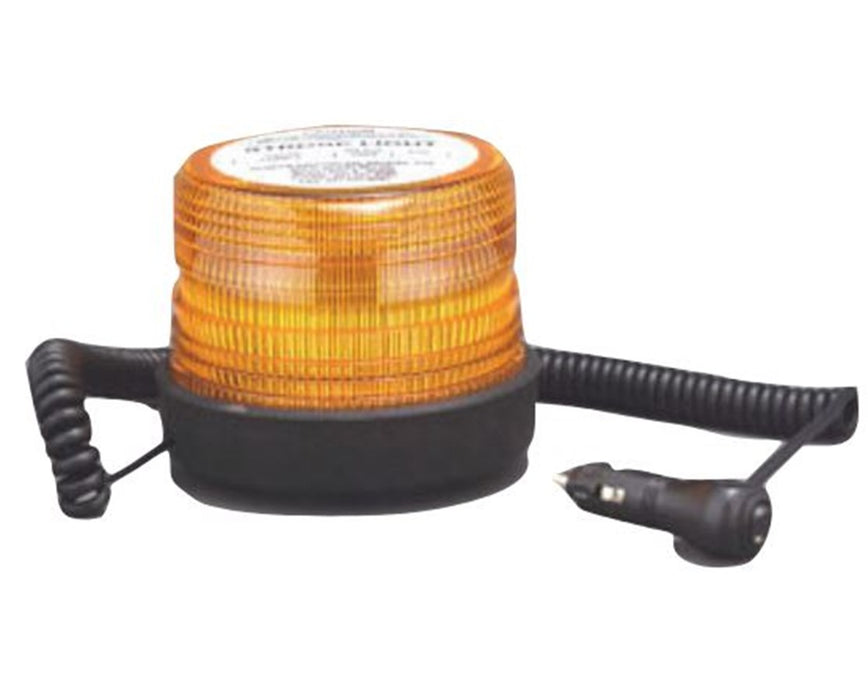

DFS565MX-A: 4.5" Heavy Duty Lens w/ Magnetic Mount

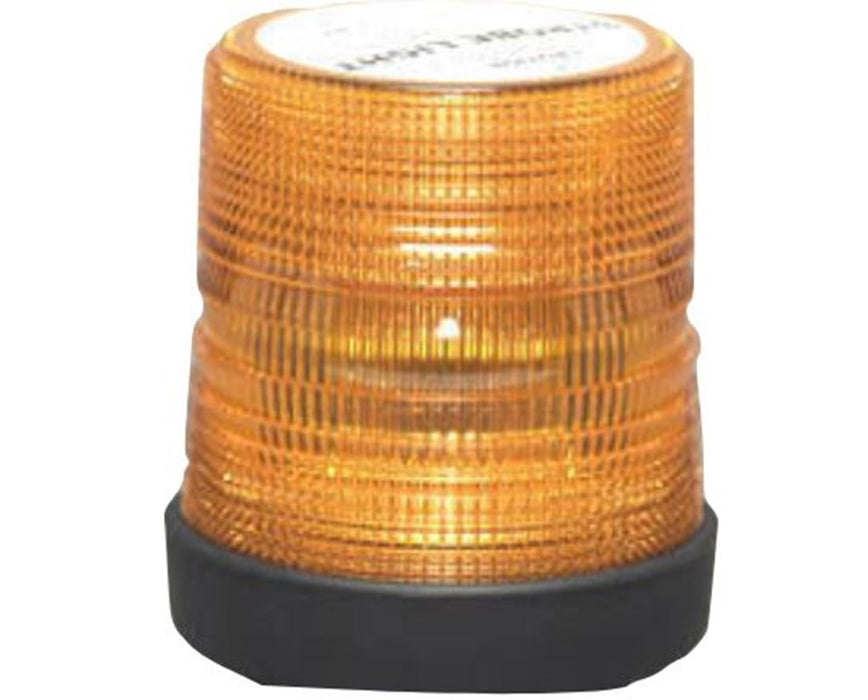

DFS585H-A: 6" High Power Lens w/ Permanent Mount

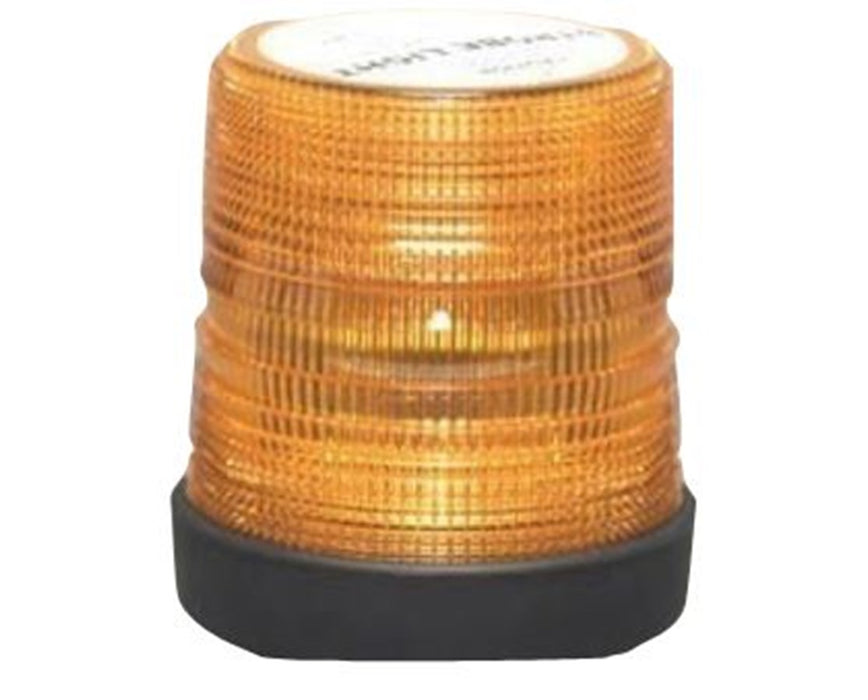

DFS585HP-A: 6" High Power Lens w/ Pipe Mount

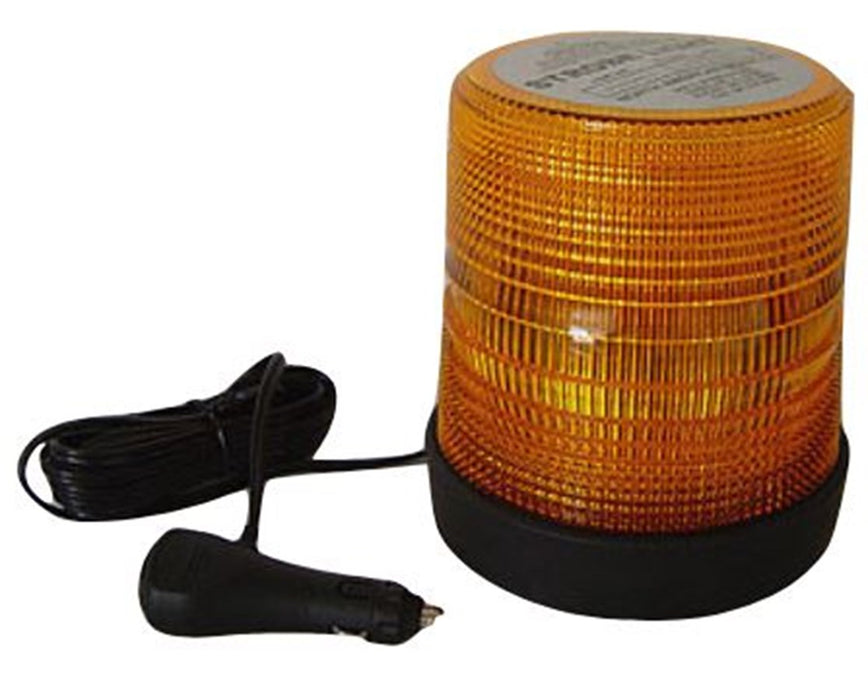

DFS585HMX-A: 6" High Power Lens w/ Magnetic Mount

Item Number	DFS565-A	DFS565P-A	DFS565MX-A	DFS585H-A	DFS585HP-A	DFS585HMX-A
Light Output (Candelas/Second)	150	150	150	900	900	900
Joule Rating	6.25	6.25	6.25	15.5	15.5	15.5
Lens Height	4.5 inches	4.5 inches	4.5 inches	6 inches	6 inches	6 inches
Mounting Option	Permanent	Pipe	Magnetic	Permanent	Pipe	Magnetic

Heavy-duty strobe bulb
Double flash display
Quick disconnect
Deep-potted circuit with long-life RTV
6-inch polycarbonate colored lens
flexible rubber base
12/24 output voltage
150-900 candelas/second light output
5 different mounting type
Available in 5 different colors

What’s in the Box

North American 565/585H Series Strobe Warning Light
Installation and Mounting Guide

Available Product Options

Light Output: 150 candelas/second or 900 candelas/second
Joule Rating: 6.25 or 15.5 Joules
Lens Height: 4.5 or 6 inches
Mounting: Permanent, Pipe, or Magnetic
Lens Color: Amber, Blue, Clear, Green, or Red

Tiger Supplies offers a 90-day return policy from date of shipment for this product, subject to a 15% to 25% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

General

Dimensions

5.000"L x 5.500"W x 4.500"H (DFS565-X); 5.000"L x 5.750"W x 4.500"H (DFS565P-X & DFS565MX-X); 6.000"L x 5.750"W x 6.000"H (DFS585H-X, DFS585HP-X & DFS585HMX-X)

Materials

Polycarbonate lens; Flexible rubber base

Mounting

Permanent (DFS565-X & DFS585H-X); Pipe (DFS565P-X & DFS585HP-X); Magnetic (DFS565MX-X & DFS585HMX-X)

UL Listed

Weight

4.50 lbs (DFS565-X, DFS565P-X & DFS565MX-X); 5.00 lbs (DFS585H-X, DFS585HP-X & DFS585HMX-X)

Lighting

Color

Amber, Blue, Clear, Green & Red

Flashes per Minute

60 double flash (DFS585H-X, DFS585HP-X & DFS585HMX-X); 80 double flash (DFS565-X, DFS565P-X & DFS565MX-X)

Joule Rating - Output Energy

6.25 (DFS565-X, DFS565P-X & DFS565MX-X); 15.5 (DFS585H-X, DFS585HP-X & DFS585HMX-X)

Light Output

150 candelas/second (DFS565-X, DFS565P-X & DFS565MX-X); 900 candelas/second (DFS585H-X, DFS585HP-X & DFS585HMX-X)

Rated Current (Ampere)

1.6 (DFS585H-X, DFS585HP-X & DFS585HMX-X); 2.1 (DFS565-X, DFS565P-X & DFS565MX-X)

Voltage

12/24V
