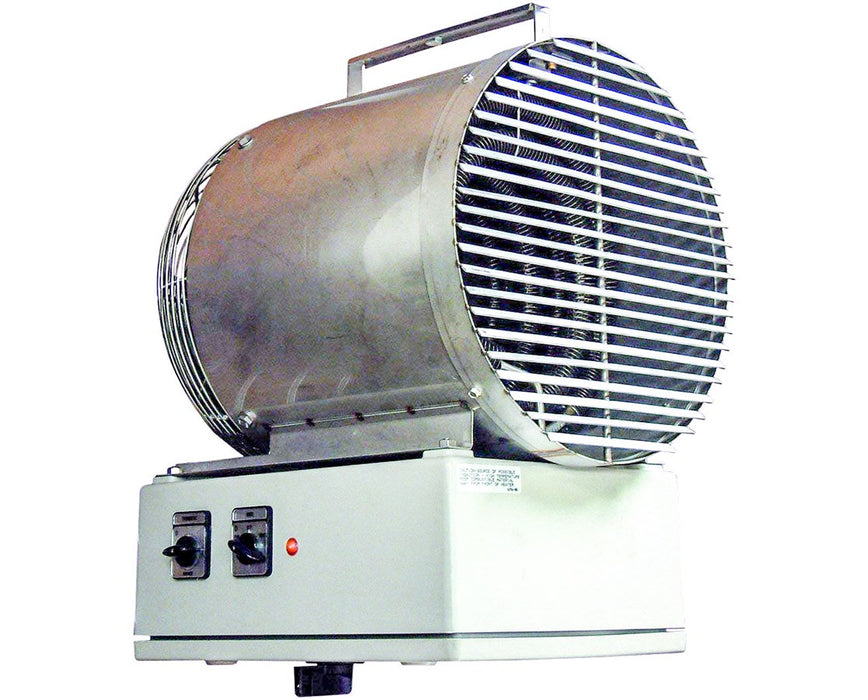

5500 Washdown Fan Forced Unit Heater

MFR#: F1F5503T
TIGER#: TS59809
Original price List Price: $6,158.00
You Save: $1,494.85 -24%
Original price $6,158.00 - Original price $6,158.00
Original price List Price: $6,158.00
Current price $4,663.15
$4,663.15 - $4,663.15
Current price $4,663.15
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
5500 Washdown Fan Forced Unit Heater
5500 Washdown Fan Forced Unit Heater - $4,663.15
$4,663.15
*Must Purchase 1 for 5500 Washdown Fan Forced Unit Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 12/29/2023
  • Choice of heater wattage, voltage & phase
  • 24-volt transformer
  • UL listed
  • Totally enclosed motor with permanent lubrication
  • Built-in control
  • Safety Capillary thermostat
  • Non-metallic NEMA 4X control panel with single-point power connection
  • Meets all UL, NEC and OSHA requirements

The TPI 5500 Series Washdown Fan Forced Unit Heater is a robust electrical heater that is perfect for industrial environments. With a 24-volt transformer, the 5500 Series motor is UL listed and is totally enclosed with permanent lubrication.

The TPI Washdown heater features a built-in control and a safety Capillary thermostat that is connected to a non-metallic NEMA 4X control panel with the single-point power connection. It offers a heating element that ensures proper heat transfer. This TPI heater has a front grill that gently rotates to direct airflow.

The TPI 5500 Series Washdown heater is constructed of durable stainless steel and the fan blades are made of epoxy-coated aluminum that guarantees long life. It also has a three-position switch and an automatic reset thermal cutout for safety purposes. In addition, this TPI fan-forced heater meets all UL, NEC and OSHA requirements.

Configuration Options

The TPI 5500 Series Washdown Fan Forced Unit Heater has 40 models that offer varying heater wattage (kilowatt), voltage and phase. All are supported by a one-year limited warranty. Please select from the drop-down menus above.

  • Heater Wattage (kW): 3.3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 48 kW
  • Voltage: 208 V, 240 V, 277 V or 480 V
  • Phase: 1 Phase or 3 Phase
Heater kW BTU Volts Amps
1-Phase/3-Phase
Dimensions
(L x W x H)
3.3 kW 11,200 208
240
277
480
15.9 / 9.2
13.7 / 7.9
11.9
19.75" x 12" x 18"
5 kW 17,100 208
240
277
480
24.1 / 13.9
20.8 / 12.1
18.1
 6.1
19.75" x 12" x 18"
7.5 kW 25,600 208
240
277
480
36.1 / 20.8
31.3 / 13.1
27.1
9.1
19.75" x 12" x 18"
10 kW  34,130 208
240
277
480
47.8 / 27.7
41.2 / 24.1
36.1
12.1
21.75" x 14" x 19"
15 kW 51,200 208
240
480
72.1 / 41.7
62.5 / 36.1
18.1
21.75" x 14" x 19"
20 kW 68,260 208
240
480
3-Phase: 55.6
48.2
24.1
28.75" x 16" x 27"
25 kW 85,325 208
240
480
 3-Phase: 69.5
60.2
30.1
28.75" x 16" x 27"
30 kW 102,390 208
240
480
3-Phase: 83.4
72.3
36.1
28.75" x 16" x 27"
40 kW  136,520 480 3-Phase: 48.2  30.75" x 18" x 31"
48 kW 163,824 480 3-Phase: 57.8  30.75" x 18" x 31"
  • Choice of heater wattage, voltage & phase distribution
  • Robust electrical heater
  • 24-volt transformer
  • UL listed
  • Totally enclosed motor with permanent lubrication
  • Built-in control
  • Safety Capillary thermostat
  • Non-metallic NEMA 4X control panel with single-point power connection
  • Heating element
  • Front grill
  • Durable stainless steel construction
  • Epoxy-coated aluminum fan blades
  • 3-position switch
  • Automatic reset cutout
  • Meets all UL, NEC and OSHA requirements

What’s in the Box

  • TPI 5500 Series Washdown Fan Forced Unit Heater
  • 1-year limited warranty

Available Product Options

  • Heater Wattage (kW): 3.3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 48 kW
  • Voltage: 208 V, 240 V, 277 V or 480 V
  • Phase: 1 Phase or 3 Phase

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Enclosure
Average Temperature Rise
26 °F, 40 °F, 56 °F, 60 °F, 45 °F, 68 °F, 70 °F, 84 °F
Control Voltage
24 V
NEMA Rating
NEMA 4X
Dimensions
Heater
19.75" L x 12" W x 18" H (3 - 7.5 kW); 21.75" L x 14" W x 19" H (10 - 15 kW); 28.75" L x 16" W x 27" H (20 - 30 kW); 30.75" L x 18" W x 31" H (40 - 48 kW)
Features
Cart
No
Disconnect Switch
Yes
Forklift Channels
No
Pilot Light
Yes
Thermostat
Yes
General
Finish/Coating
Epoxy coating
Housing
304 16 gauge stainless steel
Warranty
1-year limited
Weight
58 lbs (3.3-kW, 5-kW, 7.5-kW models); 64 lbs (10-kW, 15-kW models); 92 lbs (20-kW, 25-kW, 30-kW models); 126 lbs (40-kW, 48-kW models)
Heater
Air Throw
20’ (3.3-kW, 5-kW, 7.5-kW models); 28’ (10-kW, 15-kW models); 35’ (20-kW, 25-kW, 30-kW models); 42’ (40-kW, 48-kW models)
Amps
4, 6.1, 7.9, 9.1, 9.2, 11.9, 13.7, 12.1, 13.1, 13.9, 15.9, 18.1, 20.8, 24.1, 27.1, 27.7, 30.1, 31.3, 36.1, 41.2, 41.7, 47.8, 48.2, 55.6, 57.8, 60.2, 62.5, 69.5, 72.1, 72.3, 83.4
BTU
11,200 BTU, 17,100 BTU, 25,600 BTU, 34,130 BTU, 51,200 BTU, 68,260 BTU, 85,325 BTU, 102,390 BTU, 136,520 BTU, 163,824 BTU
CFM
400 (3.3-kW, 5-kW, 7.5-kW models); 700 (10-kW, 15-kW models); 1,400 (20-kW, 25-kW, 30-kW); 1,800 (40-kW, 48-kW)
Max. Operating Temperature
110 °F (43 °C)
Power Distribution
1-Phase or 3-Phase
Voltage
208 V, 240 V, 277 V or 480 V
Wattage
3.3 kW, 5 kW, 7.5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 48 kW
