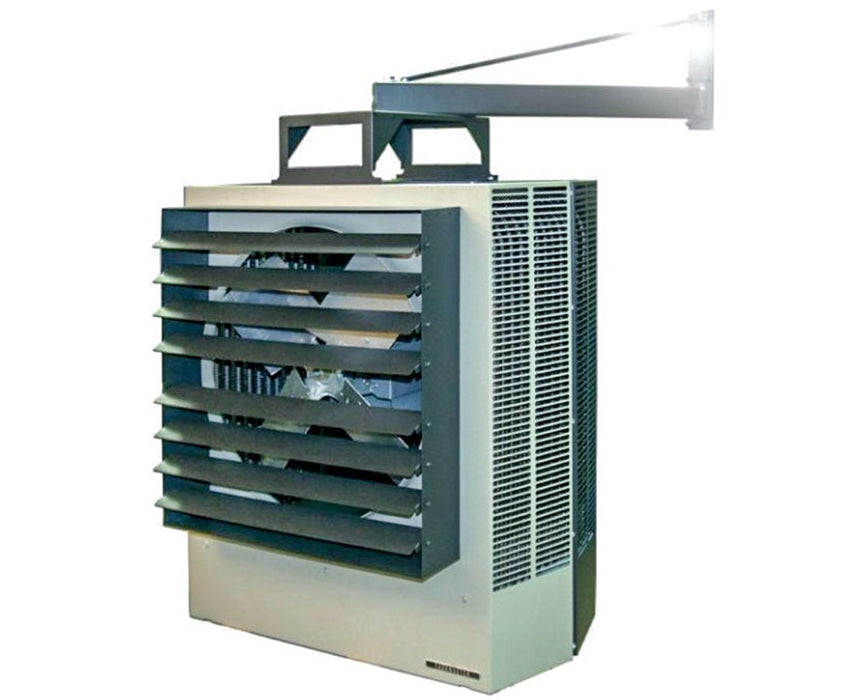

5100 60 - 100 Kilowatt Suspended Fan-Forced Unit Heater

TPI Corporation
by TPI Corporation
MFR#: F3F5160CA1
TIGER#: TS59883
List Price: $12,917.00
You Save: $3,136.00 -24%
$12,917.00 - $12,917.00
List Price: $12,917.00
$9,781.00
$9,781.00 - $9,781.00
$9,781.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
5100 60 - 100 Kilowatt Suspended Fan-Forced Unit Heater
5100 60 - 100 Kilowatt Suspended Fan-Forced Unit Heater - $9,781.00
$9,781.00
*Must Purchase 1 for 5100 60 - 100 Kilowatt Suspended Fan-Forced Unit Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 4-6 Weeks Shipping Date By: 11/5/2023
Documents
Product Manual Item Brochure Product Video

The TPI 5100 Series 60 - 100 Kilowatt Suspended Fan-Forced Unit Heater provides an optimum-level of heating that is perfect to use in most industrial and commercial areas. Equipped with a manual reset type limit control, this TPI heater can de-energizes the heater if an over-temperature happens. It offers a heater wattage of up to 100 kilowatts and an electrical voltage of up to 480 volts.

The TPI 5100 Series heater features a three-phase motor that is permanently lubricated and is thermally protected. Also, it has a control voltage of 24 volts, a single-speed switch and a ball-bearing motor that reduces rotational friction and support radial and axial loads.

This TPI suspended heater is constructed of a heavy-gauge steel cabinet that has a powder-coated finish and control compartment. It features a copper clad steel sheath heating element with continuously brazed steel fins that allow side draw through air flow. As an additional feature, the 5100 Series is cETLus listed.

Configuration Options

The TPI 5100 Series 60 - 100 Kilowatt Suspended Fan-Forced Unit Heater has 12 models that offer different heater wattages and voltages. Please choose from the drop-down menu above.

  • F3F5160CA1: 60-kW Heater, 208 V
  • HF3B5160CA1: 60-kW Heater, 240/208 V
  • P3P5160CA1: 60-kW Heater, 480 V
  • F3F5170CA1: 70-kW Heater, 208 V
  • HF3B5170CA1: 70-kW Heater, 240/208 V
  • P3P5170CA1: 70-kW Heater, 480 V
  • HF3B5180CA1: 80-kW Heater, 240/208 V
  • P3P5180CA1: 80-kW Heater, 480 V
  • HF3B5190CA1: 90-kW Heater, 240/208 V
  • P3P5190CA1: 90-kW Heater, 480 V
  • HF3B51100CA1: 100-kW Heater, 240/208 V
  • P3P51100CA1: 100-kW Heater, 480 V
Heater kW BTU Volts Amps Dimensions
60 kW
60 / 45 kW		 204.7
204.7 / 153.6		  208, 480
240 / 208		 166.7, 72.3
144.6 / 125 		 35.5" H x 30.5" W x 14.5" D
70 kW
70 / 52.5 kW 		238.9
238.9 / 179.2		 208, 480
240 / 208		 194.4, 84.3
168.7 / 145.8		 35.5" H x 30.5" W x 14.5" D
80 kW
80 / 60 kW		  273
273 / 204.7		 480
240 / 208		 96.3
192.8 / 166.7		 39.5" H x 37.63" W x 18.5" D
90 kW
90 / 67.5 kW		 307.1
307.1 / 230.4		 480
240 / 208		 108.4
216.9 / 187.5 		  39.5" H x 37.63" W x 18.5" D
100 kW
100 / 75 kW		 341.3
341.3 / 256		 480
240 / 208		 120.4
241 / 208.3		  39.5" H x 37.63" W x 18.5" D
  • Choice of heater wattage & voltage
  • Manual reset type limit control
  • Heater wattage up to 100 kW
  • Electrical voltage up to 480 V
  • 3-phase motor
  • Permanently lubricated and thermally protected
  • Control voltage: 24 V
  • Single-speed switch
  • Ball-bearing motor
  • Heavy-gauge steel cabinet
  • Powder-coated finish and control compartment
  • Copper clad steel sheath heating element
  • Continuously brazed steel fins
  • cETLus listed

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Control Enclosure
Control Voltage
24 V
Dimensions
Heater
35.5" H x 30.5" W x 14.5" D (60 - 70 kW); 39.5" H x 37.63" W x 18.5" D (80 - 100 kW)
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Finish/Coating
Powder coated
Housing
Heavy-gauge steel
Warranty
1-year limited
Weight
141 lbs, 202 lbs
Heater
Amps
72.3, 84.3, 96.3, 108.4, 120.4, 125, 144.6, 145.8, 166.7, 168.7, 187.5, 192.8, 194.4, 208.3, 216.9, 241
BTU
153.6, 179.2, 204.7, 230.4, 238.9, 256, 273, 307.1, 341.3
Power Distribution
3-Phase
Voltage
208 V, 240 V, 480 V
Wattage
60 kW, 60/45 kW, 70 kW, 70/52.5 kW, 80 kW, 80/60 kW, 90 kW, 90/67.5 kW, 100 kW, 100/75 kW
Motor
Bearing Type
Ball bearing
