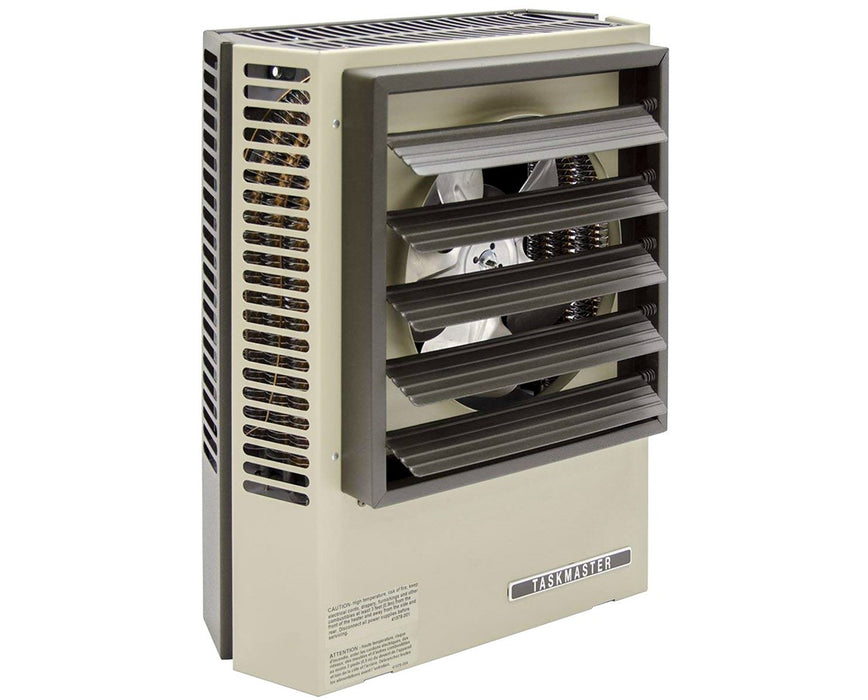

5100 3-20 kW Horizontal/Vertical Mount Fan-Forced Heater

by TPI Corporation

MFR#: F1F5103N

TIGER#: TS59967

List Price: $1,101.00

You Save: $267.27 -24%

$1,101.00 - $1,101.00

List Price: $1,101.00

$833.73

$833.73 - $833.73

$833.73

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

5100 3-20 kW Horizontal/Vertical Mount Fan-Forced Heater - $833.73

$833.73

*Must Purchase 1 for 5100 3-20 kW Horizontal/Vertical Mount Fan-Forced Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/26/2023

Documents

Product Manual Item Brochure Product Video

Choice of 25 models
Heater wattage up to 20 kW
1-speed switch
Unit bearings
Fan over-ride
Adjustable Louvers
Mounted in either a horizontal or vertical position
cETLus listed

The TPI 5100 Series 3-20 kW Horizontal/Vertical Mount Fan-Forced Heater is a durable heating device that perfectly warms indoors during winter months. It features a totally enclosed, permanently lubricated and thermally-protected motors that are insulated with rubbers for a quiet and vibration-less operation. The 5100 series 3 - 20-kilowatt heater features a 1-speed switch and has a unit bearings for easy replacement. Also, it offers a heater wattage up to 20 kilowatts.

The TPI 3-20 kW fan-forced heater offers a fan over-ride that cleanses the heater of unconsumed heat when shutdown. It also comes with adjustable louvers that control the air at a straight to horizontal direction up to 15 degrees. The 5100 Series is furnished with automatic reset type limit controls that de-energizes the heater in an event of an over-heating.

This 5100 series heater flaunts a copper clad steel sheath heating element that has continuously brazed steel fins that allow side draw through air flow. It is made with a heavy 18 gauge welded steel cabinet construction that guarantees a long life. As an additional feature, this TPI heater is cETLus listed and can be mounted in either a horizontal or vertical position.

Configuration Options

The TPI 5100 Series 3-20 kW Horizontal/Vertical Mount Fan-Forced Heater offers 25 models with varying features. Please select your preference from the drop-down menu above.

Heater Wattage: 3.3 kW, 3.3/2.5 kW, 5 kW, 5/3.7 kW, 7.5 kW, 7.5/5.6 kW, 9.9 kW, 10 kW, 10/7.5 kW, 15 kW, 15/11.2 kW, 19.7/14.8 kW or 20 kW
Volts: 208 V, 240 V, 240/208 V, 277 V or 480 V
Phase: 1 Phase, 3 Phase or 1/3 Phase

Heater kW	BTU	Volts	Amps	Dimensions
3.3	11.2	208 V 277 V, 1-Ph 480 V, 3-Ph	15.9 / 9.17 11.9 4	17.75" H x 14.47" W x 6.5" D
3.3 / 2.5 kW	11.2 / 8.5	240 / 208 V 240 / 208 V, 3-Ph	13.7 / 11.9 7.9 / 6.9	17.75" H x 14.47" W x 6.5" D
5 kW	17.1	208 V 277 V 480 V, 3-Ph	24.1 / 13.9 18.1 6.1	17.75" H x 14.47" W x 6.5" D
5 / 3.7 kW	17.1 / 12.8	240 / 208 V 208 V	20.9 / 18.1 17.1 / 10.4	17.75" H x 14.47" W x 6.5" D
7.5 kW	25.6	208 V 277 V 480 V	36.1 / 20.8 27.1 9.1	24.94" H x 21.5" W x 6.5" D
7.5 / 5.6 kW	25.6 / 19.2	240 / 208 V	27.1 / 31.3	24.94" H x 21.5" W x 6.5" D
9.9 kW	33.8	208 V	47.8 / 27.4	24.94" H x 21.5" W x 6.5" D
10 kW 10 / 7.5 kW	34.1 34.1 / 25.6	277 V, 480 V 240 / 208 V	36.1, 12.4 41.2 / 24 36.1 / 20.8	24.94" H x 21.5" W x 6.5" D
15 kW	51.2	208 V, 3-Ph 480 V, 3-Ph	41.7 18.1	28.69" H x 21.5" W x 6.5" D
15 / 11.2 kW	51.2 / 38.4	240 / 208 V, 3-Ph	36.1 / 31.3	28.69" H x 21.5" W x 6.5" D
19.7 / 14.8 kW	67.2 / 50.5	240 / 208 V, 3-Ph	47.8 / 41.1	28.69" H x 21.5" W x 6.5" D
20 kW	68.3	480 V, 3-Ph	24.1	28.69" H x 21.5" W x 6.5" D

Choice of 25 models
Durable heating device
Totally enclosed, permanently lubricated and thermally-protected motors
Rubber insulated motors
Heater wattage up to 20 kilowatts
1-speed switch
Unit bearings
Fan over-ride
Adjustable Louvers
Automatic reset type limit controls
Copper clad steel sheath heating element
Heavy 18 gauge welded steel cabinet construction
cETLus listed
Mounted in either a horizontal or vertical position

What’s in the Box

TPI 5100 Series 3-20 kW Horizontal/Vertical Mount Fan-Forced Heater
1-year limited warranty

Available Product Options

Heater Wattage: 3.3 kW, 3.3/2.5 kW, 5 kW, 5/3.7 kW, 7.5 kW, 7.5/5.6 kW, 9.9 kW, 10 kW, 10/7.5 kW, 15 kW, 15/11.2 kW, 19.7/14.8 kW or 20 kW
Volts: 208 V, 240 V, 240/208 V, 277 V or 480 V
Phase: 1 Phase, 3 Phase or 1/3 Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater

Adjustable Louves

Yes

Control Enclosure

Average Temperature Rise

26°F (3.3 kW); 40°F (5 kW); 34°F (7.5 kW); 45°F(9.9, 10 kW); 43°F(15 kW); 57°F(19.7/14.8, 20kW)

Control Voltage

208 V, 240/208 V, 277 V, 24 V, 240 V

Transformer

Yes

Dimensions

Heater

17.75" H x 14.47" W x 6.5" D, 24.94" H x 21.5" W x 6.5" D, 28.69" H x 21.5" W x 6.5" D

Features

Cart

Disconnect Switch

Yes

Forklift Channels

Pilot Light

Thermostat

Optional

General

Finish/Coating

Powder coated

Housing

Heavy-duty 18 gauge steel

Warranty

1-year limited

Weight

25 lbs (3.3 & 5 kW); 27 lbs (5 kW); 54 lbs (7.5 kW); 55 lbs (9.9, 10 kW); 64 lbs (15 kW); 65 lbs (19 & 20 kW)

Heater

Air Throw

12’ (3.3, 5 kW); 22’ (7.5, 9.9, 10 kW); 32’ (10, 15, 19.7/14.8, 20 kW)

Amps

4, 6.1, 6.9, 7.9, 9.1, 9.17, 10.4, 11.9, 13.7, 13.9, 15.9, 17.1, 18.1, 20.8, 20.9, 24, 24.1, 27.1, 27.4, 31.3, 36.1, 41.1, 41.2, 41.7, 47.8

BTU

11.2 BTU, 11.2/8.5 BTU, 17.1 BTU, 12.8 BTU, 25.6 BTU, 19.2 BTU, 33.8 BTU, 34.1 BTU, 51.2 BTU, 67.2 BTU, 68.3 BTU

CFM

400 (3.3, 5, 7.5 kW); 700 (7.5, 9.9, 10 kW); 1,100 (15, 19.7/14.8, 20 kW)

Power Distribution

1-Phase or 3-Phase

Voltage

208 V, 240/208 V, 208 V, 277 V, 480 V

Wattage

3.3 kW, 5 kW, 7.5 kW, 9.9 kW, 10 kW, 15 kW, 20 kW, 10/7.5 kW, 15/11.2 kW, 19.7/14.8 kW, 3.3/2.5 kW, 5/3.7 kW, 7.5 kW, 7.5/5.6 kW

Motor

Bearing Type

Unit bearing
