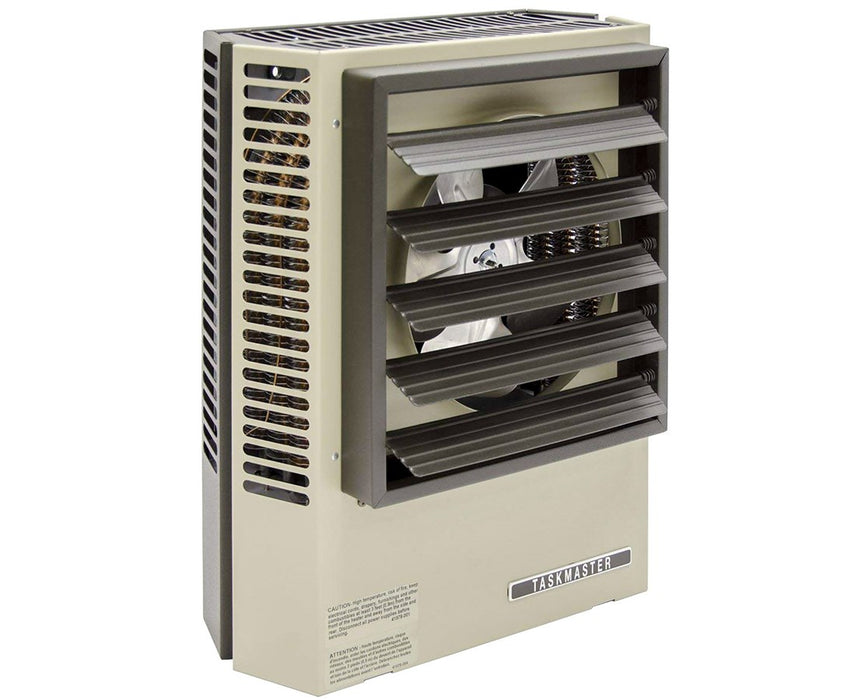

5100 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater

MFR#: F3F5125CA1L
TIGER#: TS59993
Original price List Price: $5,089.00
You Save: $1,235.36 -24%
Original price $5,089.00 - Original price $5,089.00
Original price List Price: $5,089.00
Current price $3,853.64
$3,853.64 - $3,853.64
Current price $3,853.64
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
5100 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater
5100 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater - $3,853.64
$3,853.64
*Must Purchase 1 for 5100 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/30/2023
  • Choice of 12 models
  • Heater wattage up to 50 kW
  • 2-speed switch
  • Sleeve bearing
  • 3-phase
  • Designed for a 2-stage heating operation
  • Fan-override
  • cETLus listed

The TPI 5100 Series 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater provides one of the best heating qualities in indoor heating. This TPI heater comes with a permanently lubricated, thermally protected, totally enclosed motor with insulated rubbers that allows lesser vibration and noise. It also offers a 2-speed switch, three-phase, sleeve bearing, and a heater wattage up to 50 kilowatts which is designed for a two-stage heating operation.

This 5100 Series heater offers adjustable louvers that allow directional control of airflow up to 15 degrees. This fan-forced heater includes a fan over-ride which purges the heater of residual heat when turned off. Also, it is equipped with automatic reset type limit controls that de-energizes the heater when an over-temperature occurs.

The TPI 25-50 kW heater features a heavy 18 gauge welded steel cabinet construction that can be mounted in a horizontal or vertical position. To allow side drawing of air flow, it comes with a copper clad steel sheath heating element that has continuously brazed fins. In addition, the TPI 5100 series heater is cETLus listed and measures 34" H x 29.25" W x 10.06" D.

Configuration Options

The TPI 5100 Series 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater offers 12 models with varying features including heater wattages and voltages. Choose from the drop-down menu above.

  • Heater Wattage: 25 kW, 25/18.7 kW, 25 kW, 30 kW, 30/22.5 kW, 39 kW, 40 kW, 40/30 kW, 49.6 kW, 50 kW or 50/37.5 kW
  • Voltage: 208 V, 240/208 V or 480 V
  • Choice of 12 models
  • Permanently lubricated, thermally-protected, totally-enclosed motor
  • 2-speed switch
  • 3-phase
  • Sleeve bearing
  • Heater wattage up to 50 kW
  • Designed for a 2-stage heating operation
  • Adjustable Louvers
  • Fan-override
  • Automatic reset type limit controls
  • Heavy 18 gauge welded steel cabinet construction
  • Can be mounted in horizontal or vertical position
  • Copper clad steel sheath heating element with continuously brazed fins
  • cETLus listed
  • Size: 34" H x 29.25" W x 10.06" D

What’s in the Box

  • TPI 5100 Series 25-50 kW Horizontal/Vertical Mounted Fan-Forced Heater
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 25 kW, 25/18.7 kW, 25 kW, 30 kW, 30/22.5 kW, 39 kW, 40 kW, 40/30 kW, 49.6 kW, 50 kW or 50/37.5 kW
  • Voltage: 208 V, 240/208 V or 480 V

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Cabinet/Heater
Adjustable Louves
Yes
Control Enclosure
Average Temperature Rise
40/44 °F (25 kW); 47/53 °F (30 kW); 40/45 °F (40, 39 kW); 51/56 °F (49 & 50 kW)
Control Voltage
24 V
Transformer
Yes
Dimensions
Heater
34" H x 29.25" W x 10.06" D
Features
Cart
No
Disconnect Switch
Yes
Forklift Channels
No
Pilot Light
No
Thermostat
Optional
General
Finish/Coating
Powder coated
Housing
Heavy-duty 18 gauge welded steel
Warranty
1-year limited
Weight
120 lbs
Heater
Air Throw
45’ (25 kW); 40’ (30 kW); 55’ (39 & 40 kW); 50’ (39, 40 & 50 kW)
Amps
30.1, 36.2, 47, 60.2 / 52.1, 60.3, 69.5, 72.3/62.5, 83.4, 96.4/83.4, 111.2, 120.5/104.3, 139
BTU
85.3 BTU, 85.3/64 BTU, 102.4 BTU, 102.4/76.8 BTU, 136.5 BTU, 136.5/102.4 BTU, 133.1 BTU, 169.3 BTU, 170.6 BTU, 170.6/128 BTU
CFM
2,000/1,800 (25, 30 kW); 3,100/2,800 (40, 39, 50 kW)
Power Distribution
3-Phase
Voltage
208 V, 240/208 V, 480 V
Wattage
25 kW, 25/18.7 kW, 30 kW, 30/22.5 kW, 39 kW, 40 kW, 40/30 kW, 49.6 kW, 50 kW, 50/37.5 kW
Motor
Bearing Type
Sleeve bearing
