3D Construction Disto Laser Scanner Measuring System

Leica
by Leica
MFR#: 844692
TIGER#: TS53826
$9,650.00 - $9,650.00
List Price: $9,650.00
$9,650.00
$9,650.00 - $9,650.00
$9,650.00
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
3D Construction Disto Laser Scanner Measuring System
3D Construction Disto Laser Scanner Measuring System - $9,650.00
$9,650.00
*Must Purchase 1 for 3D Construction Disto Laser Scanner Measuring System

The cart will thereforce automatically set Qty to 1 when you order this product

Free Shipping (USA) Ships Out Within: 14 - 21 Business Days Shipping Date By: 12/28/2023
Documents
Product Manual Item Brochure Product Video
Essential Add-Ons:
Dome-Head Aluminum Tripod
Dome-Head Aluminum Tripod
Details
$182.00
$182.00
  • Measurement accuracy: ±1/16" at 33 ft.
  • Laser range up to 164 feet
  • Angle accuracy of 5 seconds
  • Self-leveling within ±3°
  • Horizontal working range: 360°
  • Vertical working range: 250°
  • Viewfinder magnification: 1x, 2x, 4x, 8x
  • IP54 dustproof and water resistant

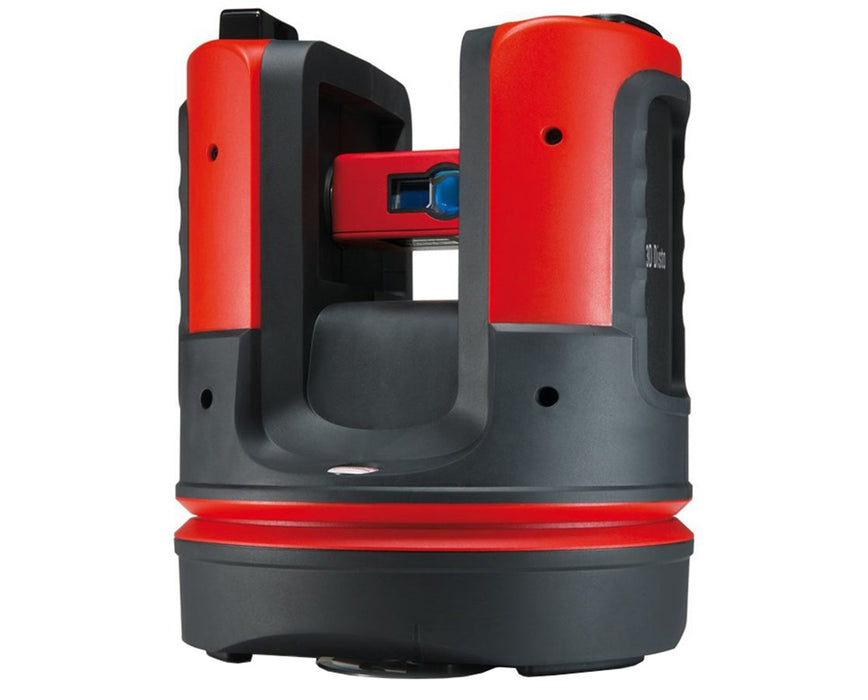

With impressive speed and precision, the Leica 3D Disto Measuring System is designed to accurately capture and project three-dimensional measurements. This construction device is ideal for creating CAD templates, 3D visualization and navigation, capturing as-built measurements, and Building Information Modeling (BIM).

Self-leveling within ±3 degrees, the Leica 3D Disto is a cross between a surveyor’s robotic total station and a handheld Disto measuring device. It has a measurement accuracy of ±1/16 inch at 33 feet and uses a Class 2 coaxial visible red laser with a range of up to 164 feet. With an angle accuracy of five seconds, this laser measure has a working range of 360 degrees horizontally and 250 degrees vertically. It also has a viewfinder that can zoom up to 8x and a circular level bubble.

This 3D measuring system is compatible with most computers for saving data and includes a software for Windows. The data can be saved on an SD card and transferred through a Type Micro-B and Type A USB, WLAN, or wirelessly. With an IP54 protection rating, the Leica 3D Disto is protected from dust, sand, and water. It uses a rechargeable Li-ion battery that powers the device up to eight hours. Plus, it comes with a 5/8-11 thread that is compatible with most tripods.

  • Accurate 3-dimensional measurements
  • Also works as a surveyor’s robotic total station
  • Measurement accuracy: ±1/16" at 33 ft.
  • Working range up to 164 feet
  • Angle accuracy of 5 seconds
  • Horizontal working range: 360°
  • Vertical working range: 250°
  • Self-leveling at ± 3°
  • Tilt sensor accuracy: 10 seconds
  • Circular setting accuracy: 1°/mm
  • Viewfinder magnification: 1x, 2x, 4x, 8x
  • Micro-B and type A USB cable
  • Includes a software for Windows
  • Class 2 coaxial visible red laser
  • IP54 dustproof and water resistant
  • Rechargeable Li-ion battery
  • Up to 8 hours battery life
  • 5/8-11 tripod thread

What’s in the Box

  • Leica 3D Disto Measuring System 844692
  • RM100 Remote Control
  • Ruler for Offset Points
  • Self-Adhesive Target Marks
  • USB Cable
  • Power Cable
  • Power Supply
  • USB Stick
  • Data CD
  • Hard Carrying Case
  • Safety Manual
  • Quick Guide
  • CE & Producer Certificate
  • 3-Year Manufacturer's Warranty

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Battery/Power
Battery Life
Up to 8 hrs
Power Source
Rechargeable Li-ion battery
Features
Built-in Bubble Vial
Yes
Free Downloadable Sketch App
Yes
Protection Class
IP54 dustproof and water resistant
Tripod Thread
5/8-11
Viewfinder
Yes
Functions
Addition/Subtraction
Yes
Area/Volume
Yes
Beep
No
Continuous Distance Measuring
Yes
Height Profile Measurements
Yes
Height Tracking (without suitable reflective point)
Yes
Min/Max Measuring
Yes
Partial Measurement Room Area (Painter Function)
Yes
Pythogoras (Indirect Measurements)
Yes
Smart Horizontal Mode™ (Indirect Height)
Yes
Stake-out
Yes
Timer
No
Trapezium measurements (slopes & facade areas)
Yes
Triangle Area
Yes
General
Measuring Accuracy
±1/16 inch at 33 feet
Measuring Units
ft/m
Range
164 feet
Warranty
3-year
Laser
Classification
Class 2
Pointer
Coaxial visible red laser
Temperature Range
Operation
14°F to 122°F (-10°C to +50°C )
Storage
-13°F to 158°F (-25°C to +70°C)
Tilt/Inclination Sensor
Accuracy to Laser Beam
10" (2.5mm at 50m)
Angle Measurements
Yes
Indirect Measurements (direct horizontal distance)
Yes
Measurement Range
± 3°
