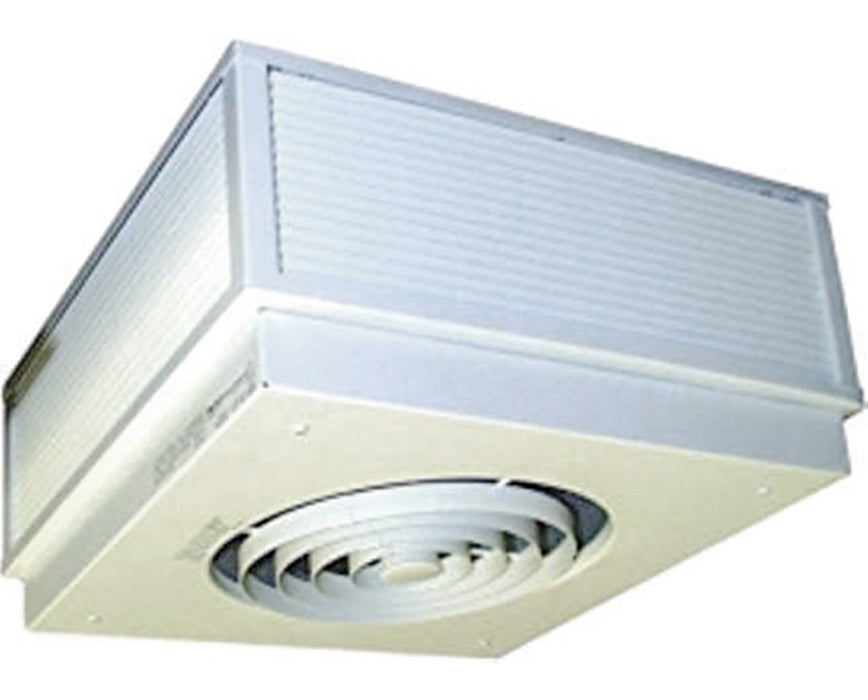

3470 Commercial Fan-Forced Surface Mounted Ceiling Heater

TPI Corporation
by TPI Corporation
MFR#: F3472A1
TIGER#: TS60323
List Price: $2,102.00
You Save: $510.25 -24%
$2,102.00 - $2,102.00
List Price: $2,102.00
$1,591.75
$1,591.75 - $1,591.75
$1,591.75
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
3470 Commercial Fan-Forced Surface Mounted Ceiling Heater
3470 Commercial Fan-Forced Surface Mounted Ceiling Heater - $1,591.75
$1,591.75
*Must Purchase 1 for 3470 Commercial Fan-Forced Surface Mounted Ceiling Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/26/2023
Documents
Product Manual Item Brochure
  • Choice of heater wattage, volt & phase
  • Permanently lubricated, totally enclosed shaded-pole type motor
  • Automatic reset thermal overload
  • Maximum temperature rise: 44°F
  • Fan speed: 1,300 RPM
  • Maximum mounting distance: 12’
  • Axial fan blade
  • cETLus listed

The TPI 3470 Series Commercial Fan-Forced Surface Mounted Ceiling Heater provides the best heating qualities that are perfect for commercial and institutional applications including vestibules, entrance ways, lobbies, restrooms, small offices and guard buildings. It comes with an axial fan blade that evenly distributes the heated air across the room. The 3470 series features an automatic reset thermal overload for added protection.

This TPI surface-mounted ceiling heater offers a 600 CFM rating and a maximum temperature rise of 44 °F. This TPI heater utilizes a permanently lubricated, totally enclosed shaded-pole type motor with impedance protection. Also, it comes with a unit bearing and operates with a fan speed of 1,300 revolutions per minute (RPM) and has a size of 16.75" L x 16.75" W x 10.88" H.

The 3470 ceiling heater includes two or three corrosion-resistant steel sheath-type element assemblies. It offers a maximum mounting distance of 12 feet and weighs 32 lbs. As an additional feature, the TPI commercial heater is made in the USA and is cETLus listed.

Configuration Options

The TPI 3470 Series Commercial Fan-Forced Surface Mounted Ceiling Heater offers 28 models with varying heater wattage, voltages, and phase. Please choose from the menus above.

Heater
Wattage
(kW) 		BTUs Volts PH Amps Temperature
Rise (ºF) 		Dimensions
(L x W x H)
2 6,826 208
240
277
480		 1 9.6
8.3
7.2
4.2		 15 16.75" x 16.75" x 10.88"
208
240
480		 3 5.6
4.8
2.4
3 10,200 208
240
277
480		 1 14.4
12.5
10.8
6.3		 22
208
240
480		 3 8.3
7.2
3.6
4 13,600 208
240
277
480		 1 19.2
16.8
14.4
8.3		 30
208
240
480		 3 11.1
9.7
4.8
5 17,000 208
240
277
480		 1 24.1
20.8
18.1
10.4		 37
208
240
480		 3 13.9
12.1
6.1
  • Choice of heater wattage, volt & phase
  • Axial fan blade
  • Automatic reset thermal overload
  • Rating: 600 CFM
  • Maximum temperature rise: 44°F
  • Permanently lubricated, totally enclosed shaded-pole type motor
  • Impedance protection
  • Unit bearing
  • Fan speed: 1,300 RPM
  • Element assemblies
  • Maximum mounting distance: 12’
  • Unit weight: 32 lbs
  • Made in the USA
  • cETLus listed
  • Size: 16.75" L x 16.75" W x 10.88" H

What’s in the Box

  • TPI 3470 Series Commercial Fan-Forced Surface Mounted Ceiling Heater
  • 1-year limited warranty

Available Product Options

  • Heater Wattage: 2 kW, 3 kW, 4 kW or 5 kW
  • Voltage: 208 V, 240 V, 277 V or 480 V
  • Phase: 1 or 3 Phase

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Enclosure
Average Temperature Rise
Up to 44 °F
Dimensions
Heater
16.75" L x 16.75" W x 10.88" H
Features
Cart
No
Disconnect Switch
No
Forklift Channels
No
Pilot Light
No
Thermostat
No
General
Recommended Mounting Height
12'
Warranty
1-year limited
Weight
32 lbs
Heater
Amps
2.4, 3.6, 4.2, 4.8, 5.6, 6.1, 6.3, 7.2, 8.3, 9.6, 9.7, 10.4, 10.8, 11.1, 12.1, 12.5, 13.9, 14.4, 16.8, 18.1, 19.2, 20.8, 24.1
BTU
6,826 BTU, 10,200 BTU, 13,600 BTU, 17,000 BTU
CFM
600
Power Distribution
1-Phase or 3-Phase
Voltage
208 V, 240 V, 277 V, 480 V
Wattage
2 kW, 3 kW, 4 kW, 5 kW
Motor
Bearing Type
Unit bearing
