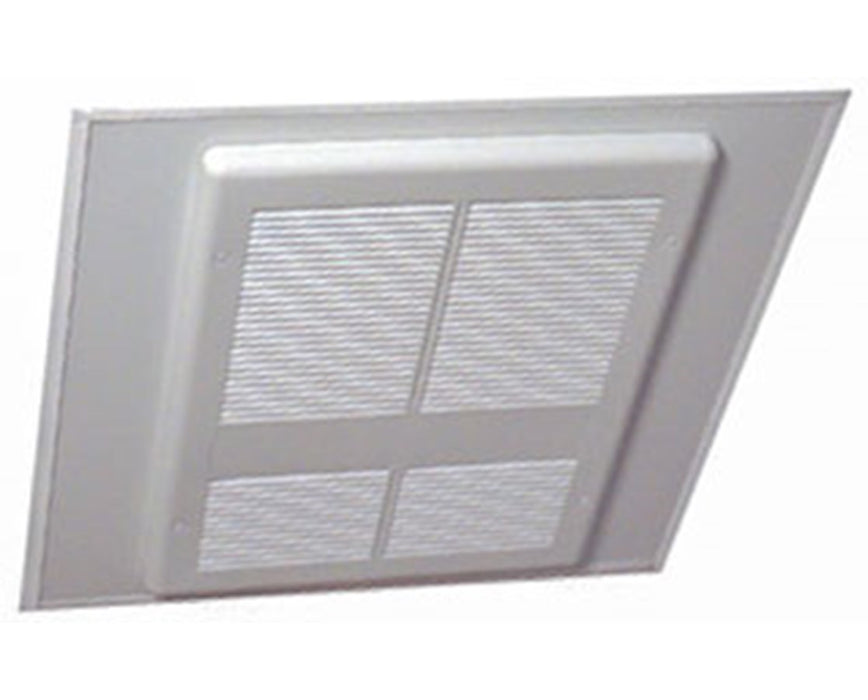

3380 Commercial Fan-Forced Ceiling Heater

by TPI Corporation

MFR#: HF3384DRP

TIGER#: TS60195

List Price: $854.00

You Save: $207.30 -24%

$854.00 - $854.00

List Price: $854.00

$646.70

$646.70 - $646.70

$646.70

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

3380 Commercial Fan-Forced Ceiling Heater - $646.70

$646.70

*Must Purchase 1 for 3380 Commercial Fan-Forced Ceiling Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/23/2023

Documents

Product Manual Item Brochure

Choice of 12 models
Heating wattage up to 4,00 watts
Van axial fan blade
Fan speed up to 900 RPM
Block-finned type heating element
Manual reset capillary type limit control
Rough-in dimensions: 15.19” W x 19.31” H x 4” D
cETLus listed

The TPI 3380 Series Commercial Fan-Forced Ceiling Heater provides the best heating features that are commonly used in commercial locations. It offers heating wattages up to 4,800 watts that has an optional factory-installed tamper-resistant thermostat. Also, this TPI heater includes a fan purge circuit which is used with the remote wall thermostat.

This TPI commercial fan-forced heater features a van axial fan blade that offers a fan speed of up to 900 revolutions per minute (RPM). It features a block-finned type heating element that has parallel steel fins that give fast heat transfer. For added safety, the 3380 series heater consists of a standard, manual reset capillary type limit control.

The TPI 3380 series ceiling fan is made of heavy-gauge steel housing with a ceiling white baked-on powder coat finish that fits any room style. It offers rough-in dimensions of 15.19” W x 19.31” H x 4” D and a grill size of 15.38” W x 20.14” H. As an additional feature, the 3380 Series weighs 22 pounds and is cETLus listed.

Configuration Options

The TPI 3380 Series Commercial Fan-Forced Ceiling Heater offers 12 models with varying voltages and heater wattages. Please choose from the drop-down menu above.

Heater Wattage	BTUs	Volts	PH	Amps	Temperature Rise (ºF)	Dimensions
1.5	5,120	120	1	12.5	27	Rough-in: 14.19" W x 19.31" H x 4" D Grill: 15.38" W x 20.14" H
1.5	5,120	277		5.4	27
2 / 1.5	6,826 / 5,120	240 / 208		8.3 / 7.2	36
2	6,826	277		7.2	36
3 / 2.3	10,200 / 7,679	240 / 208		12.5 / 10.8	54
3	10,200	277		10.8	54
4	13,600	208		19.2	72
4	13,600	277		14.4	72
4.8	16,382	208		23.1	76
4 / 3	13,600 / 10,200	240 / 208		16.8 / 14.4	72
4.8	16,382	240		20	76
4.8	16,382	277		17.3	76

Choice of 12 models
Heating wattage up to 4,00 watts
Optional factory-installed tamper-resistant thermostat
Fan purge circuit
Van axial fan blade
Fan speed up to 900 RPM
Block-finned type heating element
Parallel steel fins
Standard, manual reset capillary type limit control
Heavy-gauge steel housing
Ceiling white baked-on powder-coat finish
Rough-in dimensions: 15.19” W x 19.31” H x 4” D
Grill dimensions: 15.38” W x 20.14” H
Weight: 22 lbs
cETLus listed

What’s in the Box

TPI 3380 Series Commercial Fan-Forced Ceiling Heater
1-year limited warranty

Available Product Options

Voltage: 120 V, 208 V, 240 V, 277 V, 240/208 V
Heater Wattage: 1.5 kW, 2/1.5 kW, 2 kW, 3/2.3 kW, 3 kW, 4/3 kW, 4 kW or 4.8 kW

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Enclosure

Average Temperature Rise

27 °F, 36 °F, 54 °F, 72 °F, 76 °F

Dimensions

Grill

15.38” W x 20.14” H

Rough-in

15.19” W x 19.31” H x 4” D

Features

Cart

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

Optional

General

Capillary Type Manual Reset Thermal

Yes

Finish/Coating

White baked-on powder coat

Housing

Heavy-gauge steel

Warranty

1-year limited

Weight

22 lbs

Heater

Amps

5.4, 7.2, 8.3, 10.8, 12.5, 14.4, 16.8, 17.3, 19.2, 20, 23.1

BTU

5,120 BTU, 6,826 BTU, 7,679 BTU, 10,200 BTU, 13,600 BTU, 16,382 BTU

CFM

175 or 200 CFM

Power Distribution

1-Phase

Voltage

120 V, 208 V, 240/208 V, 240 V, 277 V

Wattage

1.5 kW, 1.5/2 kW, 2 kW, 2.3/3 kW, 3 kW, 3/4 kW, 4 kW, 4.8 kW

Motor

Speed

700 or 900 RPM
