3320 Commercial Fan-Forced Wall Heater

TPI Corporation
by TPI Corporation
MFR#: E3321TDRP
TIGER#: TS60504
List Price: $1,003.00
You Save: $243.47 -24%
$1,003.00 - $1,003.00
List Price: $1,003.00
$759.53
$759.53 - $759.53
$759.53
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
3320 Commercial Fan-Forced Wall Heater
3320 Commercial Fan-Forced Wall Heater - $759.53
$759.53
*Must Purchase 1 for 3320 Commercial Fan-Forced Wall Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/31/2023
Documents
Product Manual Item Brochure Product Video
  • Choice of 19 models
  • Built-in single-pole tamperproof thermostat
  • Temperature range: 50 - 90 °F
  • 4-pole motor
  • Van axial fan blade
  • Fan speed: 600 RPM
  • Manual disconnect switch
  • Rough-in dimensions: 14.19” W x 19.44” H x 4” D

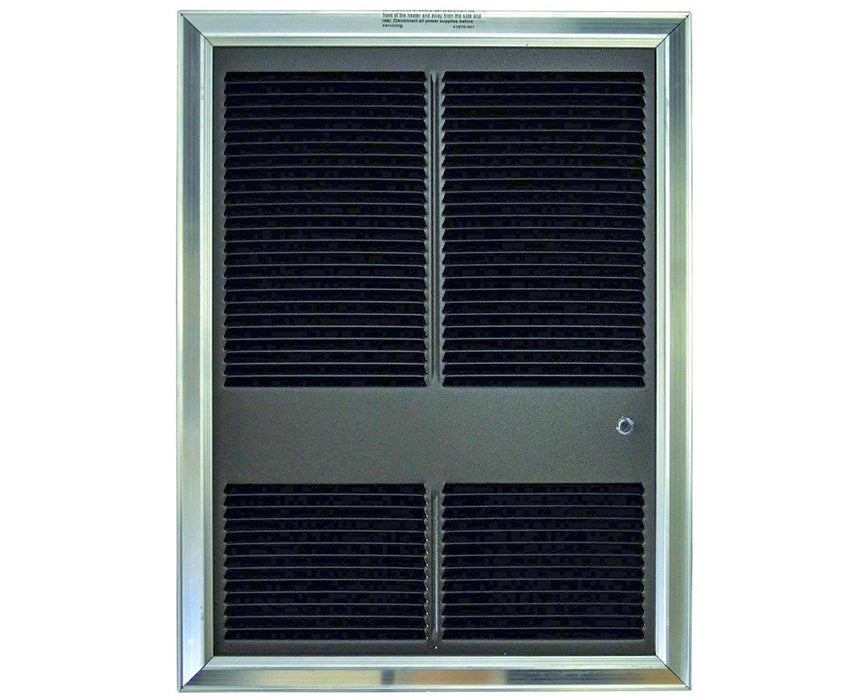

The TPI 3320 Series Commercial Fan-Forced Wall Heater is a heavy-duty heater that provides the best heating qualities which is ideal for commercial areas. It features a built-in single-pole tamperproof thermostat that provides a temperature range from 50 to 90 °F. This fan-forced wall heater comes with an automatic fan delay circuit and an automatic reset thermal limit.

This TPI 3320 Series heater utilizes a four-pole motor and a van axial fan blade that offers a speed of 600 revolutions per minute (RPM) and a 175 cubic feet per minute (CFM) of down flow air. Also, it consists of a steel block fin element for a quick heat transfer. The 3320 Series comes with a manual disconnect switch for an easy and safe power management.

The TPI commercial wall heater flaunts a powder-coated 18 gauge steel grill with a pressed-out Aluminum frame that is wear resistant. It has rough-in dimensions of 14.19” W x 19.44” H x 4” D and grill dimensions of 15.91” W x 20.84” H. As an additional feature, the TPI fan-forced wall heater is cETLus listed and is backed by a one-year limited warranty.

Configuration Options

The TPI 3320 Series Commercial Fan-Forced Wall Heater offers 19 models that have varied wattages and volts. All are supported by a one-year limited warranty. Please choose from the drop-down menu above.

  • E3321TDRP: 750-Watt Heater, 120 V with 1-Phase Motor
  • E3322TDRP: 1,000-Watt Heater, 120 V with 1-Phase Motor
  • E3323TDRP: 1,500-Watt Heater, 120 V with 1-Phase Motor
  • G3323TDRP: 1,500-Watt Heater, 277 V with 1-Phase Motor
  • HF3323TDRP: 1,500/1,125-Watt Heater, 240/208 V with 1-Phase Motor
  • G3324TDRP: 2,000-Watt Heater, 277 V with 1-Phase Motor
  • HF3324TDRP: 2,000/1,500-Watt Heater, 240/208 V with 1-Phase Motor
  • G3325TDRP: 3,000-Watt Heater, 277 V with 1-Phase Motor
  • HF3325TDRP: 3,000/2,250-Watt Heater, 240/208 V with 1-Phase Motor
  • F3326TDRP: 4,000-Watt Heater, 208 V with 1-Phase Motor
  • J3326TDRP: 4,000-Watt Heater, 208 V with 3-Phase Motor
  • K3326TDRP: 4,000-Watt Heater, 240 V with 3-Phase Motor
  • G3326TDRP: 4,000-Watt Heater, 277 V with 1-Phase Motor
  • HF3326TDRP: 4,000/3,000-Watt Heater, 240/208 V with 1-Phase Motor
  • F3327TDRP: 4,800-Watt Heater, 208 V with 1-Phase Motor
  • J3327TDRP: 4,800-Watt Heater, 208 V with 3-Phase Motor
  • H3327TDRP: 4,800-Watt Heater, 240 V with 1-Phase Motor
  • K3327TDRP: 4,800-Watt Heater, 240 V with 3-Phase Motor
  • G3327TDRP: 4,800-Watt Heater, 277 V with 1-Phase Motor
  • Choice of 19 models
  • Heavy-duty heater
  • Built-in single-pole tamperproof thermostat
  • Temperature range: 50 - 90 °F (10 - 32 °C)
  • Automatic fan delay circuit
  • Automatic reset thermal circuit
  • 4-pole motor
  • Van axial fan blade
  • Fan speed: 600 RPM
  • Downflow air: 175 CFM
  • Steel block fin element
  • Manual disconnect switch
  • Powder-coated 18 gauge steel grill
  • Pressed-out Aluminum frame
  • Rough-in dimensions: 14.19” W x 19.44” H x 4” D
  • Grill dimensions: 15.91” W x 20.84” H
  • cETLus listed
  • 1-year limited warranty

What’s in the Box

  • TPI 3320 Series Commercial Fan-Forced Wall Heater
  • 1-year limited warranty

Available Product Options

  • Wattage: 750 Watts, 1,000 Watts, 1,500 Watts, 1,500/1,125 Watts, 2,000 Watts, 2,000/1,500 Watts, 3,000 Watts, 3,000/2,250 Watts, 4,000 Watts, 4,000/3,000 Watts or 4,800 Watts
  • Volts: 120 V, 208 V, 240 V, 240/208 V or 277 V

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Enclosure
Transformer
Yes, built-in
Dimensions
Grill
15.91” W x 20.84” H
Rough-in
14.19” W x 19.44” H x 4” D
Features
Cart
No
Disconnect Switch
Yes
Forklift Channels
No
Pilot Light
No
Thermostat
Yes
General
Finish/Coating
Powder coated
Housing
18 gauge steel
Warranty
1-year limited
Weight
26 lbs, 27 lbs, 29 lbs
Heater
Amps
4.1, 5.4, 6.25, 7.2, 8.3, 9.64, 10.8, 11.11, 11.57, 12.5, 13.33, 14.4, 16.7, 17.3, 19.2, 20, 23
BTU
2,560 BTU, 3,413 BTU, 3,840 BTU, 5,120 BTU, 6,284 BTU, 7,763 BTU, 10,350 BTU, 13,800 BTU, 16,500 BTU, 16,560 BTU
CFM
175
Power Distribution
1-Phase or 3-Phase
Voltage
120 V, 208 V, 240 V, 240/208 V, 277 V
Wattage
750 watts, 1,000 watts, 1,500 watts, 1,500/1,125 watts, 2,000 watts, 2,000/1,500 watts, 3,000 watts, 3,000/2,250 watts, 4,000 watts, 4,000/3,000 watts, 4,800 watts
Motor
Speed
600 RPM
