3000 Midsized Commercial Fan-Forced Wall Heater

by TPI Corporation

MFR#: E3055TDWB

TIGER#: TS60471

List Price: $465.00

You Save: $112.88 -24%

$465.00 - $465.00

List Price: $465.00

$352.12

$352.12 - $352.12

$352.12

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

3000 Midsized Commercial Fan-Forced Wall Heater - $352.12

$352.12

*Must Purchase 1 for 3000 Midsized Commercial Fan-Forced Wall Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/20/2023

Documents

Product Manual Item Brochure

Choice of installation wattage & thermostat
Manual reset thermal limit
Propeller-style fan blade
Fan speed: 1,060 RPM
Drywall depth embossments
18-gauge powder-coated steel
Rough-in dimensions: 9.25” W x 12.13” H x 3.63” D
Grill dimensions: 10” W x 13.13” H

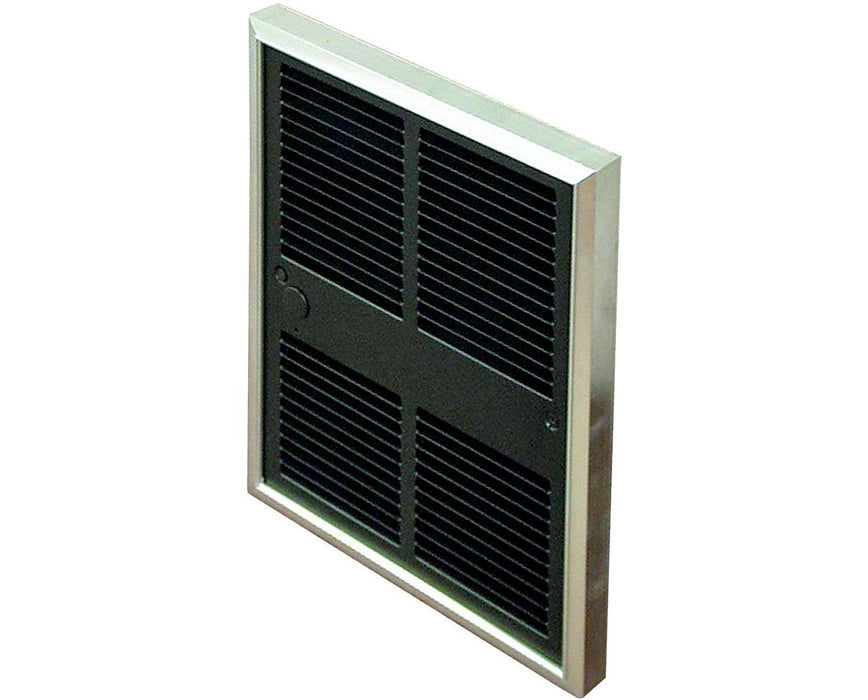

The TPI 3000 Series Midsized Commercial Fan-Forced Wall Heater is a fully-featured heat source that is best to use in offices and other commercial spaces. It offers a selectable wattage with a voltage of up to 277 volts. Also, the TPI wall heater comes with a fan purge circuit and a disconnect switch that completely de-energizes the circuit.

This 3000 Series wall heater offers a manual reset thermal limit that protects the maintenance personnel from over temperature. It uses a propeller-style fan blade that has a fan speed of 1,060 revolutions per minute (RPM). The TPI midsize commercial wall heater also features drywall depth embossments on the back can.

The TPI fan-forced wall heater is constructed of 18-gauge powder-coated steel and extruded Aluminum front that guarantees long life. It has a rough-in size of 9.25” W x 12.13” H x 3.63” D and a grill size of 10” W x 13.13” H. As an additional feature, the 3000 Series midsize heater is cETLus listed and is approved for wall and ceiling installation.

Configuration Options

The TPI 3000 Series Midsized Commercial Fan-Forced Wall Heater offers 14 models with different installation wattages and thermostat styles. Please select your preference from the menus above.

F30522TDWB: 500/ 750/ 1,000/ 1,250/ 1,500/ 1,750/ 2,250 Watts Heater with Single-Pole Thermostat (0 - 110 °F, 208 V)
H30522TDWB: 500/ 750/ 1,000/ 1,250/ 1,500/ 1,750/ 2,250 Watts Heater with Single-Pole Thermostat (0 - 110 °F, 240 V)
F30522T2DWB: 500/ 750/ 1,000/ 1,250/ 1,500/ 1,750/ 2,250 Watts Heater with Double-Pole Thermostat (40 - 100 °F, 208 V)
H30522T2DWB: 500/ 750/ 1,000/ 1,250/ 1,500/ 1,750/ 2,250 Watts Heater with Double-Pole Thermostat (40 - 100 °F, 240 V)
E3055TDWB: 750/ 1,500 Watts Heater with Single-Pole Thermostat (0 - 110 °F)
E3055T2DWB: 750/ 1,500 Watts Heater with Double-Pole Thermostat (40 - 100 °F)
H3052TDWB: 750/ 1,000/ 1,500/ 2,000 Watts Heater with Single-Pole Thermostat (0 - 110 °F)
H3052T2DWB: 750/ 1,000/ 1,500/ 2,000 Watts Heater with Double-Pole Thermostat (40 - 100 °F)
E3058TDWB: 900/ 1,800 Watts Heater with Single-Pole Thermostat (0 - 110 °F)
E3058T2DWB: 900/ 1,800 Watts Heater with Double-Pole Thermostat (40 - 100 °F)
F3052TDWB: 1,000/ 2,000 Watts Heater with Single-Pole Thermostat (0 - 110 °F)
F3052T2DWB: 1,000/ 2,000 Watts Heater with Double-Pole Thermostat (40 - 100 °F)
G3052TDWB: 2,000 Watts Heater with Single-Pole Thermostat (0 - 110 °F)
G3052T2DWB: 2,000 Watts Heater with Double-Pole Thermostat (40 - 100 °F)

Choice of installation wattage & thermostat
Fully-featured heat source
Selectable wattage
Voltage up to 277 volts
Fan purge circuit
Disconnect switch
Manual reset thermal limit
Propeller-style fan blade
Fan speed: 1,060 RPM
Drywall depth embossments
18-gauge powder-coated steel
Extruded Aluminum front
Rough-in dimensions: 9.25” W x 12.13” H x 3.63” D
Grill dimensions: 10” W x 13.13” H
cETLus listed
Approved for wall and ceiling installation

What’s in the Box

TPI 3000 Series Midsized Commercial Fan-Forced Wall Heater
1-year limited warranty

Available Product Options

Installation Wattage: 500 Watts, 750 Watts, 900 Watts, 1,000 Watts, 1,250 Watts, 1,500 Watts, 1,750 Watts, 1,800 Watts, 2,000 Watts or 2,250 Watts
Thermostat: Double-Pole or Single-Pole

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Dimensions

Grill

10” W x 13.13” H

Rough-in

9.25” W x 12.13” H x 3.63” D

Features

Cart

Disconnect Switch

Yes

Forklift Channels

Pilot Light

Thermostat

Yes

General

Finish/Coating

Powder coated

Housing

18 gauge steel

Warranty

1-year limited

Weight

6 lbs

Heater

Amps

7.2, 8.3, 9.4, 10.8, 12.5, 15

BTU

5,120 BTU, 6,143 BTU, 6,826 BTU, 7,680 BTU

Max. Operating Temperature

40 - 100 °F or 0 - 110 °F

Power Distribution

1-Phase

Voltage

120 V, 208 V, 208/240 V, 244 V, 277 V

Wattage

500 watts, 750 watts, 900 watts, 1,000 watts, 1,250 watts, 1,500 watts, 1,750 watts, 1,800 watts, 2,000 watts, 2,250 watts
