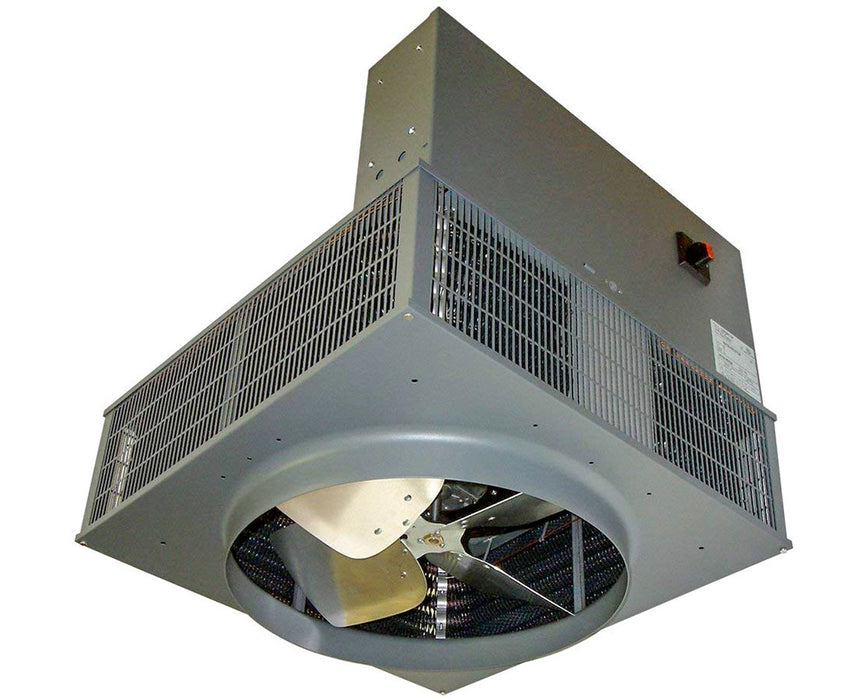

2600 Downflow Heater

by TPI Corporation

MFR#: F1F2605CA1

TIGER#: TS60012

List Price: $1,776.00

You Save: $431.12 -24%

$1,776.00 - $1,776.00

List Price: $1,776.00

$1,344.88

$1,344.88 - $1,344.88

$1,344.88

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

2600 Downflow Heater - $1,344.88

$1,344.88

*Must Purchase 1 for 2600 Downflow Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/27/2023

Documents

Product Manual Item Brochure

Choice of heater wattage, volts & phase
Totally enclosed, industrial-rated motor
Automatic reset thermal overload protective device
Manual reset thermal cutout
Individually-balance axial flow-type fan blades
Fan speed up to 1,570 RPM
Single supply circuit
cETLus listed

9The TPI 2600 Series Downflow Heater is a robust heat source that is perfect for industrial use. It features a totally enclosed, industrial-rated motor that has an automatic reset thermal overload protective device for added protection. This 2600 series heater has a built-in 24-volt transformer that allows for low voltage remote thermostat application.

The TPI Downflow heater includes a corrosion-resistant heating element with a steel sheath and steel spiral fins that delivers maximum heat transfer to the air stream. Also, the 2600 series consists of a manual reset thermal cutout that cuts off the elements and the motor in an event of overheating. It includes durable, individually-balanced axial flow-type fan blades that produce a fan speed of up to 1,570 revolutions per minute (RPM).

This 2600 series downflow heater is made of durable 16 gauge steel cabinet construction with an epoxy powder-coated finish that includes a control compartment with a hinged and latched access door. It is designed with a single supply circuit that conforms to the latest National Electric code and OSHA requirements. As an additional feature, this TPI heater includes OSHA guards and is cETLus listed.

Please Note: All 2600 Series Downflow heaters include a built-in disconnect switch except for the F3F2630CA1, F3F2640CA1, H3H2640CA1, F3F2650CA1, H3H2650CA1 models. Also, it is not advisable to mount it with a threaded rod or chain.

Configuration Options

The TPI 2600 Series Downflow Heater has 35 available models that have varying heater wattages, volts and phases. All are supported by a one-year limited warranty. Please select from the drop-down menu above.

Heater Wattage: 5 kW, 7 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 50 kW
Volts: 208 V, 240 V, 277 V or 480 V
Phase: 1 Phase or 3 Phase

Heater kW	BTU	Volts/Phase	Amps	Control Volts	Temperature Rise (ºF)	CFM	Dimensions
5 kW	17,065	208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	24.03 20.83 18.05 13.89 12.04 6.02	24	34	490	20.5" L x 20.5" W x 15" H
7.5 kW	25,598	208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	36.05 31.25 27.07 20.84 18.06 9.03		45	560	20.5" L x 20.5" W x 15" H
10 kW	34,130	208 V, 1-Ph 240 V, 1-Ph 277 V, 1-Ph 208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	48.07 41.66 36.1 27.79 24.08 12.04		26	1,200	20.5" L x 20.5" W x 15" H
15 kW	51,195	208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	41.68 36.12 18.06		39	1,200	20.5" L x 20.5" W x 15" H
19.4 kW	68,260	240 V, 3-Ph	48.16		52	1,200	20.5" L x 20.5" W x 15" H
20 kW	68,260	480 V, 3-Ph	24.08		52	1,200	20.5" L x 20.5" W x 15" H
25 kW	85,325	208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	69.48 60.21 30.1		24	3,300	27" L x 27" W x 21.5" H
30 kW	102,390	208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	83.37 72.25 36.12		29	3,300	27" L x 27" W x 21.5" H
40 kW	136,520	208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	111.17 96.33 48.16		38	3,300	27" L x 27" W x 21.5" H
50 kW	170,650	208 V, 3-Ph 240 V, 3-Ph 480 V, 3-Ph	138.96 120.42 60.21		48	3,300	27" L x 27" W x 21.5" H

Choice of heater wattage, volts & phase
Robust heat source
Totally enclosed, industrial-rated motor
Automatic reset thermal overload protective device
Built-in 24 V transformer
Corrosion-resistant heating element with steel sheet and steel spiral fins
Manual reset thermal cutout
Individually-balance axial flow-type fan blades
Fan speed up to 1,570 RPM
Durable 16 gauge steel cabinet construction
Epoxy powder-coated finish
Control compartment with hinged and latched access door
Single supply circuit
Conforms to the latest National Electric code and OSHA requirements
OSHA guards
cETLus listed

What’s in the Box

TPI 2600 Series Downflow Heater
1-year limited warranty

Available Product Options

Heater Wattage: 5 kW, 7 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW or 50 kW
Volts: 208 V, 240 V, 277 V or 480 V
Phase: 1 Phase or 3 Phase

This Item is made to order, and cannot be returned or cancelled after production

We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

(On select TPI Items where clearly indicated, Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 40% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging)

Control Enclosure

Average Temperature Rise

34 °F (5 kW); 45 °F (7.5 kW); 26 °F (10 kW); 39 °F (15 kW); 52 °F (19.4 kW, 20 kW); 24 °F (25 kW); 29 °F (30 kW); 38 °F (40 kW); 48 °F (50 kW)

Control Voltage

24 V

Transformer

Yes, built-in

Dimensions

Heater

20.5" L x 20.5" W x 15" H (5 - 20 kW Models); 27" L x 27" W x 21.5" H (25 - 50 kW Models)

Features

Cart

Disconnect Switch

Yes (all except F3F2630CA1, F3F2640CA1, H3H2640CA1, F3F2650CA1, H3H2650CA1)

Forklift Channels

Pilot Light

Thermostat

Optional

General

Finish/Coating

Epoxy powder-coat

Housing

16 gauge steel

Warranty

1-year limited

Weight

75 lbs (5 kW, 7.5 kW, 10 kW, 15 kW, 19.4 kW, 20 kW); 175 lbs (25 kW, 30 kW, 40 kW, 50 kW)

Heater

Amps

6.02, 9.03, 12.04, 13.89, 18.05, 18.06, 20.83, 20.84, 24.03, 24.08, 27.07, 27.79, 30.10, 31.25, 36.05, 36.12, 36.10, 41.66, 41.68, 48.07, 48.16, 60.21, 69.48, 72.25, 83.37, 96.33, 111.17, 120.42, 138.96

BTU

17,065 BTU, 25,598 BTU, 34,130 BTU, 51,195 BTU, 68,260 BTU, 85,325 BTU, 102,390 BTU, 136,520 BTU, 170,650 BTU

CFM

490 (5 kW); 560 (7.5 kW); 1,200 (10 kW, 15 kW, 19.4 kW, 20 kW); 3,300 (25 kW, 30 kW, 40 kW, 50 kW)

Power Distribution

1-Phase or 3-Phase

Voltage

208 V, 240 V, 277 V, 480 V

Wattage

5 kW, 7 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW, 50 kW

Motor

Bearing Type

Unit bearing (3 - 20 kW models); Sleeve bearing (24 kW - 50 kW models)

Capacitor Type

Permanent split (only 20 kW models and up)

Speed

1,570 RPM
