22-Amp Hazardous Location Thermostat

by TPI Corporation

MFR#: EPETD8D

TIGER#: TS59584

List Price: $551.00

You Save: $133.75 -24%

$551.00 - $551.00

List Price: $551.00

$417.25

$417.25 - $417.25

$417.25

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

22-Amp Hazardous Location Thermostat - $417.25

$417.25

*Must Purchase 1 for 22-Amp Hazardous Location Thermostat

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/26/2023

Documents

Item Brochure

Choice of 6 models
Horsepower: 1.5 HP
Motor Voltage: 250 V
Rated for Class I Group C and D and Class II Group E, F and G
Snap action switch
Casting tapped top and bottom for 3/4” conduit
Scale: Celsius and Fahrenheit
Housing: 1/2” thick cast aluminum

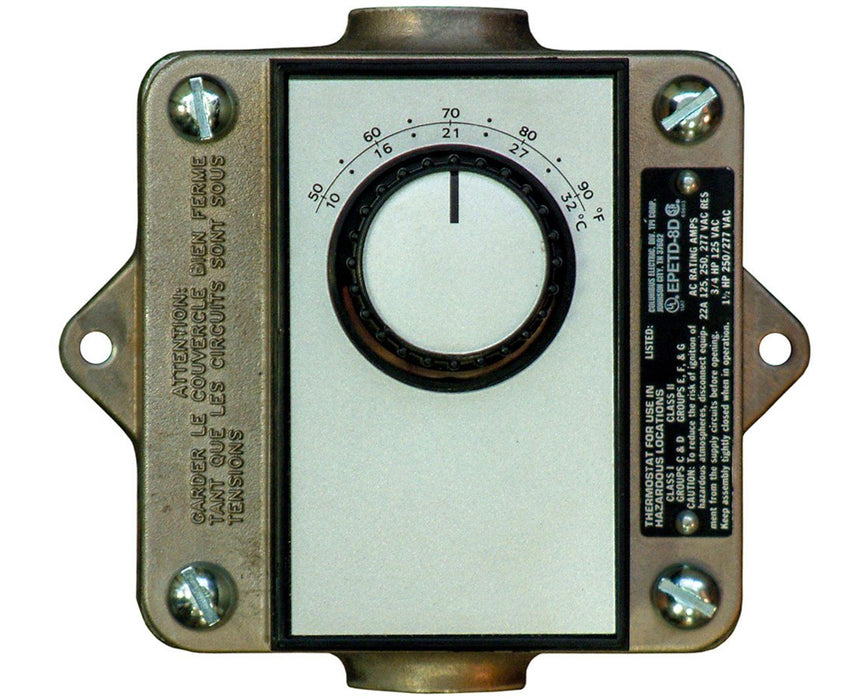

The TPI 22-Amp Hazardous Location Thermostat is an adjustable device that heats or cools a system of industrial, commercial and other indoor applications. It features a motor with 1.5 horsepower at 250 volts. Ideal for explosive areas, this thermostat is rated for Class I Group C and D and Class II Group E, F and G.

The TPI 22-Amp thermostat comes with a snap action switch that is easy to operate and control. It features a durable casting tapped top and bottom for the 3/4-inch conduit. Also, the operator can choose if the Celsius or Fahrenheit scale will be used.

The TPI explosive thermostat is housed by a 1/2-inch thick cast aluminum housing that guarantees long service life. As an additional feature, the TPI thermostat offers a size of 5.75” L x 6.38” W x 5.57” H and is made in the USA.

Configuration Options

The TPI 22-Amp Hazardous Location Thermostat offers six models with varying switches, sensors and load ratings that suit your needs. Please select your preference from the drop-down menu above.

EPETD8D: Hazardous Location Thermostat with DPDT Switch and Bi-Metal Sensor, 120 - 277 VAC
EPETP8D: Hazardous Location Thermostat with DPDT Switch and Bi-Metal Sensor,120 - 480 VAC

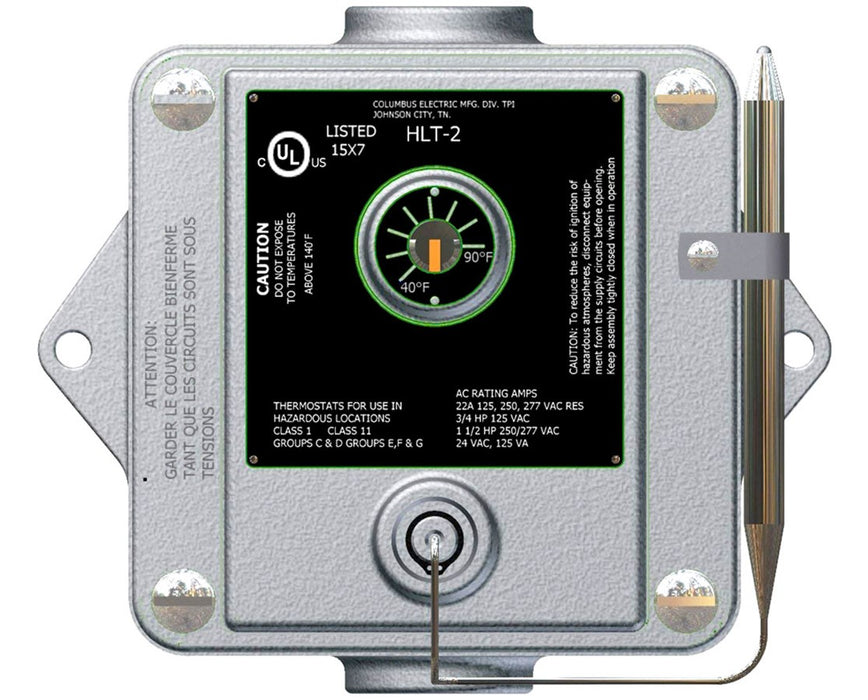

HLT2: Hazardous Location Thermostat with DPDT Switch and Capillary Sensor, 120 - 277 VAC
EPETD8S: Hazardous Location Thermostat with SPDT Switch and Bi-Metal Sensor, 120 - 277 VAC
EPETP8S: Hazardous Location Thermostat with SPDT Switch and Bi-Metal Sensor,120 - 480 VAC

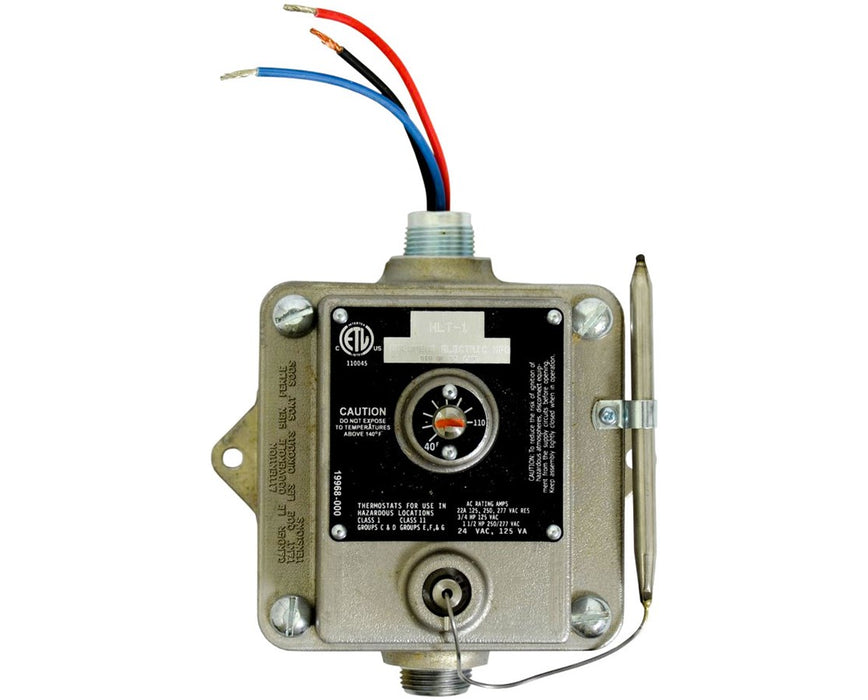

HLT1: Hazardous Location Thermostat with SPDT Switch and Capillary Sensor,120 - 277 VAC

Choice of 6 models
Heats or cools a system
Horsepower: 1.5 HP
Motor Voltage: 250 V
Ideal for explosive areas
Rated for Class I Group C and D and Class II Group E, F and G
Snap action switch
Casting tapped top and bottom for 3/4” conduit
Scale: Celsius and Fahrenheit
Housing: 1/2” thick cast aluminum
Size: 5.75” L x 6.38” W x 5.57” H
Made in the USA

What’s in the Box

TPI 22-Amp Hazardous Location Thermostat
2-year limited warranty

Available Product Option

Switch Type: SPDT or DPDT
Sensor: Bi-Metal or Capillary
Load Rating: 120-277 VAC, 120-480 vac or 120-277 VAC
