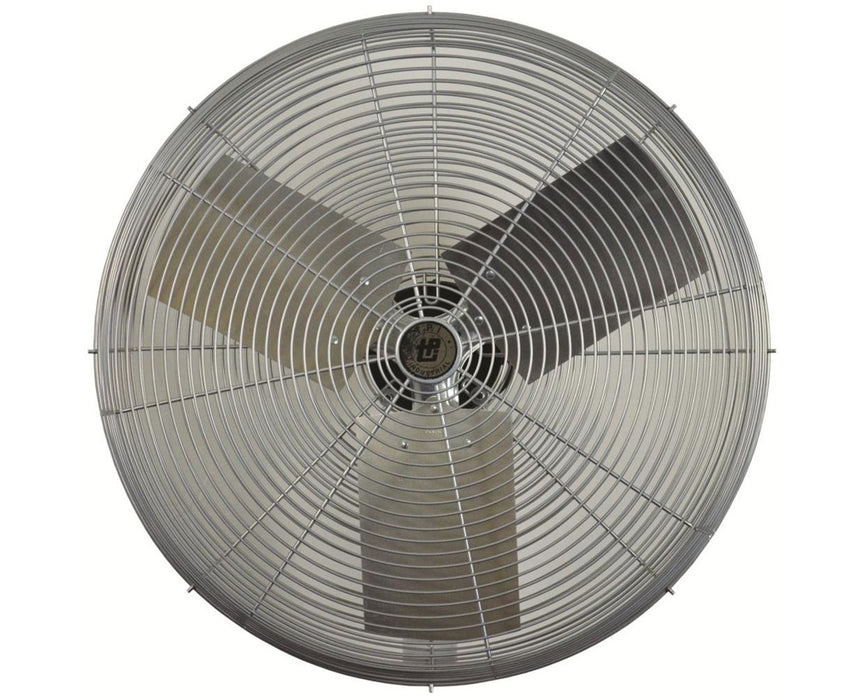

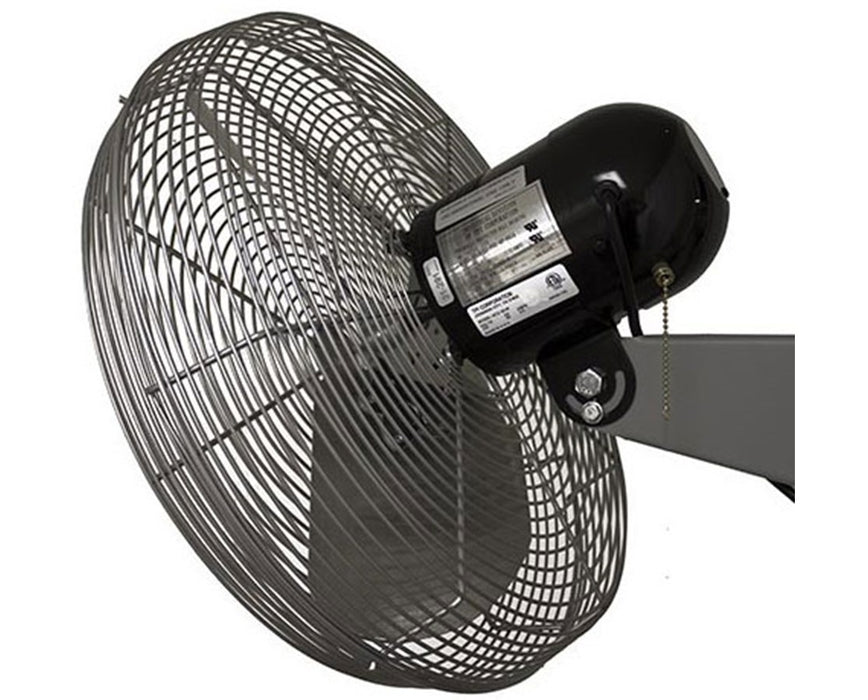

20" Industrial Air Circulators

by TPI Corporation

MFR#: ACH20

TIGER#: TS58360

List Price: $459.00

You Save: $111.42 -24%

$459.00 - $459.00

List Price: $459.00

$347.58

$347.58 - $347.58

$347.58

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

20" Industrial Air Circulators - $347.58

$347.58

*Must Purchase 1 for 20" Industrial Air Circulators

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 10/21/2023

Documents

Item Brochure Product Video

Choice of 5 models
Blade Size: 20”
Single-phase, 120V power
SJT type-3 conductor, 12’ long cord
Shaft: 1/2”
Horsepower: 1/4
Frame size: 48
Speed up to 1,100 RPM

The TPI 20” Industrial Air Circulators is an effective solution for keeping the air fresh and flowing inside industrial workplaces like warehouses, and closed job sites. It features a pull chain switch and a 2-speed motor that uses a single-phase, 120-volts power.

This TPI 20-inch industrial circulator utilizes an SJT type-3 conductor cord that is 12 feet long. Featuring a 1/2-inch shaft, it comes with a motor that offers 1/4 horsepower and a frame size of 48. Also, this TPI industrial fan has a blade size of 20 inches and provides a fast speed of up to 1,100 revolutions per minute (RPM).

The TPI 20-inch industrial fan comes with coated steel guards and steel hub with aluminum paddle blades. As an additional feature, this TPI fan is OSHA standard compliant and is USA-made.

Configuration Options

The TPI 20” Industrial Air Circulators offers five models with varying assembly styles and mount types. All are supported by a one-year limited warranty. Please choose from the menu above.

ACH20: Assembled Air Circulator without Mount
ACU20PO: Unassembled Air Circulator with Oscillating Pedestal Mount
ACU20WO: Unassembled Air Circulator with Oscillating Wall Mount

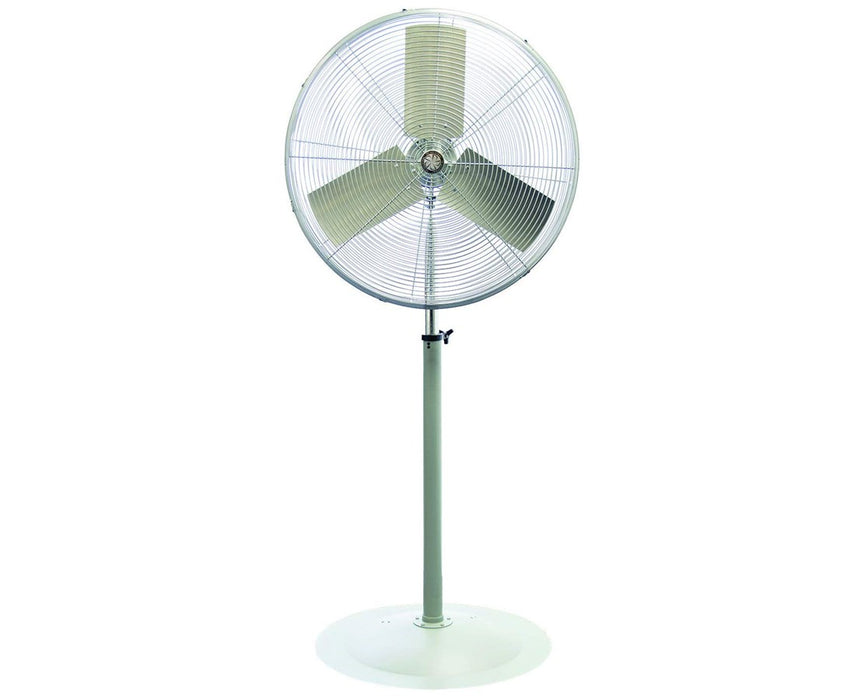

ACU20P: Unassembled Air Circulator with Pedestal Mount
ACU20W: Unassembled Air Circulator with Wall Mount

Please Note: The ACH20 can be used with any ACM mount.

Choice of 5 models
Pull chain switch
2-speed motor
Single-phase, 120V power
SJT type-3 conductor, 12’ long cord
Shaft: 1/2”
Horsepower: 1/4
Frame size: 48
Blade Size: 20”
Speed up to 1,100 RPM
Coated steel guards
Steel hub/aluminum paddle blades
OSHA standard compliant

What’s in the Box

TPI 20” Industrial Air Circulators
User manual
1-year limited warranty

Available Product Options

Assembly Style: Assembled or Unassembled
Oscillating Head Type: Optional
Mount Type: Pedestal, Wall or None

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Fan

Amps

2.4

Blade Size

20"

Certification

OSHA, Intertek

Cord Length

12 feet

Cord Type

SJT type-3 conductor

Cubic Feet per Minute (CFM)

3,000/2,600

Fan Type

Industrial circulators

Head Type

Stationary (ACH20, ACU20P, ACU20W); Oscillating (ACU20PO, ACU20WO)

Shaft Size

1/2"

Speed (Revolutions per Minute)

1,100/900

General

Color

Gray

Dimensions

22” Diameter x 14.5” Depth

Material

Steel hub / Aluminum paddle blades

Warranty

1-year limited

Weight

39 lbs (ACH20); 42 lbs (ACU20W); 46 lbs (ACU20WO); 72 lbs (ACU20P); 76 lbs (ACU20PO)

Motor

Frame Size

Horsepower (HP)

1/4

Lubrication

Permanent

Power

1-Phase, 120V

Speed Switch

2-speed

Split Capacitor

Permanent

Mount

Mount Type

Pedestal (ACU20P, ACU20PO); Wall (ACU20W, ACU20WO); No Mount (ACH20)
