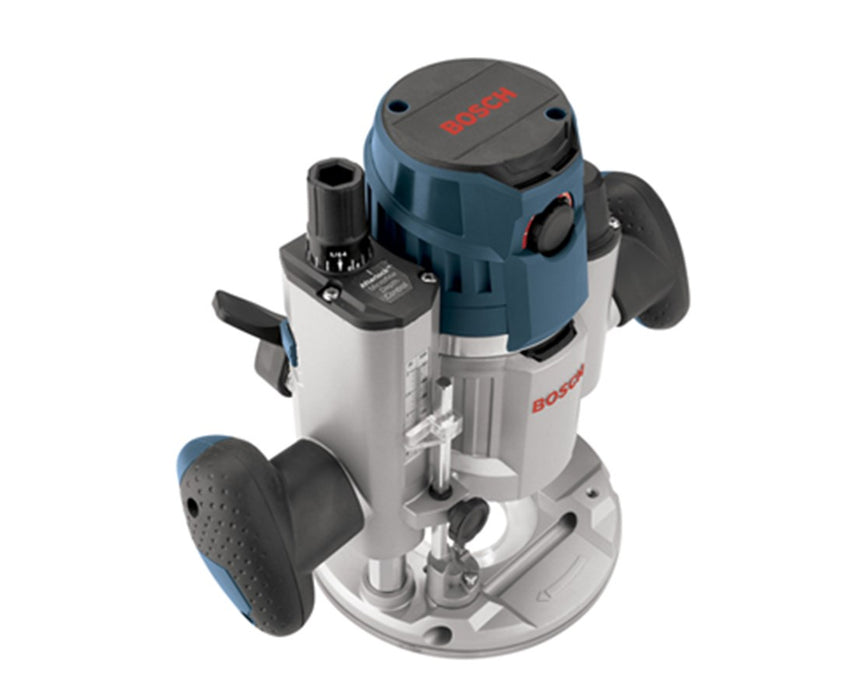

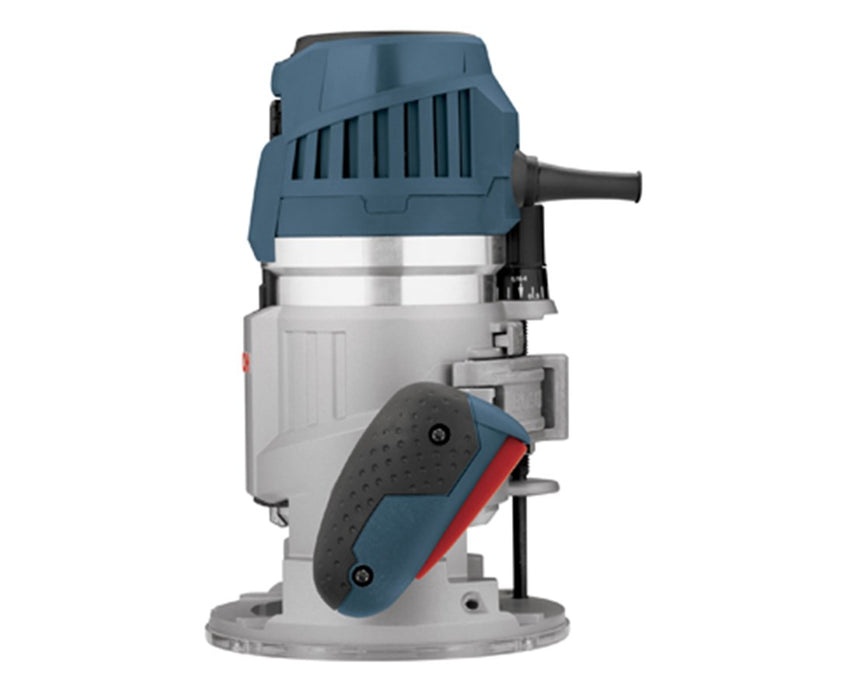

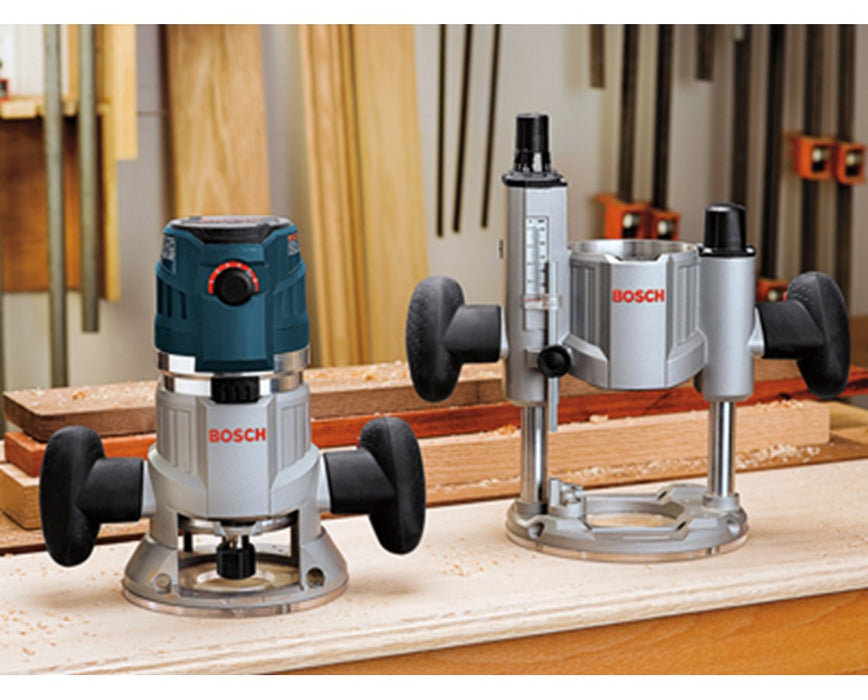

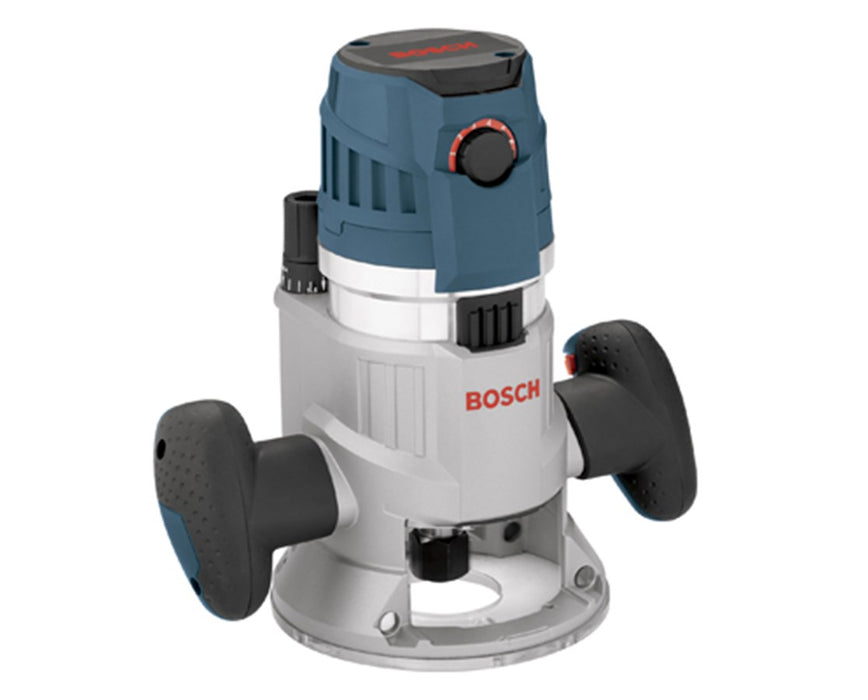

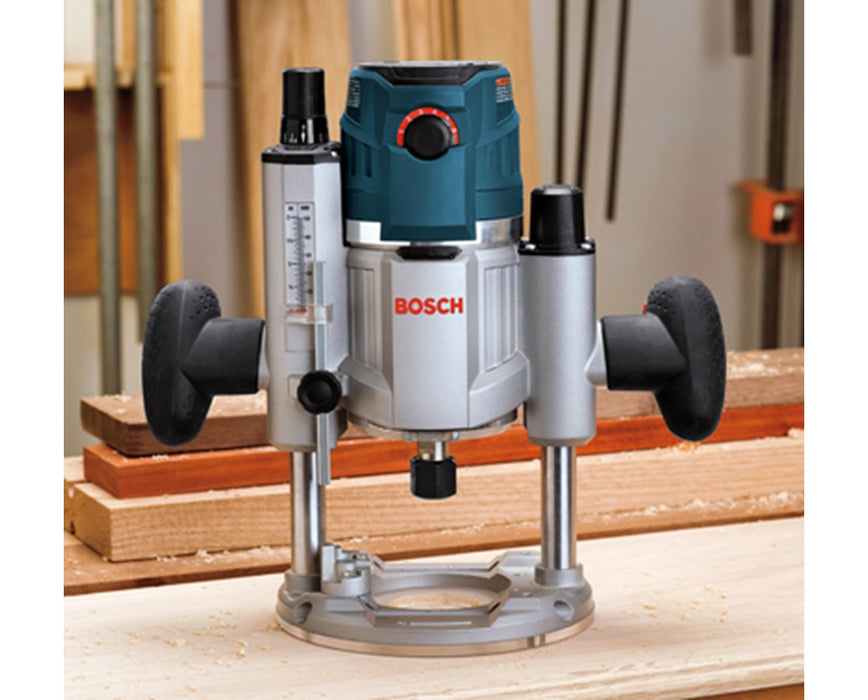

2.3 HP Combination Plunge & Fixed-Base Router Pack

The best of both worlds! A versatile kit that serves a broad range of routing applications!


Features:

• 10,000-25,000 RPM; 2.3 HP (Max Tool)
• Trigger Control System - Trigger power switch located in handle for enhanced control
• Smooth Plunge Action, Spring-Lock Plunge Lever, and Depth Rod for easy and precise plunge routing
• Afterlock Microfine Depth Adjustment - Easy & precise adjustments at any plunge setting

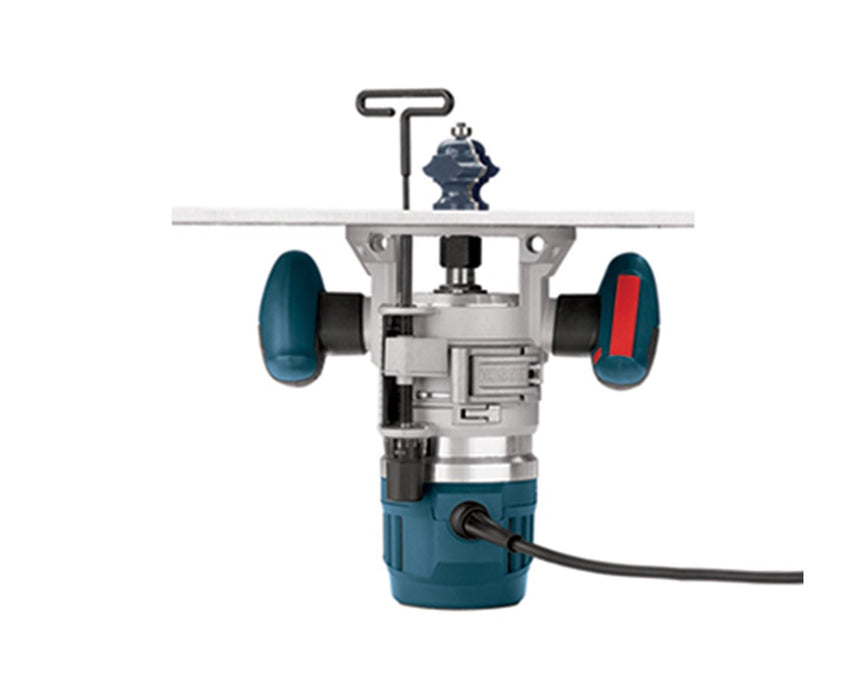

• Versatile Fixed-Base Depth Adjustment - Features continuous microfine adjustment range & wrench for adjustments through top of optional router table
• Always-On LED Lighting - For enhanced visibility in bit area
• Precision Centering Design – Makes it easy to keep bit on cutline when using jigs, templets, dovetail fixtures and similar guidance devices
• Two-Stage Quick Clamp System - For fast tool-free conversion
• Soft-start — Reduces start-up torque
• Variable speed dial — For matching speed to workpiece and task
• Constant-Response™ Circuitry — Maintains constant speed under load
• Contoured soft grip handles — For enhanced control and comfort
• Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern.
• Cord Swivel - For added mobility
• Rugged carrying case has compartments for all included items

Tool Specifications:

• Amperage: 15
• Base Diameter: 6" Fixed/ 6-11/16" Plunge
• Collet Capacity: 1/2" and 1/4"
• Cord Length: 10" ft. (3 m)
• Fixed-Base Depth Range: 1-5/8"
• Max. Motor HP: 2.3 HP
• No Load RPM: 10,000-25,000
• Plunge Depth: 3" (75mm)
• Rating: 120V AC
• Subbase Opening: 2"


Includes:

Motor
Fixed Base (MRF01)
Plunge base (MRP01)
1/4" Self-Releasing Collet Chuck -- 2 610 906 283
1/2" Self-Releasing Collet Chuck -- 2 610 906 284
16mm Shaft Wrench -- 2 610 991 388
24mm Collet Nut Wrench-- 2 610 992 417
T-Handle Hex Height Adjustment Wrench -- 2610923193
Carrying Case -- 2 610 913 367
M4 Screws for table mounting (3)
