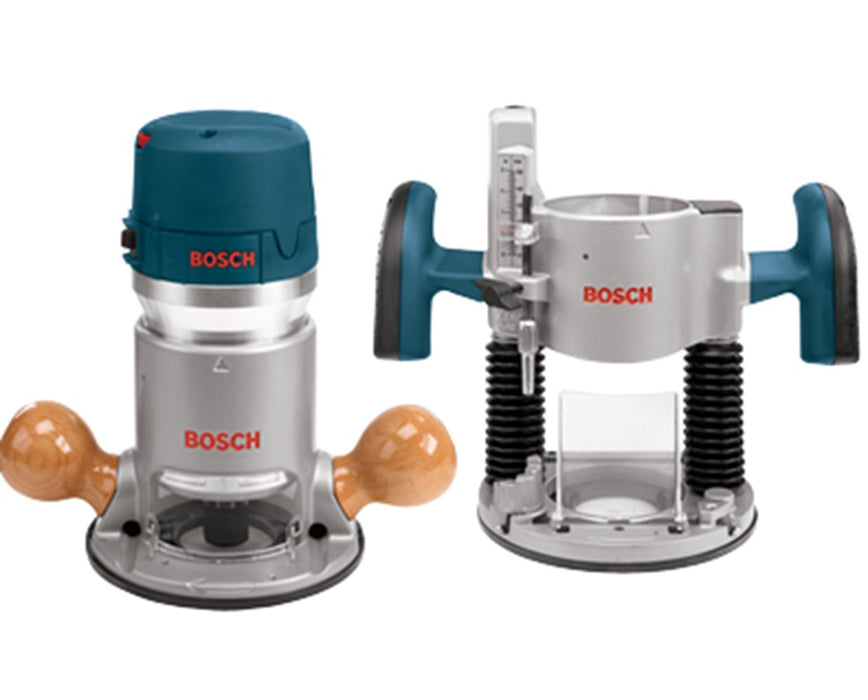

The Best of Both Worlds is packed in this Bosch 1617EVSPK 2.25 HP Combination Plunge & Fixed-Base Router Pack. A versatile kit that serves a broad range of routing applications. Now includes RA1161 Fixed-Base with system for adjusting bit height from above a router table.
- 2.25HP/ 12 AMP Motor 8,000-25,000 RPM
- Variable speed dial — For matching speed to workpiece and task
- Soft-start — Reduces start-up torque
- Constant-Response™ Circuitry — Maintains constant speed under load
- Quick clamp system on both bases for fast tool-free conversion — Move motor from base to base with ease
- Precision Centering Design — Makes it easy to keep bit on intended cutline when using jigs, templets, dovetail fixtures and similar guidance devices
- Microfine bit depth adjustment system on both bases — For fast, precise bit depth adjustment
- Wide base openings and 2" subbase openings — Accepts larger bits & provides better visibility
- Right or left switch location — For user preference and consistency (motor does not rotate during depth adjustment)
- Contoured soft grip handles — For enhanced control and comfort
- Double insulated
- Now includes RA1161 Fixed-Base with system for adjusting bit height from above a router table!
- Fixed base has threaded holes for mounting to router table positioned in common 3-hole pattern.
- Rugged carrying case has compartments for all included items
- Power Switch - Now includes dust-sealed power switch
- Optional RA1126 Quick-Change Templet Guide Adapter (sold separately) — For fast and easy change of Bosch RA-Series templet guide (or threaded templet guides, if optional RA1100 adapter is also used.)
- Amperage: 12
- Assembled In: Motor assembled in Mexico. Bases and other items made in China.
- Base Diameter: 6" Fixed/ 6-11/16" Plunge
- Collet Capacity: 1/4", 3/8", 1/2", 8mm
- Cord Length: 10'
- Max. Motor HP: 2.25
- No Load RPM: 8,000 - 25,000
- Rating: 120 V AC
- Used on Model No.: RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables (Router in fixed base only).
- Weight (lbs.): 19.5
1/4" Self-Releasing Collet Chuck -- 2 610 906 283
1/2" Self-Releasing Collet Chuck -- 2 610 906 284
16mm Shaft Wrench -- 2 610 991 388
24mm Collet Nut Wrench-- 2 610 992 417
Carrying Case -- 2 610 913 367
Fixed Base (RA1161)
Plunge Base (RA1166)
Fixed Base Chip Shield -- 2 610 991 389
Plunge Base Chip Shield -- 2 610 912 599
T-Handle Hex Height Adjustment Wrench -- 2610923193
