1550 KV Insulation Tester

Fluke
by Fluke
MFR#: 3665056
TIGER#: TS52795
List Price: $6,229.99
You Save: $311.50 -5%
$6,229.99 - $6,229.99
List Price: $6,229.99
$5,918.49
$5,918.49 - $5,918.49
$5,918.49
Add to cart for Lower Price
As low as $/mo.
Apply at Cart
1550 KV Insulation Tester
1550 KV Insulation Tester - $5,918.49
$5,918.49
*Must Purchase 1 for 1550 KV Insulation Tester

The cart will thereforce automatically set Qty to 1 when you order this product

IN STOCK Ships Out Within: 24 - 48 Hours Shipping Date By: 9/23/2023
Documents
Product Manual Item Brochure
  • Choice of 4 models
  • Used in testing high voltage systems
  • Selectable test voltage range up to 10 kV
  • Insulation test voltage accuracy ±10% at 1 mA load current
  • Live circuit warning range: 30 V to 660 V
  • Category Rating: CAT III 1,000 V/ CAT IV 600 V
  • Fluke Connect compatible
  • IP40 solid object (<1mm) protection

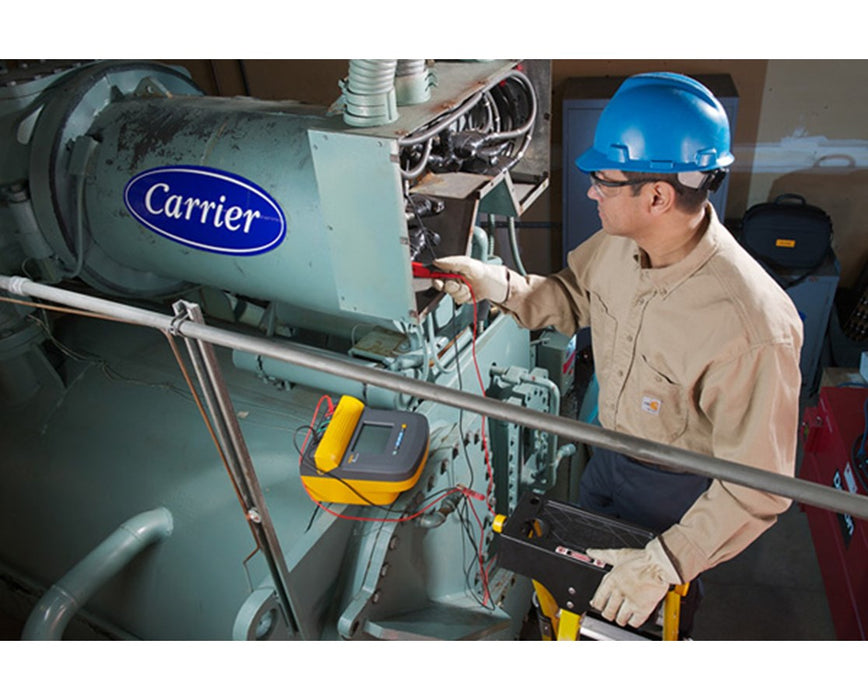

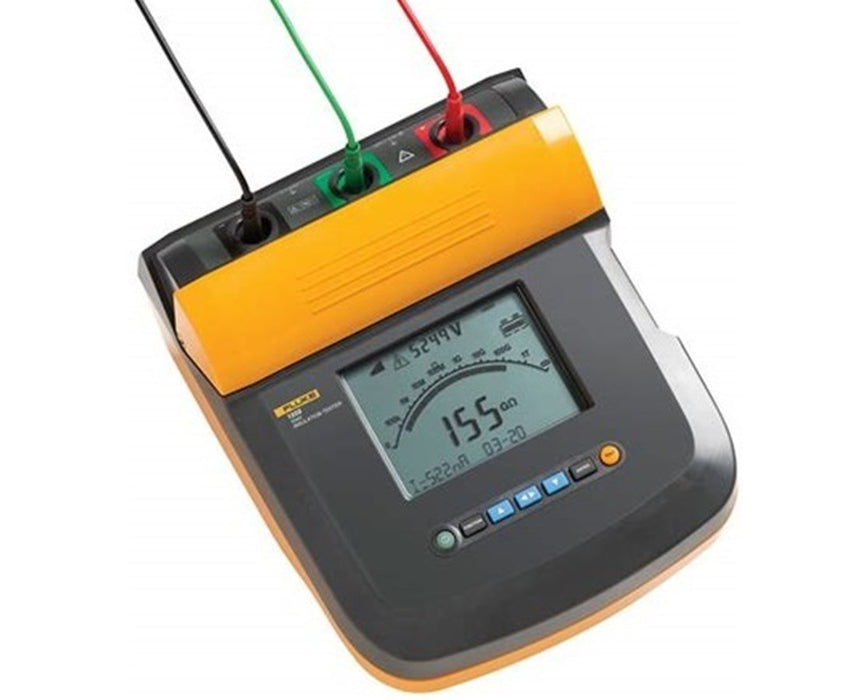

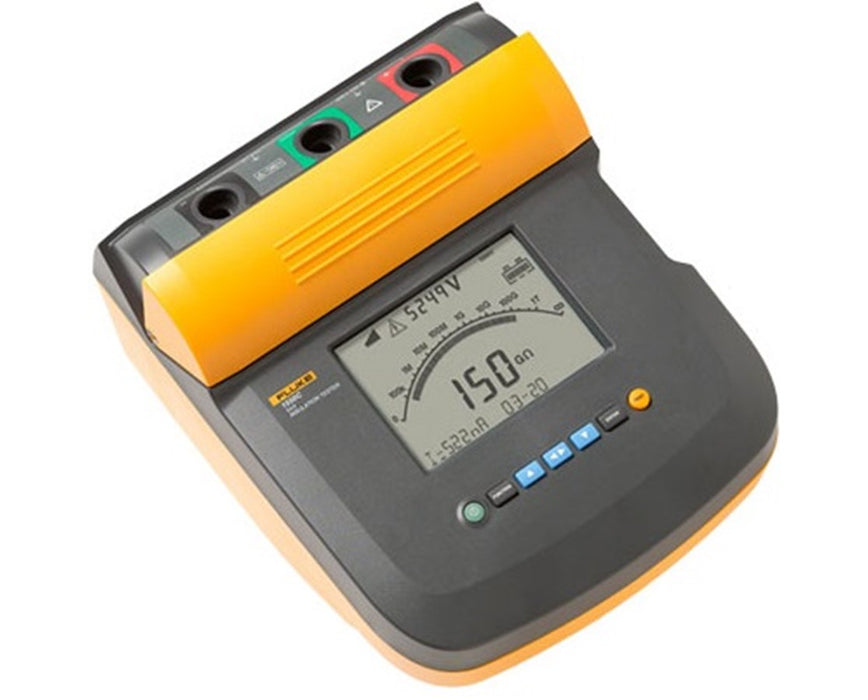

The Fluke 1550 Series KV Insulation Tester is a precise instrument that is utilized in testing for high voltage systems such as generators, power distribution cables, transformers, switchgear, and consumers. It comes with a selectable test voltage range up to 10 kilovolts with a ±10 percent accuracy at one milliampere load current. For safety purposes, the 1550 series offers a live circuit warning range from 30 volts to 660 volts and is rated with CAT III 1,000 V/ CAT IV 600 V safety rating.

For easier data processing, this Fluke insulation tester is Fluke Connect compatible to easily capture and see trend anomalies when doing insulation testing. Also, it comes with a warning function alert and guard system mode that removes the effect of surface leakage current. Plus, it includes a setting up to 99 minutes for time-regulated tests.

This Fluke 1550 Series features an IP40 rating which protects the device from objects greater than one millimeter. It uses a 12-volt lead-acid rechargeable battery which allows the technician to have at least 750 tests between charges. As an extra feature, the Fluke 1550 Series comes with a large digital/analog LCD display that shows readable results for an effective testing experience.

Configuration Options

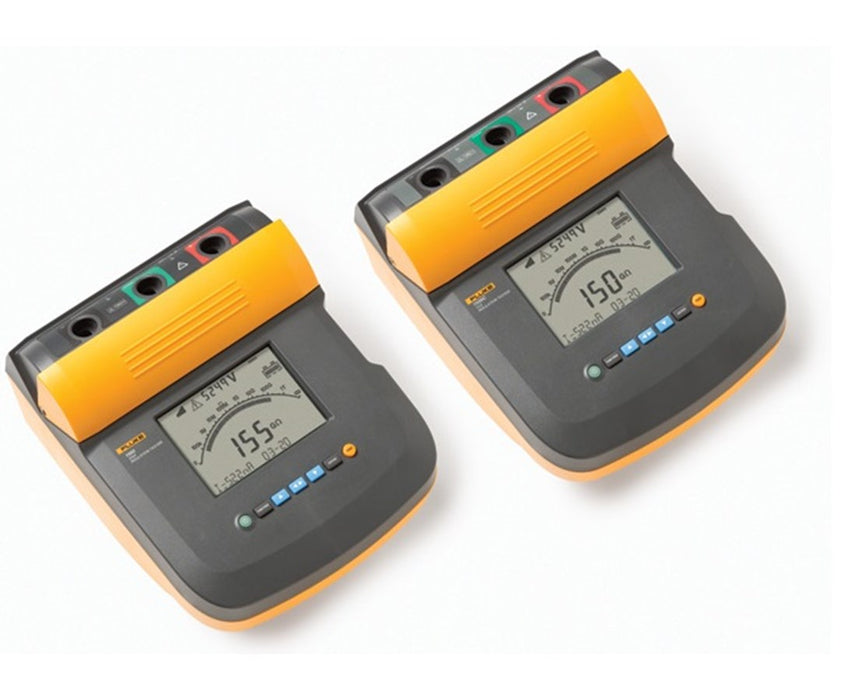

The Fluke 1550 Series KV Insulation Tester offers four models. All are supported with a three-year warranty. Please choose from the menus above.

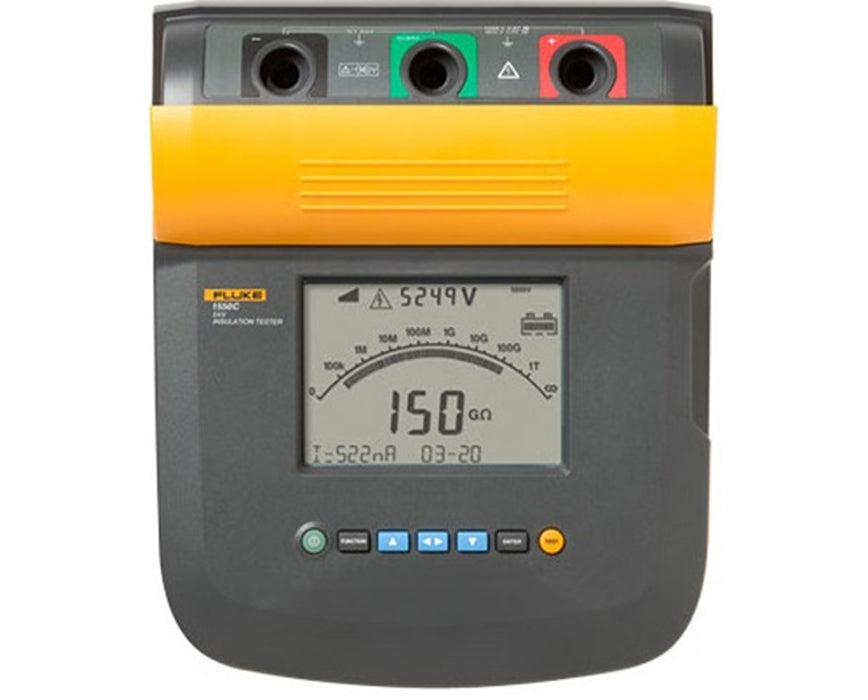

  • 3665021: Fluke 1550C 5 kV Insulation Tester
  • 3665127: Fluke 1550C/KIT 5 kV Insulation Tester Kit

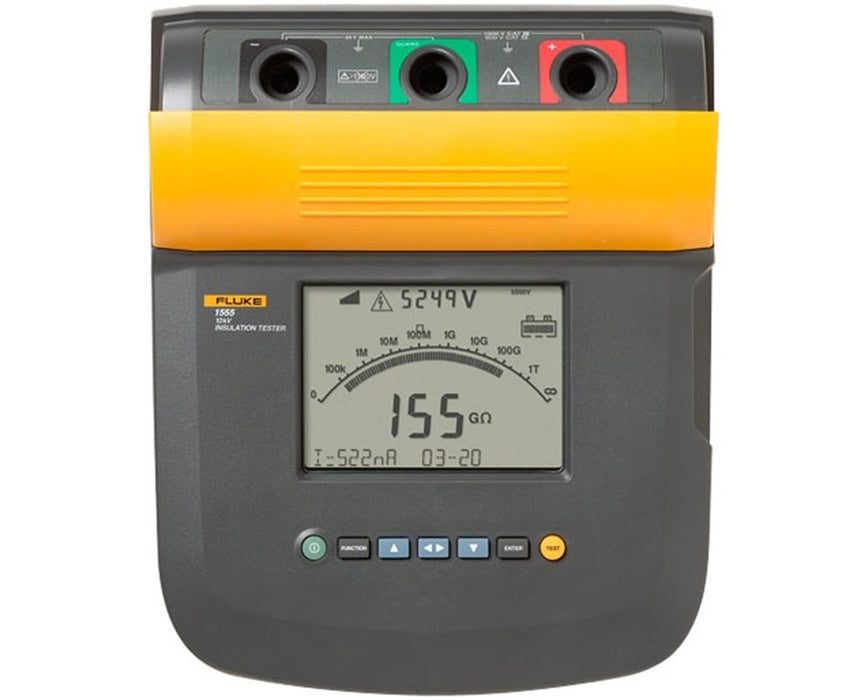

  • 3665056: Fluke 1555 10 kV Insulation Tester
  • 3665111: Fluke 1555/KIT 10 kV Insulation Tester Kit
  • Choice of 4 models
  • Used in testing high voltage systems
  • Selectable test voltage range up to 10 kV
  • Insulation test voltage accuracy ±10% at 1 mA load current
  • Live circuit warning range: 30 V to 660 V
  • Category Rating: CAT III 1,000 V/ CAT IV 600 V
  • Fluke Connect compatible
  • Warning function alert
  • Guard system mode
  • Setting up to 99 minutes for time-regulated tasks
  • IP40 solid object (<1mm) protection
  • Uses a 12-volt lead-acid rechargeable battery
  • At least 750 tests between charges
  • Large digital/analog LCD display

What’s in the Box

  • Fluke 1550 Series KV Insulation Tester
  • User's manual on CD-ROM
  • 3-year warranty

Available Package Options

Fluke 1550C Insulation Tester 3665021

  • Test cables with alligator clips (red, black, green)
  • Infrared adapter with interface cable
  • FlukeView Forms CD-ROM
  • FlukeView Forms CD-ROM
  • AC power cord
  • Soft carrying case
  • English manual
  • Registration card
  • Quick reference card
  • Software license agreement
  • FlukeView Forms installation guide
  • USB-IR cable installation guide

Fluke 1150C/KIT Insulation Tester 3665127

  • IP67 Hard case
  • Certificate of Calibration
  • Heavy-duty alligator clip leads
  • Fluke Connect IR to Wireless Connector
  • Test cables with alligator clips (red, black, green)
  • Infrared adapter with interface cable
  • FlukeView Forms CD-ROM
  • FlukeView Forms CD-ROM
  • AC power cord
  • Soft carrying case
  • English manual
  • Registration card
  • Quick reference card
  • Software license agreement
  • FlukeView Forms installation guide
  • USB-IR cable installation guide

Fluke 1555 Insulation Tester 3665056

  • Heavy-duty alligator clip leads
  • Test cables with alligator clips (red, black, green)
  • Infrared adapter with interface cable
  • FlukeView Forms CD-ROM
  • FlukeView Forms CD-ROM
  • AC power cord
  • Soft carrying case
  • English manual
  • Registration card
  • Quick reference card
  • Software license agreement
  • FlukeView Forms installation guide
  • USB-IR cable installation guide

Fluke 1555/KIT Insulation Tester 3665111

  • IP67 Hard case
  • Certificate of Calibration
  • Heavy-duty alligator clip leads
  • Fluke Connect IR to Wireless Connector
  • Test cables with alligator clips (red, black, green)
  • Infrared adapter with interface cable
  • FlukeView Forms CD-ROM
  • FlukeView Forms CD-ROM
  • AC power cord
  • Soft carrying case
  • English manual
  • Registration card
  • Quick reference card
  • Software license agreement
  • FlukeView Forms installation guide
  • USB-IR cable installation guide

Tiger Supplies offers a 30-day return policy from date of shipment for this product, subject to a 15% restocking fee, in addition to the return shipping charges. The product must be in new condition and in its original packaging. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will take full responsibility and replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Electrical Measurement
AC/DC Voltage
Up to 5,000 volts (1550C); Up to 10,000 volts (1555)
Capacitance
0.01 uF to 15.00 µF
Resistance
Up to 2 Teraohms
Environmental Measurement
Relative Humidity
80 % to 87.8 °F/31 °C decreasing linearly to 50 % at 122 °F/50 °C
General
Battery Power
1 x lead-acid rechargeable
Battery Type
Lead-acid rechargeable
Category Rating
CAT III 1,000 V/ CAT IV 600 V
Display Type
2.95"W x 4.13"H
Power Requirements
12V
Standard Certifications
cCSAus, CE, TUV, N10140
Warranty
3-year warranty
