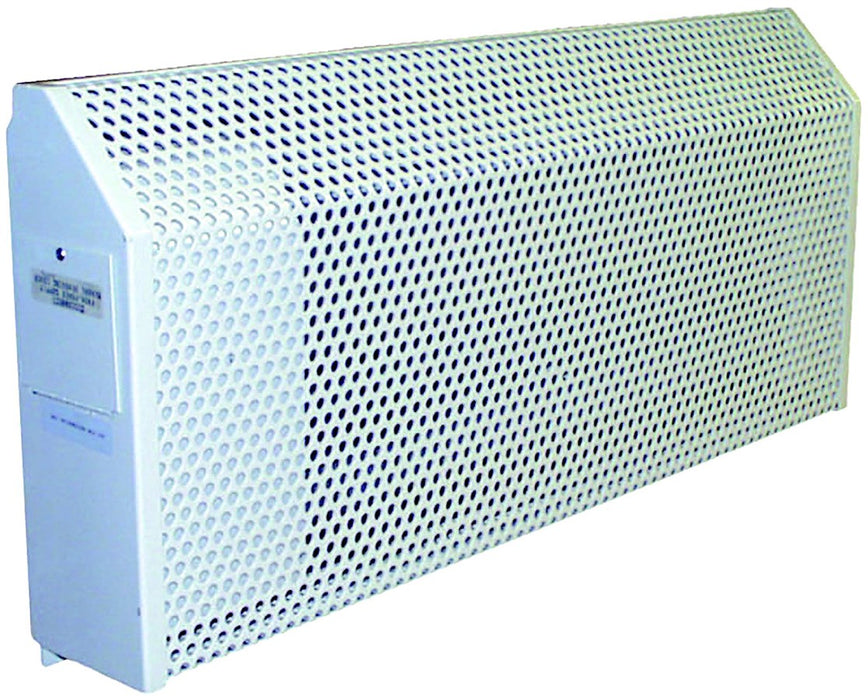

8800 Institutional Wall Convector Heater

by TPI Corporation

MFR#: E8801050

TIGER#: TS60099

List Price: $3,705^.00

You Save: $899^.39 -24%

$3,705^.00 - $3,705^.00

List Price: $3,705^.00

$2,805^.61

$2,805^.61 - $2,805^.61

$2,805^.61

Add to cart for Lower Price

As low as $/mo.

Apply at Cart

8800 Institutional Wall Convector Heater - $2,805^.61

$2,805^.61

*Must Purchase 1 for 8800 Institutional Wall Convector Heater

The cart will thereforce automatically set Qty to 1 when you order this product

Ships Out Within: 14 - 21 Business Days Shipping Date By: 12/27/2023

Documents

Product Manual Item Brochure

Choice of heater wattage & voltages
Single-phase
Voltage range up to 600 V
Thermostat temperature range: 40 °F - 110 °F
Automatic reset hydraulic thermal overload
Construction: 11 gauge perforated steel
Steel high-mass element with Nickel-Chromium resistance wire
cETLus listed

The TPI 8800 Series Institutional Wall Convector is a wall-mounted heat source that warms building interiors of commercial establishments and warehouses. This TPI wall heater comes with a single phase and a voltage range up to 600 volts. It includes an all-steel high-mass element with Nickel-Chromium resistance wire integrated into the dielectric to secure accurate heat transfer.

This TPI wall convector comes with a damage-proof left side control panel that accommodates the single-pole thermostat and disconnect switch. Also, the thermostat offers a temperature range of 40 °F - 110 °F. The 8800 Series convector features an automatic reset hydraulic thermal overload that turns the heater off when an over-temperature occurs.

The TPI institutional wall convector is constructed of an 11 gauge perforated steel with a sloped top design that can withstand rugged environment. It includes tamper-proof fasteners and durable end caps that are welded to the housing. As an added feature, the TPI 8800 series is cETLus listed for safety purposes.

Please Note: The 8800 Series requires a 12-inch clearance on the left part of the unit and four inches to the floor. Also, it is not suitable for use in residential applications.

Configuration Options

The TPI 8800 Series Institutional Wall Convector has 42 models with varied heater wattage and voltage that suit your needs. Please choose from the menu above.

Heater Wattage: 500 watts, 750 watts, 1,000 watts, 1,250 watts, 1,500 watts or 2,000 watts
Voltages: 120 V, 208 V, 240 V, 277 V, 346 V, 480 V or 600 V

Heater Wattage	BTU	Volts	Amps	Dimensions
500 W	1,706	120 V 208 V 240 V 277 V 346 V 480 V 600 V	4.167 2.404 2.083 1.805 1.445 1.042 0.833	18" L x 5" W x 18" H
750 W	2,560	120 V 208 V 240 V 277 V 346 V 480 V 600 V	6.25 3.606 3.125 2.708 2.168 1.563 1.25	28" L x 5" W x 18" H
1,000 W	3,413	120 V 208 V 240 V 277 V 346 V 480 V 600 V	8.333 4.808 4.167 3.610 2.890 2.083 1.667	36" L x 5" W x 18" H
1,250 W	4,266	120 V 208 V 240 V 277 V 346 V 480 V 600 V	10.417 6.010 5.208 4.513 3.613 2.604 2.083	48" L x 5" W x 18" H
1,500 W	5,120	120 V 208 V 240 V 277 V 346 V 480 V 600 V	12.5 7.212 6.25 5.415 4.335 3.125 2.5	60" L x 5" W x 18" H
2,000 W	6,826	120 V 208 V 240 V 277 V 346 V 480 V 600 V	16.667 9.615 8.333 7.220 5.780 4.167 3.333	72" L x 5" W x 18" H

Choice of heater wattage & voltages
Wall-mounted heat source
Single-phase
Voltage range up to 600 V
Steel high-mass element with Nickel-Chromium resistance wire
Damage-proof left side control panel
Thermostat temperature range: 40 °F - 110 °F
Automatic reset hydraulic thermal overload
11 gauge perforated steel with sloped top design
Tamper-proof fasteners
Durable end caps
cETLus listed

What’s in the Box

TPI 8800 Series Institutional Wall Convector
1-year limited warranty

Available Product Options

Heater Wattage: 500 watts, 750 watts, 1,000 watts, 1,250 watts, 1,500 watts or 2,000 watts
Voltages: 120 V, 208 V, 240 V, 277 V, 346 V, 480 V or 600 V

This Product is manufactured to order and cannot be returned. We take the responsibility to make sure this product arrives in a brand new working condition. Should your item arrive damaged, we will replace the product at no cost to you.

For complete details of our return policy and process, please refer to our general return policy page.

Control Enclosure

Control Voltage

24 V

Dimensions

Heater

18" L x 5" W x 18" H (500 W Models); 28" L x 5" W x 18" H (750 W Models); 36" L x 5" W x 18" H (1,000 W Models); 48" L x 5" W x 18" H (1,250 W Models); 60" L x 5" W x 18" H (1,500 W Models); 72" L x 5" W x 18" H (2,000 W Models)

Features

Cart

Disconnect Switch

Forklift Channels

Pilot Light

Thermostat

Yes

General

Housing

11-gauge perforated steel

Warranty

1-year limited

Weight

24 lbs

Heater

Amps

0.833, 1.042, 1.25, 1.445, 1.563, 1.667, 1.805, 2.083, 2.168, 2.404, 2.5, 2.604, 2.708, 2.890, 3.606, 3.610, 3.125, 3.333, 3.613, 4.167, 4.335, 4.513, 4.167, 4.808, 5.208, 5.415, 5.780, 6.010, 6.25, 7.212, 7.220, 8.333, 9.615, 10.417, 12.5, 16.667

BTU

1,706 BTU, 2,560 BTU, 3,413 BTU, 4,266 BTU, 5,120 BTU, 6,826 BTU

Power Distribution

1-Phase

Voltage

120 V, 208 V, 240 V, 277 V, 346 V, 480 V, 600 V

Wattage

500 watts, 750 watts, 1,000 watts, 1,250 watts, 1,500 watts, 2,000 watts
