Nikon HNA40500 XF Reflectorless Total Station w/ Optical or Laser Plummet *DISCONTINUED*

    By Nikon | Mfr#: HNA40500 | Tiger#: TS45611


    • Angular accuracy options from 1-sec to 5-sec
    • Single-prism range up to 16,400 ft
    • Reflectorless range up to 2,600 ft
    • Comes with Autofocus feature (exclusive to Nikon XF only)
    • Choice of optical or laser plummet
    • Internal 512 MB RAM and 4 GB flash memory
    • Integrated Survey Basic, Survey Pro, and Layout Pro (sold separately)
    • Built-in Bluetooth connectivity
    • IP66 dustproof and waterjet resistant
    • Up to 14 hours dual Li-ion battery life
    More Product Details What's Included
    Alternative Models
    Ships Out Within: Discontinued

    Essential Add-Ons:

    List Price: $12,680.00
    Add to cart for Lower Price
    You Save: $1,965.00 - 15%
    • Product Options
    Availability:Out Of Stock
    Ships Out Within: Discontinued
    Tiger Supplies no longer carries this item

    Overview for Nikon HNA40500 XF Reflectorless Total Station w/ Optical or Laser Plummet

    The Nikon XF Reflectorless Total Station of the Nikon XF Series is specially designed for fast long-range measurements. As opposed to its shorter-range cousin Nikon XF HP, the Nikon XF can measure up to 2,600 feet without a prism and up to 16,400 feet with a single prism. It also has an Autofocus feature (exclusive to Nikon XF) that improves efficiency and reduces worker fatigue.

    Nikon XF Series: The Nikon XF is part of the Nikon XF Series, a portfolio of Nikon mechanical total stations that lets you choose the EDM technology that best fits your type of work. It has two models: the Nikon XF which uses the Time of Flight (TOF) EDM for long-range measurements and the Nikon XF HP which uses Phase Shift EDM for higher precision/smaller spot (although shorter-range) measurements. The Nikon XF is ideal if your work mainly involves construction, road survey, mining, and other jobs that require accurate long-range measurements. Please refer to the table at the end of this page for more information on the differences between the two models.

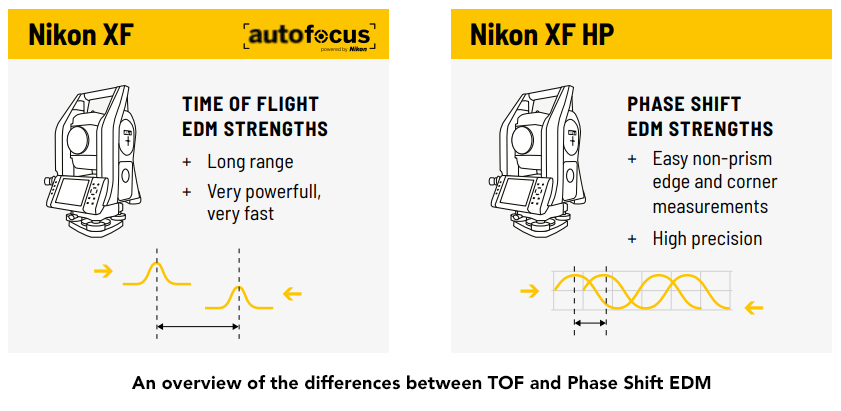

    A snapshot of the differences between the TOF and Phase Shift EDM

    Top-Notch Performance: Available in 5”, 3”, 2”, ad 1” angle accuracies, the Nikon XF Total Station features dual-axis compensation with liquid-electric detection for accurate angle measurements. It also uses superior Nikon optics with 30x magnification that provides crisp and bright sightings that reduce eye fatigue.

    Efficient Field Workflow: The Nikon XF Series Total Stations have dual-color touchscreen displays that can run Survey Basic, Survey Pro, and Layout Pro onboard (sold separately). With these software options, you can collect data, layout your site, and do all your surveying tasks with ease. Further, its long-lasting hot-swappable batteries reduce downtime in the field. It also has an optical or laser plummet for fast and accurate centering. It has PIN security to prevent unauthorized use and is Trimble Locate2Protect ready for effective tracking of lost or stolen equipment.

    Seamless Data Transfer: Data transfers to PCs and data collectors are made easier with the Total Station File Transfer app and a Class 1 Bluetooth with a range of up to 328 feet. It also connects with PCs with an RS-232C cable and two USB ports. You can also store files in its 512 MB RAM and 4 GB flash memory.

    This Nikon total station comes with an IP66 protection rating, making it dustproof and water-resistant. With its lightweight and compact design, the XF total station is easy to handle, store, and transport.

    Configuration Options

    The Nikon XF Reflectorless Total Station offers four accuracies with two choices of plummets. Please select your preference from the drop-down menu above.

    • HNA40100: 1” Accuracy with Optical Plummet
    • HNA40200: 2” Accuracy with Optical Plummet
    • HNA40300: 3” Accuracy with Optical Plummet
    • HNA40500: 5” Accuracy with Optical Plummet
    • HNA40203: 2” Accuracy with Laser Plummet
    • HNA40303: 3” Accuracy with Laser Plummet
    • HNA40503: 5” Accuracy with Laser Plummet


     Nikon XF Nikon XF HP
     Measurement principleTime of FlightPhase Shift
     Laser classClass 1Class 1 / Class 3R
     Distance accuracy (ISO Standard)

    Prism : ± (2 mm + 2 ppm)
    Reflectorless : ± (3 mm + 2 ppm)

    Prism : ± (1 mm + 1.5 ppm)
    Reflectorless : ± (2 mm + 2 ppm)
     Distance rangePrism : 5000 m
    Reflectorless : 800 m
    Prism : 3000 m
    Reflectorless : 500 m
     Measurement time Prism : 1.0 s Prism : 1.6 s
     Spot size (at 30 m)  60 mm 26 mm
     Angle accuracy 1”, 2”, 3”, 5” 1”, 2”, 3”, 5”
     Autofocus Yes Not Available
     Plummet Optical / Laser Optical
     Battery Meas. every 30 s 12 h (AF every 30 s) 18 h
