    Spectra Precision GL412N-BCC GL412N Grade Laser With Vertical Alignment

    By Spectra Precision | Mfr#: GL412N-BCC | Tiger#: TS29413

    Highlights

    • Range up to 2,600 feet with laser receiver
    • Accuracy ±1/16 inch at 100 feet
    • Self-leveling within ±5 degrees
    • Single grade from –10 to +15%
    • Vertical plumb alignment
    • Optional remote control
    • Height of instrument alert
    • IP66 dustproof & powerful water jet resistant
    More Product Details What's Included
    Alternative Models
    $1,989.00
    Ships Out Within: 10 - 12 Weeks
    $2,699.00
    Ships Out Within: 24 - 48 Hours
    $3,887.81
    Ships Out Within: 10 - 12 Weeks
    List Price: $1,470.00
    $1132.00
    You Save: $338.00 - 23%
    • Product Options
    Availability:In Stock
    Ships Out Within: 24 - 48 Hours

    Recommended Accessories: (32)

    Overview for Spectra Precision GL412N-BCC GL412N Grade Laser With Vertical Alignment

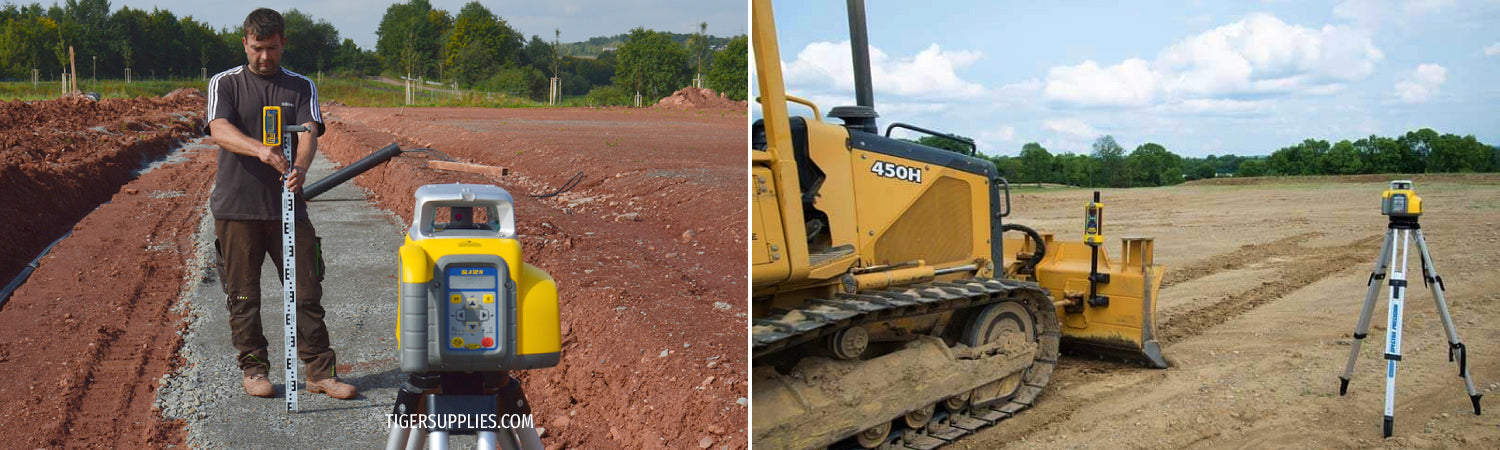

    Simplifies level, grade, and vertical alignment setups, the Spectra Precision GL412N Single Grade Laser delivers reliable and accurate performance in various general construction applications. With a working range of up to 2,600 feet, it has a grade capability of 10 to +15 percent on a single axis. The GL412N is also self-leveling horizontally and vertically within 5 degrees and has an accuracy of 1/16 inch per 100 feet. For anchor bolt and form alignment, itself-plumbs in the vertical position and can be mounted on a 5/8-11 tripod thread vertically or horizontally.

    The Spectra GL412N has an out-of-level alert that shuts off the grade laser if it is knocked out of place to avoid erroneous readings. It also has a selection of sensitivity for accurate results even in high winds or on high vibration job sites.

    With an IP66 rating, the GL412N laser level is protected against dust and water jets from any angle. It can also withstand drops of up to three feet onto concrete and tripod tip-overs up to five feet. This slope laser uses NiMH batteries and works up to 35 hours of continuous use.

    Configuration Options

    The optional Spectra CR700 laser receiver can be rod or machine mounted, making it ideal for measuring cut and fill, leveling forms and footers, setting grade, and measuring elevation changes. With the magnetic mount, it can be easily attached to a backhoe, small excavator, box blade, or skid steer loader.



    Works with the Spectra GL412N in automatic Grade Match and PlaneLok, the optional HL760 laser receiver features a digital readout of elevation and an anti-strobe sensor to prevent false reading from job site strobe lights. It also has a unique fingerprint function that detects only the laser beam of the paired device.



    The optional Spectra RC402N full-function remote control offers an easy to use menu-driven interface. With a working range of up to 330 feet, this radio remote provides the ability to make long-range grade changes and automatic alignments. Please select your preference from the menu above.



    • GL412N-BCC: Laser Only
    • GL412N-14: Laser w/ CR700 Receiver, Magnetic Mount & RC402N Remote Control
    • GL412N: Laser w/ HL760 Receiver, RC402N Remote Control & Vertical Adapter
    • GL412N-NR: Laser w/ HL760 Receiver
    No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
    Shock Proof ensures this construction laser withstands three feet drop onto concrete.
    Included Radio Remote control is easier to use because it does not have to be aimed at the laser for it to work. This increases the flexibility of the laser for long-range setups while maintaining outstanding accuracy.
    Fingerprint function filters out other lasers that strike the receiver and only accept the laser that it is paired with.
    Grade Match enables contractors to measure an unknown grade value automatically between two elevation points.
    Dual Axis PlaneLok keeps the laser beam fixed to a receiver in a set position, making it accurate and error-free.



    Scroll back to Top

    Compare Similar Models:


    Models
    Current Model
    Spectra Precision GL412N-BCC GL412N Grade Laser With Vertical Alignment
    hideClassification
    Class 2Class 2Class 3A/3RClass 2
    hideColor
    RedRedRedRed
    hideDirection
    Horizontal and verticalHorizontal and verticalHorizontal and verticalHorizontal only
    hideVisibility
    VisibleVisibleVisibleVisible
    hideWavelength
    650 nm650 nm650 nmN/A
    hideExterior
    Up to 2,600 feet (800m)Up to 2,600 feet (800m)Up to 2,600 feet (800 m)Up to 3,000 feet (914 m)
    hideInterior
    N/AN/AN/AN/A
    hideRemote
    N/AN/AN/AN/A
    hideSelf Leveling
    ±5 degrees±5 degrees±14 degrees±5 degrees
    hideBattery Life Alert
    YesYesYesYes
    hideBattery Life with Alkaline Batteries
    Up to 50 hoursUp to 50 hoursUp to 40 hoursUp to 30 hours
    hideBattery Life with Rechargeable Battery Pack
    Up to 35 hoursUp to 35 hoursUp to 35 hoursUp to 20 hours
    hidePower Source
    NiMH or alkaline batteriesNiMH or alkaline batteriesNiMH or alkaline batteriesNiCad or NiMH batteries
    hideAdjustable Rotating Speed
    300, 600 RPM300, 600 RPM0 - 750 RPM300, 600, 900 RPM
    hideAutomatic Shut-Off
    N/AN/AYesYes
    hideBuilt-in Bubble Vial
    N/AN/AN/AN/A
    hideBump Sensor (H.I./Out of Position Alert)
    YesYesN/AN/A
    hideDetecting Indicator
    N/AN/ALCD indications and LED flashesN/A
    hideDisplay
    N/AN/ABacklit, graphic LCDLarge, alphanumeric
    hideDrop Damage Protection
    Up to 3 feet onto concreteUp to 3 feet onto concreteUp to 3 feet onto concreteN/A
    hideDual Handles
    N/AN/AN/AN/A
    hideOne-Touch Commands
    N/AN/AN/AN/A
    hidePlumb Point
    N/AN/AN/AN/A
    hideProtection Class
    IP66 dustproof and powerful water jet resistantIP66 dustproof and powerful water jet resistantIP67 dustproof and water submersibleN/A
    hideRemovable Laser Cage (for exact beam spotting)
    N/AN/AN/AN/A
    hideTripod Adapter (Center Screw Thread)
    5/8 x 115/8 x 115/8 x 115/8 x 11
    hideWall Mount Bracket
    N/AN/AN/AN/A
    hideDimensions
    N/AN/AN/A11.75" L x 10.0" W x 7.75" H
    hideMaximum Power Output
    <3.4 mW<3.4 mWN/AN/A
    hideRemote Control Operating Distance
    Up to 330 feet (100 m)Up to 330 feeet (100 m)Up to 490 feet (150 m)Up to 750 feet (225 m) for general operation; Up to 500 feet (150 m) for automatic alignment
    hideWarranty
    5-year5-year5-year2-year
    hideWeight
    6.8 lbs (3.1 kg)6.8 lbs (3.1 kg)6.8 lbs (3.1 kg) 18.8 lbs (8.5 kg)
    hideDetector/Receiver
    HL760 or CR700HL760 or CR7002 x HL760HL700/CR600
    hideRemote Control
    RC402NRC402NRC603NN/A
    hideSmart Scan®
    N/AN/AN/AN/A
    hideSmart Slope®
    N/AN/AN/AN/A
    hideHorizontal
    ±1/16 inch at 100 feet±1/16 inch at 100 feet±1/16 inch at 100 feet±1/16 inch per 100 feet
    hideVertical
    ±1/16 inch at 100 feet±1/16 inch at 100 feetN/AN/A
    hideOperating
    -4 to 122 °F (-20 to 50 °C)-4 to 122 °F (-20 to 50 °C)-4 to 122 °F (-20 to 50 °C)N/A
    hideStorage
    -4 to 158 °F (-20 to 70 °C)-4 to 158 °F (-20 to 70 °C)-4 to 158 °F (-20 to 70 °C)N/A
    hideCharging Time
    N/AN/AUp to 10 hoursN/A
    hideInput
    N/AN/AN/AN/A
    hideOutput
    N/AN/AN/AN/A
    hideAutomatic Leveling
    YesYesYesYes
    hideBeam Operating Modes
    N/AN/ABeam maskingN/A
    hideGrade Operation
    AutomaticAutomaticAutomaticAutomatic
    hideScanning Modes
    N/A-5 preset sizes and variable adjustmentN/A
    hideSlope Match
    YesYesYesN/A
    hide Concrete Forms, Footings and Foundations
    YesYesYesYes
    hideChecking Building Square & Area
    YesYesYesYes
    hideChecking Elevations of Sub-Base and Sub-Grade
    YesN/AYesYes
    hideChecking/Setting Elevations
    YesYesYesYes
    hideEstimating Cut & Fill
    YesYesYesYes
    hideInstallation of Interior Fittings (cabinets, lighting, windows, countertops, etc.)
    YesYesYesYes
    hideInstallation/Leveling Ceiling Grids
    YesYesYesYes
    hideInstallation/Leveling Interior Walls
    YesYesYesYes
    hideLocating Finished Floor Levels
    YesYesYesYes
    hideMachine Control of Excavators, Graders, Dozers or Similar Equipment
    YesYesYesYes
    hideMatching Existing Slope & Grade
    YesYesYesN/A
    hidePlumb Reference
    N/AN/AYesN/A
    hideShort-Range Leveling for Decks, Patios & Swimming Pools
    YesYesYesYes
    hideShort-Run Vertical Alignment
    YesYesYesYes
    hideSquaring and Layout of Partitions, Walls & Tile Floors
    YesYesYesYes
    hideTransferring Points from Floor to Ceiling
    YesYesYesYes
    hideAccuracy
    N/AN/A±1/8 inch at 100 feet (3.0 mm per 30 m)±1/8 inch at 100 feet
    hidePercentage
    –10 to +15%–10 to +15%±25% (X,Y,Z axes)-0.5 to +25%
    hideType
    SingleDualUniversalSingle
